Ref.: 968796 49

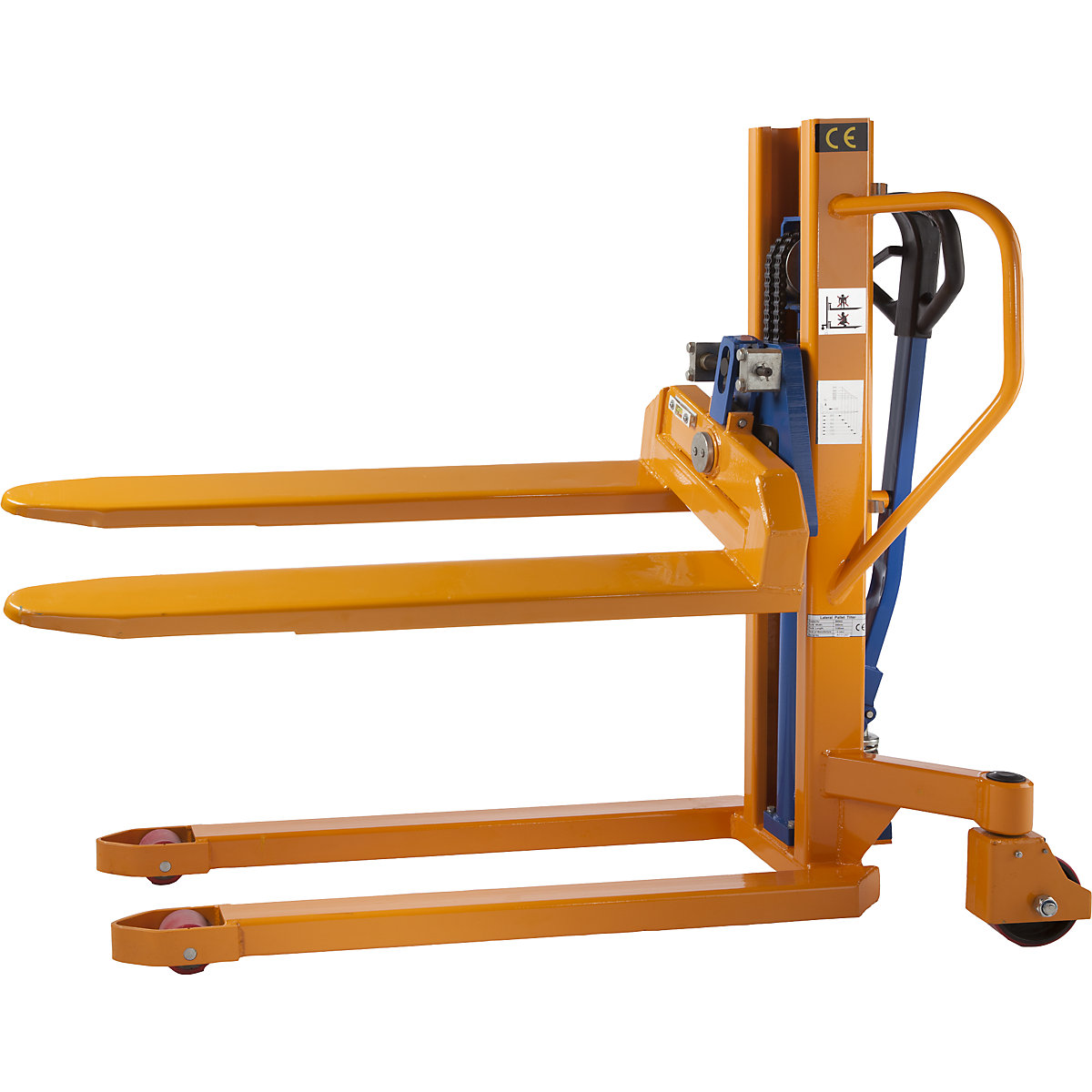

Pallet stacker tilting forks

Pallet stacker

max. load 800 kg

£2,225.00
Price / item (Excl. VAT)
Only 3 available
Delivery time: 2 Week delivery
Product description
  • For lifting pallets and mesh pallets
  • With tilting forks
  • Solid, hardwearing precision steel profile mast
  • Also suitable for mesh pallets
Leaning too far forward and twisting the back whilst loading and unloading pallets and mesh pallets can cause injury to workers' backs.
Pallet stackers bring goods to the worker and thus reduce strain to a minimum. Compact dimensions are advantageous for placement at the workstation.

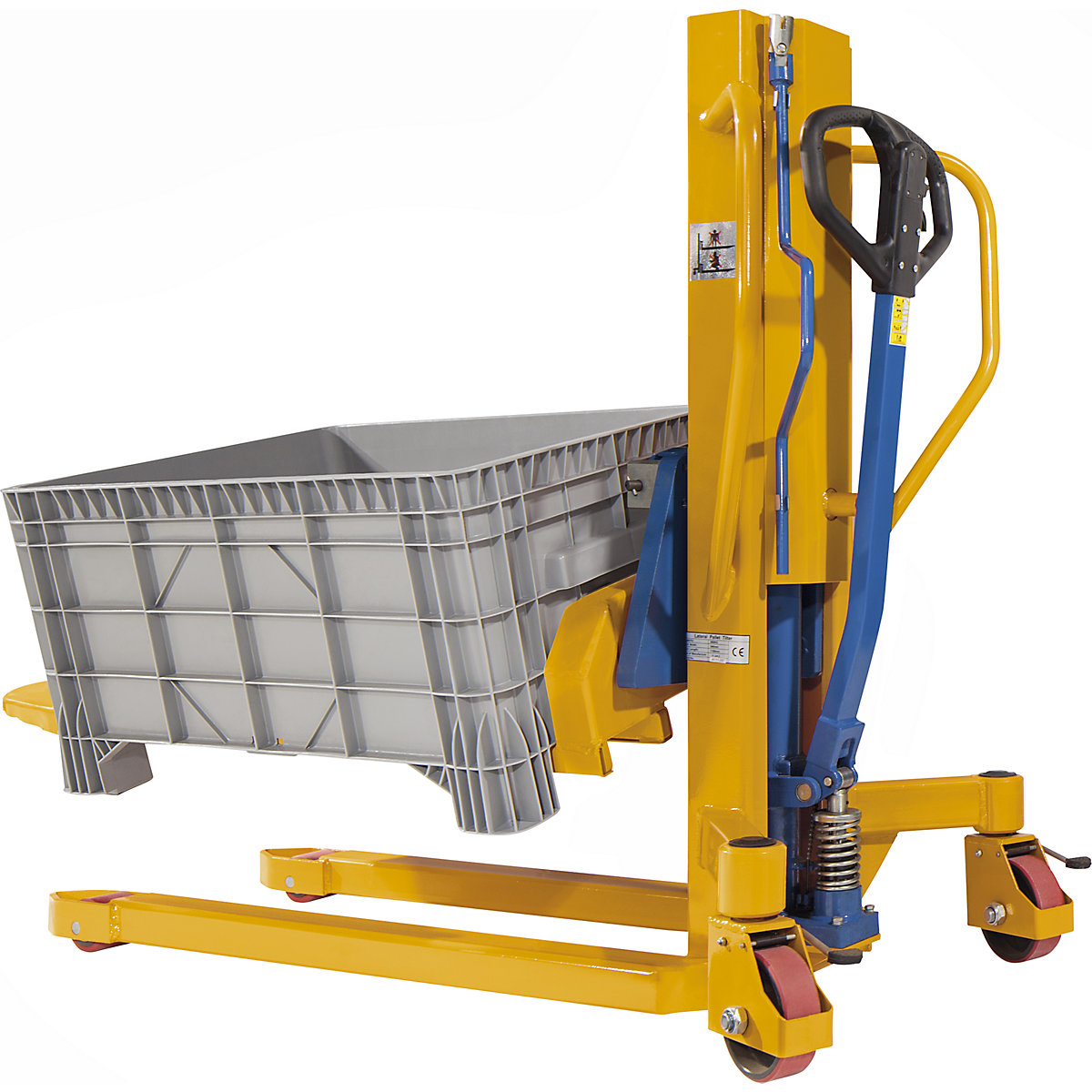

Specially with extended fork tips for securely holding mesh pallets.
Maintenance free guide rollers and closed, low maintenance hydraulic system.
Polyurethane steering wheels optimised for mobility and precise positioning, both with wheel stops.

2 x 20° inclination precisely adjustable with crank. Enables easy access in deep mesh pallets to protect against back injuries.
Please note
Secure loads against slipping. Pallets with raised edges are ideal. Observe centre of gravity. Max. container height 500 mm.
Technical data
Max. load800 kg
Lifting range88 – 920 mm
Lift drivemanual hydraulics
Fork length1220 mm
Fork width150 mm
Distance across forks540 mm
Length1740 mm
Width785 mm
Height1320 mm
Lift per pump stroke18.5 mm
Steering wheel materialpolyurethane
Steering wheel diameter200 mm
Steering wheel width50 mm
Roller materialpolyurethane
Fork roller versionsingle
Fork roller diameter80 mm
Fork roller width70 mm
Colourmelon yellow RAL 1028
Load centre600 mm
Turning radius1600 mm
Featuremanual mobile
Modelwith tilting forks
Slopeby 20° to both sides
Materialsteel
Product typepallet stackers
Suppliedassembled
Weight210 kg
Instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

1,449kg CO₂e
LCA Raw Material Extraction & Processing
48.6%
LCA packaging production
0.8%
LCA Product Manufacturing
40.7%
LCA Inbound and Outbound Transportation
9.9%
‌
‌
‌
‌
‌
