Ref.: 474284 49

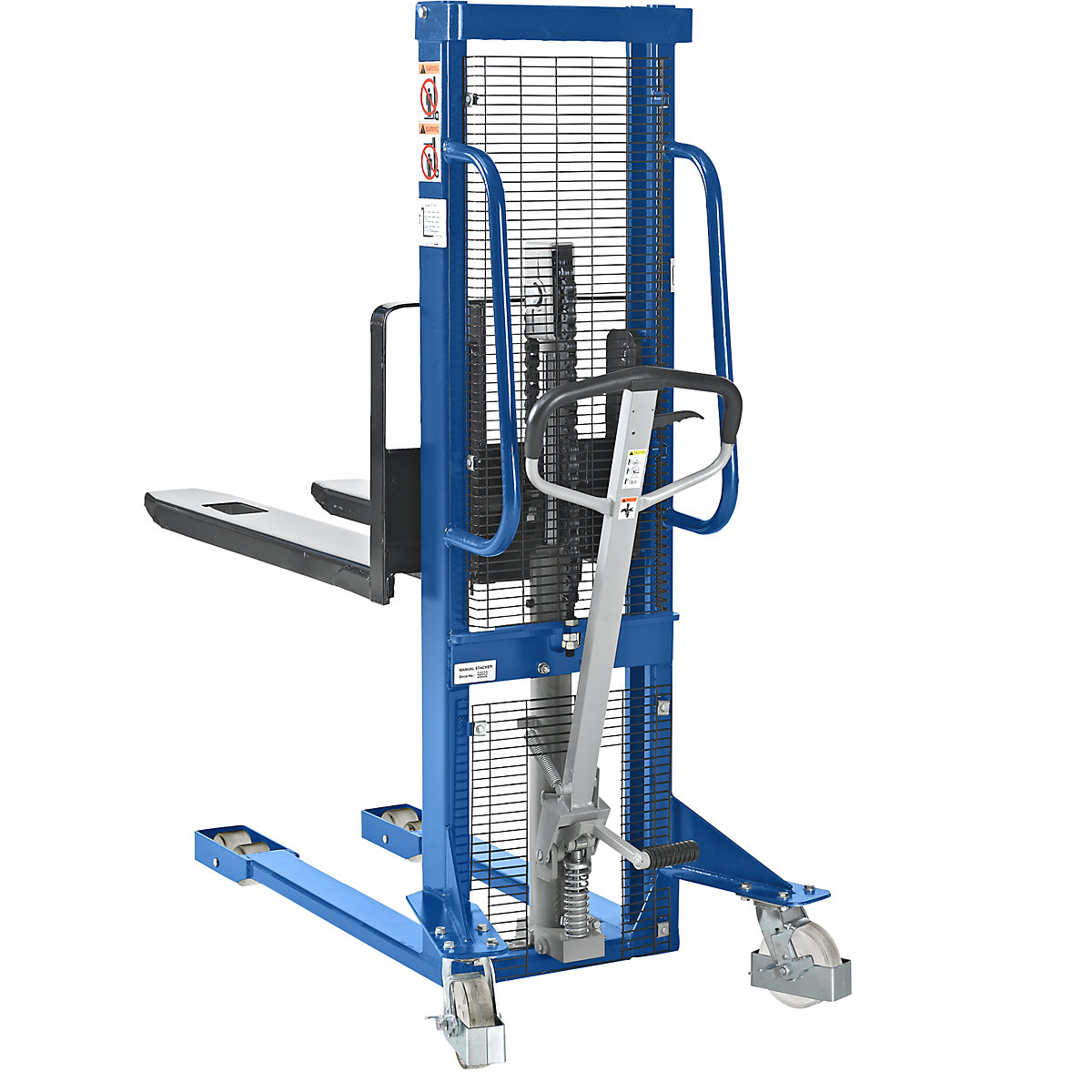

High lift stacker lifting range 90 – 1200 mm, max. load 1100 kg

(1)
High lift stacker

overall height 1720 mm

£995.00
Price / item (Excl. VAT)
Only 11 available
Delivery time: 2 Week delivery
Product description
  • Energy saving lifting using drawbar or pedal
  • Fits through most doors
  • Compact design for narrow aisles and warehouses
  • Smooth running due to nylon castors, even with a full load
  • Increased floor clearance and tandem fork rollers for uneven floors
  • Long service life due to safety overload pressure valve
The high lift stacker provides a practical combination that allows pallets and heavy loads to be lifted and moved in warehouse and production environments. The drawbar stacker lifts loads precisely to the required height and is also ideal for intermediate levels of shelving units. Lifting is effortless using the drawbar or the practical pedal. Continuous lowering using the lowering lever on the ergonomically shaped drawbar ensures easy handling. In addition, a safety overload valve provides protection from damage for a long stacker service life.

The robust workmanship with a reinforced mast profile and a chrome plated hydraulic piston make this high lift stacker particularly durable and reliable. The load chains and the lifting cylinder are secured by a guard screen, which provides protection from falling objects and allows a clear view in the direction of travel. Large push handles provide a good grip for comfortable manoeuvring. Brakes on the castor wheels ensure a safe stand.
Nylon castors ensure smooth running, even when under full load. The tandem fork rollers also make the high lift stacker suitable for uneven floors, while the increased floor clearance of 40 mm allows versatile use in a wide variety of environments. A hardwearing powder coating protects the surface and ensures an attractive appearance. This high lift stacker is particularly suitable for precise handling and positioning of pallets and loads – even in narrow rows of shelves and aisles.
Technical data
Max. load1100 kg
Load centre600 mm
Lifting range90 – 1200 mm
Fork length1150 mm
Distance across forks550 mm
Fork width170 mm
Length1705 mm
Width755 mm
Overall height1720 mm
Design of mastsingle mast
Lift per pump stroke20 mm
Wheel fittings2 swivel castors with wheel stops
Wheel materialnylon
Castor diameter front / rear83 / 150 mm
Steering wheel materialnylon
Steering wheel width40 mm
Fork roller versiontandem
Roller materialnylon
Fork roller width60 mm
Finishpowder coated
Coloursignal blue RAL 5005
Materialsteel
Product typehigh lift stackers
Suppliedassembled
Weight191 kg
Instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

1,227kg CO₂e
LCA Raw Material Extraction & Processing
50%
LCA packaging production
0.9%
LCA Product Manufacturing
38.5%
LCA Inbound and Outbound Transportation
10.6%
‌
‌
‌
‌
‌
‌
