Ref.: 986300 49

High lift stacker lifting range 90 – 1600 mm, max. load 1000 kg

High lift stacker

overall height 1980 mm

£2,225.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description
  • Max. load 1000 kg
  • Environmentally friendly: manual transport and lifting

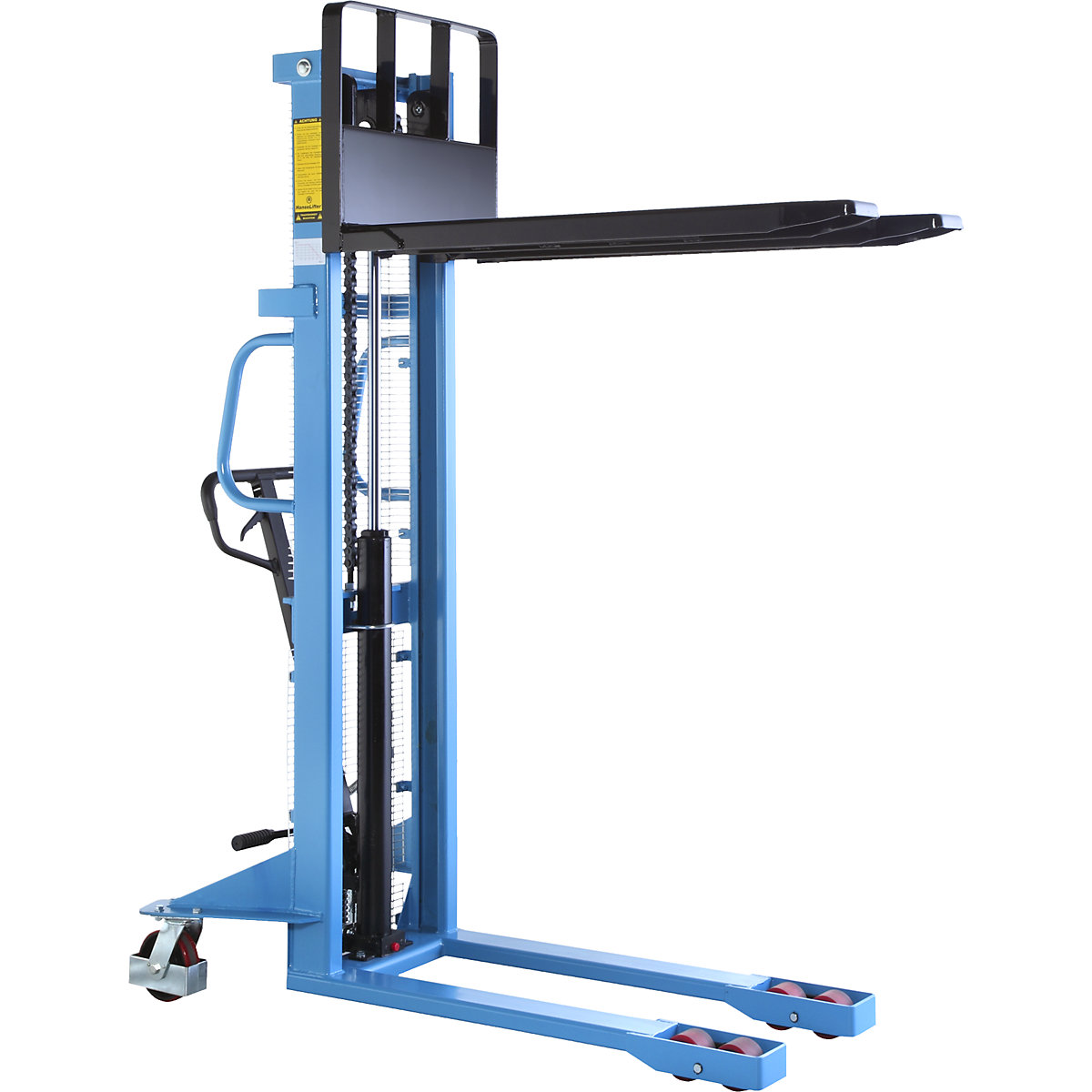

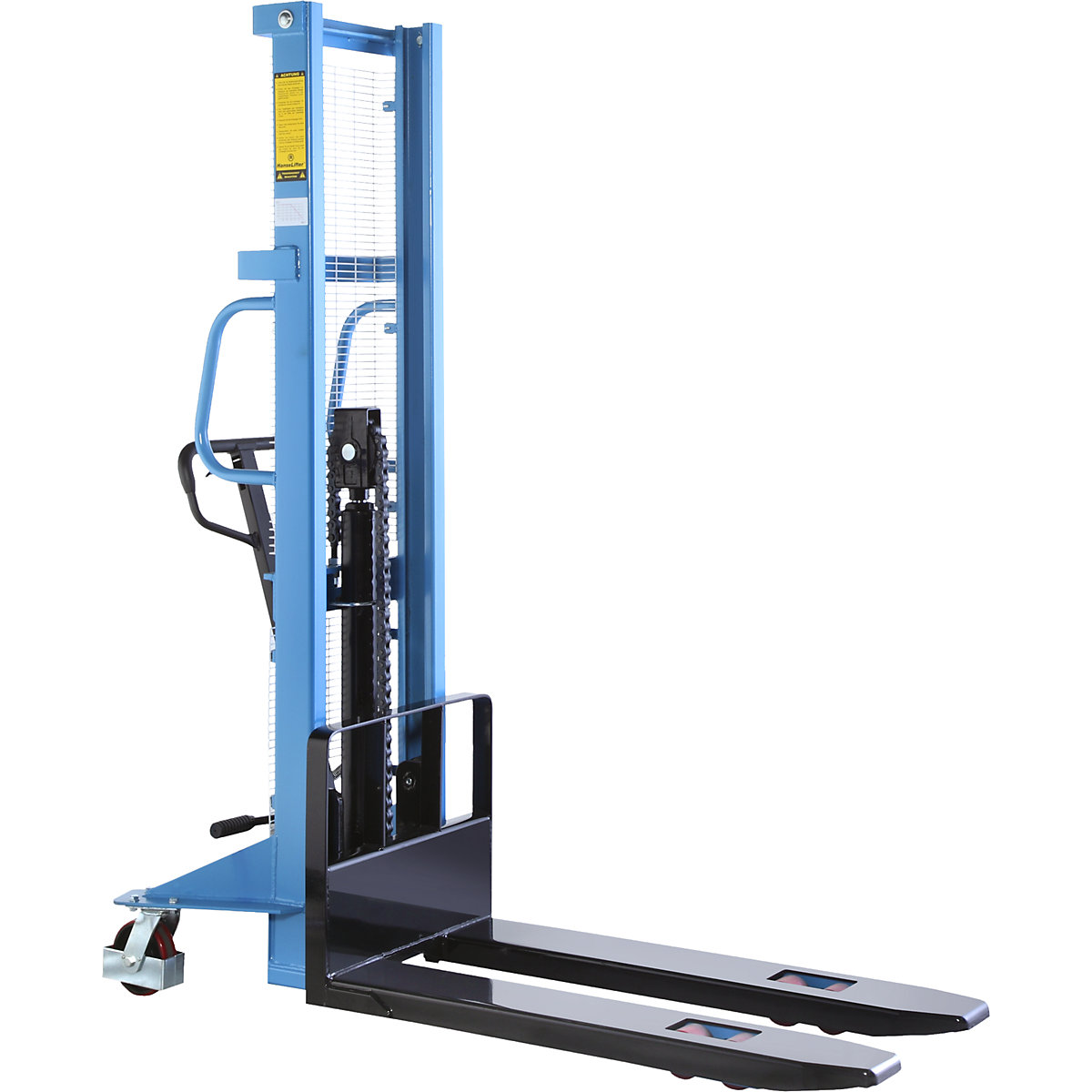

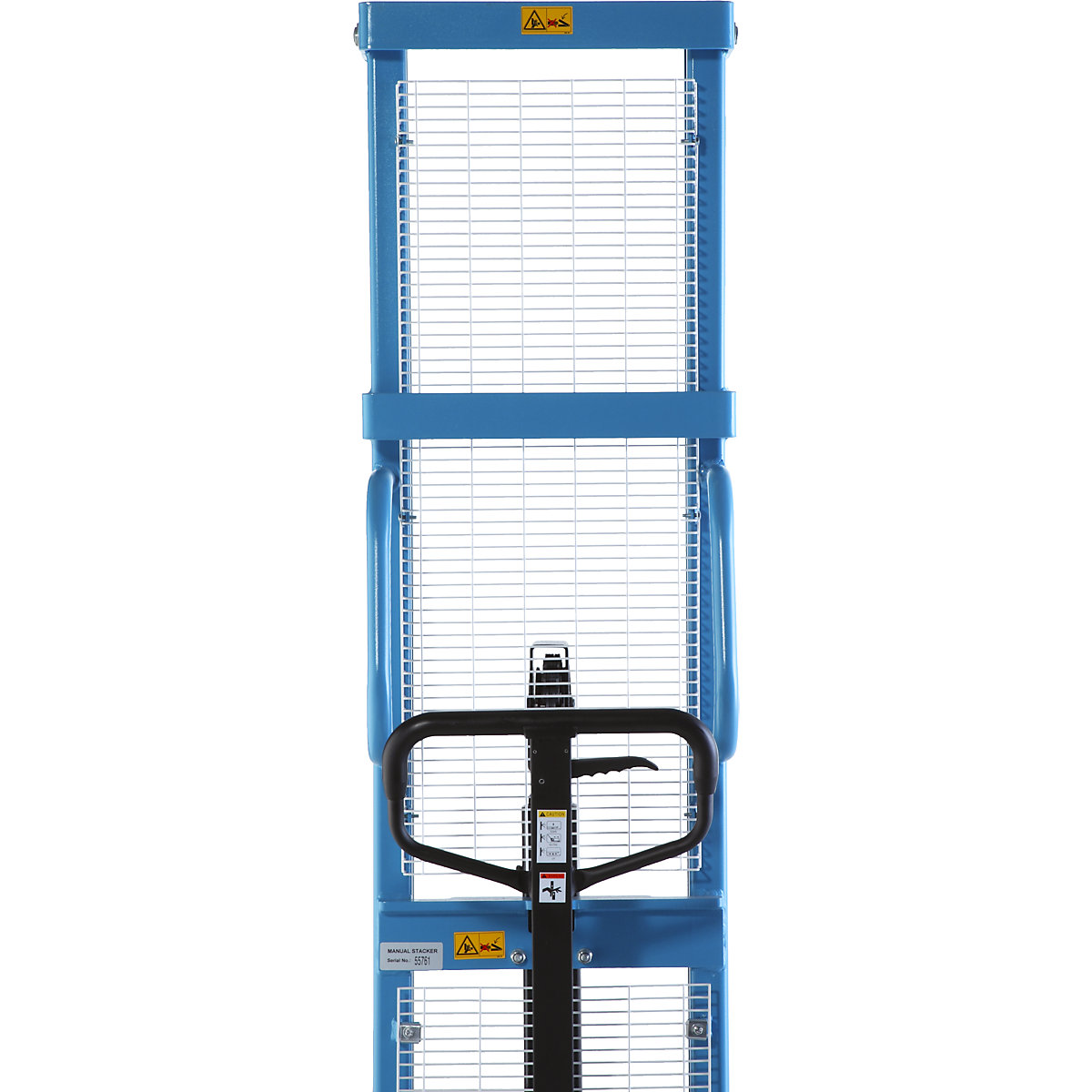

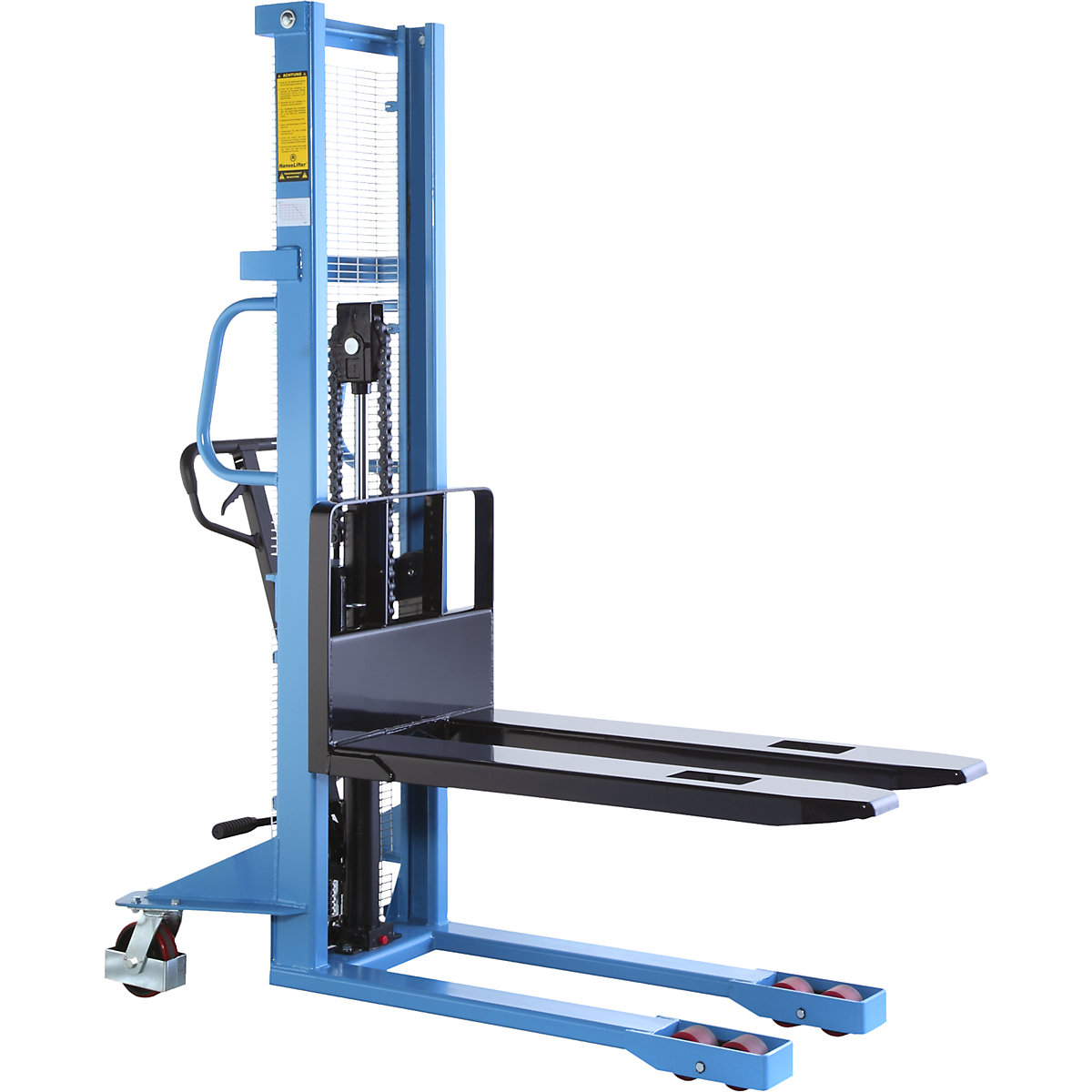

Robust construction with reinforced mast profile. Load chain and hydraulic cylinder with guard screen for safety.
Excellent stability due to wheel stops on the steering wheels – even under full load.
High quality powder coating in light blue RAL 5012.
Lifting and lowering
Energy saving lifting via drawbar or pedal. Hardened, chrome plated hydraulic ram.

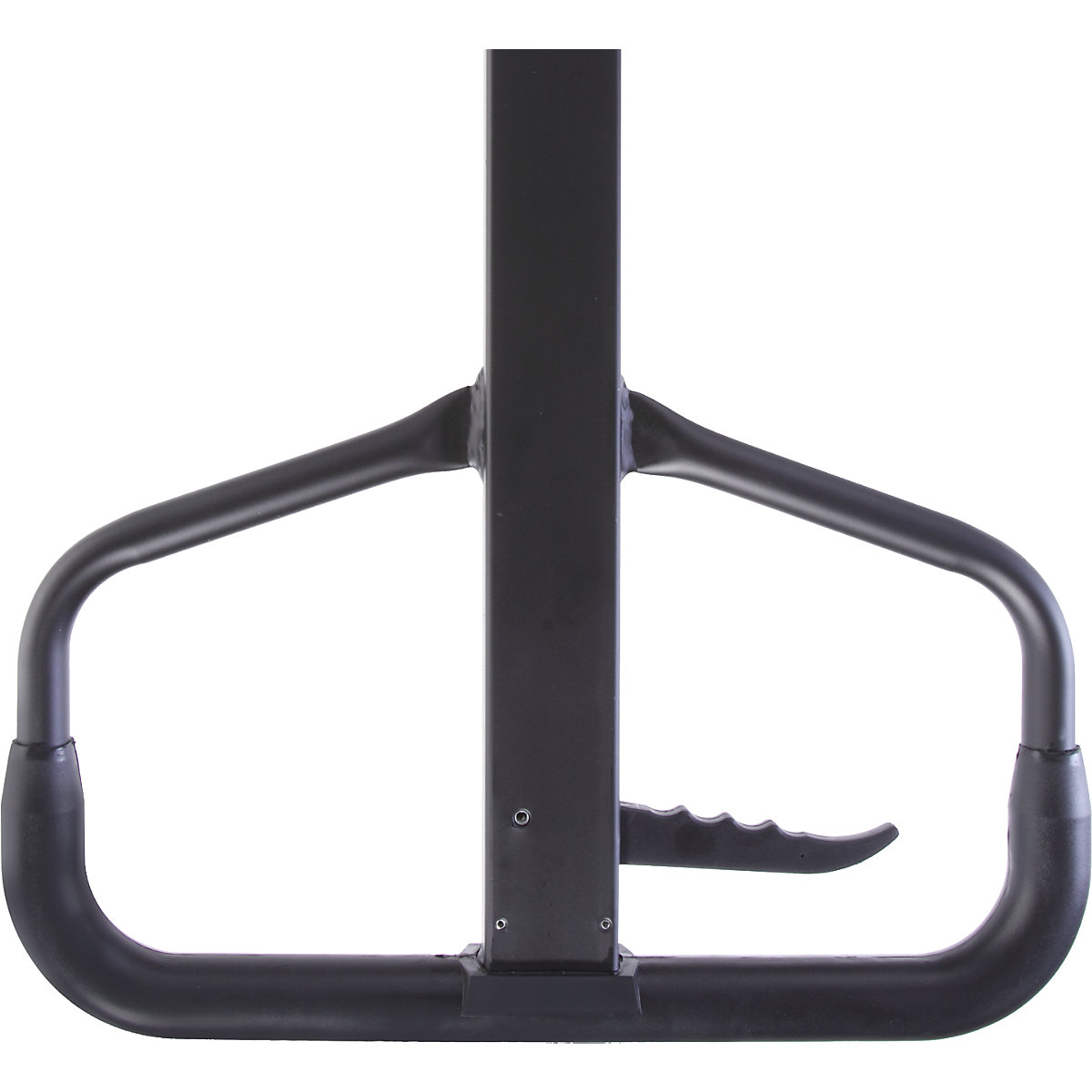

Progressive lowering via rubberised, ergonomically shaped drawbar handle. Safety overload valve ensures a long service life.
Technical data
Max. load1000 kg
Load centre600 mm
Lifting range90 – 1600 mm
Fork length1150 mm
Distance across forks550 mm
Fork width170 mm
Length1705 mm
Width755 mm
Overall height1980 mm
Design of mastsingle mast
Lift per pump stroke20 mm
Wheel fittings2 swivel castors with wheel stops
Wheel materialpolyurethane
Castor diameter front / rear83 / 150 mm
Steering wheel width40 mm
Fork roller versiontandem
Fork roller width60 mm
Finishpowder coated
Colourlight blue RAL 5012
Product typehigh lift stackers
Suppliedassembled
Weight230 kg
