Ref.: 969076 49

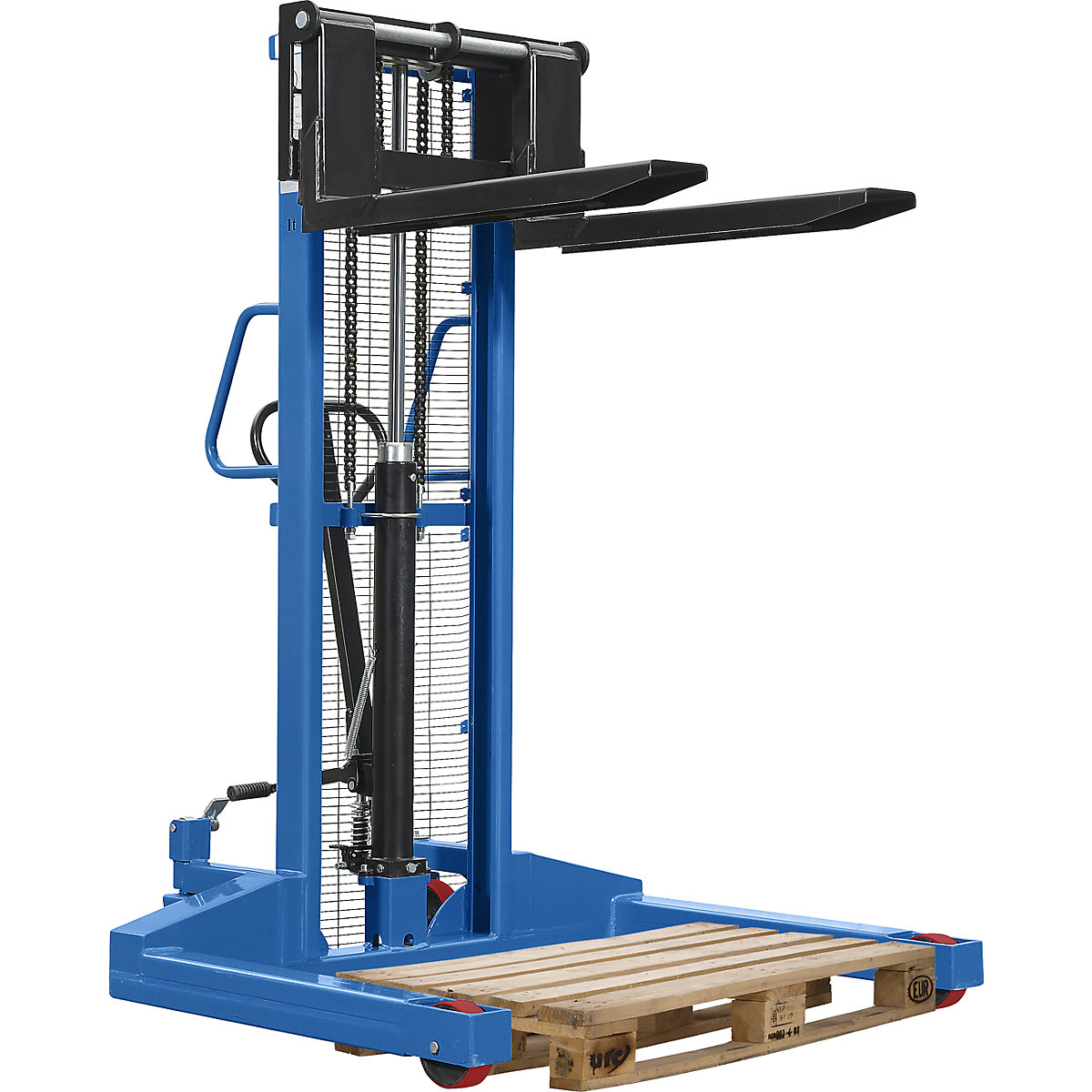

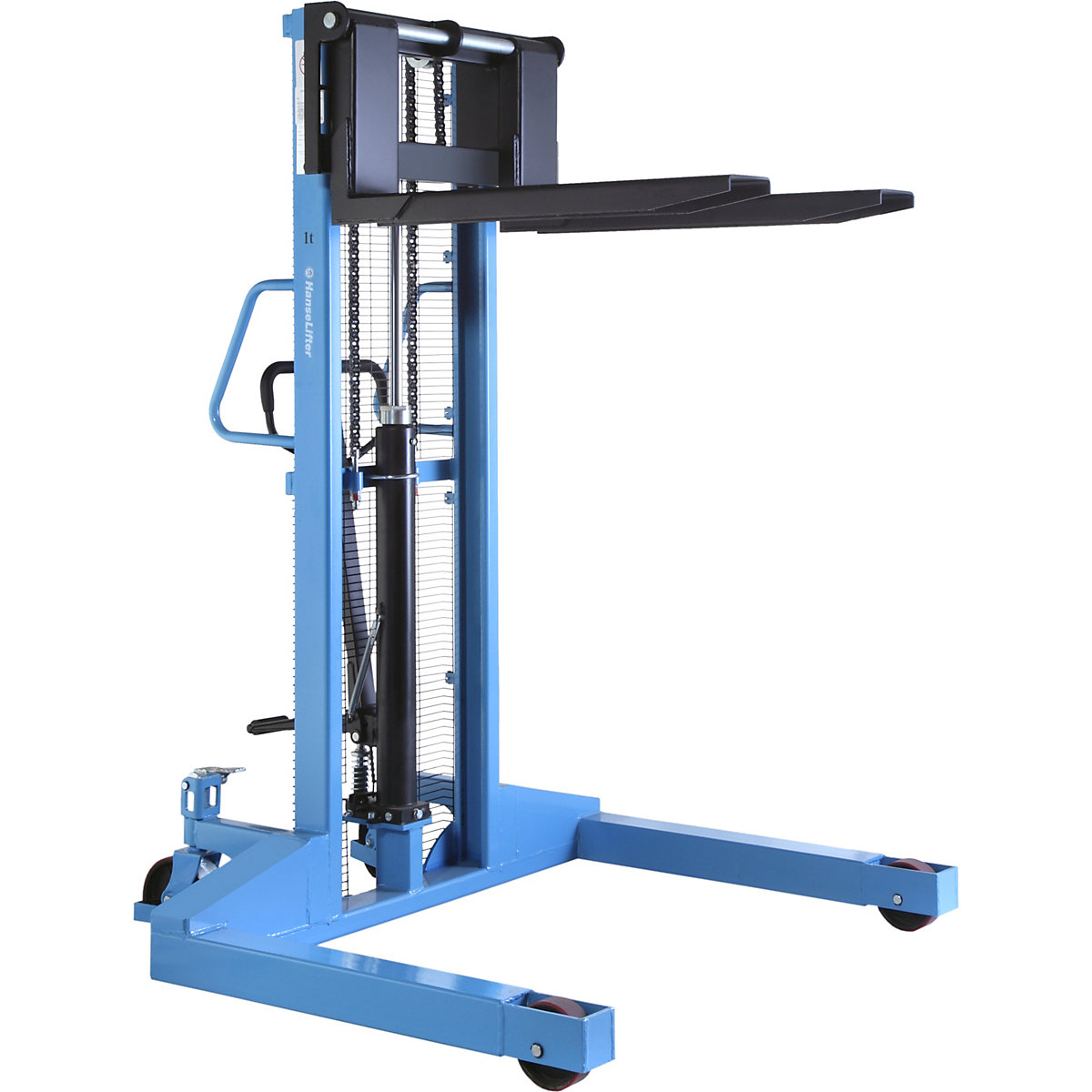

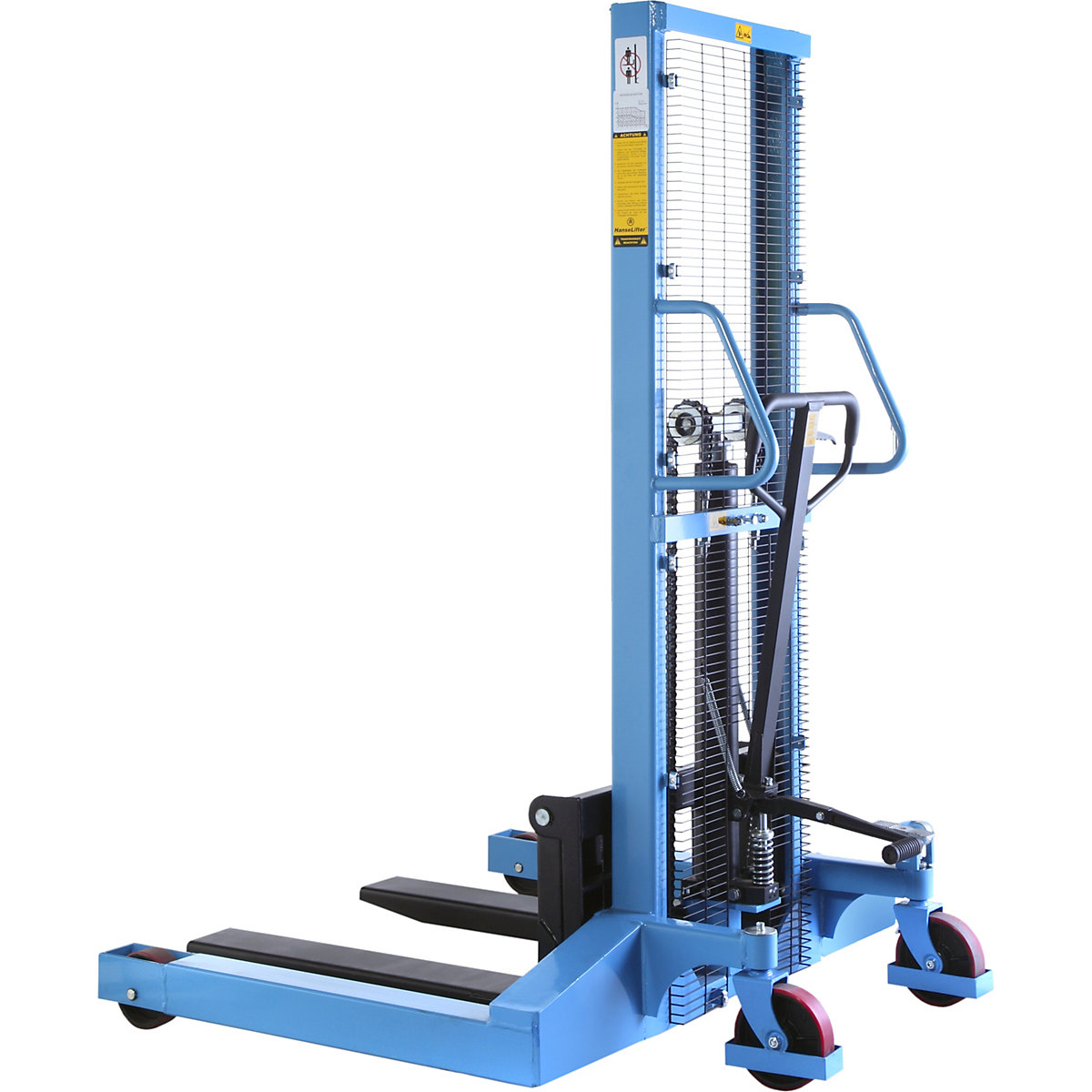

Wide gauge stacker max. load 1000 kg

Wide gauge stacker

fork LxW 900 x 150 mm

£3,850.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description
  • Max. load 1000 kg
  • Width adjustable forks to safely pick up Euro pallets from the side
  • Wide support legs to straddle pallets
Guide profiles made from extruded precision lifting mast steel, maintenance free ball bearing guide rollers. Hydraulic lifting with drawbar or foot pedal. 15 mm per pump stroke. Overload pressure valve.
Protective mesh enables clear view of forks, but cannot be reached through.

Wheels
2 steering wheels with wheel stop, wheel Ø x width 180 x 50 mm. 2 fork rollers, wheel Ø 145 mm. Polyurethane wheels on aluminium rims, smooth running with ball bearings.
Technical data
Max. load1000 kg
Lifting range95 – 1600 mm
Fork length900 mm
Distance across forks320 – 740 mm
Fork width150 mm
Length1840 mm
Width1400 mm
Overall height1980 mm
Lift per pump stroke15 mm
Lift drivehydraulic with drawbar or foot pedal
Wheel fittings2 swivel castors with wheel stop, 2 fork rollers
Wheel materialpolyurethane
Wheel bearingball bearing
Castor diameter front / rear145 / 180 mm
Material of rimaluminium
Steering wheel width50 mm
Product typehigh lift stackers
Suppliedassembled
Weight336 kg
Instructions
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.
‌
‌
‌
‌
