Ref.: 968792 49

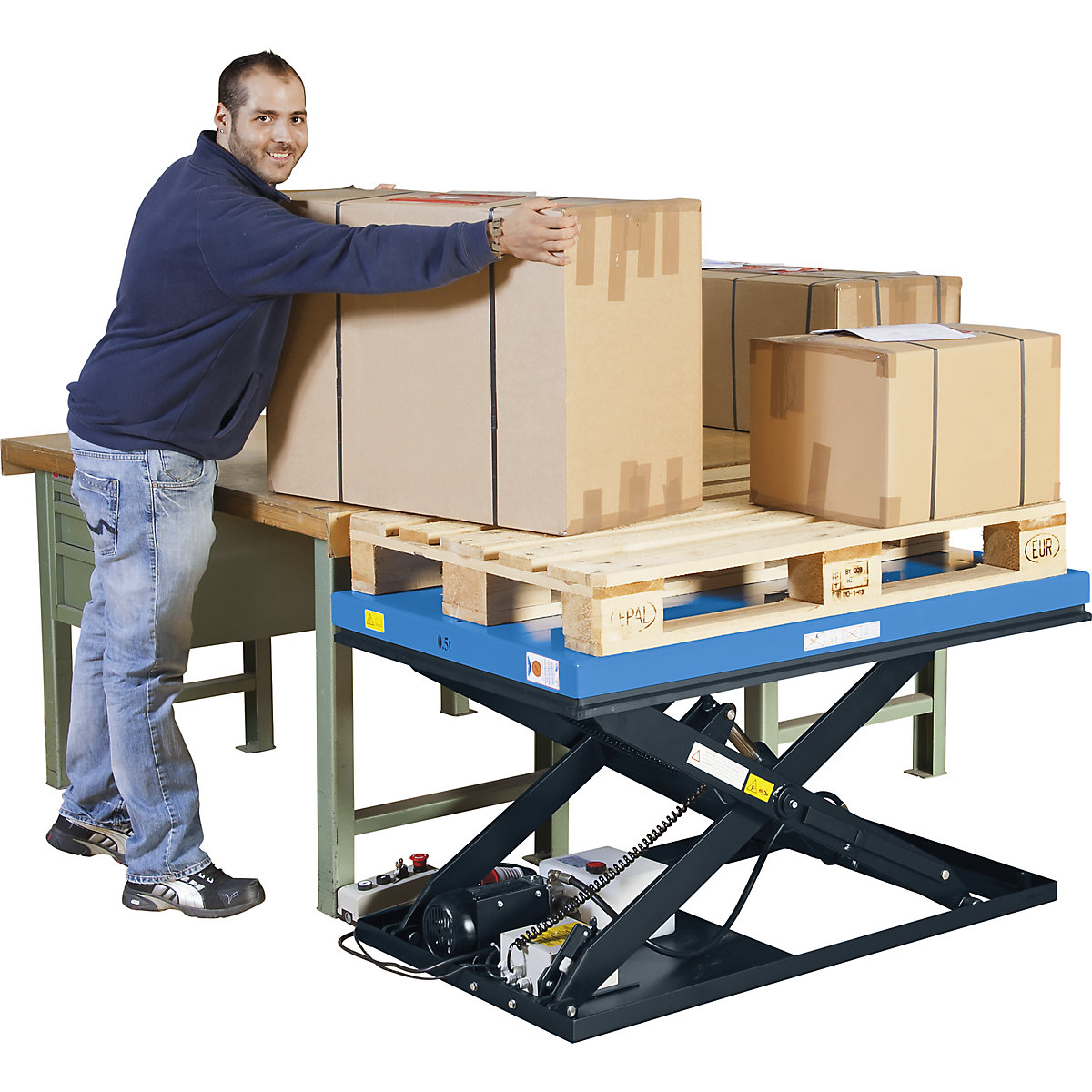

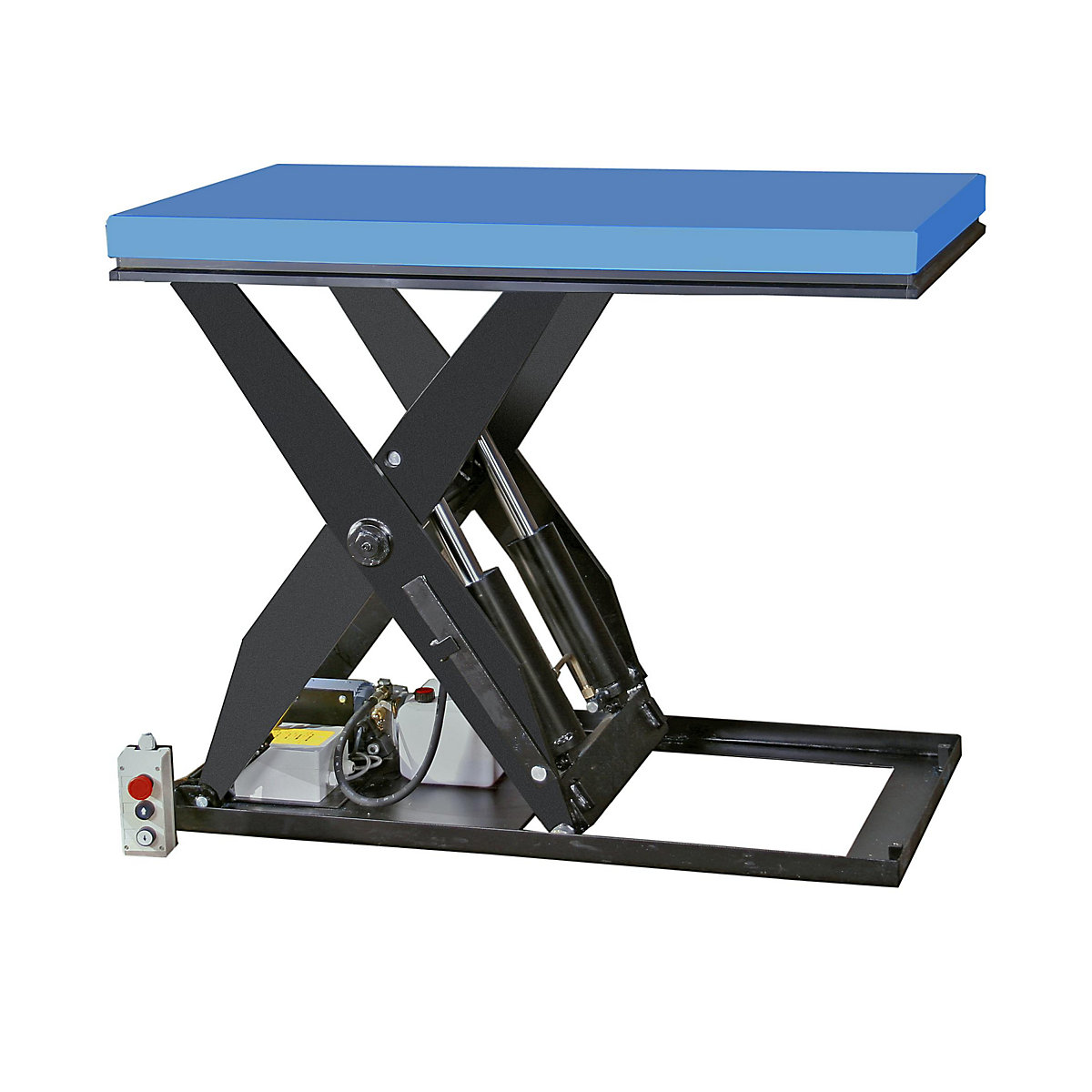

Compact lift table platform LxW 1300 x 800 mm
max. load 2000 kg, operating voltage 400 V
Max. load [kg]
Lifting time [sec]
Operating voltage
Ref.: 968792 49
Compact lift table platform LxW 1300 x 800 mm
max. load 2000 kg, operating voltage 400 V
max. load 2000 kg, operating voltage 400 V
Max. load [kg]
Lifting time [sec]
Operating voltage
£2,950.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£2,950.00
Price / item (Excl. VAT)
Product description
- Free standing
- Can be built-in to floor for ground level loading / unloading
- To be loaded with a counterbalance forklift
Infinite, hydraulic height adjustment. Robust scissor support struts. Overload pressure valve for a long service life, end stop on top and bottom positions.
High-quality powder coating, platform in light blue RAL 5012, frame and scissor mechanism in black RAL 9005.

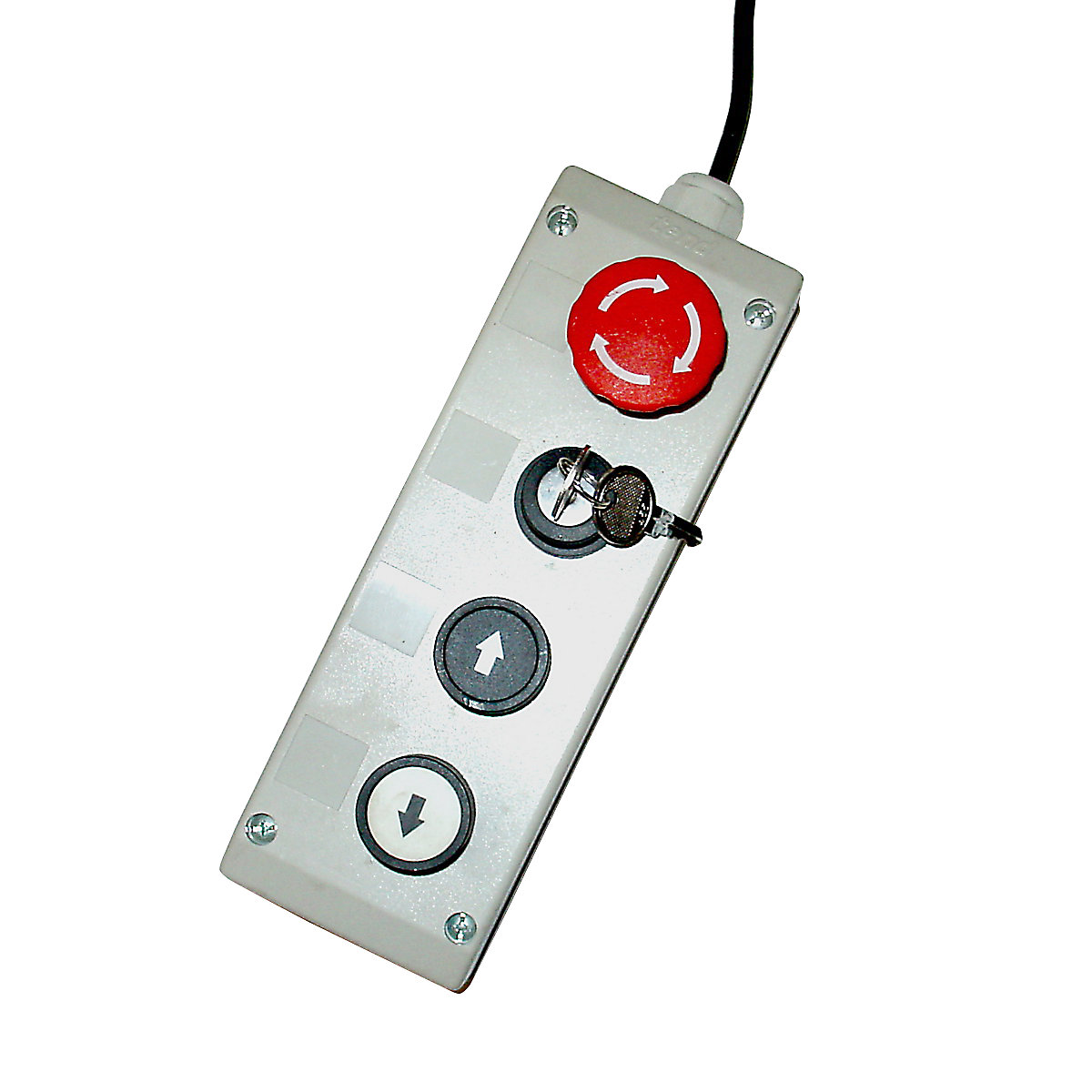

Operated via hand key with 2.6 m cable. Key switch. Emergency off switch.
High-quality powder coating, platform in light blue RAL 5012, frame and scissor mechanism in black RAL 9005.
Operated via hand key with 2.6 m cable. Key switch. Emergency off switch.
Technical data
Lifting range | 190 – 1010 mm |
---|---|
Platform design | closed |
Power | 0.75 kW |
Control voltage | 24 V |
Lift drive | electro-hydraulic |
Platform colour | light blue RAL 5012 |
Platform material | steel, powder coated |
Finish | powder coated |
Frame colour | jet black RAL 9005 |
Fittings | with hand operated control unit |
Lift | 820 mm |
Lift per pump stroke | 820 mm |
Platform width | 800 mm |
Platform length | 1300 mm |
Feature | stationary electro-hydraulic |
Product type | compact lift tables |
Supplied | assembled |
Max. load | 2000 kg |
Lifting time | 37 sec |
Operating voltage | 400 V |
Lifting capacity at full load in 1 shift operations | 6 cycles per hour |
Weight | 280 kg |
