Ref.: 175816 49

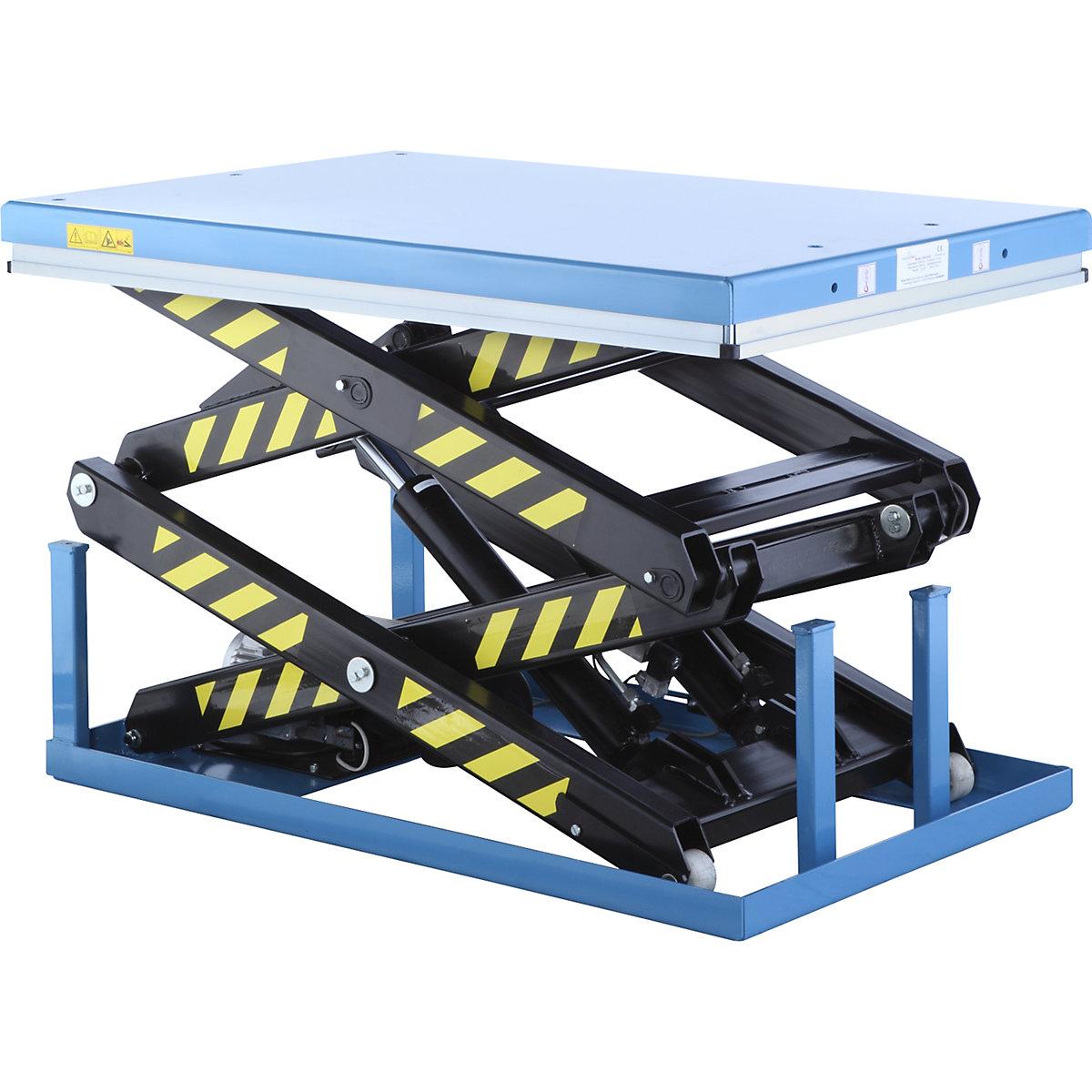

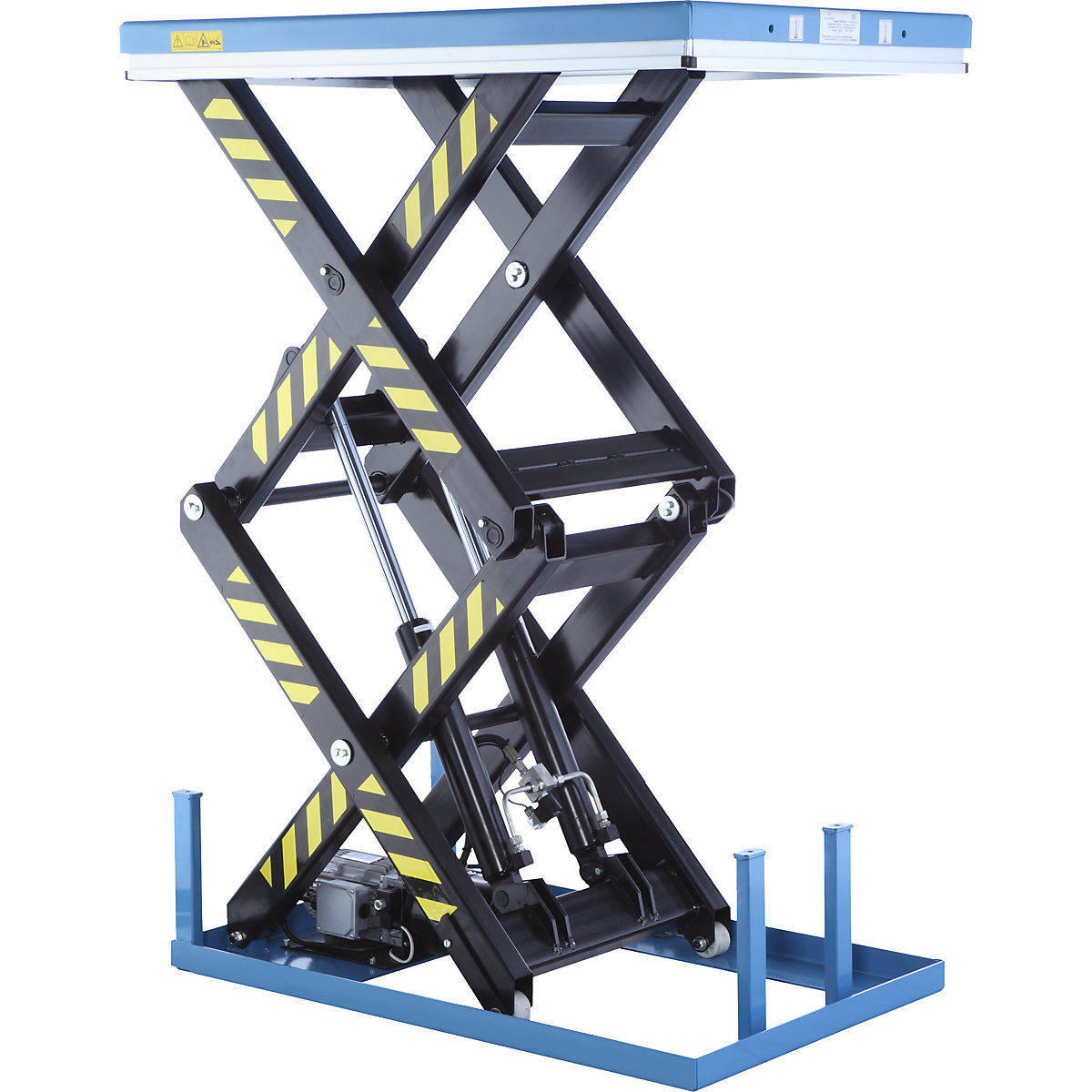

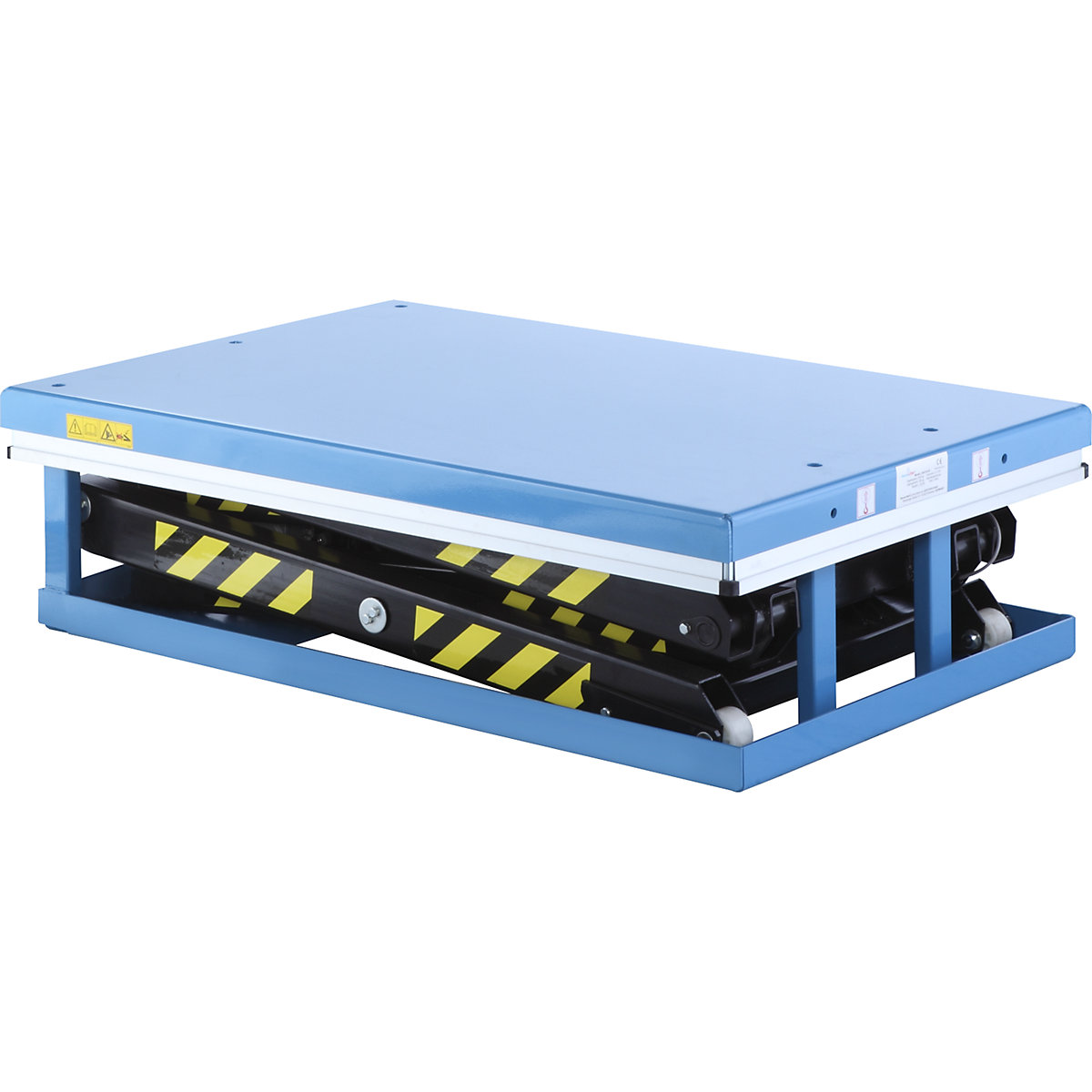

Double scissor lift platform stationary
max. load 1000 kg, operating voltage 400 V
Max. load [kg]
Lifting range [mm]
Operating voltage
Ref.: 175816 49
Double scissor lift platform stationary
max. load 1000 kg, operating voltage 400 V
max. load 1000 kg, operating voltage 400 V
Max. load [kg]
Lifting range [mm]
Operating voltage
£5,890.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£5,890.00
Price / item (Excl. VAT)
Product description
- Lifting height up to 2 m
- Free standing

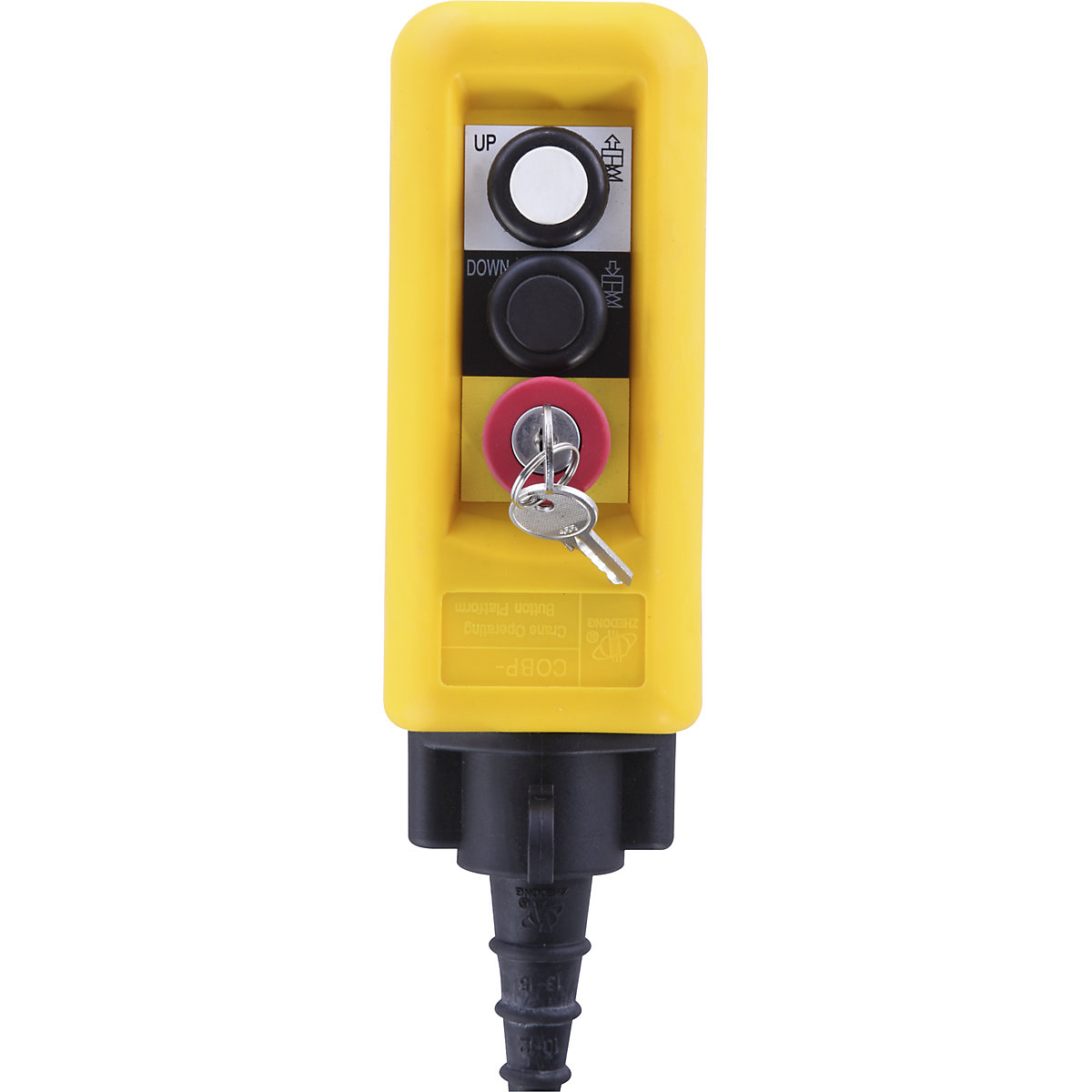

Infinite, hydraulic height adjustment. Robust scissor support struts. Overload valve for a long service life, end stop on top and bottom positions. High quality powder coating. Platform and frame in light blue RAL 5012, scissor mechanism in black RAL 9005. Operated via hand key with 2.6 m cable. Key switch. Emergency off switch.
Control voltage
24 V
Control voltage
24 V
The double scissor lift platforms are fitted with safety rails and safety valves, and comply with EN 1570-1 as well as VDE requirements.
Lifting capacity at full load
12 cycles per hour in 1-shift operations.
12 cycles per hour in 1-shift operations.
Technical data
| Platform design | closed |
|---|---|
| Control voltage | 24 V |
| Lift drive | hydraulic |
| Platform colour | light blue RAL 5012 |
| Platform material | steel, powder coated |
| Finish | powder coated |
| Frame colour | jet black RAL 9005 |
| Fittings | with hand operated control unit |
| Lifting capacity at full load in 1 shift operations | max. 12 cycles per hour |
| Feature | stationary electro-hydraulic |
| Product type | compact lift tables |
| Supplied | assembled |
| Max. load | 1000 kg |
| Lifting range | 305 – 1780 mm |
| Operating voltage | 400 V |
| Lifting time without load | 25 sec |
| Lifting time with full load | 30 sec |
| Platform width | 820 mm |
| Platform length | 1300 mm |
| Weight | 210 kg |
| Instructions |
