Ref.: 516035 49

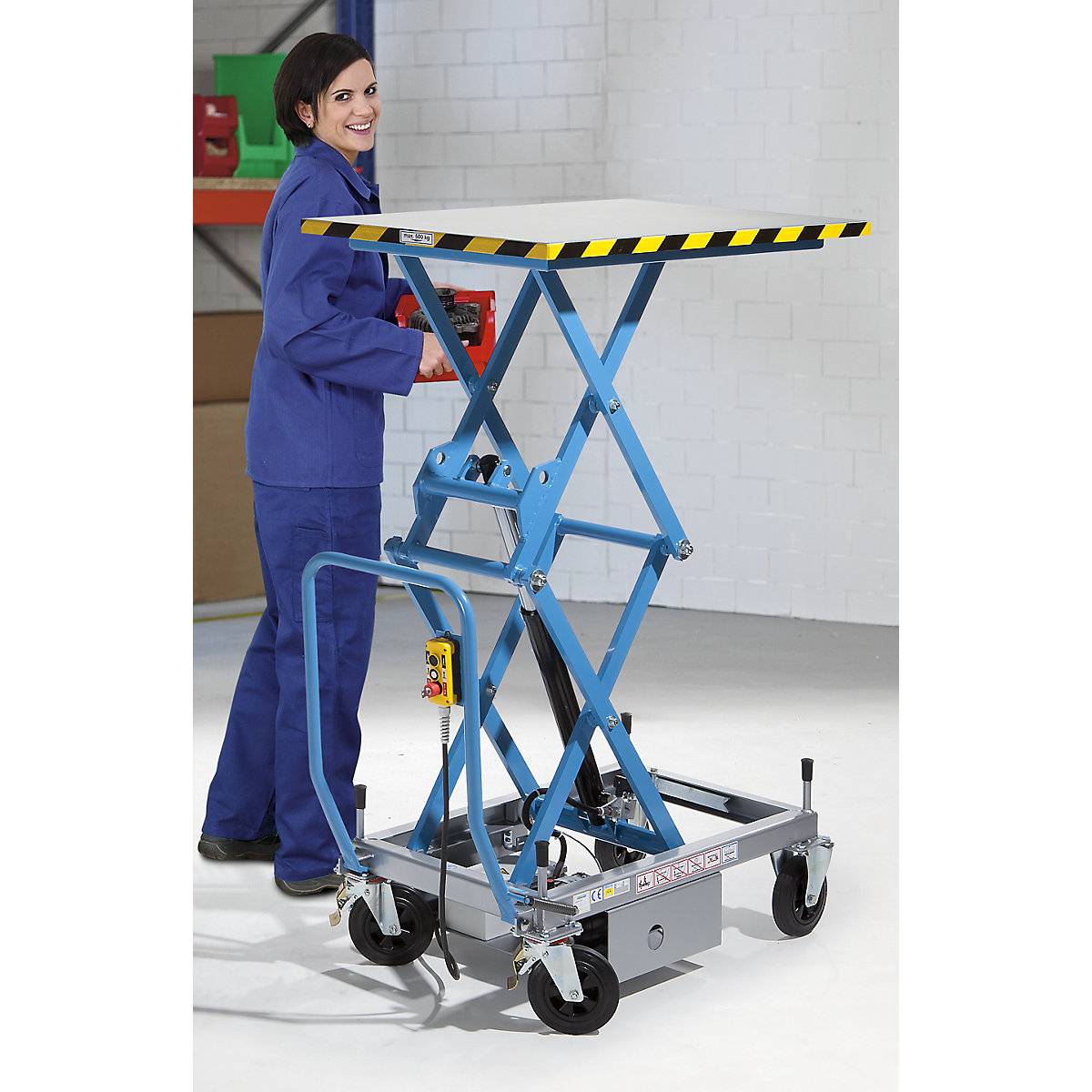

Double scissor lifting platform truck – eurokraft pro electro-hydraulic lift, 12 V
max. load 500 kg
Preferred RAL colour*
*Colours shown in the product image may vary.
Ref.: 516035 49
Double scissor lifting platform truck – eurokraft pro electro-hydraulic lift, 12 V
max. load 500 kg
max. load 500 kg
Preferred RAL colour*
*Colours shown in the product image may vary.
£5,890.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£5,890.00
Price / item (Excl. VAT)
Product description
- Quality products – Made in Germany
Rust free, zinc plated platform. Scissor lift mechanism and push handle powder coated in light blue RAL 5012, base frame in white aluminium RAL 9006.
2 swivel castors and 2 fixed castors, roller bearings. Swivel castors with double stops.
Hydraulic cylinder with biodegradable oil.
Electro-hydraulic devices are fully compliant with protection class IP54.
Suitable for max. 20 cycles per hour under full load.
12-volt model
With an up/down button and a 12 V / 50 Ah battery with a sustained performance. The battery charger required is available as an accessory.
2 swivel castors and 2 fixed castors, roller bearings. Swivel castors with double stops.
Hydraulic cylinder with biodegradable oil.
Electro-hydraulic devices are fully compliant with protection class IP54.
Suitable for max. 20 cycles per hour under full load.
12-volt model
With an up/down button and a 12 V / 50 Ah battery with a sustained performance. The battery charger required is available as an accessory.
For long term, intensive use in two-shift operation.
Drawbar not mounted on delivery – easy self-assembly.
Available in most RAL colours. Only 10 % extra.
10 year guarantee
Technical data
| Max. load | 500 kg |
|---|---|
| Lifting range | 510 – 1800 mm |
| Wheel material | solid rubber |
| Feature | mobile electro-hydraulic |
| Platform length | 1190 mm |
| Platform width | 740 mm |
| Length | 1435 mm |
| Width | 740 mm |
| Platform material | steel, zinc plated |
| Push handle version | bolted on |
| Frame colour | light blue RAL 5012 |
| Frame material | steel, powder coated |
| Lifting time | 20 sec |
| Lift drive | electro-hydraulic, battery 12 V |
| Battery | 12 V / 50 Ah |
| Product type | lifting platform trolleys |
| Wheel fittings | 2 steering wheels with double stops, 2 fixed castors |
| Wheel diameter | 200 mm |
| Wheel bearing | roller bearing |
| Model | double scissors |
| Weight | 190 kg |
| Fittings | push handle |
| Protection type | IP54 |
| Supplied | assembled |
| Instructions |
