Ref.: 977723 49
Scissor lift platform truck – eurokraft pro max. load 1000 kg, manual lifting
lifting range 460 – 1070 mm, elastic wheels
Lifting range [mm]
Preferred RAL colour*
*Colours shown in the product image may vary.
Ref.: 977723 49
Scissor lift platform truck – eurokraft pro max. load 1000 kg, manual lifting
lifting range 460 – 1070 mm, elastic wheels
lifting range 460 – 1070 mm, elastic wheels
Lifting range [mm]
Preferred RAL colour*
*Colours shown in the product image may vary.
£4,050.00
Price / item (Excl. VAT)
Only 8 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£4,050.00
Price / item (Excl. VAT)
Product description
- Manual lifting
- For lifting and positioning heavy components
- Hardwearing and non-marking elastic wheels
- Ergonomic working height for assembly and maintenance
- Powerful hydraulic cylinder with bio oil
- Zinc plated platform, powder coated frame
- Quality product – Made in Germany

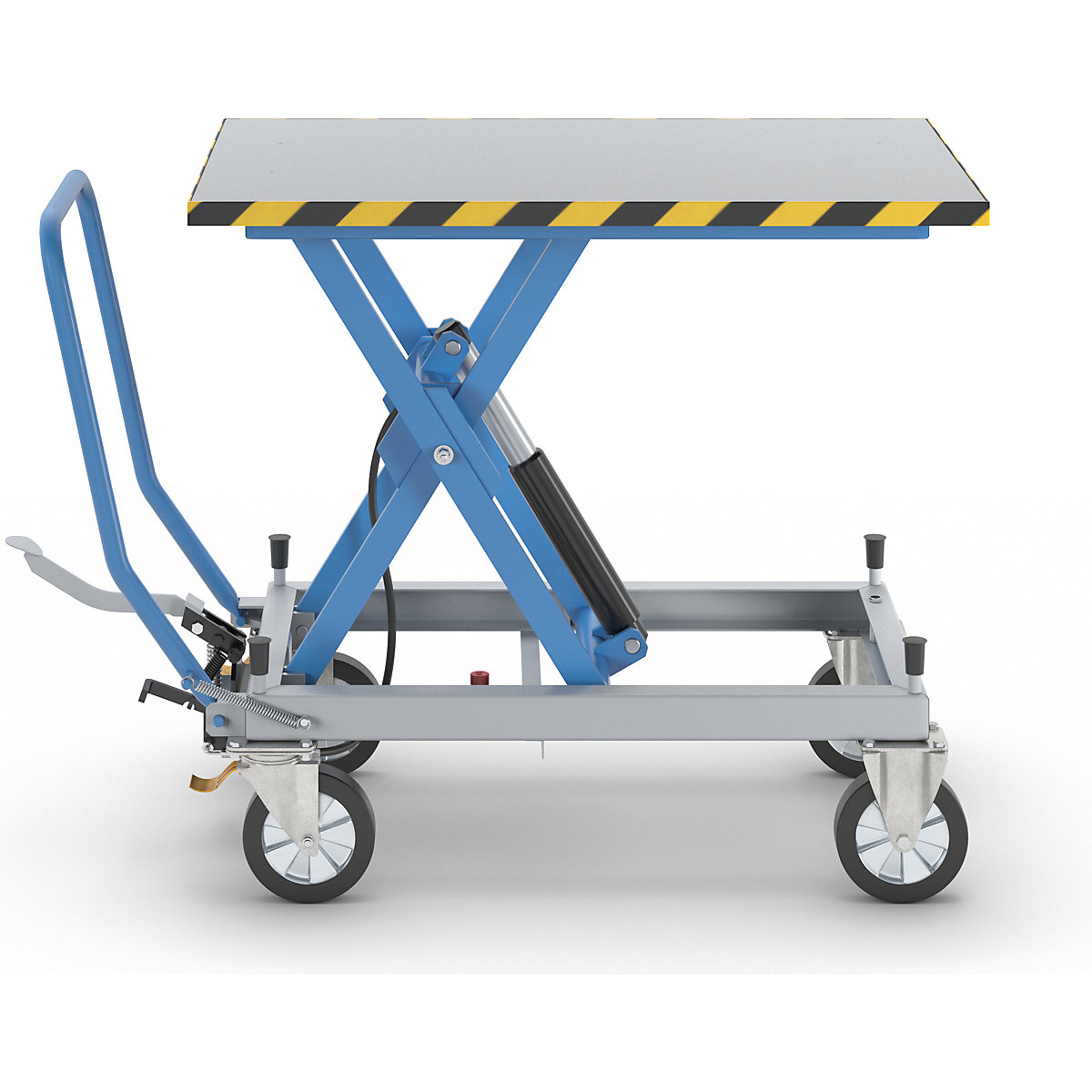

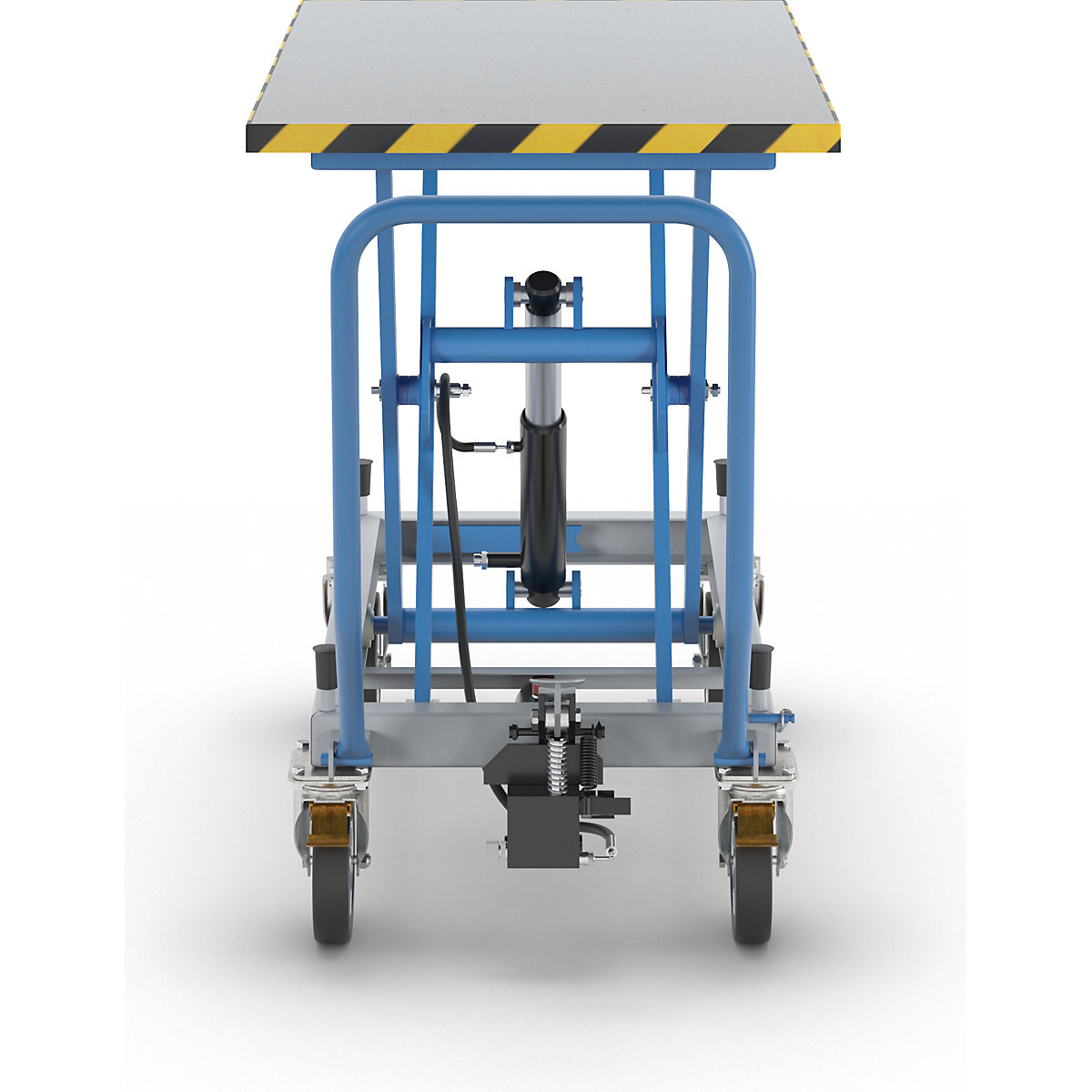

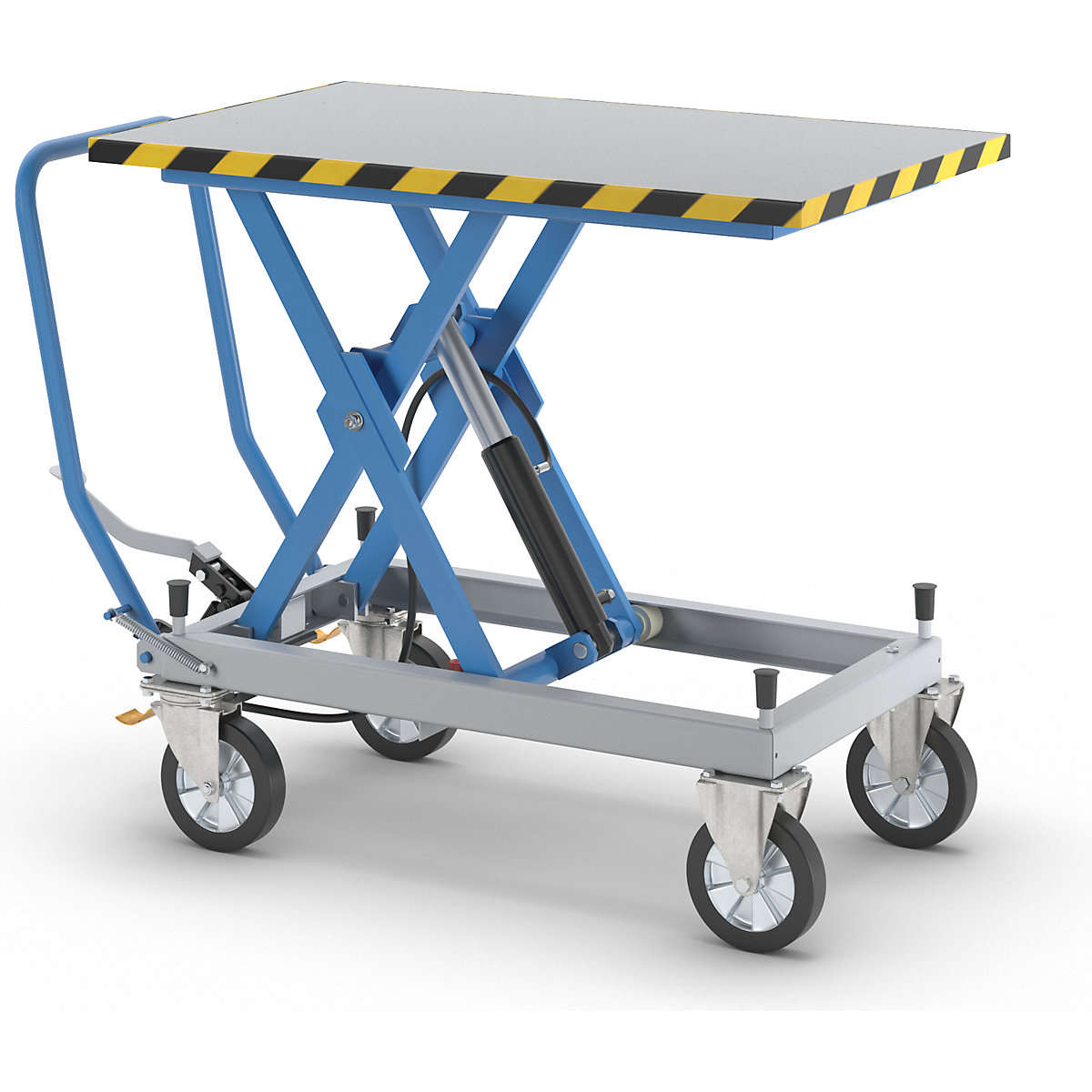

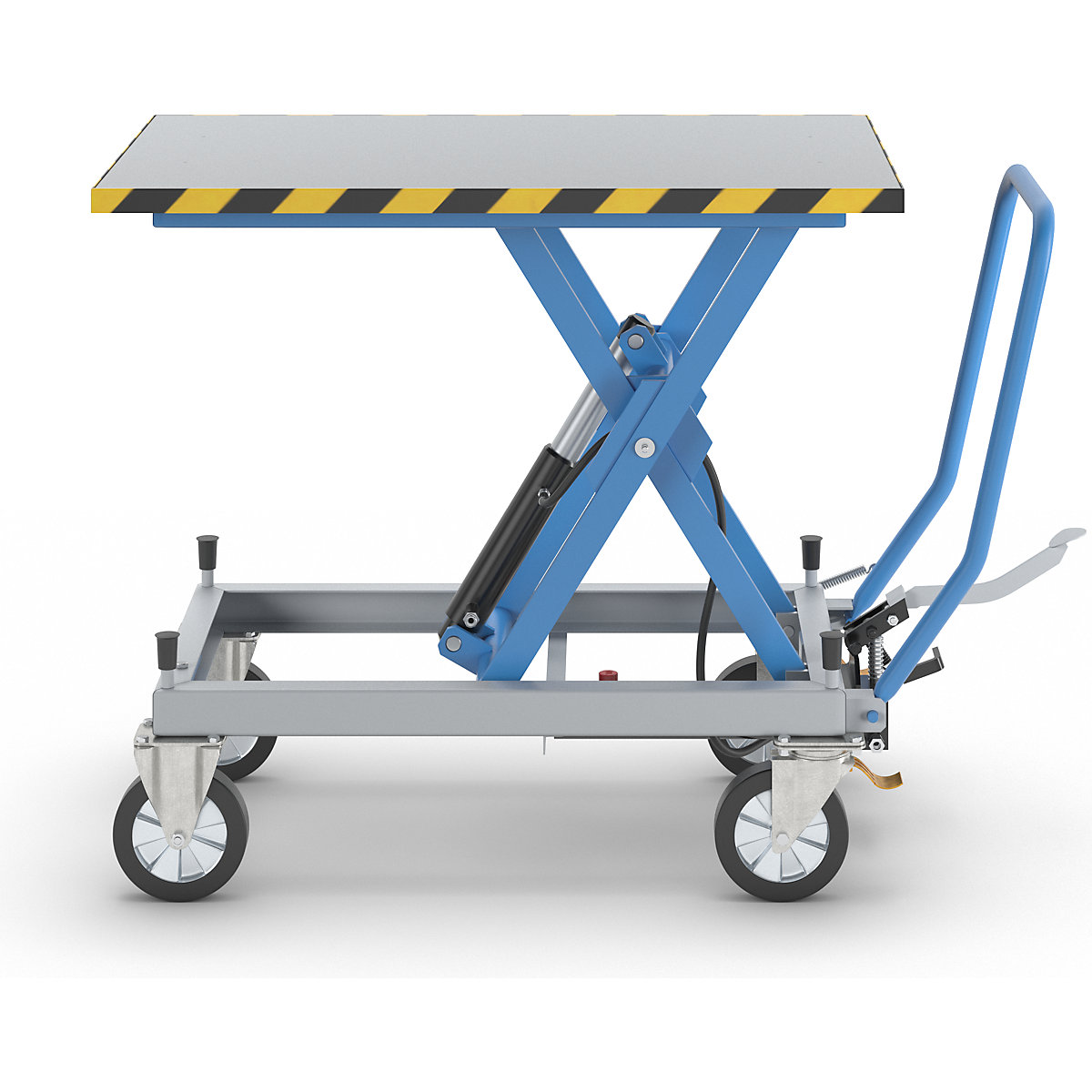

The eurokraft pro scissor lift platform truck is suitable for lifting and positioning heavy components and tools. As a versatile work platform, it ensures you have the right working height, especially for assembly and maintenance work, enables ergonomic work and positions the component exactly where it is needed.

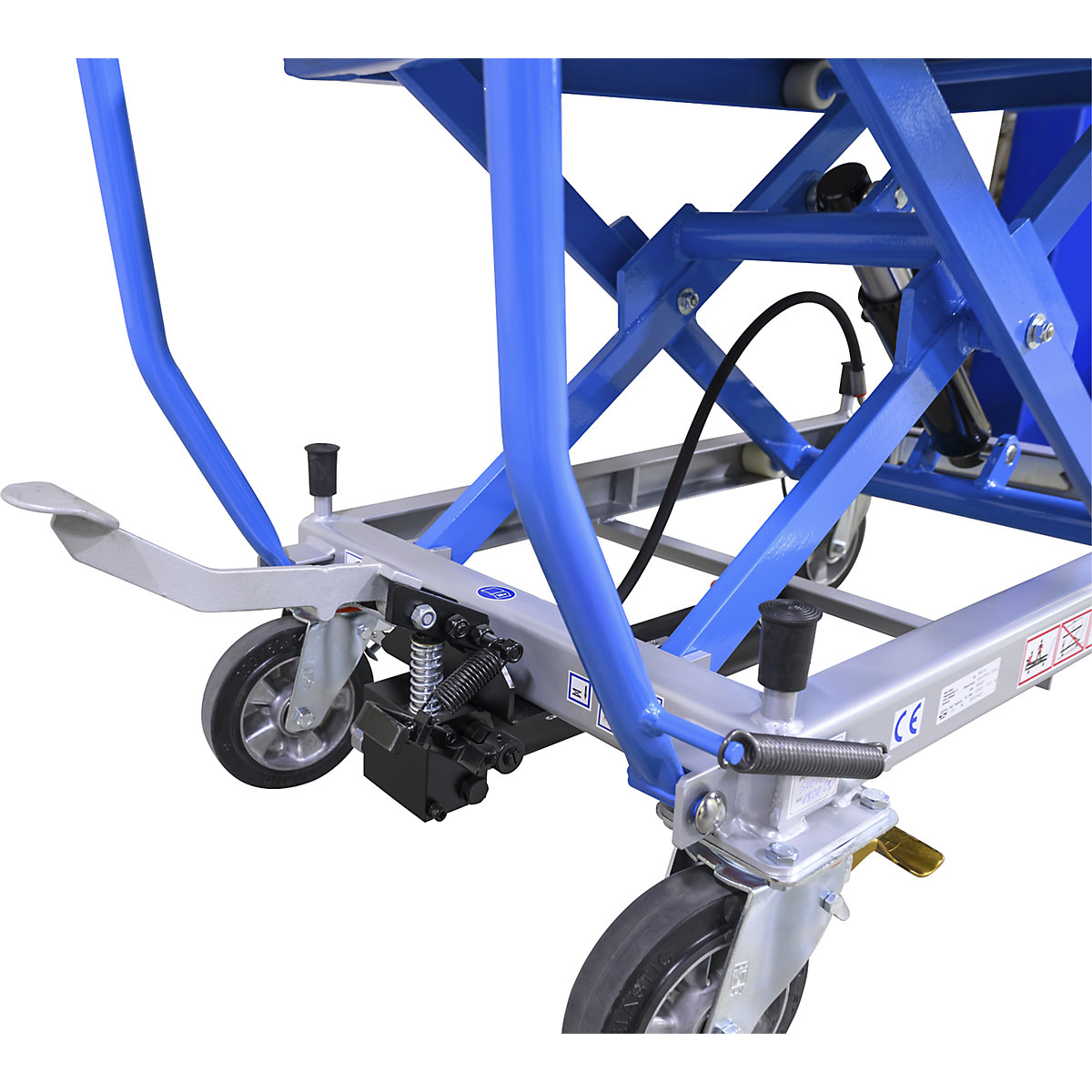

The scissor lift platform truck with manual lifting and a max. load of 1000 kg is equipped with a hydraulic lifting cylinder with bio oil. This allows loads to be raised to the appropriate working height with little effort using the foot pedal. Another pedal enables gentle load lowering. The foot pedal folds in to prevents it from protruding into the work area. The elastic wheels are hardwearing and non-marking, which makes them particularly suitable for industrial floors. Two swivel castors with double stops make the lift platform truck highly manoeuvrable, as well as stable when the device is used at the work site.
The scissor lift platform truck with manual lifting and a max. load of 1000 kg is equipped with a hydraulic lifting cylinder with bio oil. This allows loads to be raised to the appropriate working height with little effort using the foot pedal. Another pedal enables gentle load lowering. The foot pedal folds in to prevents it from protruding into the work area. The elastic wheels are hardwearing and non-marking, which makes them particularly suitable for industrial floors. Two swivel castors with double stops make the lift platform truck highly manoeuvrable, as well as stable when the device is used at the work site.
Custom made models available on request.
The zinc plated platform provides corrosion protection and durability, while the frame and push handle are powder coated and therefore designed for demanding everyday use. Even when subject to intensive two shift use, stability and performance are maintained over the long term. The scissor lift platform truck therefore provides support when setting up for work and positioning heavy components in industry and workshops.
Drawbar not mounted on delivery – easy self-assembly.
Available in most RAL colours. Only 10 % extra.
10 year guarantee
Technical data
| Max. load | 1000 kg |
|---|---|
| Wheel material | elastic |
| Feature | mobile manual |
| Platform material | steel, zinc plated |
| Push handle version | bolted on |
| Frame colour | light blue RAL 5012 |
| Frame material | steel, powder coated |
| Lift drive | pedal hydraulics |
| Product type | lifting platform trolleys |
| Wheel fittings | 2 steering wheels with double stops, 2 fork rollers |
| Wheel diameter | 200 mm |
| Wheel bearing | ball bearing |
| Fittings | push handle |
| Supplied | assembled |
| Lifting range | 460 – 1070 mm |
| Platform length | 1190 mm |
| Platform width | 740 mm |
| Length | 1435 mm |
| Width | 740 mm |
| Lift per pedal stroke | 10 mm |
| Weight | 123 kg |
| Instructions |
