Scissor lift platform truck max. load 150 kg

(1)

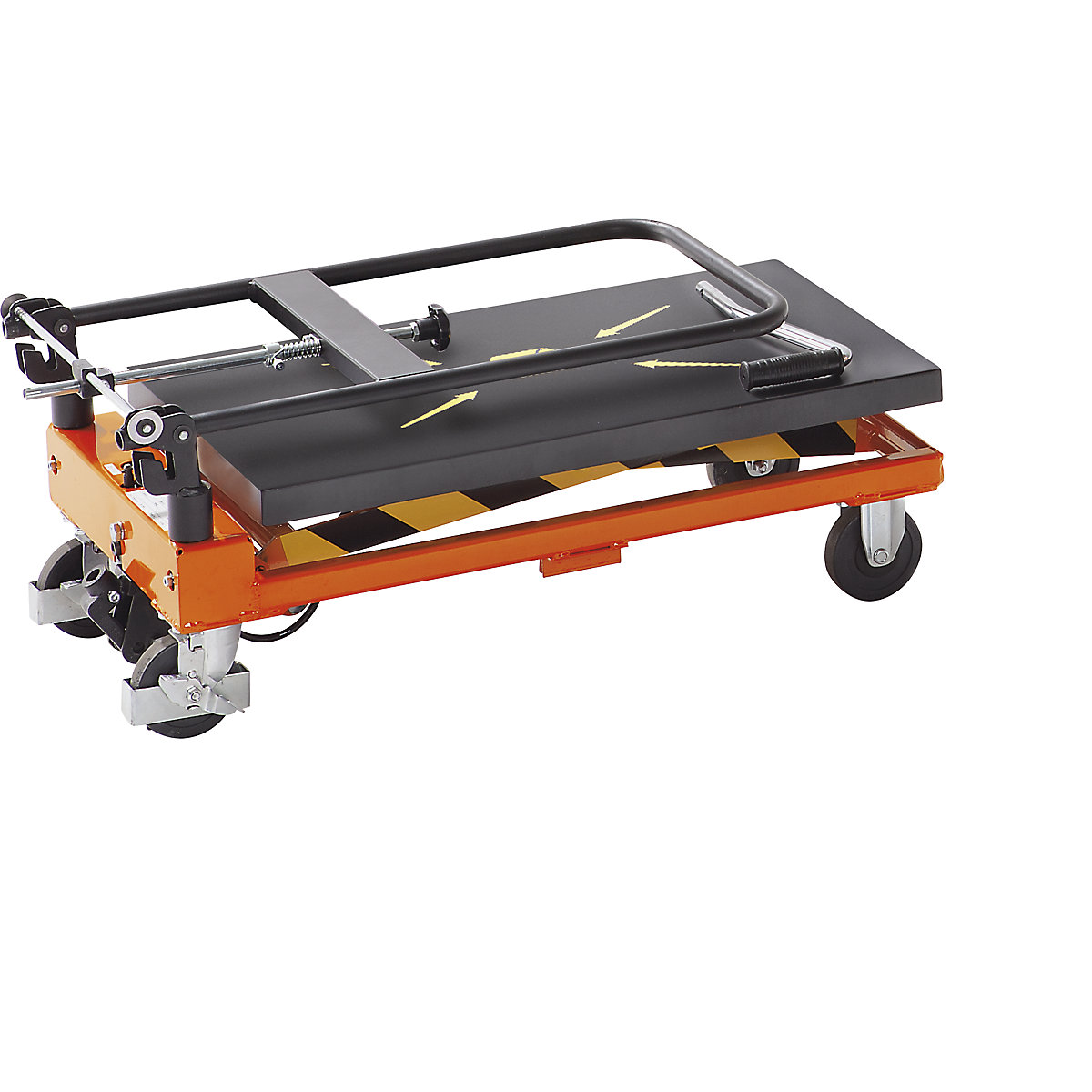

Scissor lift platform truck

lift per pedal stroke 40 mm

£789.00
Price / item (Excl. VAT)
Only 19 available
Delivery time: 7-10 Working days
Product description
  • Space saving storage due to folding bar
  • Transport and lift loads
  • Height adjustment for working ergonomically
  • Quick and convenient lifting using a foot pump pedal
  • Manual and precise lowering of the platform using rotary knob
  • Safety valve to prevent overloading the truck
The scissor lift platform truck combines easy lifting and flexible transport of loads in one device and enables loads to be lifted and lowered to the required working height. The height adjustment ensures an ergonomic and working posture that does not put any strain on the spine, as goods can always be positioned at an individual handle height.

The platform is quick and convenient to raise using a foot operated pump pedal. A rotary knob allows the lift table to be lowered manually and with sensitivity, allowing loads to be placed at the required height. A folding bar allows the scissor lift platform truck to be stowed away to save space, which is particularly advantageous in confined areas.
The lifting platform trolley is equipped with a hydraulic cylinder with a safety valve. This prevents overloading and protects the appliance from damage. If the load that is being lifted exceeds the max. load of the device, excess pressure is released and prevents the pallet truck from being damaged or the platform from lowering in an uncontrolled manner. Two swivel castors with wheel stops and two fixed castors ensure a high level of manoeuvrability and a secure stand, while the foot guard provides additional safety. Inspection supports are included to make maintenance easier. The positioning aid helps to centre the load when loading.

The scissor lift platform truck is particularly suitable for work in warehouses and for order picking, for loading machines or transporting materials in production. The sturdy design makes the lifting platform trolley a durable and resilient item of transport equipment for everyday work.
Technical data
Max. load150 kg
Lifting range255 – 740 mm
Wheel materialsolid rubber
Featuremobile manual
Platform length700 mm
Platform width400 mm
Length950 mm
Width400 mm
Platform materialsteel, powder coated
Platform colourblack
Push handle versionfolding
Frame colourpure orange RAL 2004 black
Frame materialsteel, powder coated
Lift per pump stroke40 mm
Lift drivehydraulic cylinder
Product typelifting platform trolleys
Wheel fittings2 swivel castors with wheel stops, 2 fixed castors
Wheel diameter100 mm
Weight34 kg
Fittingspush handle castors with foot protection
Suppliedassembled
