Ref.: 609193 49

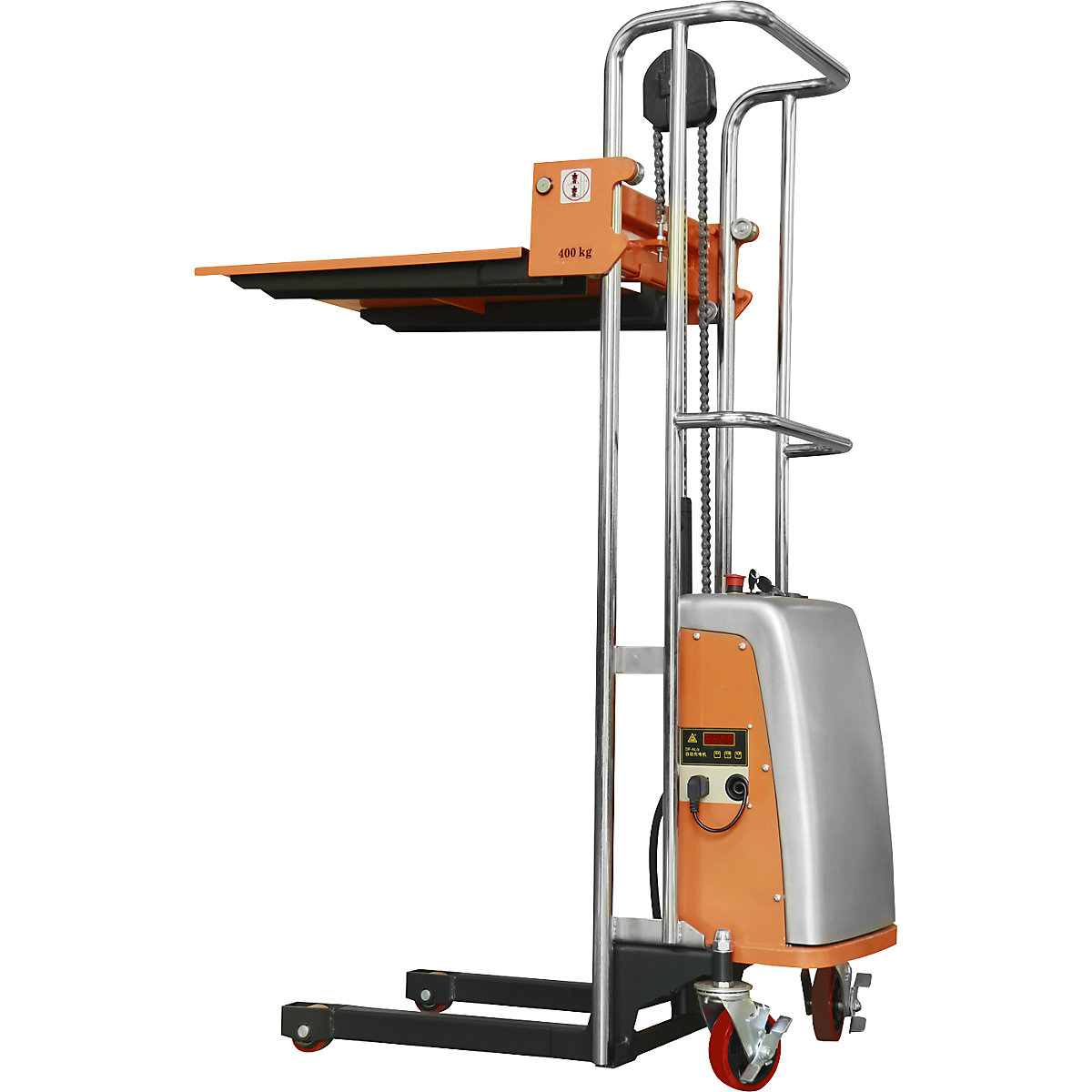

Budget stacker electro-hydraulic
lifting range 85 – 1500 mm
Lifting range [mm]
Ref.: 609193 49
Budget stacker electro-hydraulic
lifting range 85 – 1500 mm
lifting range 85 – 1500 mm
Lifting range [mm]
£2,175.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£2,175.00
Price / item (Excl. VAT)
Product description
- Max. load 400 kg
- Lift and transport with a single device
- Platform included with delivery, easy to remove

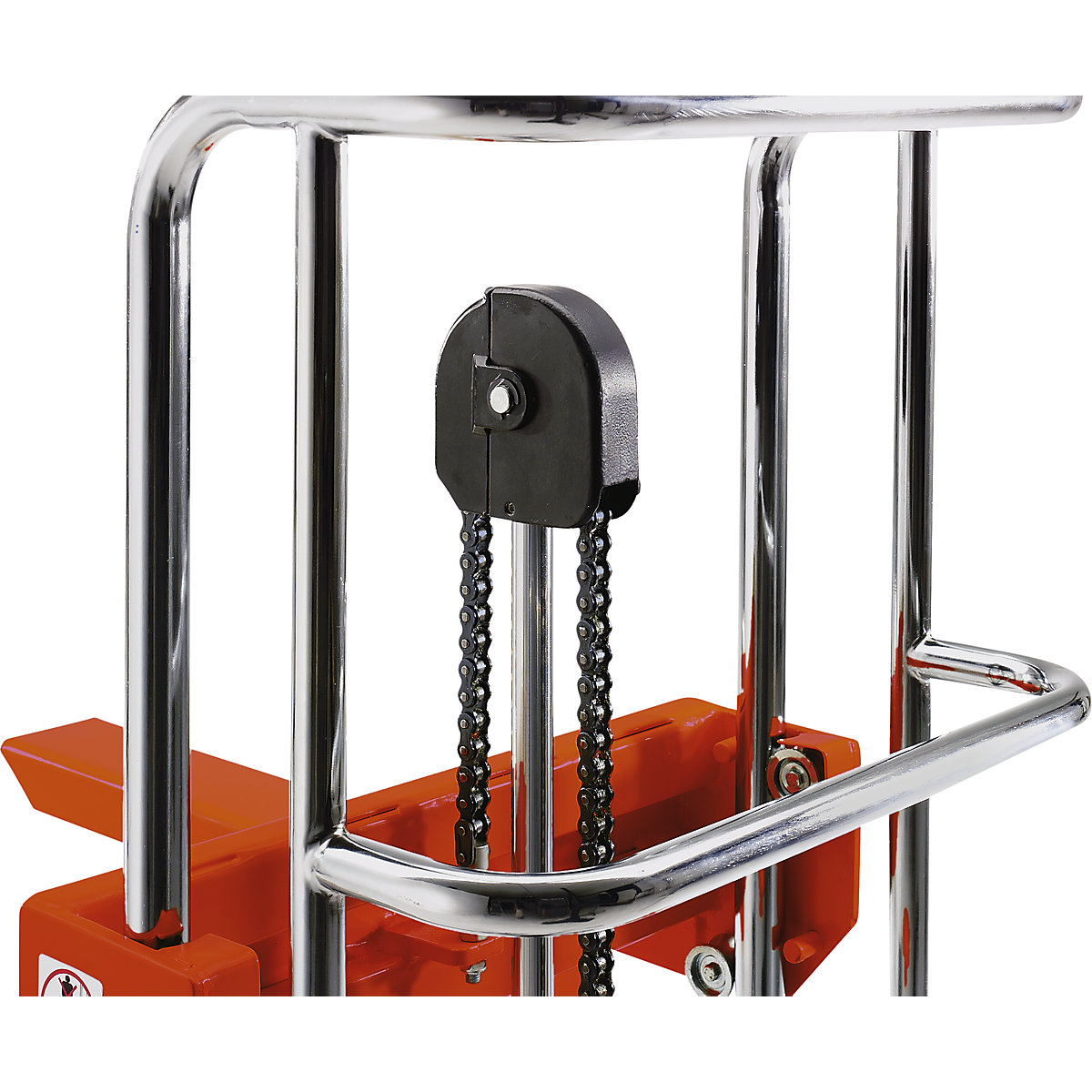

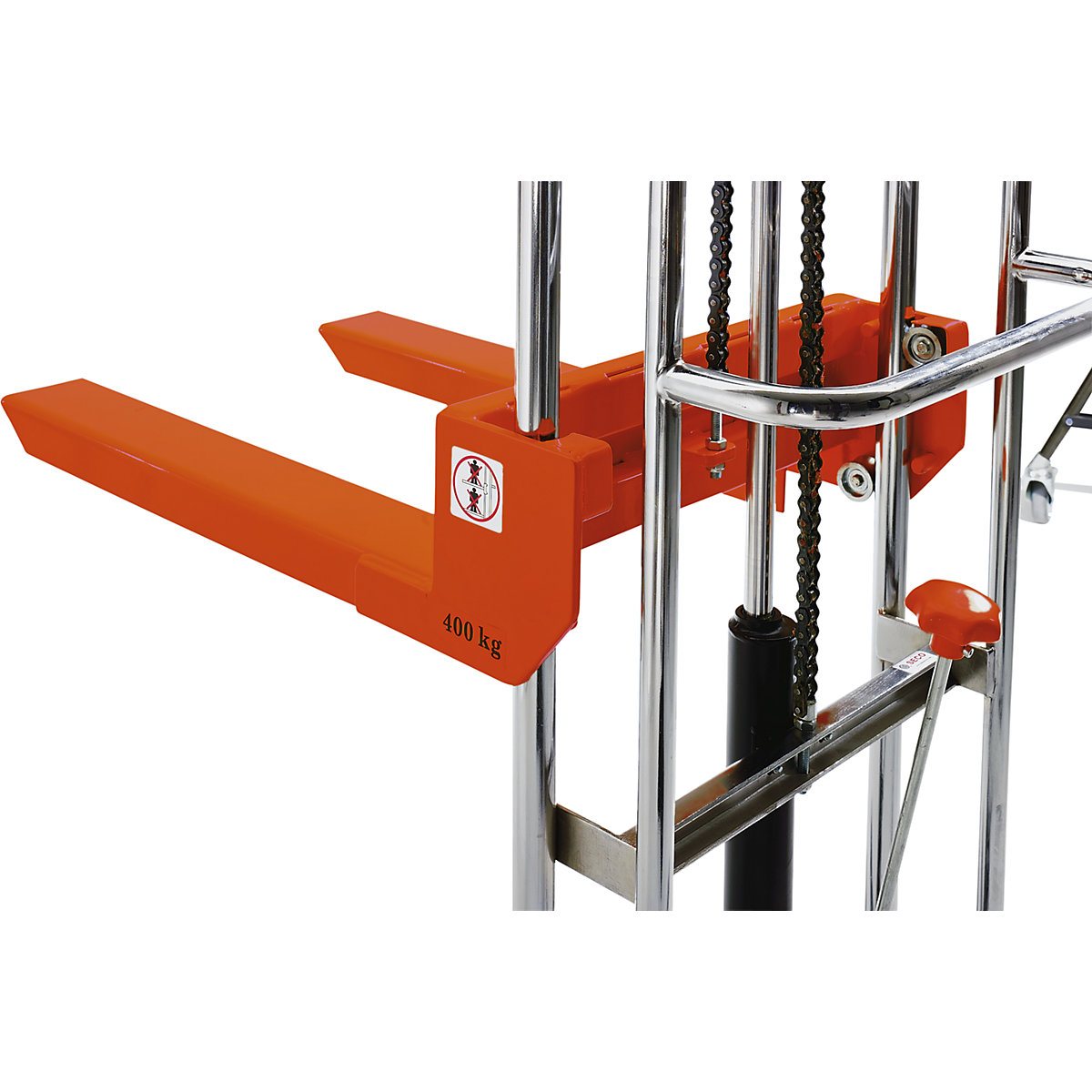

The platform lift combines a function to transport and lift loads of up to 400 kg. It is supplied complete with an easy to remove platform, making it versatile to adapt to different transport requirements. The fork carrier bracket runs smoothly on a lifting runner along the chrome plated tubular frame, ensuring stable and precise handling. The powder coating ensures the platform lift is particularly robust and durable. Equipped with two swivel wheels with stops and fork rollers with polyurethane wheels, it has a low rolling resistance for good manoeuvrability and is gentle on sensitive floors. The hydraulic cylinder, pump and tank are combined into one compact unit, which enables a powerful and precise lifting performance. An integrated overload valve protects the device from overloading and provides additional safety when lifting heavy loads.
Electric hydraulics
Uniform lifting and lowering via control lever. Emergency off switch.
Integrated charger for 230 V connection.
Electric hydraulics
Uniform lifting and lowering via control lever. Emergency off switch.
Integrated charger for 230 V connection.
Technical data
Model | electro-hydraulic |
---|---|
Max. load | 400 kg |
Load centre | 350 mm |
Length | 1100 mm |
Lift per pedal stroke | 20 mm |
Min. lifting speed | 80 mm/s |
Max. lifting speed | 185 mm/s |
Clearance height | 85 mm |
Material | steel |
Finish | powder coated |
Colour | pure orange RAL 2004 |
Fittings | battery |
Battery | 12 V / 60 Ah |
Battery charger | 230 V / 12 V, 8 A |
Wheel fittings | 2 swivel castors with wheel stop, 2 fork rollers |
Castor diameter front / rear | 75 /127 mm |
Wheel material | polyurethane |
Platform width | 580 mm |
Platform length | 650 mm |
Product type | mini lifters |
Supplied | assembled |
Lifting range | 85 – 1500 mm |
Fork length | 650 mm |
Distance across forks | 580 mm |
Fork width | 110 mm |
Width | 580 mm |
Height | 1725 mm |
Weight | 116 kg |
Instructions |
