Ref.: 522656 49
Material lifter – eurokraft pro with spike
with fork rollers
Model
Preferred RAL colour*
*Colours shown in the product image may vary.
Ref.: 522656 49
Material lifter – eurokraft pro with spike
with fork rollers
with fork rollers
Model
Preferred RAL colour*
*Colours shown in the product image may vary.
£995.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£995.00
Price / item (Excl. VAT)
Product description

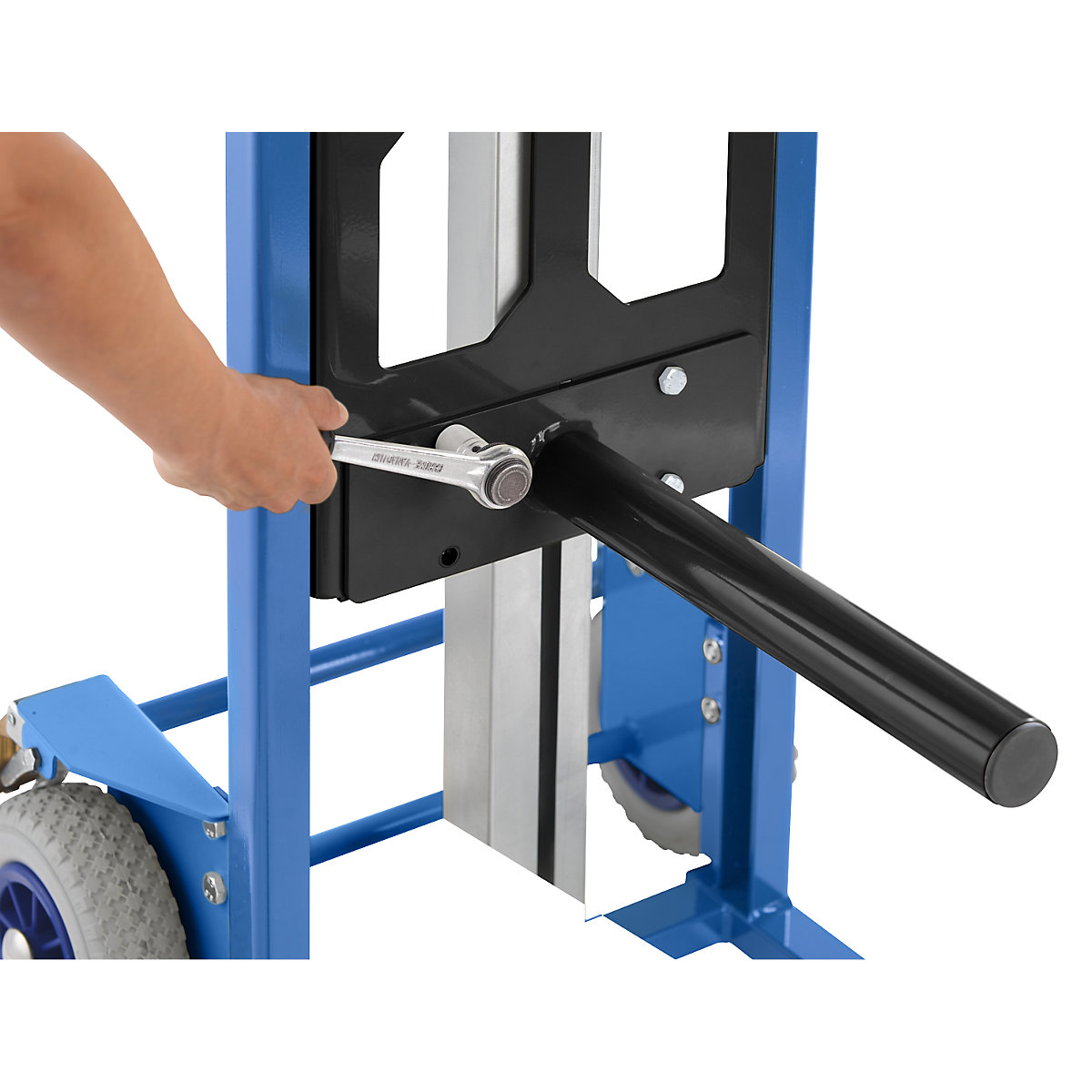

- Exchangeable load support

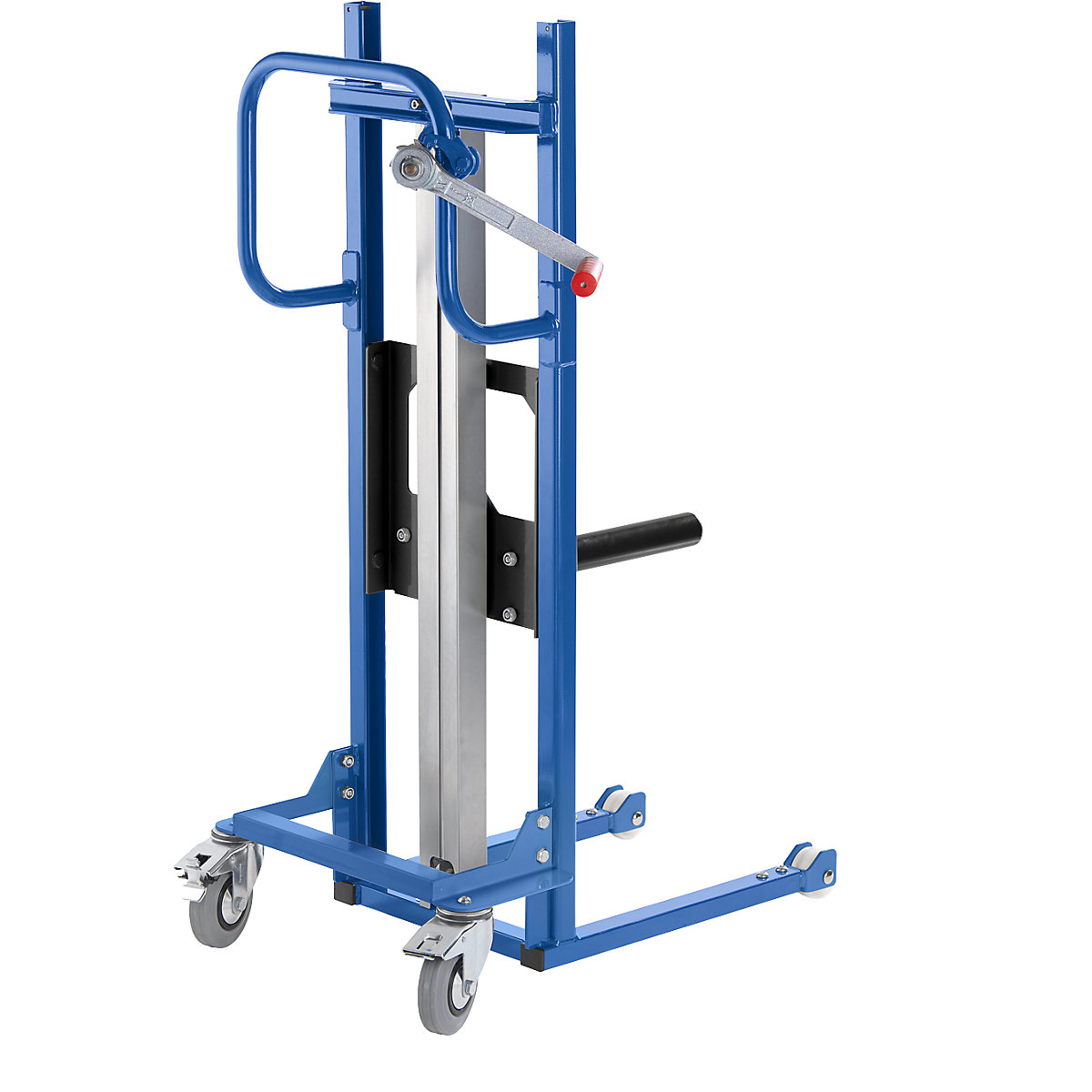

- Optionally available with fixed castors or 4-way chassis
- Swivel castors with wheel stops

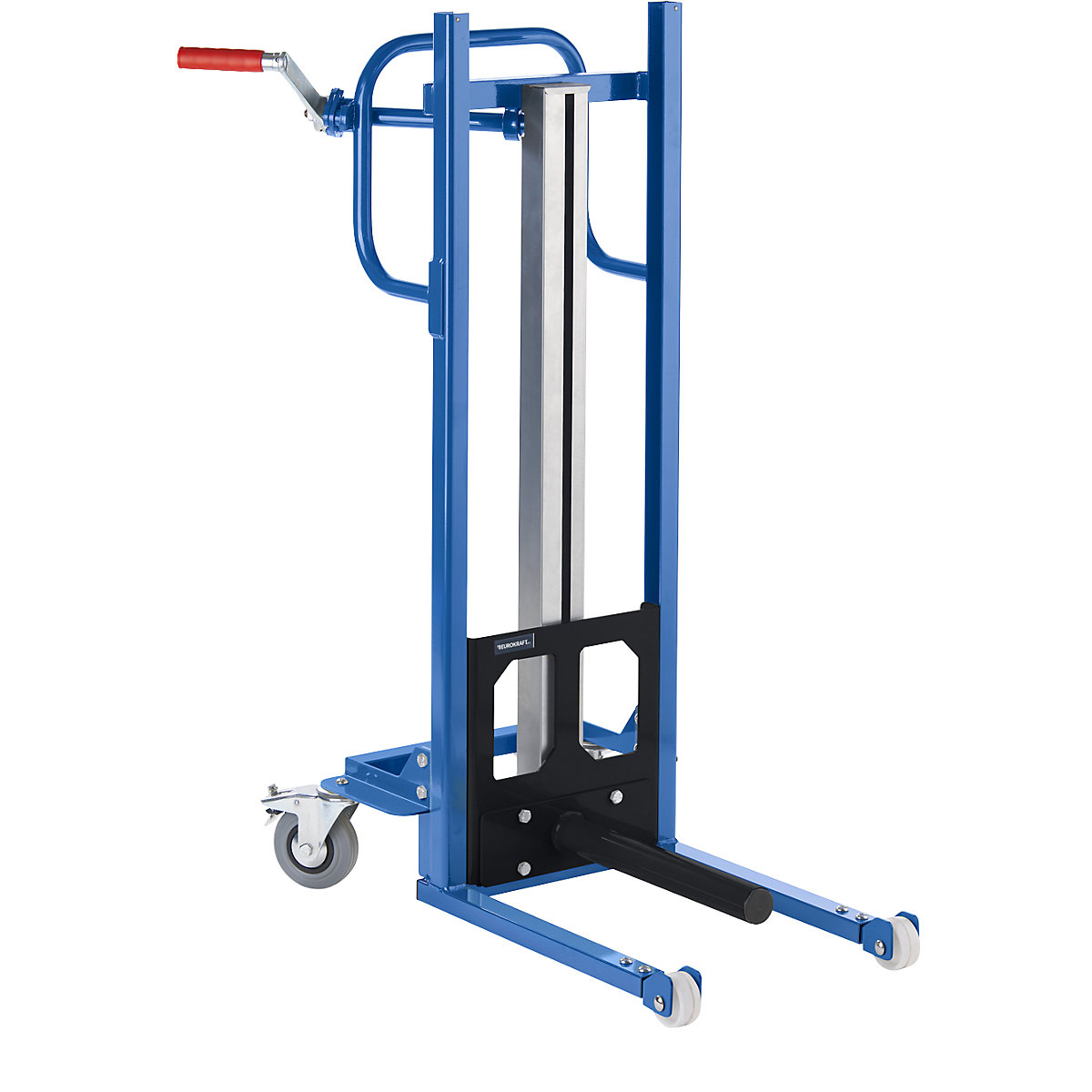

Material lifters with different load support equipment for many applications. Load centre 300 mm. Brings materials or tools to the ideal working height. Can be transported using 2 swivel castors with wheel stops and 2 fork rollers or with a 4-way chassis. Lifting motion produced by self locking safety winch and precision roller chain.

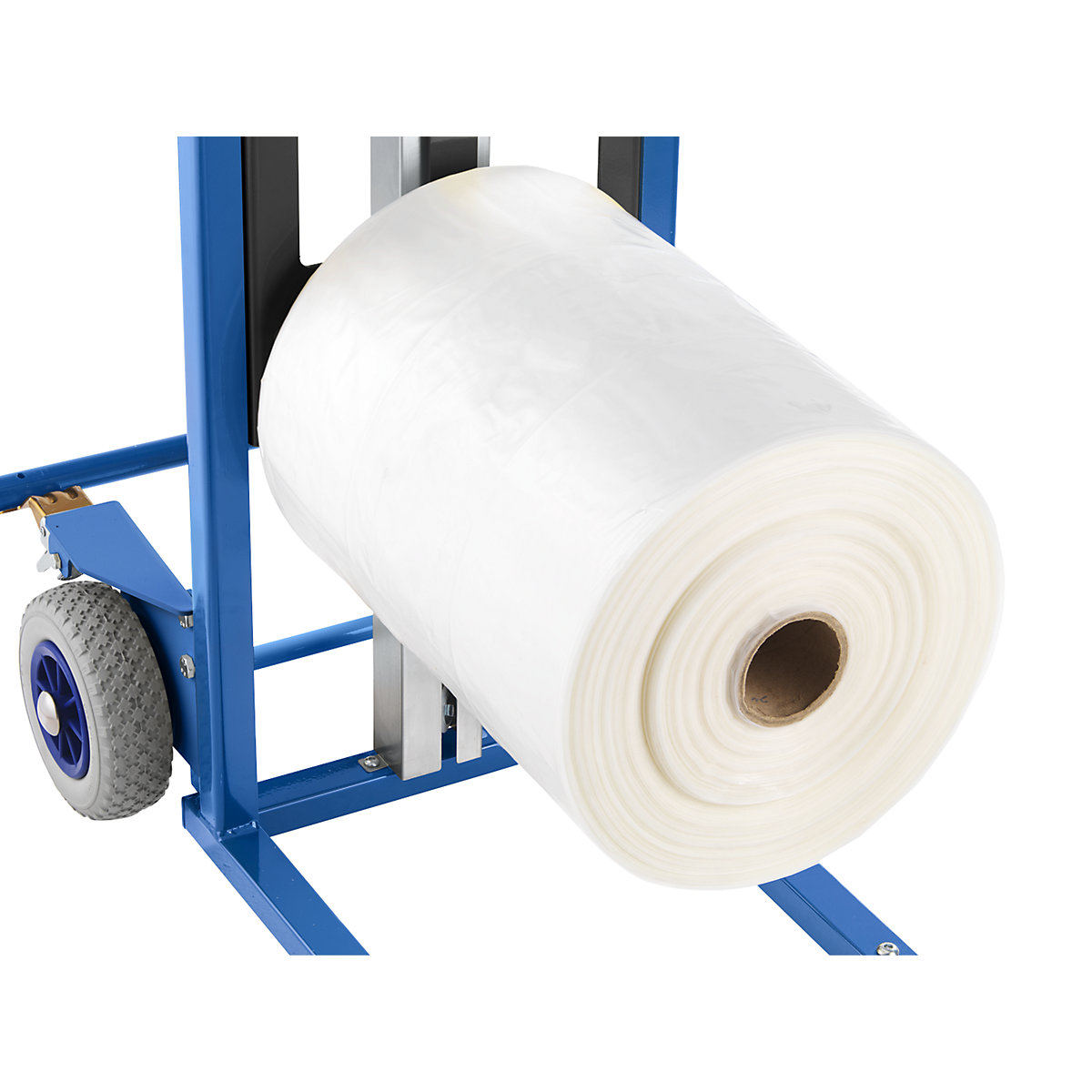

For holding rolls up to 600 mm in length and with a core diameter greater than 48 mm. Holds and moves the roll, with transfer at the right height.
For holding rolls up to 600 mm in length and with a core diameter greater than 48 mm. Holds and moves the roll, with transfer at the right height.
Available in most RAL colours. Only 10 % extra.
10 year guarantee
Technical data
| Load suspension device LxW/Ø | 600 x 42 mm |
|---|---|
| Max. load | 120 kg |
| Load centre | 300 mm |
| Lifting range | 120 – 985 mm |
| Length | 970 mm |
| Width | 506 mm |
| Height | 1265 mm |
| Clearance height | 75 mm |
| Material | steel |
| Feature | manual |
| Finish | powder coated |
| Colour | signal blue RAL 5005 |
| Weight | 35.5 kg |
| Support leg length | 610 mm |
| Lift per crank rotation | 130 mm |
| Product type | mini lifters |
| Supplied | partially assembled |
| Model | spike / fixed castors |
| Wheel fittings | 2 swivel castors with wheel stops, 2 fork rollers |
| Castor diameter front / rear | 70 / 125 mm |
| Roller material | nylon |
| Instructions |
