Ref.: 520060 49

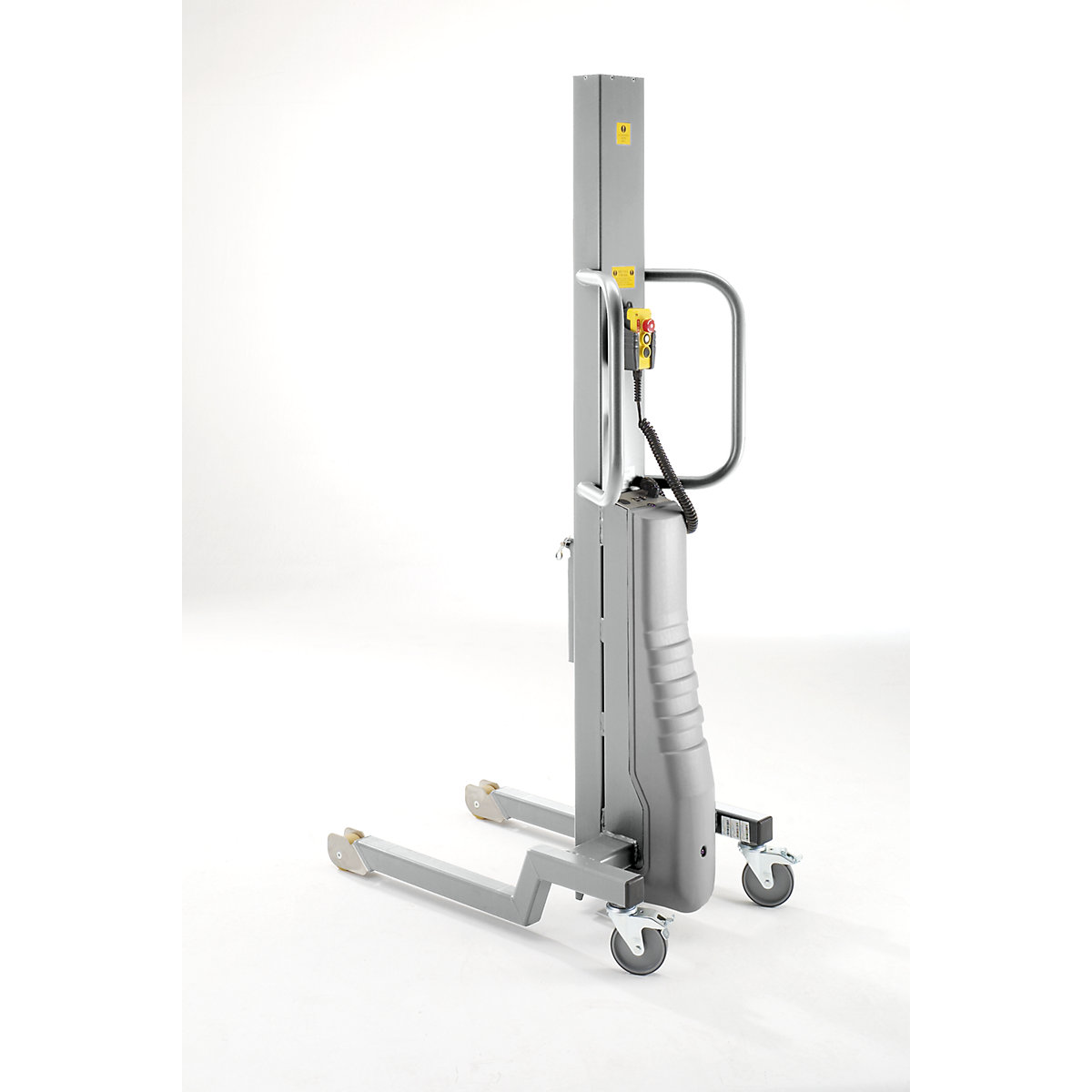

Multi-lifter in stainless steel, max. load 300 kg

Multi-lifter

with 2 fork rollers

Clearance height [mm]
Ref.: 520060 49
Product description
  • Max. load 300 kg
  • Load centre at 600/500 mm
  • Our strongest mini-lifter with 500 mm load centre at 300 kg
  • No tools required to exchange accessories
  • Fully compliant with EN 1757-1
They also allow heavier goods to be lifted in conjunction with easy to exchange accessories. Completely safe and low maintenance spindle drive.
Specified lifting range only applicable in conjunction with optionally available platform (see accessories).

Wheels
2 polyurethane steering wheels on the back, Ø 125 mm, with double stops.
Support legs optionally with straight running PU fork rollers or nylon steering wheels for manoeuvrability.

Wheeled base

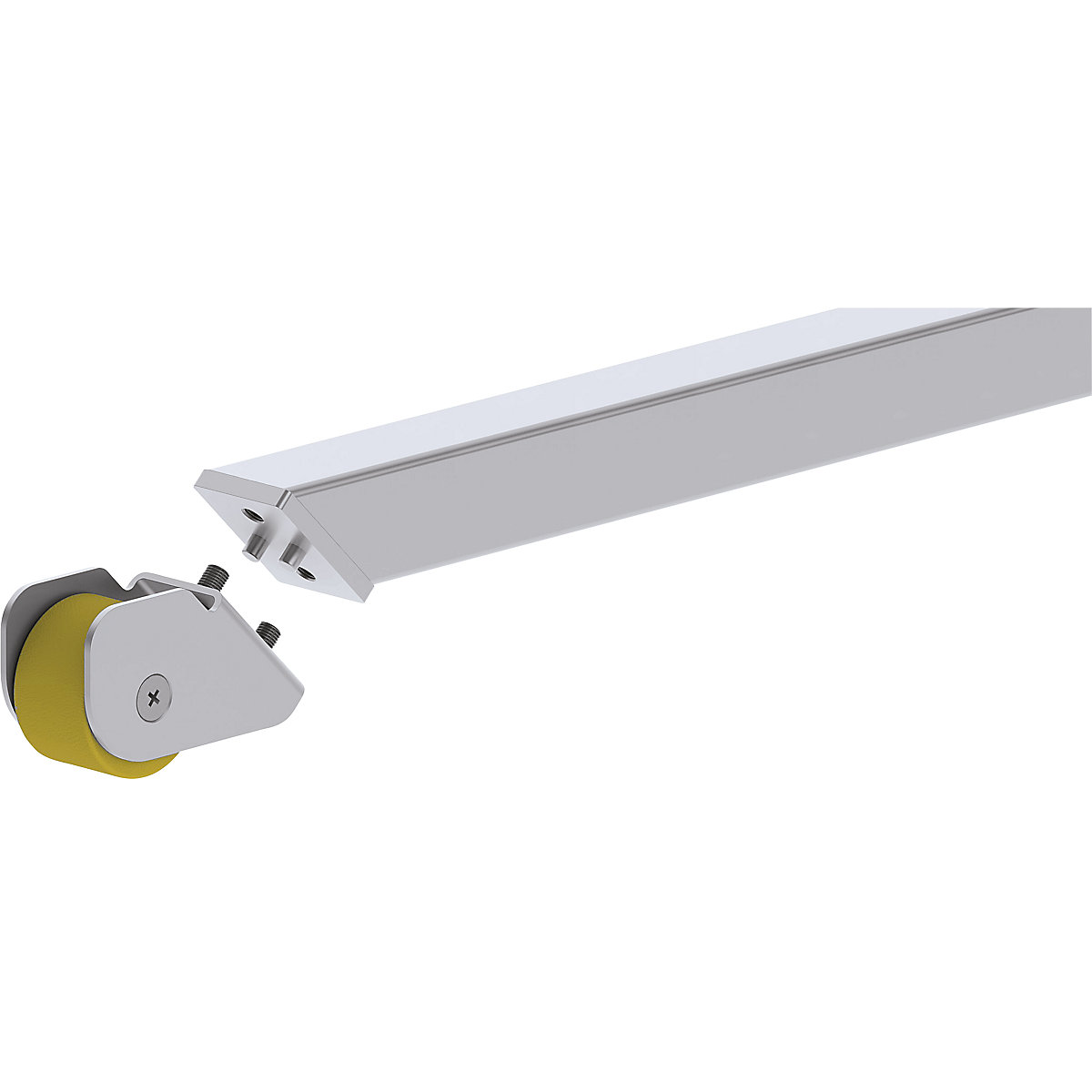

Support leg castors enclosed with delivery, easy self-assembly. Can be replaced at any time.

For food processing and pharmaceutical industries. Protection type IP66, entire unit.
Modular construction
Can be expanded as required
– Lifting heights up to 2600 mm
– Chassis can be widened, shortened and extended
– Swivel castors with Ø 60 mm for chassis height 90 mm (up to max. load of 150 kg)
– Electrical equipment can be adapted
– Custom made accessories
Please ask for details.
Technical data
Max. load300 kg
Load centre500 mm
Length1150 mm
Width570 mm
Height2000 mm
Spindle lift height1385 mm
Materialstainless steel
Featureelectric
Colouraluminium silver
Protection typeIP66
Fittingsbattery
Battery2 x 12 V / 20 Ah
Battery charger100 – 240 V / 4 A
Steering wheel materialpolyurethane
Steering wheel diameter125 mm
Weight110 kg
Support leg length725 mm
Conforms toEN 1757-1
Lifting range with optional platform120 – 1505 mm
Product typemini lifters
Suppliedassembled
Clearance height90 mm
Lowered height90 mm
Wheel fittings2 steering wheels with double stops, 2 fork rollers
Roller materialpolyurethane
Fork roller diameter80 mm
