Ref.: 570014 49

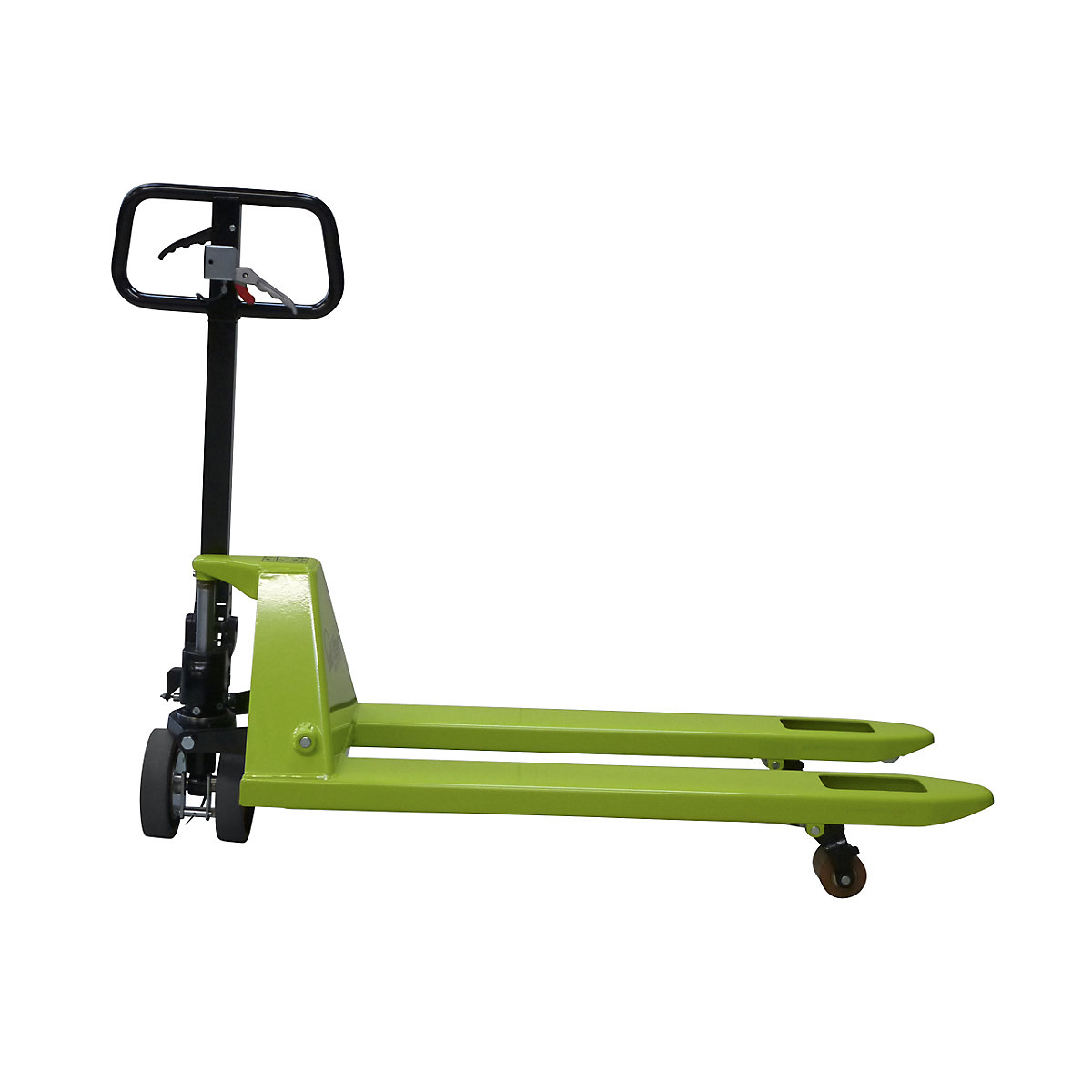

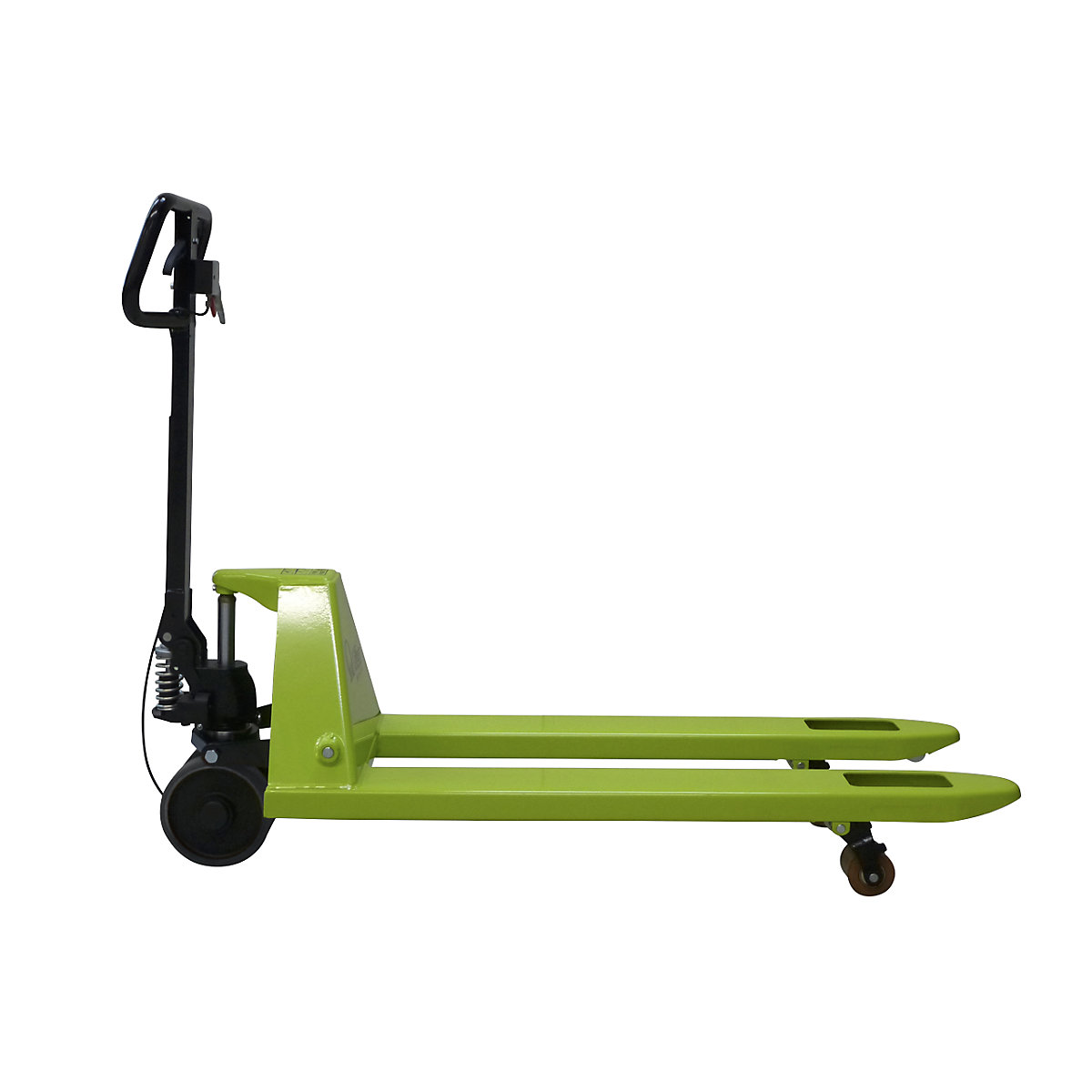

EVO pallet truck – Pramac with brakes, solid rubber steering wheels
fork length 1150 mm, single fork rollers
Fork length [mm]
Load centre [mm]
Length [mm]
Fork roller version
Ref.: 570014 49
EVO pallet truck – Pramac with brakes, solid rubber steering wheels
fork length 1150 mm, single fork rollers
fork length 1150 mm, single fork rollers
Fork length [mm]
Load centre [mm]
Length [mm]
Fork roller version
£929.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£929.00
Price / item (Excl. VAT)
Product description
- Max. load 2500 kg
- With entry and exit rollers – Euro pallets can be accessed from the short side or long side
- Proportional valve for gentle lowering
A top class range of pallet trucks. Run easily and quietly. Single or tandem fork rollers.
Extremely reliable even in the toughest environments. Multiple reinforcements on frame and forks. Cast iron lifting joints.

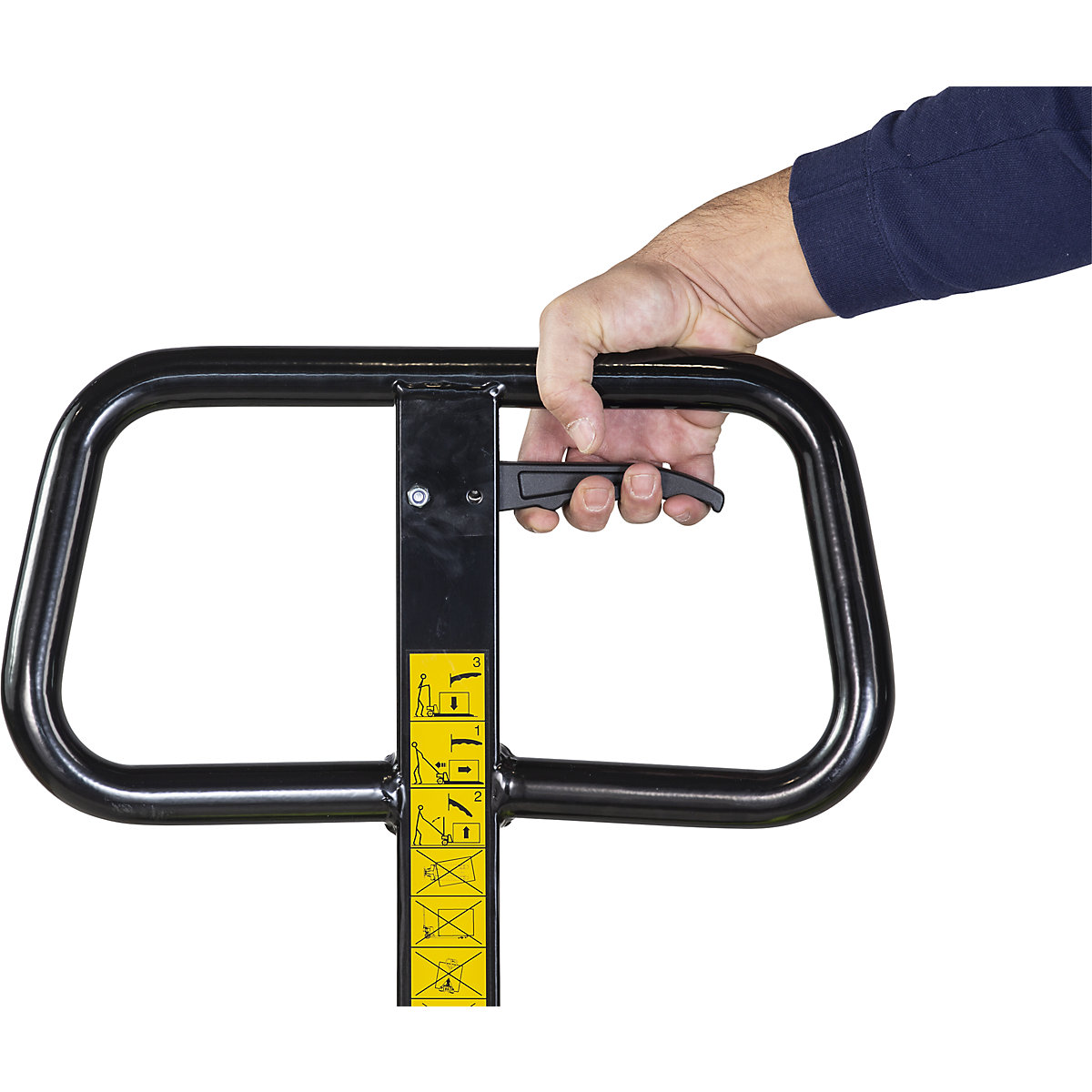

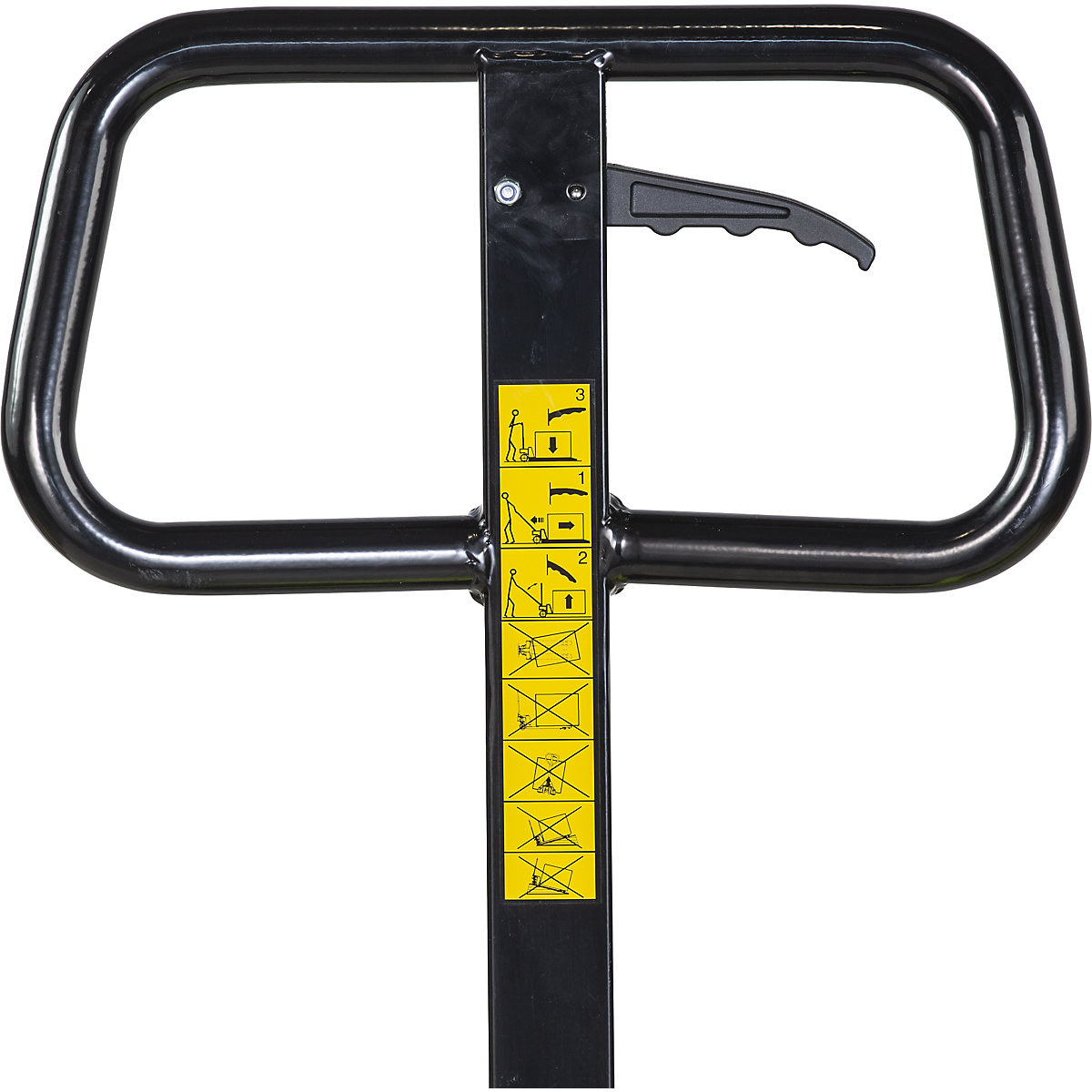

Closed, compact hydraulics with proportional valve for gentle lowering of the fork in the aluminium housing. Durable pump mechanism. No protruding parts which could cause accidents. All parts can be replaced individually. Ergonomic 3D pump and drawbar with multi-functional handle for lifting – transporting – lowering.
Encapsulated bearings with permanent lubrication. Positioning rollers in the fork tips facilitate lateral entry into pallets and crossing over door thresholds.
Powder coated in attractive, custom green colour.
Excellent transport and parking drum brake.
Wheels
Solid rubber
Non-marking, ideal for smooth and rough floors. Quiet running, extremely durable, cannot be cut by metal chippings.
Polyurethane
Shock and vibration absorbent, hardwearing, non-marking. Particularly suitable for delicate floors.
Extremely reliable even in the toughest environments. Multiple reinforcements on frame and forks. Cast iron lifting joints.
Closed, compact hydraulics with proportional valve for gentle lowering of the fork in the aluminium housing. Durable pump mechanism. No protruding parts which could cause accidents. All parts can be replaced individually. Ergonomic 3D pump and drawbar with multi-functional handle for lifting – transporting – lowering.
Encapsulated bearings with permanent lubrication. Positioning rollers in the fork tips facilitate lateral entry into pallets and crossing over door thresholds.
Powder coated in attractive, custom green colour.
Excellent transport and parking drum brake.
Wheels
Solid rubber
Non-marking, ideal for smooth and rough floors. Quiet running, extremely durable, cannot be cut by metal chippings.
Polyurethane
Shock and vibration absorbent, hardwearing, non-marking. Particularly suitable for delicate floors.
Technical data
| Max. load | 2500 kg |
|---|---|
| Fork width | 150 mm |
| Lifting range | 85 –200 mm |
| Width | 525 mm |
| Height | 1185 mm |
| Distance across forks | 525 mm |
| Steering radius | 205 ° |
| Steering wheel material | solid rubber |
| Roller material | polyurethane |
| Steering wheel diameter | 200 mm |
| Steering wheel width | 55 mm |
| Fork roller diameter | 82 mm |
| Product type | pallet trucks |
| Colour | green |
| Finish | powder coated |
| Type of brakes | with transport and parking brake |
| Drawbar height | 1185 mm |
| Wheel bearing | ball bearing |
| Fittings | entry rollers exit rollers |
| Feature | manual mobile |
| Supplied | assembled |
| Fork length | 1150 mm |
| Load centre | 600 mm |
| Length | 1550 mm |
| Fork roller version | single |
| Fork roller width | 82 mm |
| Weight | 61 kg |
