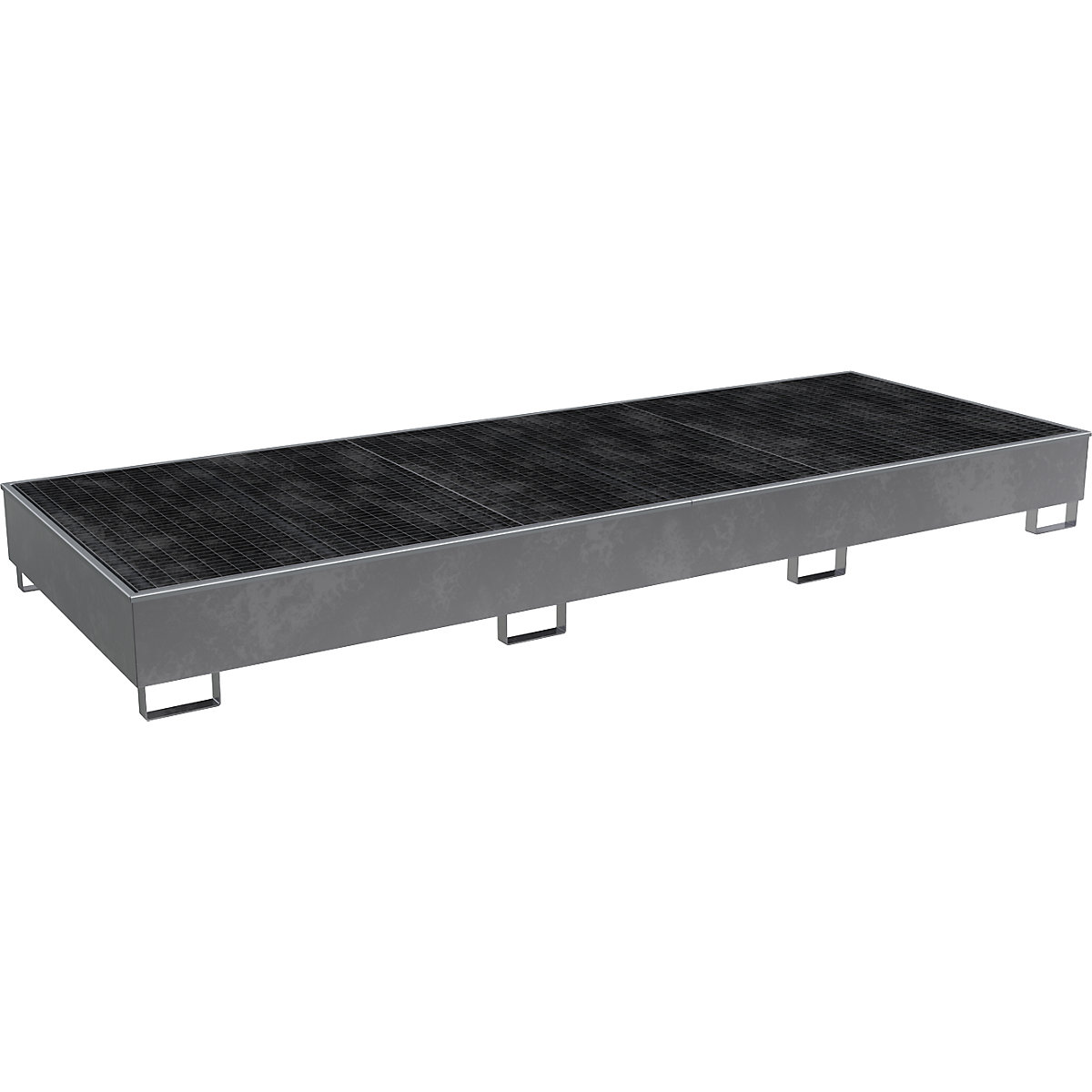

Base sump tray with PE insert – eurokraft pro with grate, 1000 l, LxWxH 3565 x 1315 x 360 mm
zinc plated
Finish
Colour
Ref.: 860353 49
Base sump tray with PE insert – eurokraft pro with grate, 1000 l, LxWxH 3565 x 1315 x 360 mm
zinc plated
zinc plated
Finish
Colour
Ref.: 860353 49
Product not available
Currently not availableWe will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- For the storage of aggressive, corrosive, flammable media in containers on pallets – tray grate can be used as the lowest storage level
- Convert existing shelving systems into regulation compliant hazardous goods storage shelving
- Steel trays with PE insert, clamp frame, grate – simply place under shelving systems
- 100 mm base clearance for easy transport using a forklift truck or pallet truck
- With certification – manufacturer's declaration of conformity in accordance with StawaR
Base sump tray made of steel with plastic insert for the storage of aggressive, corrosive and flammable media such as acids, alkaline solutions, chemicals etc.
Construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene sheet material.
With zinc plated steel clamp frame for fixing the plastic insert in place.
This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene.
For the economical and legally compliant conversion of shelf unit systems, even ones already installed.
Certified with manufacturer's declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3.
Approved for water hazardous liquids in GHS categories 1 – 4.
Approved for corrosive liquids in GHS category 1.
Construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene sheet material.
With zinc plated steel clamp frame for fixing the plastic insert in place.
This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene.
For the economical and legally compliant conversion of shelf unit systems, even ones already installed.
Certified with manufacturer's declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3.
Approved for water hazardous liquids in GHS categories 1 – 4.
Approved for corrosive liquids in GHS category 1.
Please enquire for individual dimensions and designs!
10 year guarantee
For water hazardous liquids
Resistant to aggressive, corrosive chemicals
For flammable liquids
Technical data
| Type of grate | with zinc plated grate |
|---|---|
| Sump capacity | 1000 l |
| Length | 3565 mm |
| Width | 1315 mm |
| Height | 360 mm |
| Material | sheet steel polyethylene |
| Design of sump tray | with PE insert |
| Max. load | 1000 kg/m² |
| Clearance height | 100 mm |
| Test symbol | manufacturers declaration of conformity in accordance with StawaR |
| Material thickness | 3 mm |
| For media | flammable and corrosive liquids water hazardous dangerous goods |
| Hazard class | for flammable liquids in GHS categories 1 – 3, for water hazardous liquids in GHS categories 1 – 4 and for corrosive liquids in GHS category 1 |
| Distributed load | 1000 kg/m² |
| Certification | with |
| Product type | shelf sump trays |
| Supplied | assembled |
| Finish | hot dip galvanised |
| Colour | zinc plated |
| Weight | 339 kg |
