Ref.: 909587 49

Steel sump tray with PE insert – eurokraft pro 1000 l, for 2 x IBC/CTC

LxWxH 2665 x 1315 x 440 mm, painted blue

Finish

For the storage of aggressive, corrosive, flammable media such as acids, alkaline solutions, chemicals, oils
Robust steel tray with hardwearing PE insert, clamp frame and grate
With certification – manufacturer's declaration of conformity in accordance with StawaR

Score: 3.3/5.9

Ref.: 909587 49

Steel sump tray with PE insert – eurokraft pro 1000 l, for 2 x IBC/CTC

LxWxH 2665 x 1315 x 440 mm, painted blue

Steel sump tray with PE insert – eurokraft pro (Product illustration 2)-1

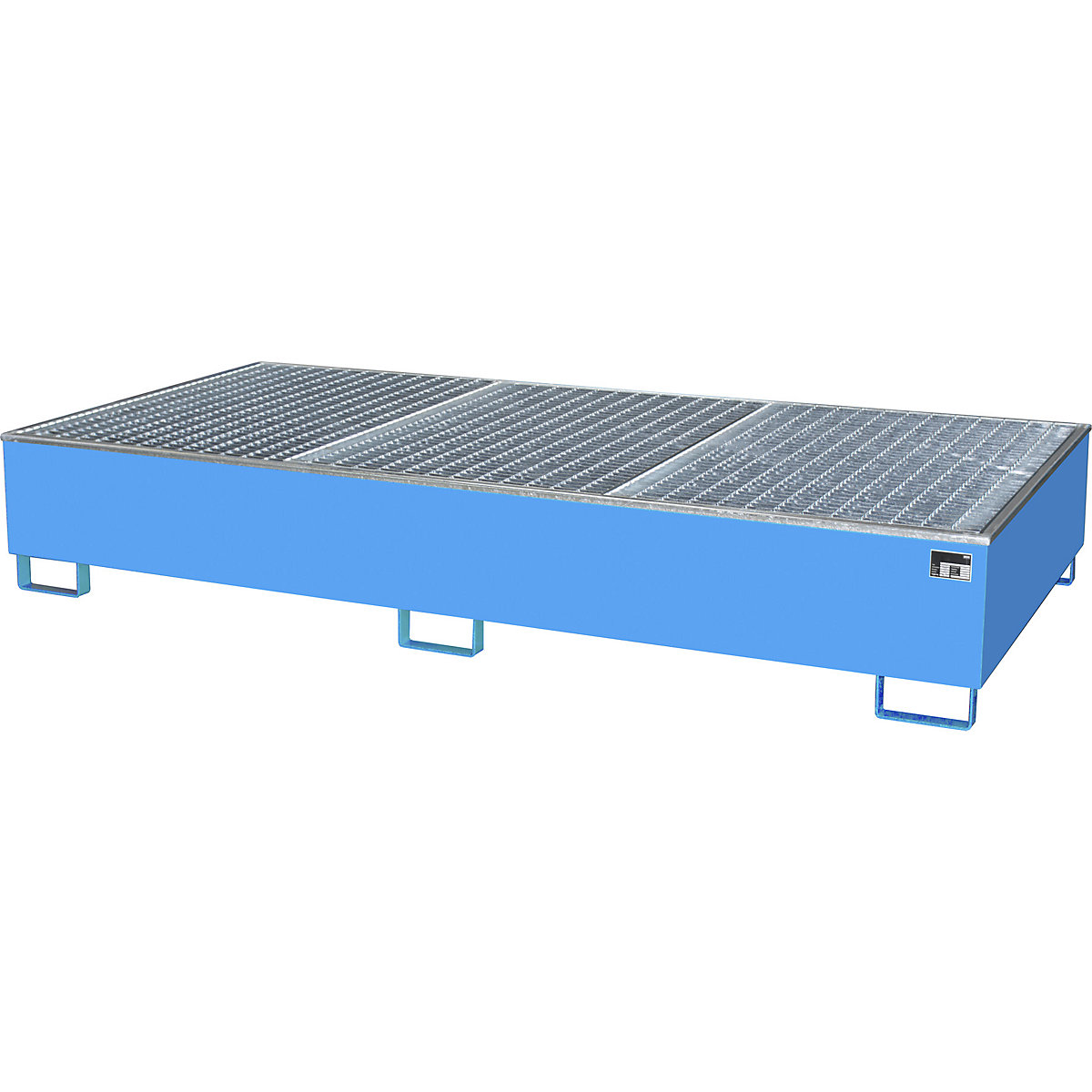

Steel sump tray with PE insert – eurokraft pro (Product illustration 3)-2

LxWxH 2665 x 1315 x 440 mm, painted blue

Finish

£2,425.00

Price / item (Excl. VAT)

Delivery time: Over 4 weeks

Good reasons to purchase products from us

Guarantee of up to 15 years
30 day right of return
Free delivery
Fast delivery

We will be happy to help you

01442 238000

Monday-Friday 8am-5pm

Do you have any questions about this product?

Product description

For the storage of aggressive, corrosive, flammable media such as acids, alkaline solutions, chemicals, oils
Robust steel tray with hardwearing PE insert, clamp frame and grate
With certification – manufacturer's declaration of conformity in accordance with StawaR

Robust steel tray construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene panel material.
With zinc plated steel clamp frame for fixing the plastic insert in place.

This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene.

Certified with manufacturer's declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3.
Approved for water hazardous liquids in GHS categories 1 – 4.
Approved for corrosive liquids in GHS category 1.

Please enquire for individual dimensions and designs!

10 year guarantee

For water hazardous liquids

Resistant to aggressive, corrosive chemicals

For flammable liquids

Technical data

Type of grate	with zinc plated grate
Sump capacity	1000 l
Length	2665 mm
Width	1315 mm
Height	440 mm
Drum capacity	8 x 200 l
Material	sheet steel
1000 l container capacity	2 pcs.
Design of sump tray	with PE insert
Max. load	1000 kg/m²
Clearance height	100 mm
Test symbol	manufacturers declaration of conformity in accordance with StawaR
Material thickness	3 mm
For media	flammable and corrosive liquids water hazardous dangerous goods
Hazard class	for flammable liquids in GHS categories 1 – 3, for water hazardous liquids in GHS categories 1 – 4 and for corrosive liquids in GHS category 1
Distributed load	1000 kg/m²
Certification	with
Product type	1000 l sump trays
Supplied	assembled
Finish	painted
Colour	light blue RAL 5012
Weight	260 kg
