Sump tray for skip trailer – eurokraft pro for skip trailers

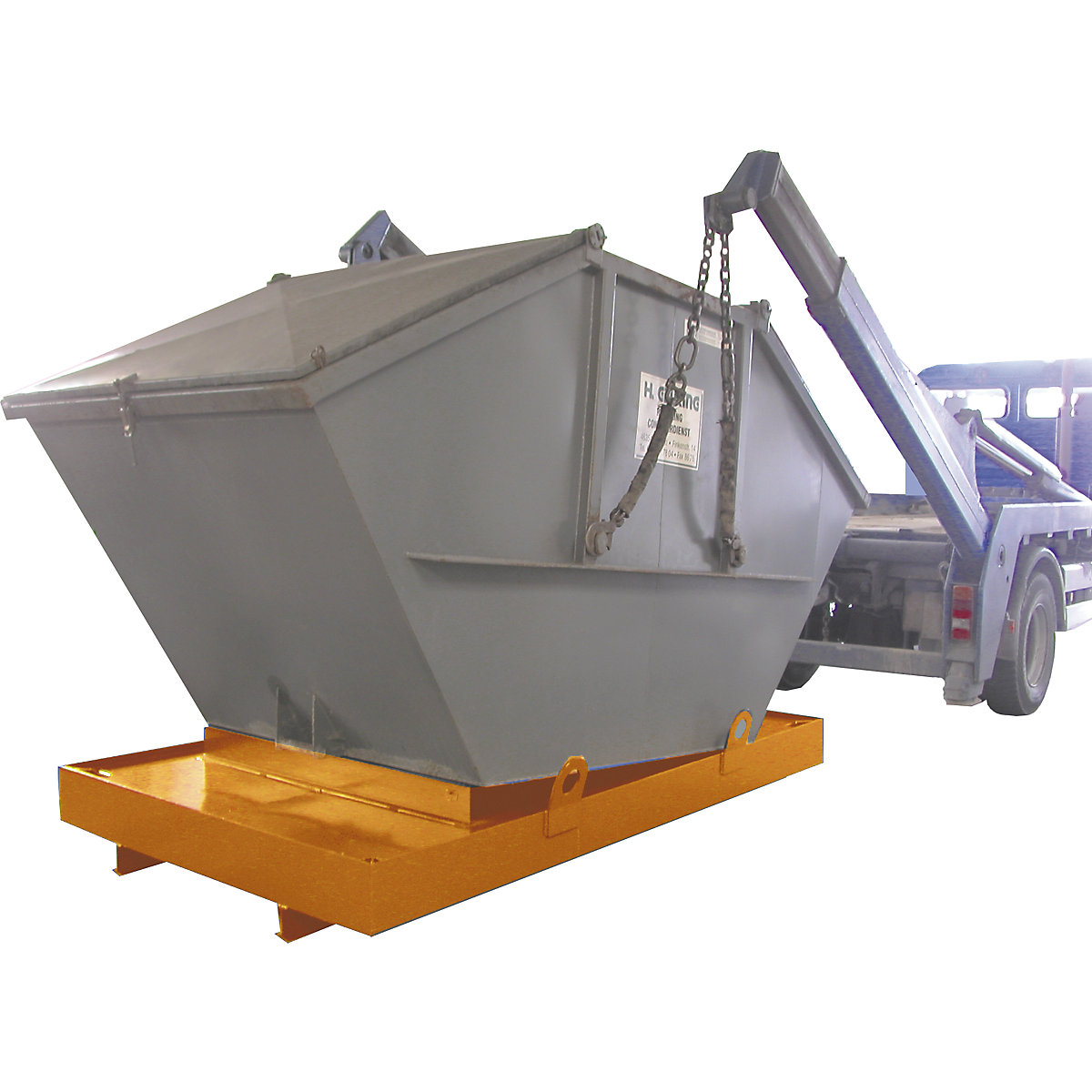

The sump tray for skip containers enables the safe and environmentally friendly storage of skip containers with waste materials contaminated with oil, emulsion or cooling lubricants – e.g. for swarf contaminated with cooling lubricants, oils etc. Liquids hazardous to water and flammable liquids are reliably caught and do not enter the ground or groundwater. The robust steel construction is suitable for skip containers according to DIN 30720 up to 10 m³ and can be used indoors as well as in covered outdoor areas.

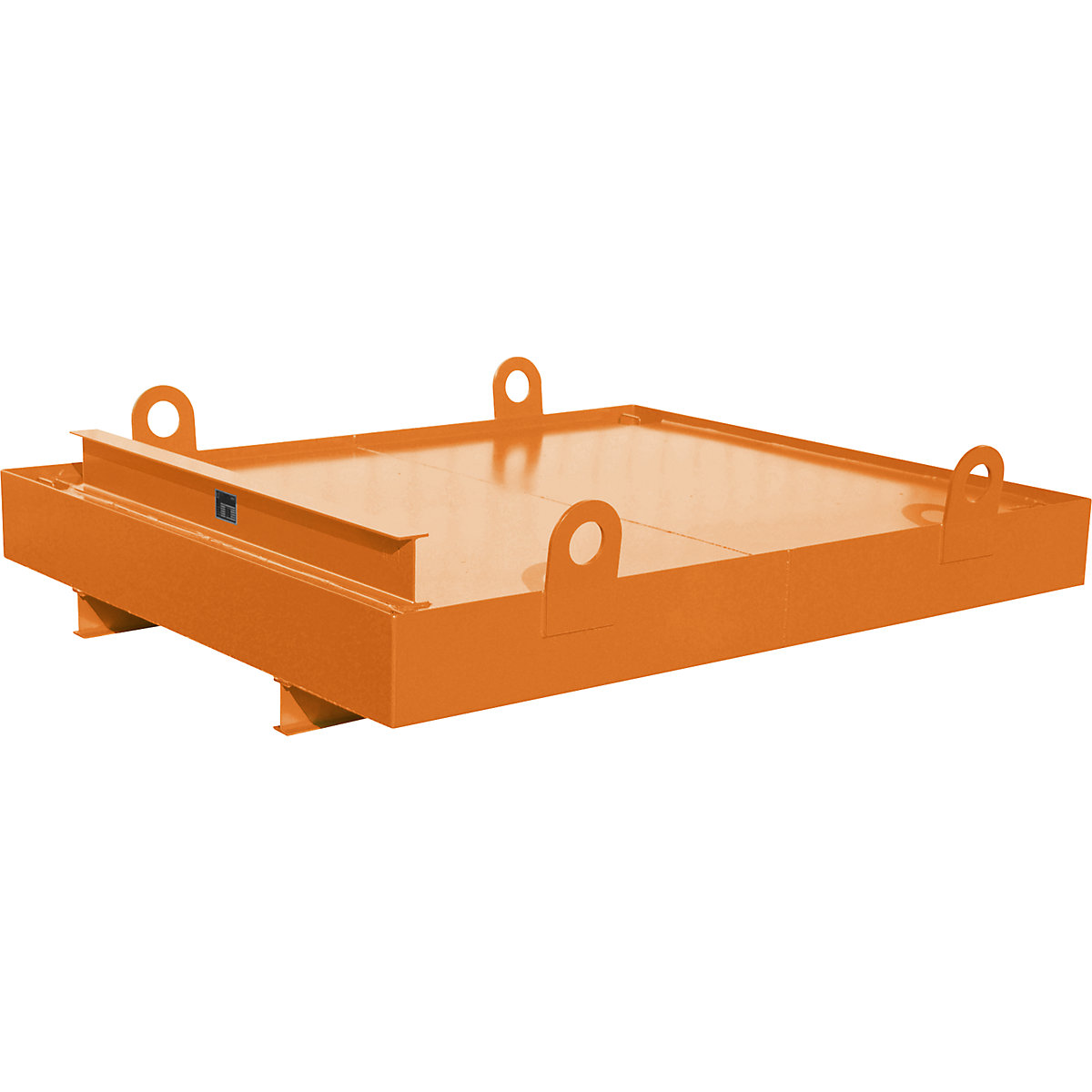

An integrated tray cover protects the collected liquids from contamination. The four suction openings are fitted with removable strainers. They also serve as a practical fill level indicator. Thanks to the base inclined by 5°, liquids can be drained in a targeted manner and suctioned off more easily. In addition, the tray is easy to clean.

For internal transport, the sump tray has pockets for forklift trucks as well as crane eyelets. This allows it to be safely positioned or relocated. The general technical approval according to DIBt supports compliant use when storing water-hazardous and flammable liquids.

Depending on space requirements and the application area, the sump tray is available in three different sizes. The colour scheme can also be selected to match company markings. Available colours are flame red RAL 3000, yellow orange RAL 2000, light blue RAL 5012, mouse grey RAL 7005 and reseda green RAL 6011.
