Ref.: 609199 49

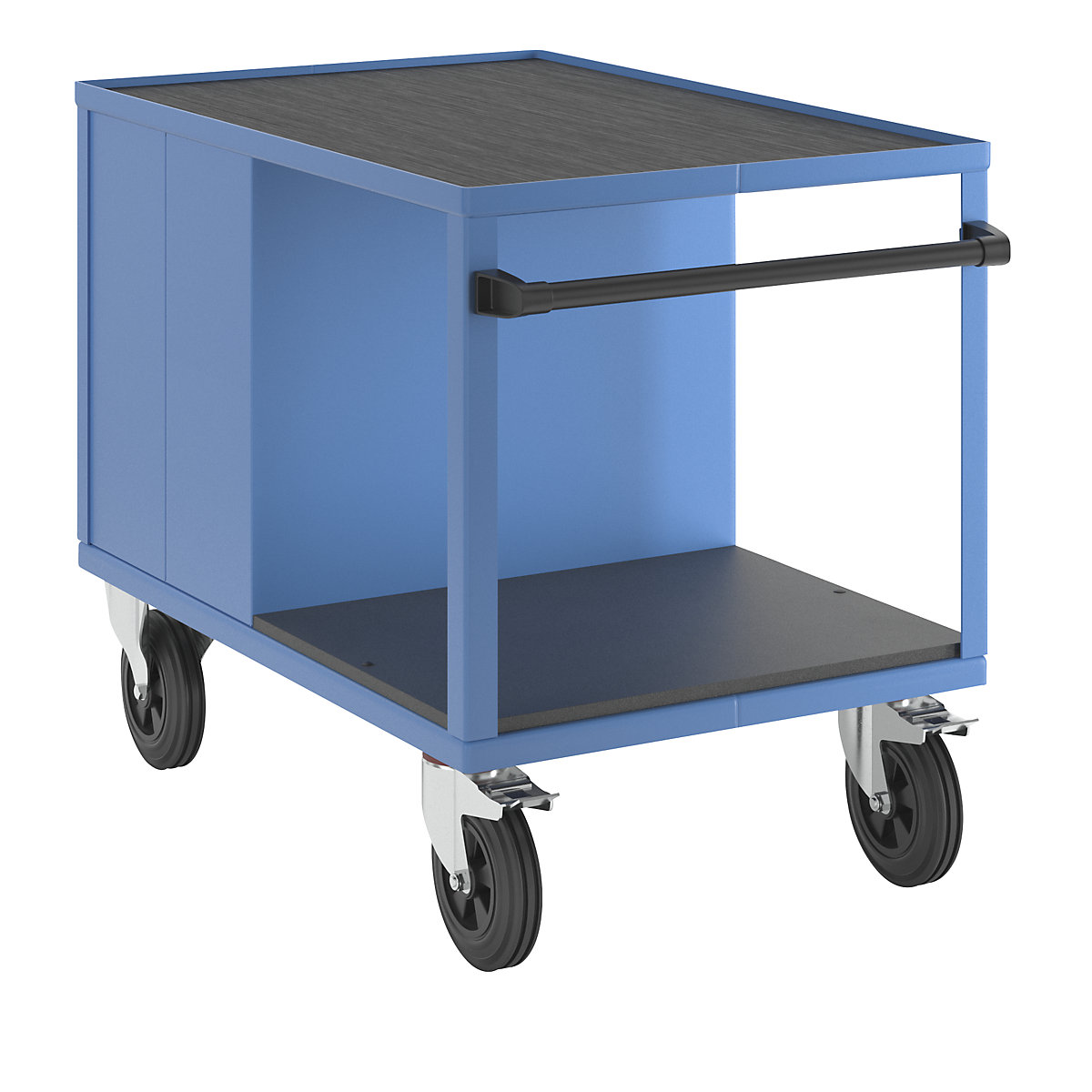

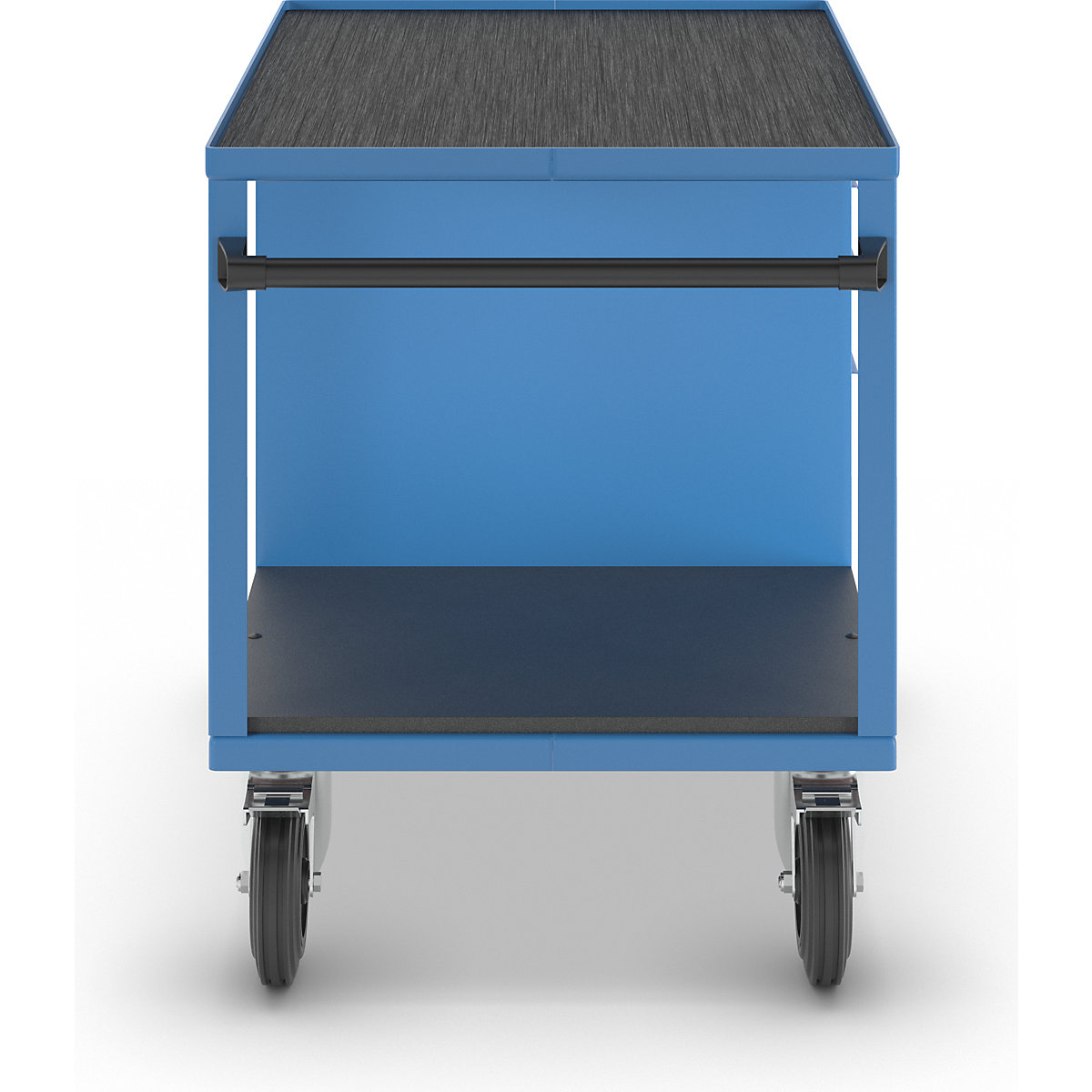

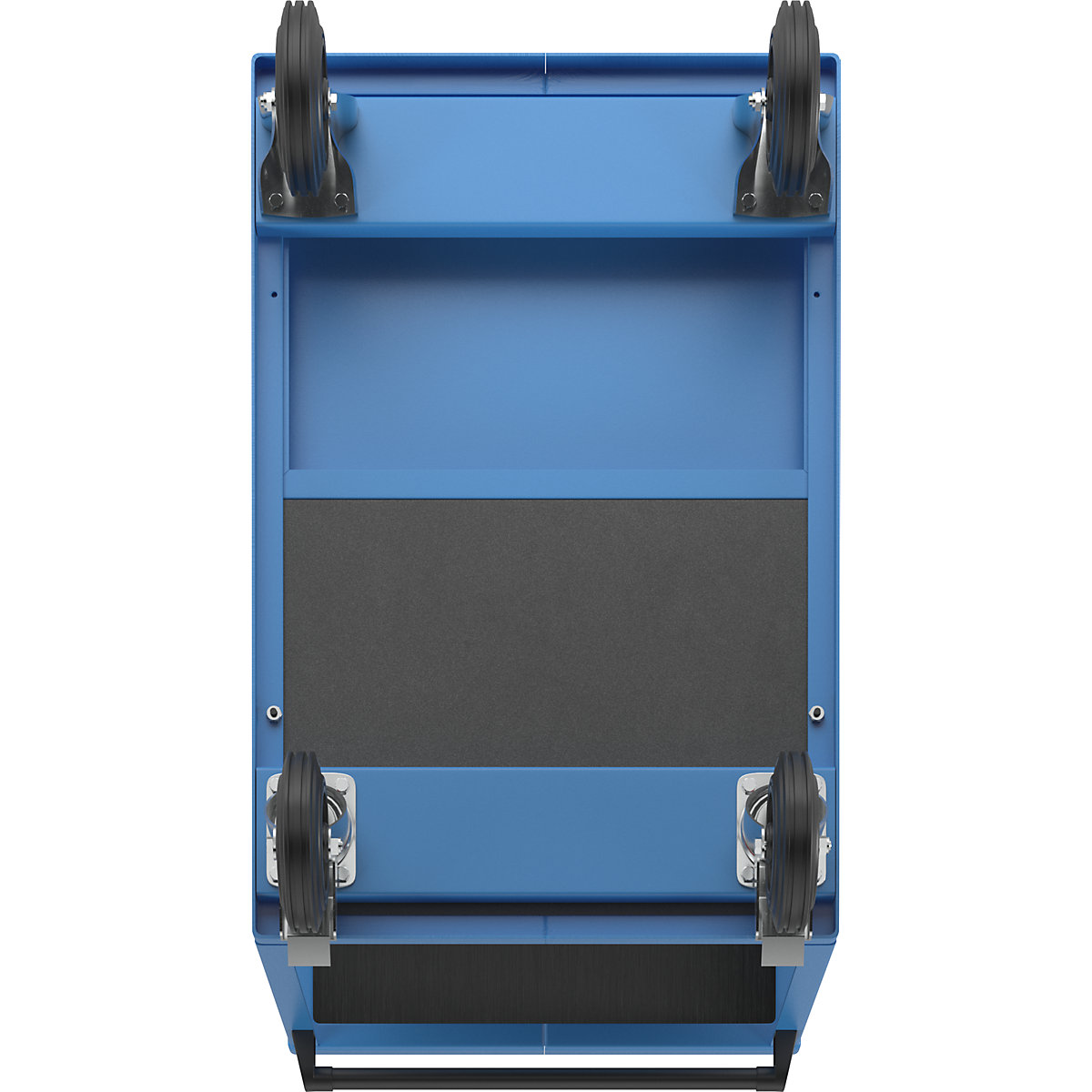

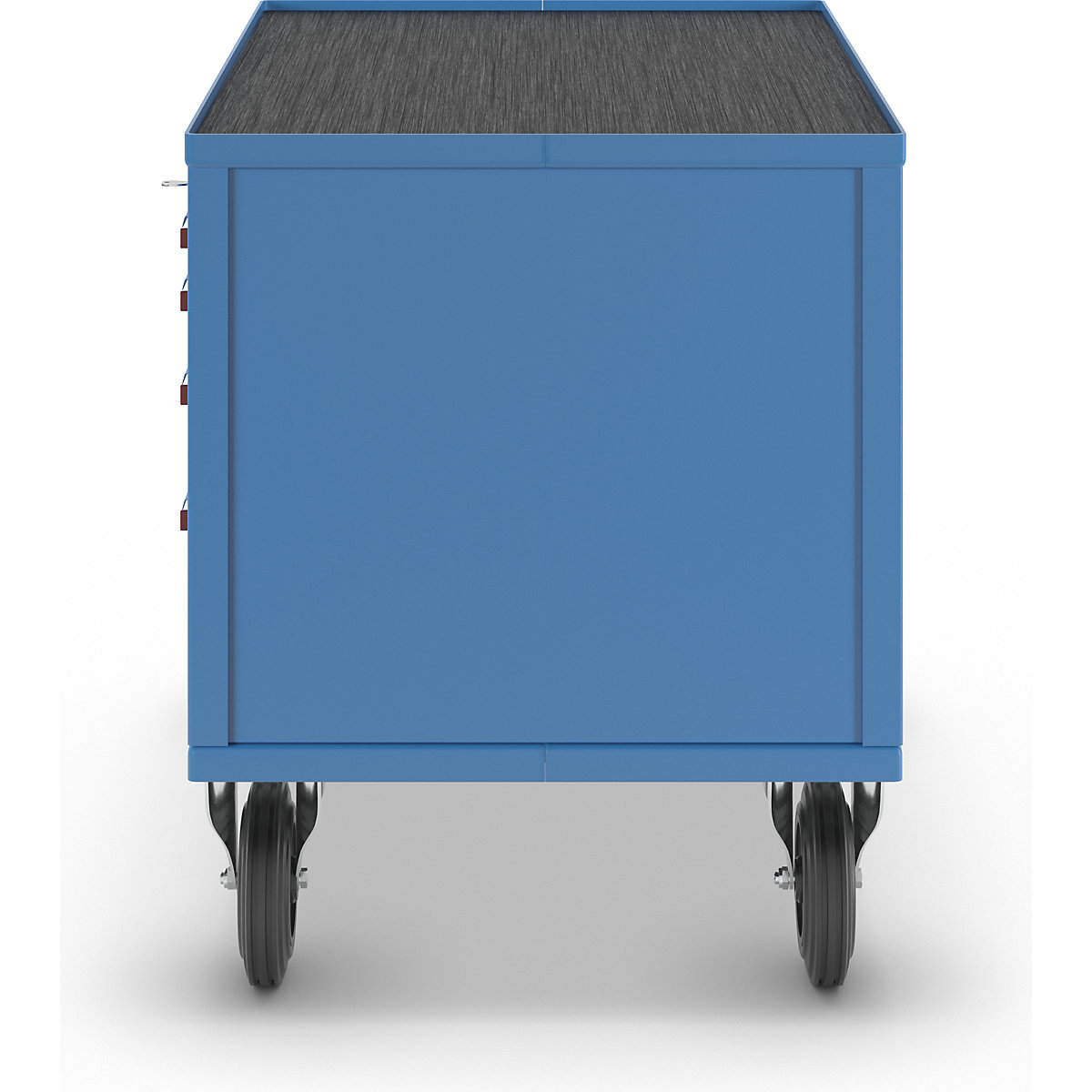

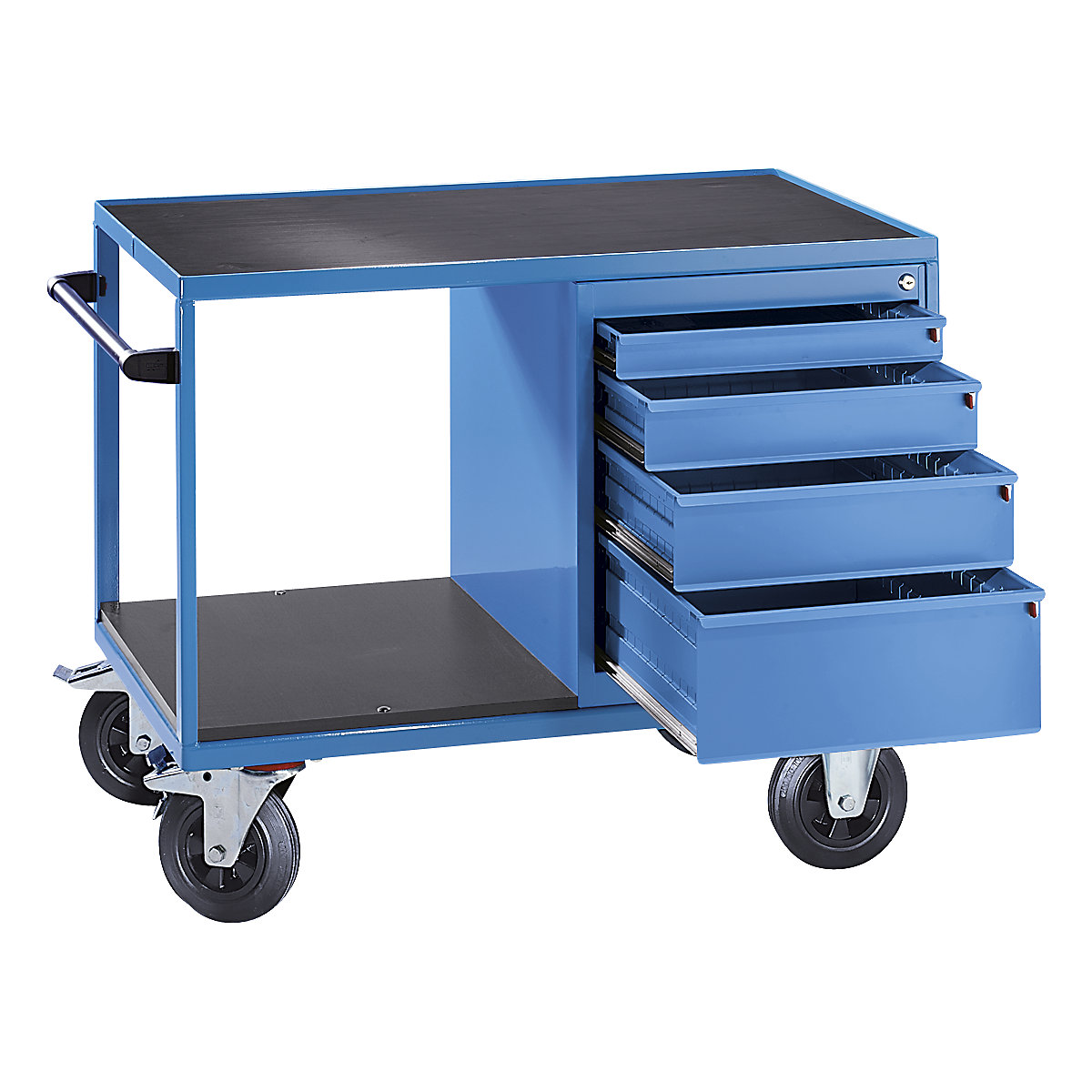

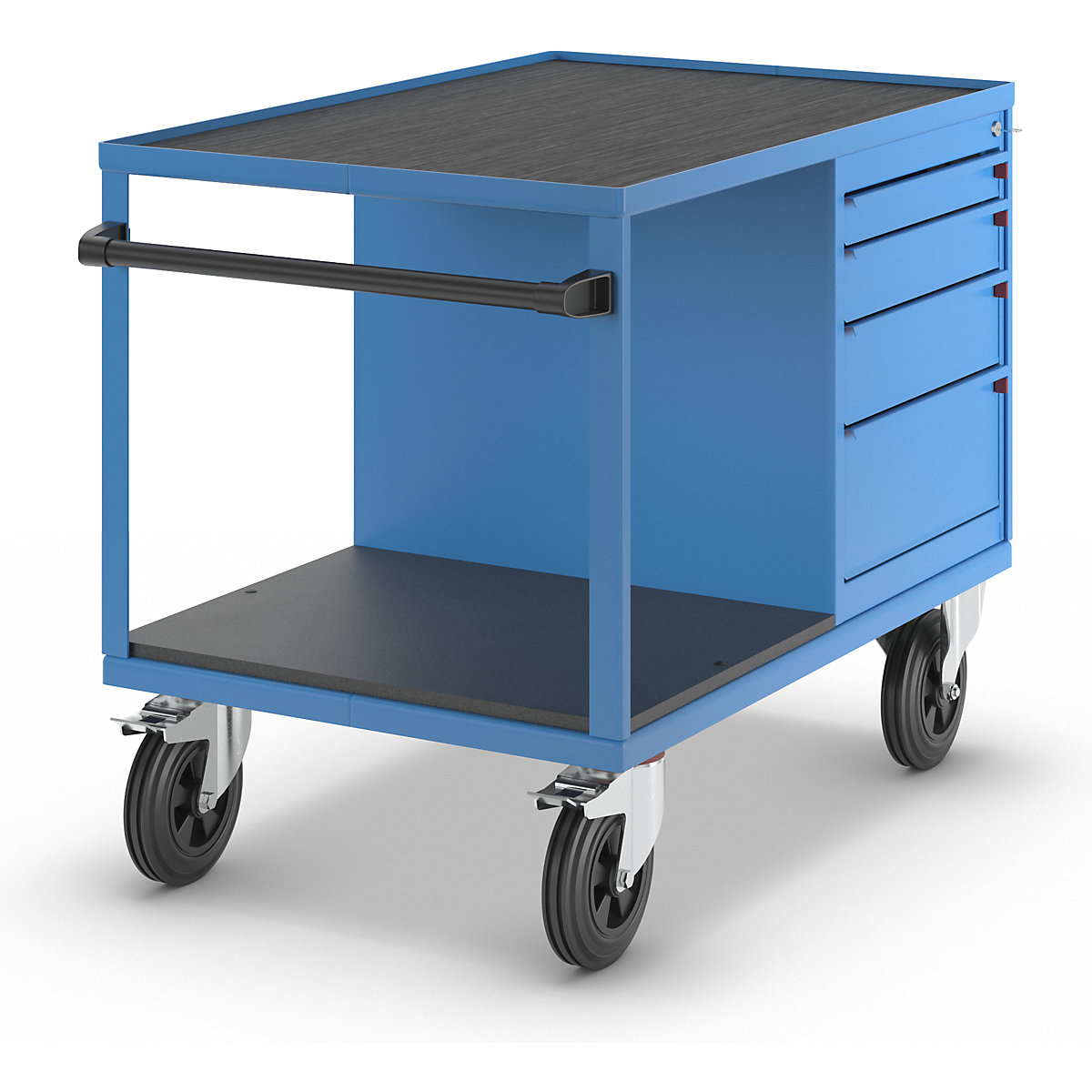

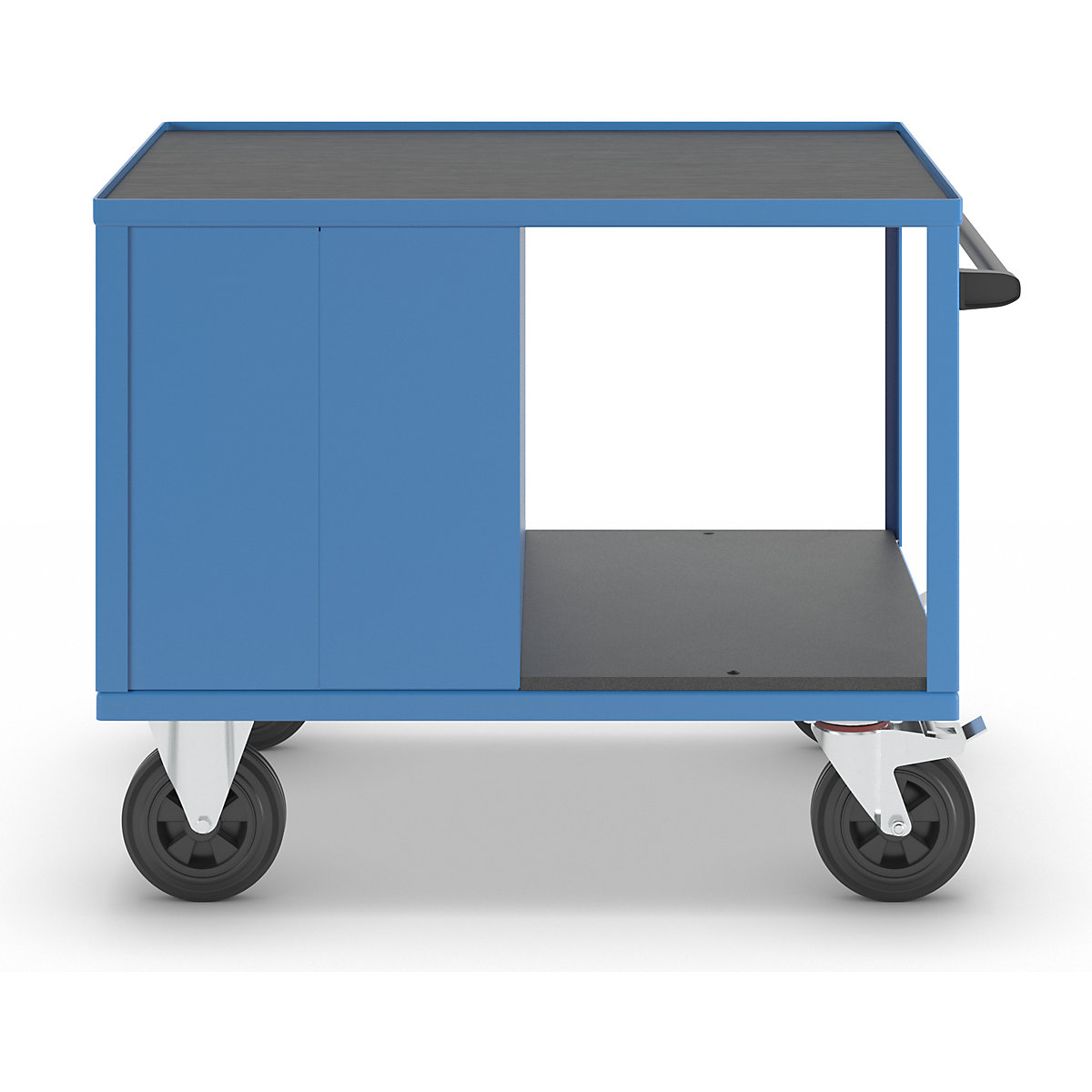

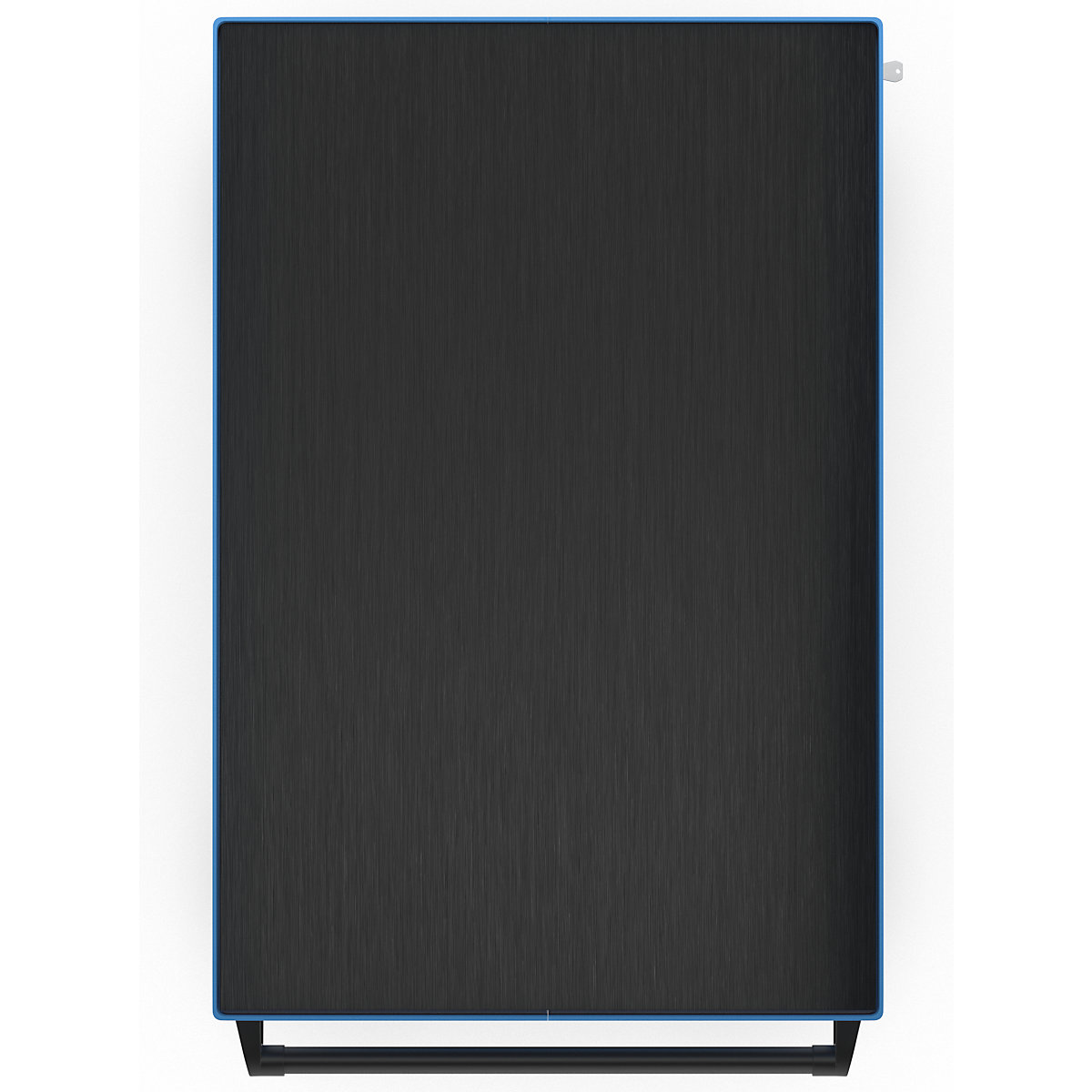

Assembly trolley, max. load 500 kg – eurokraft pro 4 drawers
light blue RAL 5012
Preferred RAL colour*
*Colours shown in the product image may vary.
Ref.: 609199 49
Assembly trolley, max. load 500 kg – eurokraft pro 4 drawers
light blue RAL 5012
light blue RAL 5012
Preferred RAL colour*
*Colours shown in the product image may vary.
£1,125.00
Price / item (Excl. VAT)
Only 7 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£1,125.00
Price / item (Excl. VAT)
Product description
- Everything remains in place due to a work surface with a ribbed rubber covering
- Tools and small parts are easy to store and immediately at hand
- A lower shelf open to 3 sides with the dimensions 514 x 700 x 550 mm offers additional storage space
- Versatile storage space for use in industry, production facilities or in automotive workshops
- Push handle and swivel castors make it flexible to move to the place of use
- Raised steel edges prevent parts from slipping off
- Parking brakes keep the trolley securely in place – ideal as a mobile workstation
- With a width of 424 mm, the drawers offer plenty of space for your work equipment
Sturdy steel construction. High quality powder coating. Snap-on push handle.
2 swivel castors and 2 fixed castors, wheel Ø 200 mm, solid rubber tyres, roller bearings. Swivel castors with double stops.
Premium quality from our own production facility.
Four drawers of different heights, mounted on ball bearings. Max. load 20 kg per drawer. Lockable with common key locks.
2 swivel castors and 2 fixed castors, wheel Ø 200 mm, solid rubber tyres, roller bearings. Swivel castors with double stops.
Premium quality from our own production facility.
Four drawers of different heights, mounted on ball bearings. Max. load 20 kg per drawer. Lockable with common key locks.
Identical locks for all assembly trolley, differing locks on request.
Supplied fully assembled.
Available in most RAL colours. Only 10 % extra.
10 year guarantee
Delivered fully assembled
Technical data
| Number of levels | 2 pcs. |
|---|---|
| Platform length | 1050 mm |
| Platform width | 700 mm |
| Colour | light blue RAL 5012 |
| Platform material | melamine coated chipboard ribbed rubber |
| Working height | 860 mm |
| Max. load | 500 kg |
| Shelf heights | 285 / 860 mm |
| Length | 1130 mm |
| Width | 700 mm |
| Height | 872 mm |
| Wheel fittings | 2 swivel castors with double stops, 2 fixed castors |
| Wheel type | solid rubber |
| Wheel diameter | 200 mm |
| Wheel bearing | roller bearing |
| Number of drawers | 4 pcs. |
| Drawer height | 1 x 60 / 1 x 90 / 1 x 120 / 1 x 180 mm |
| Max. drawer load | 20 kg |
| Platform type | raised edge on 4 sides, 12 mm high |
| Lock type | cylinder lock, common key |
| Sub-structure fittings | 4 drawers |
| Frame material | steel, powder coated |
| Type of worktop | ribbed rubber |
| Product type | assembly trolleys with base |
| Supplied | assembled |
| Weight | 92 kg |
