Ref.: 649422 49

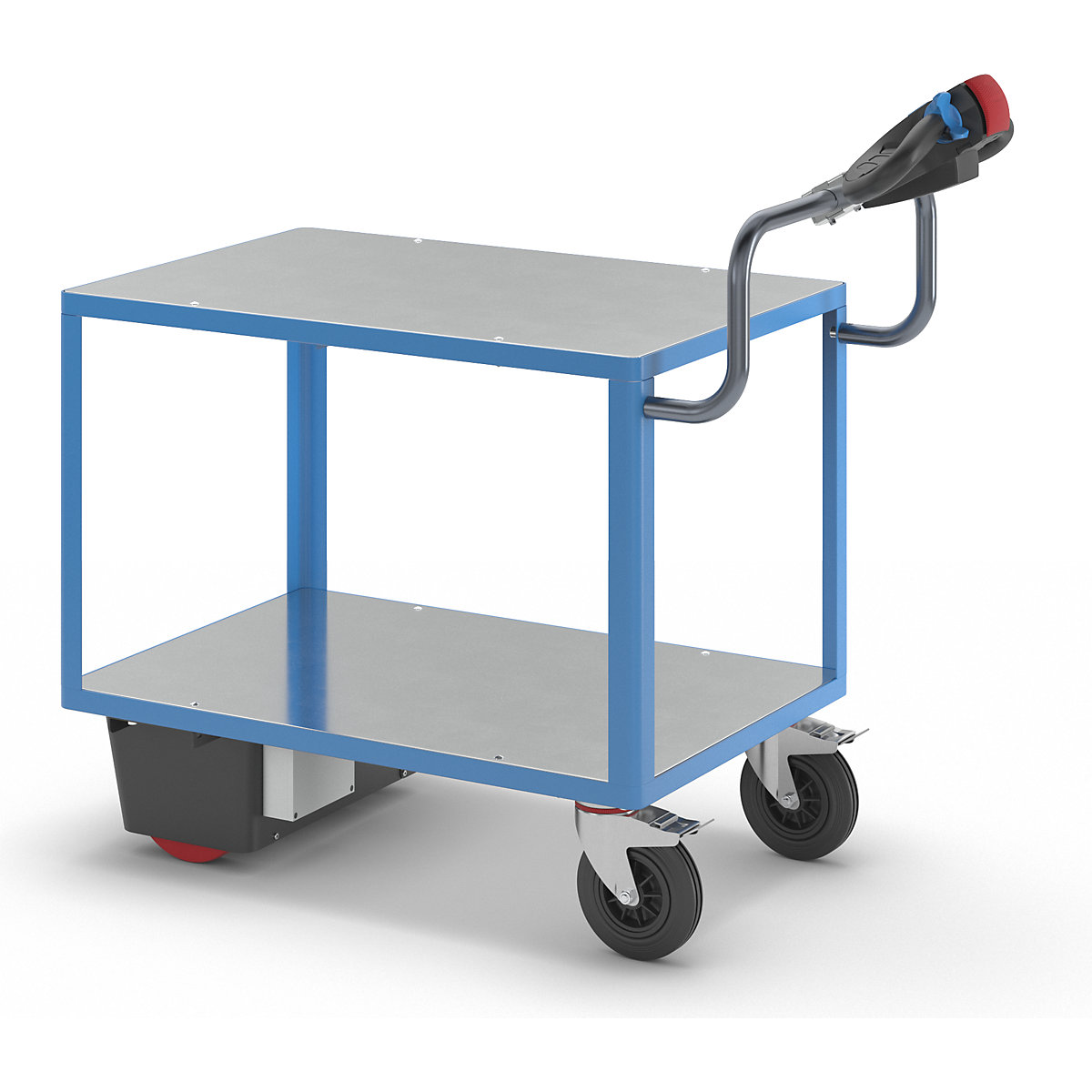

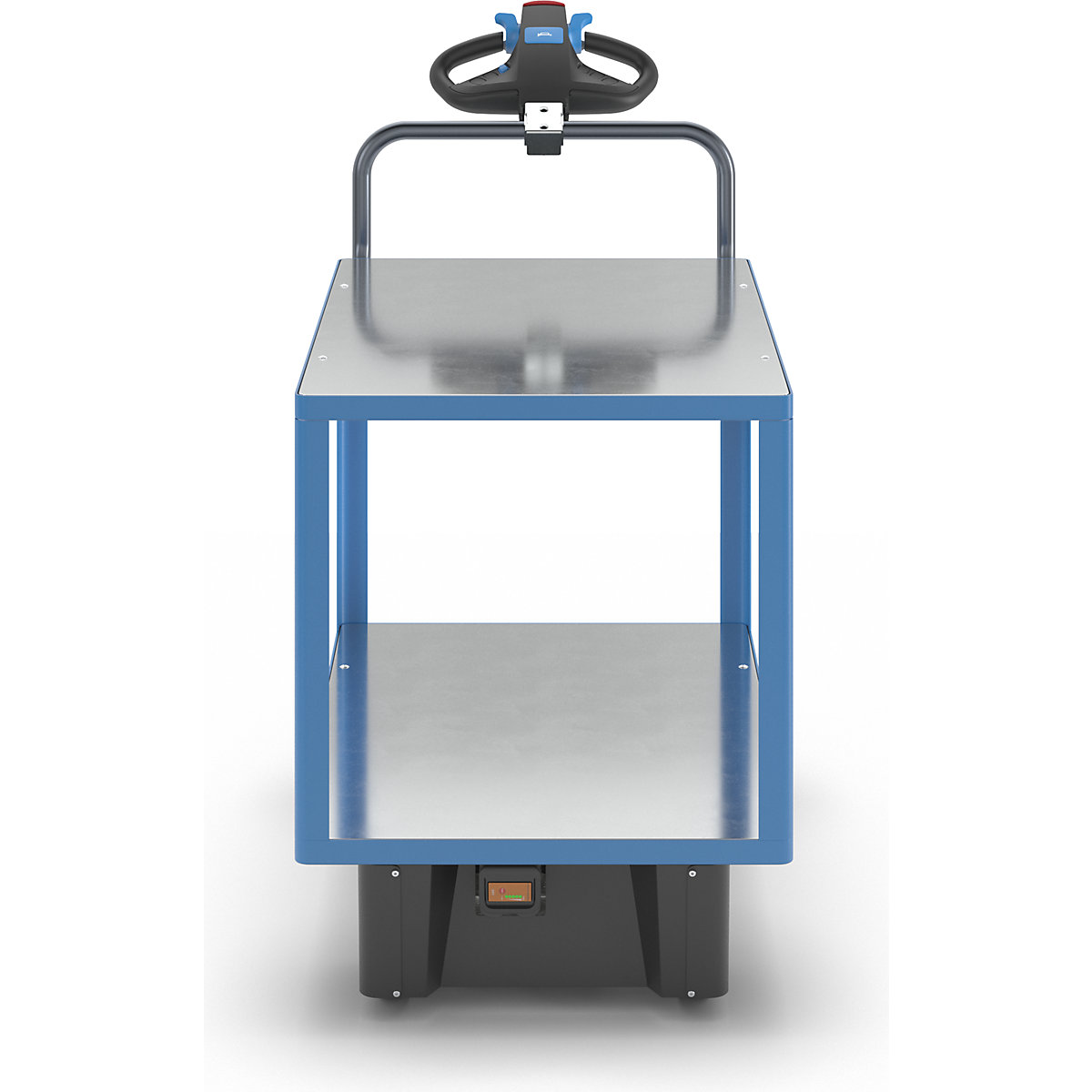

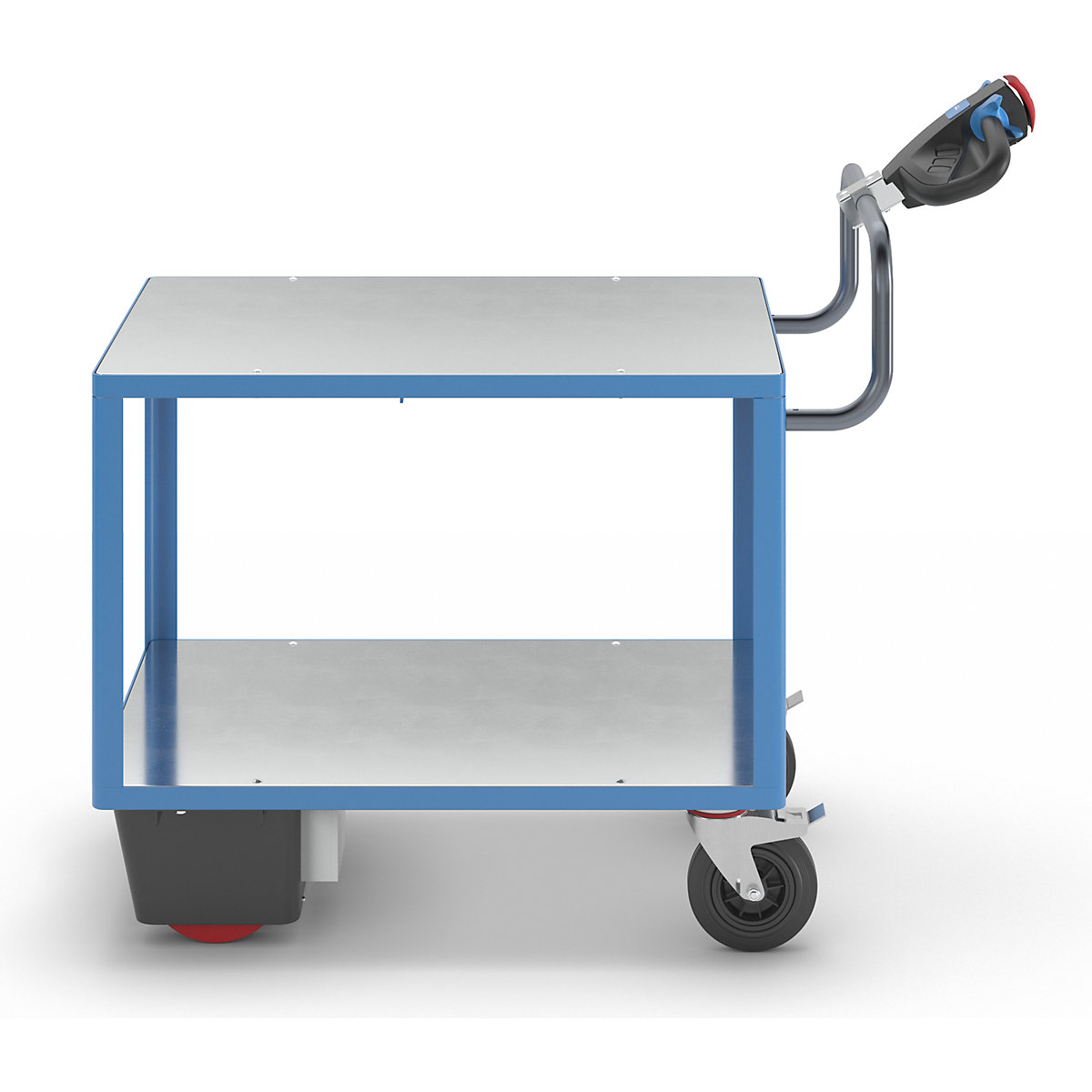

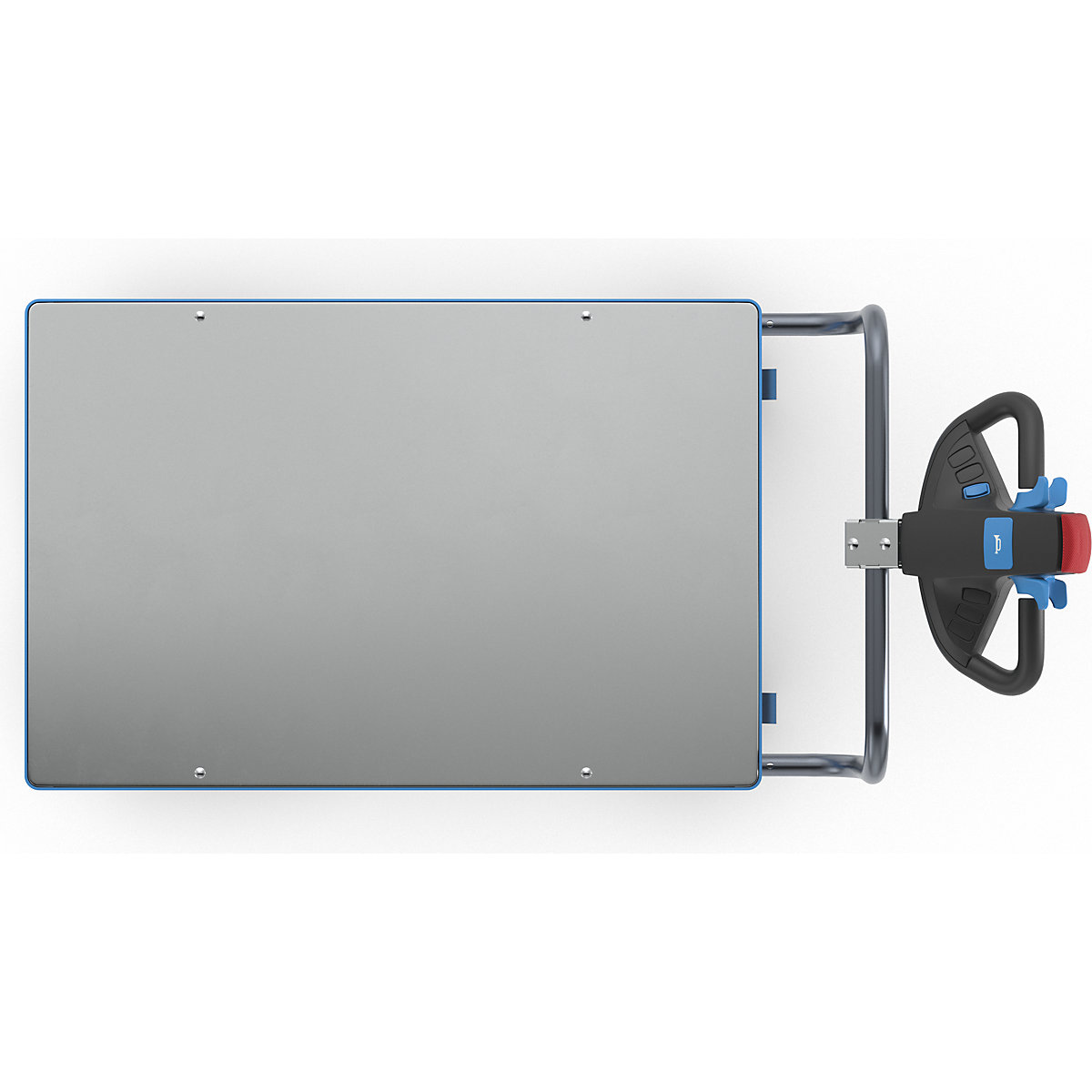

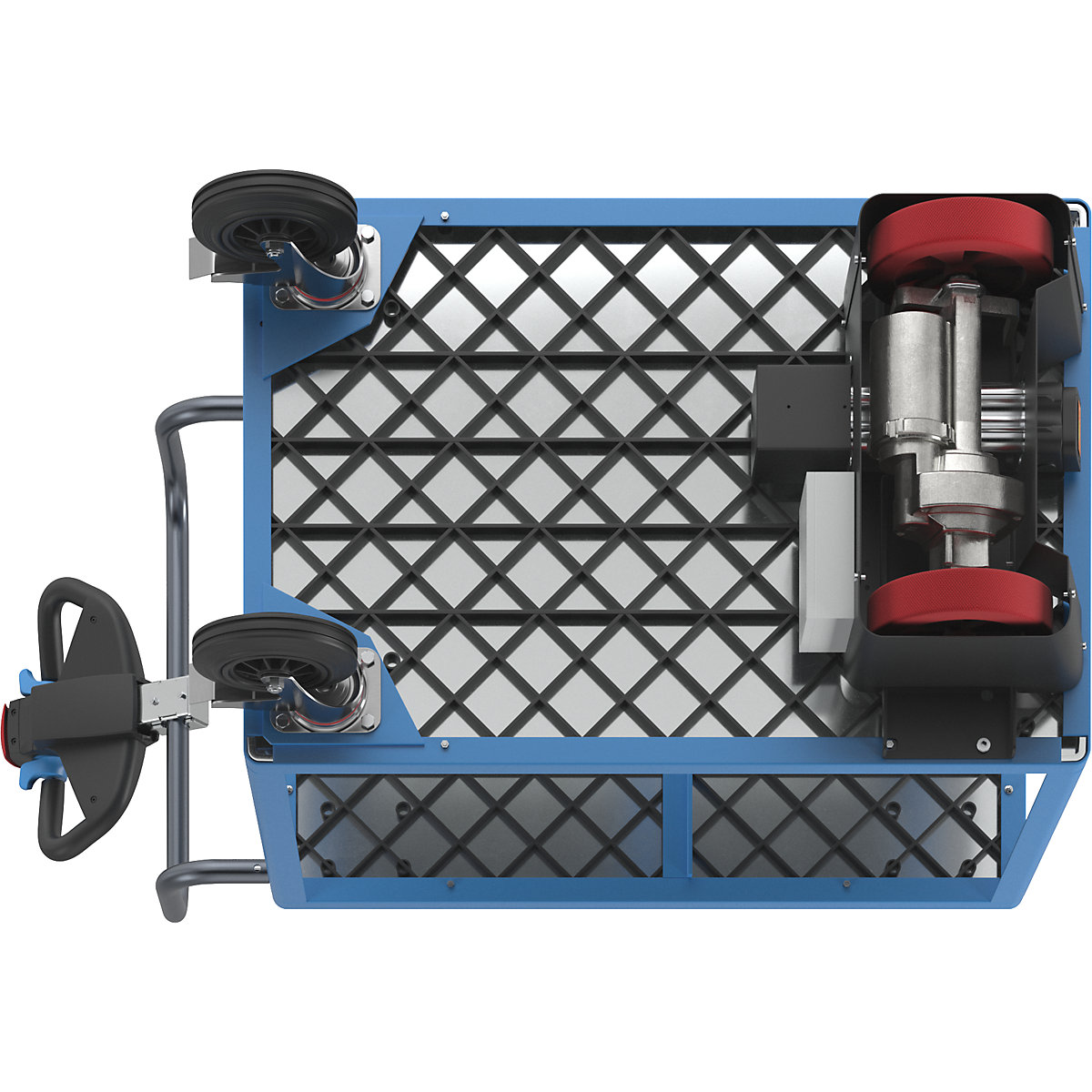

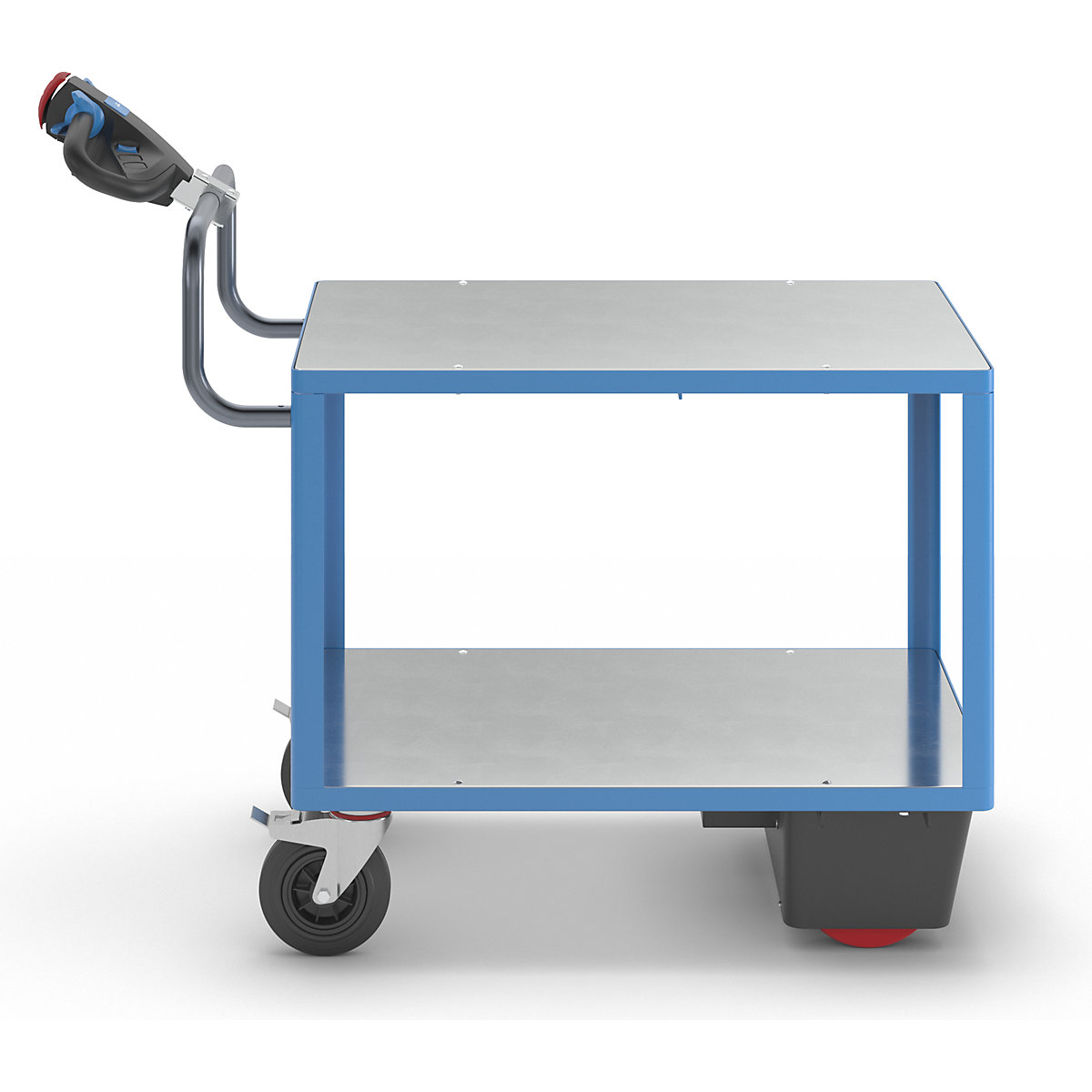

Assembly trolley with electric drive – eurokraft pro 2 zinc plated shelves
LxWxH 1470 x 700 x 1300 mm, blue
Platform length [mm]
Platform width [mm]
Colour
Preferred RAL colour*
*Colours shown in the product image may vary.
Ref.: 649422 49
Assembly trolley with electric drive – eurokraft pro 2 zinc plated shelves
LxWxH 1470 x 700 x 1300 mm, blue
LxWxH 1470 x 700 x 1300 mm, blue
Platform length [mm]
Platform width [mm]
Colour
Preferred RAL colour*
*Colours shown in the product image may vary.
£3,200.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£3,200.00
Price / item (Excl. VAT)
Product description
- Increased shelf corrosion protection due to zinc plated steel
- Highly versatile use due to modular design
- The replaceable, rechargeable battery system allows unlimited operating time
- Intuitive operation, perfect steering control
- Drawbar head with precise speed control, creep speed button, belly switch and horn
- Integrated foot protection on the e-module
Our high performance NEO e-module in a preconfigured combination with our assembly trolleys. Ready to use.
Complete with powerful lithium-ion battery and battery charger.
Premium quality from our own production facility.
Easy assembly: highly versatile modular design
Drive battery: replaceable lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Replaceable battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged
Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents entrapment when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence required
Protection against theft: access control by means of lock
Complete with powerful lithium-ion battery and battery charger.
Premium quality from our own production facility.
Easy assembly: highly versatile modular design
Drive battery: replaceable lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Replaceable battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged
Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents entrapment when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence required
Protection against theft: access control by means of lock
All specified max. loads apply with uniform load distribution.
Available in most RAL colours. Only 10 % extra.
10 year guarantee
Technical data
| Number of levels | 2 pcs. |
|---|---|
| Platform material | steel, zinc plated |
| Working height | 910 m |
| Max. load | 500 kg |
| Shelf heights | 290 / 910 mm |
| Height | 1300 mm |
| Wheel fittings | 2 swivel castors with brakes, 2 drive wheels |
| Wheel type | solid rubber / polyurethane |
| Wheel diameter | Ø200 / Ø230 mm |
| Wheel bearing | roller bearing |
| Push handle height | 1120 mm |
| Frame material | steel |
| Battery capacity | 12 Ah |
| Charging time | 6 hrs |
| Voltage | 24 V |
| Max. speed | 5 km/h |
| Power | 0.25 kW |
| Product type | assembly trolleys with electric drive |
| Supplied | partially assembled |
| Platform length | 1050 mm |
| Platform width | 700 mm |
| Colour | light blue RAL 5012 |
| Length | 1470 mm |
| Width | 700 mm |
| Weight | 95.3 kg |
