Ref.: 794622 49

G®-CUP ISO E modular cupboard trolley with 9 pairs of rails

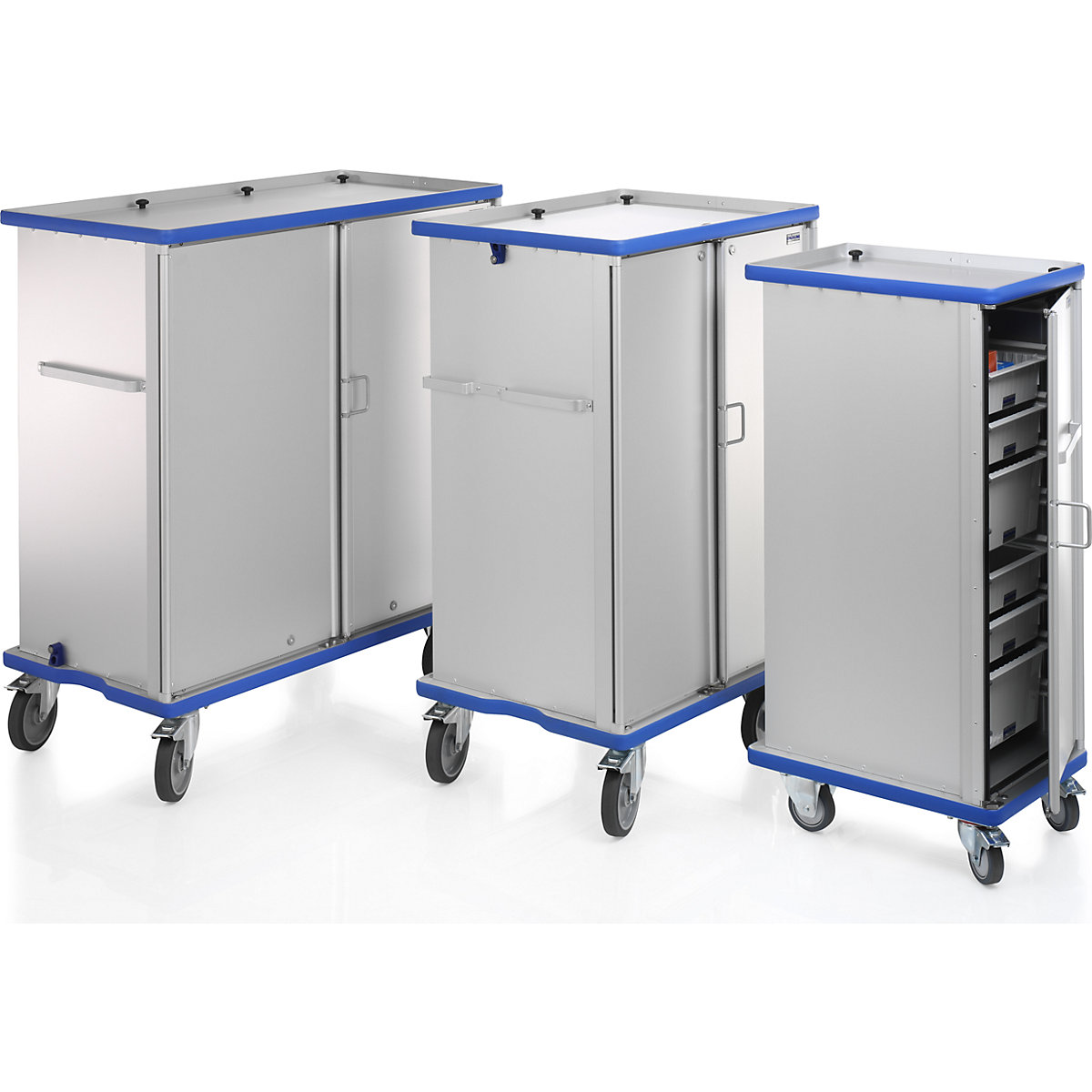

G®-CUP ISO E modular cupboard trolley

LxH 725 x 1465 mm

£2,550.00
Price / item (Excl. VAT)

Delivery time: 2 Week delivery
Product description
  • Compartment height can be individually adapted
  • Suitable for all components from the ISO modular system 400 x 600 mm
  • Hygienic, as the interior fittings can be completely removed
The G®-CUP ISO E modular cupboard trolley makes an impression with its robust design and versatile options for use.

The anodised surface and the extremely stable connections made of aluminium profiles and walls guarantee durability and reliability. With one row of modules and nine height adjustable slide in rails per compartment, the trolley provides flexible storage solutions. The design of the inside, consisting of vertical columns and slide in rails, can be completely removed if required and is compatible with the ISO modular system.

High rigidity hinged doors, which swing open by 270 degrees and are secured by magnets, ensure easy access and safety. The modular cupboard trolley is ideal for hospitals, laboratories and other medical facilities that require an efficient and hygienic storage solution.

Properties at a glance:
– With 1 module row
– Each compartment with 9 height adjustable slide in rails made of antibacterial plastic
– Suitable for all components from the ISO modular system 400 x 600 mm or 400 x 300 mm
– Walls and aluminium profiles feature positive, clinched connections and are therefore extremely stable
– Open doors secured with magnets
– Good noise insulation and dust protection due to integrated, all round EPDM seal on the doors on the floor and roof profile
– Smooth interior without undercuts for easy handling and cleaning
– Handles on each end
– All round, hardwearing, blue PVC bumper on the top and bottom edge of the trolley
– Frame for A4 signs on inside of door
– Torsion resistant trolley substructure due to BiTubAl® system
– Zinc plated steel wheel housing, Supratech wheels, polypropylene wheel body, thermoplastic rubber tread, non-marking, precision ball bearings
Technical data
Max. load100 kg
Length725 mm
Width725 mm
Height1465 mm
Internal length465 mm
Internal width635 mm
Internal height1170 mm
Platform length465 mm
Platform width635 mm
Number of levels9 pcs.
Materialaluminium
Panel colouraluminium silver
Featurenon-marking tyres
Weight46 kg
Wheel fittings2 swivel castors with wheel stop, 2 fixed castors
Wheel typethermoplastic rubber tyres
Wheel diameter125 mm
Wheel bearingprecision ball bearing
Product typealuminium cupboard trolleys
Suppliedassembled
Sustainability
Recyclable
Recyclable products are products that can be recycled at the end of their service life, providing they are separated into all their individual components in designated recycling facilities. This means that the individual components are made of materials that can be exploited using the recycling process and be reprocessed into new products. Recyclable products help reduce the environmental impact of waste and to conserve resources.
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .
CriteriaWeightingScore
Icon Climate protectionClimate protection30%3.0
Icon Circulatory economyCirculatory economy30%4.4
Icon BiodiversityBiodiversity25%2.0
Icon Economic efficiencyEconomic efficiency10%0.0
Icon InnovationInnovation5%3.9
Overall score3.2
