Ref.: 762338 49

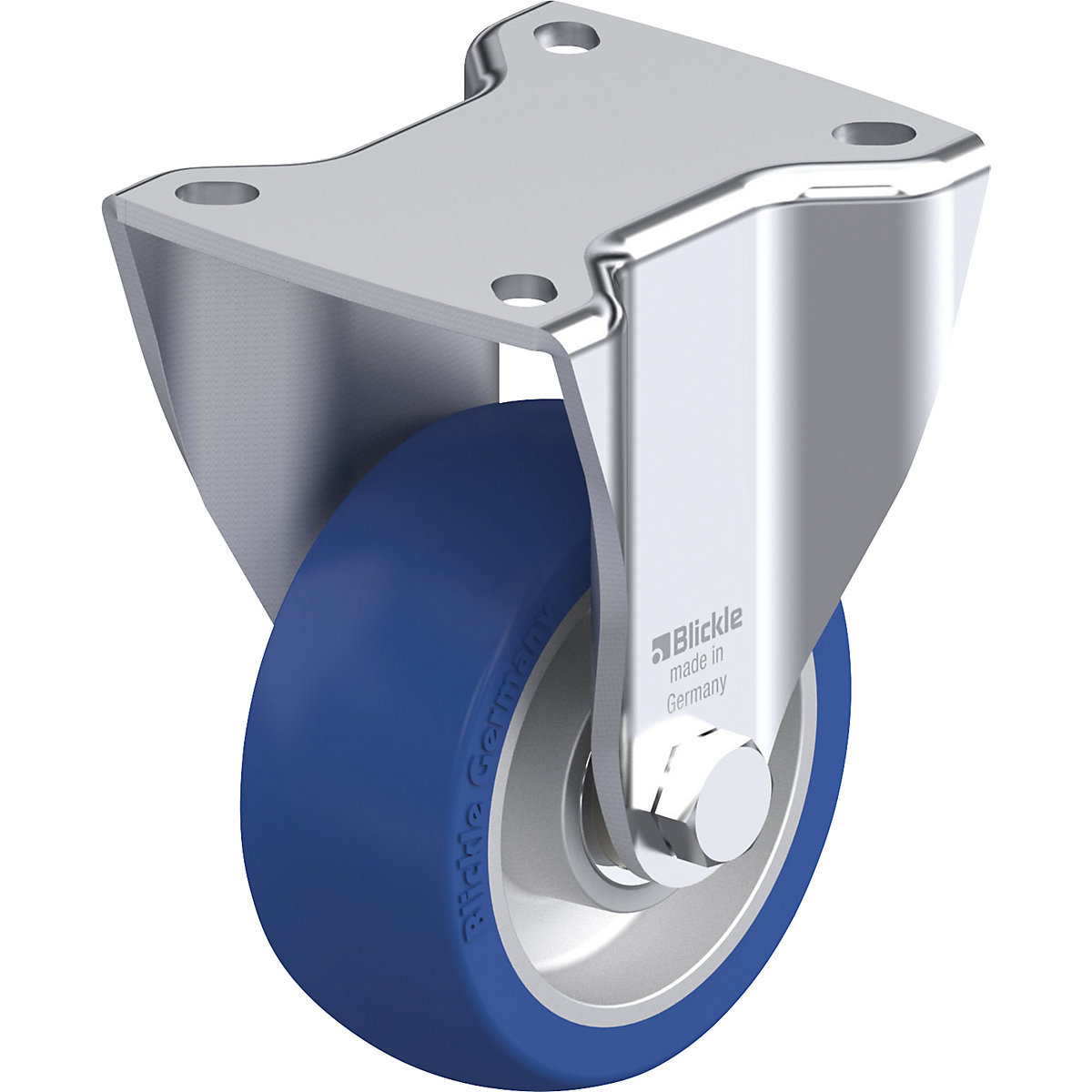

BH-ALBS fixed sheet steel castor – Blickle wheel Ø 100 mm, max. load 320 kg

BH-ALBS fixed sheet steel castor – Blickle

plate dimensions 100 x 85 mm

Fixed castor plate dimensions [mm]
£97.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description
  • Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
  • Heavy fork and base plate
  • Tread: high quality Blickle Besthane® Soft polyurethane elastomer, non-marking
  • Wheel body: die cast aluminium, silver grey
  • High chemical resistance to many aggressive media
  • Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Fixed sheet steel castor, heavy duty model, with mounting plate.
Technical data
Wheel diameter100 mm
Structurefixed castor
Wheel materialpolyurethane
Material of rimcast aluminium
Type of mountingwith top plate
Max. load at 4 km/h320 kg
Wheel width40 mm
Overall height140 mm
Wheel bearingball bearing
Modeltransport castors
Shore hardness75 Shore A
Running surface colourblue
Product typefixed castors
Suppliedassembled
Fixed castor plate dimensions100 x 85 mm
Weight1.1 kg
