Ref.: 969226 49

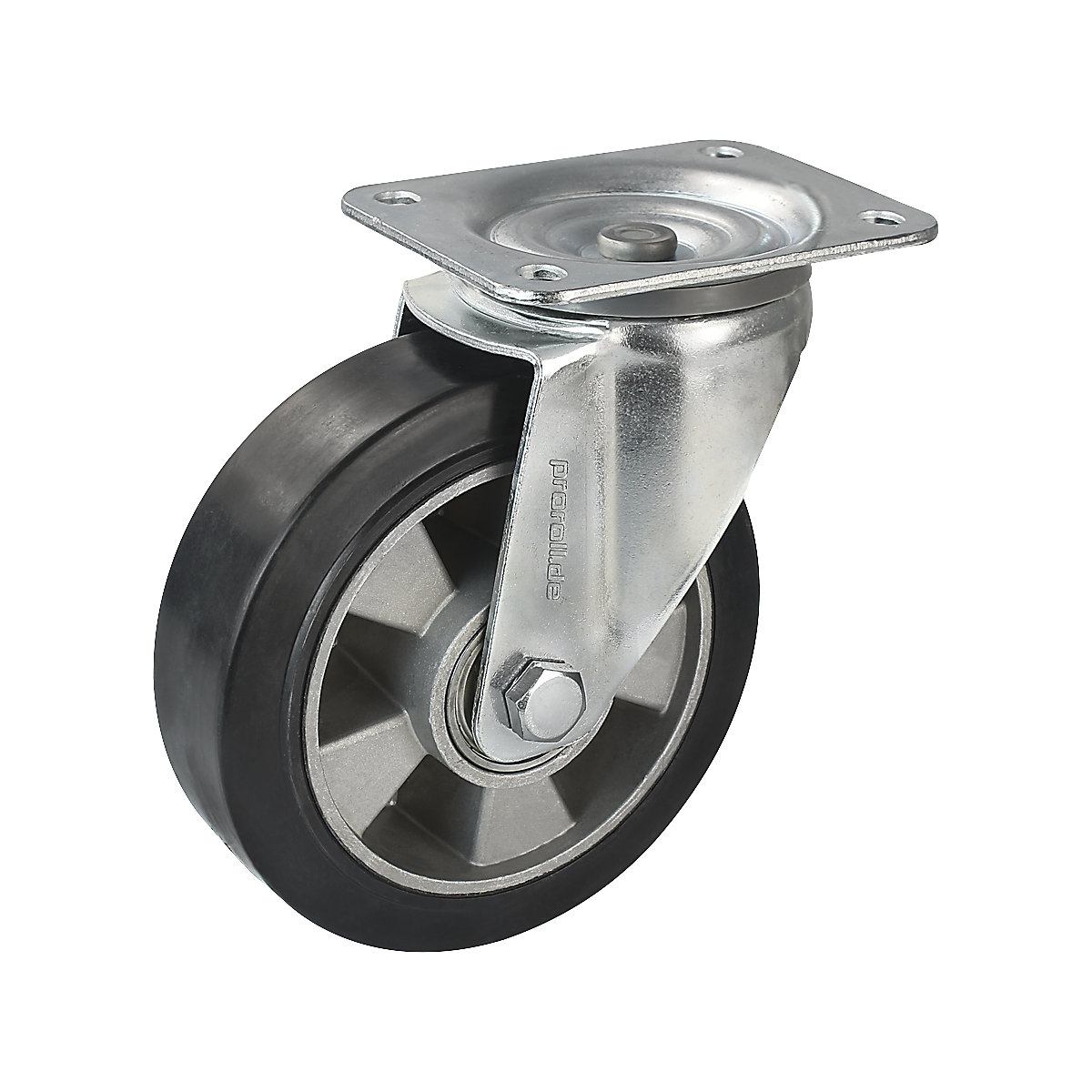

Elastic solid rubber tyre, black – Proroll wheel Ø x width 200 x 50 mm
(1)
swivel castor
Structure
Wheel diameter [mm]
Max. load at 4 km/h [kg]
Swivel castor offset [mm]
Screw hole diameter [mm]
Ref.: 969226 49
Elastic solid rubber tyre, black – Proroll wheel Ø x width 200 x 50 mm
(1)
swivel castor
swivel castor
High maximum load
Low rolling resistance
Sustainability score:Structure
Wheel diameter [mm]
Max. load at 4 km/h [kg]
Swivel castor offset [mm]
Screw hole diameter [mm]
£34.00
Price / item (Excl. VAT)
Only 17 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£34.00
Price / item (Excl. VAT)
£34.00
Price / item (Excl. VAT)
Only 17 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- On aluminium rim
- Low rolling resistance, quiet running
- Very smooth running, low rolling resistance
- Hardness 70 Shore A
- Temperature resistant from –20 °C to +70 °C
Vulcanised running surface. Swivel bearing with double ball race, swivel bearing protection.
Technical data
| Model | transport castors |
|---|---|
| Wheel material | rubber – solid rubber – full elastic |
| Material of rim | aluminium |
| Type of mounting | with top plate |
| Housing material | steel |
| Wheel bearing | precision ball bearing |
| Temperature resistance | –20 °C to +70 °C |
| Housing surface | zinc plated |
| Shore hardness | 70 A |
| Feature | low rolling resistance does not damage floors |
| Supplied | assembled |
| Structure | swivel castor |
| Wheel diameter | 200 mm |
| Max. load at 4 km/h | 400 kg |
| Swivel castor offset | 54 mm |
| Screw hole diameter | 11 mm |
| Hub length | 60 mm |
| Hub bore | 20 mm |
| Screw hole spacing | 105 x 80 mm |
| Swivel castor plate dimensions | 135 x 110 mm |
| Fixed castor plate dimensions | 135 x 110 mm |
| Overall height | 235 mm |
| Wheel width | 50 mm |
| Product type | swivel castors |
| Weight | 3.4 kg |
| Manufacturer / EU responsible Person (GPSR) |
