Ref.: 762302 49

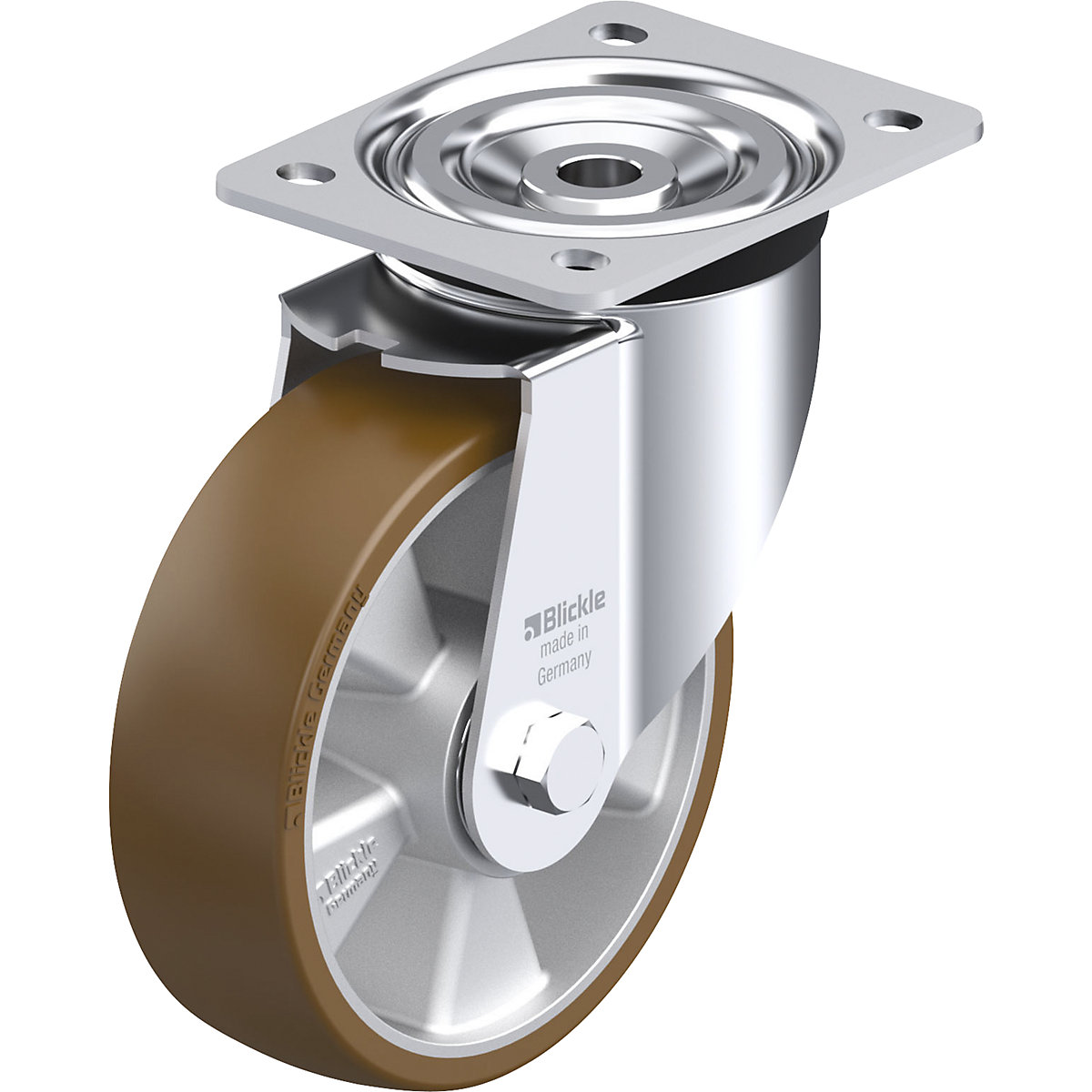

L-ALB sheet steel swivel castor – Blickle wheel Ø x width 160 x 50 mm
max. load 400 kg
Ref.: 762302 49
L-ALB sheet steel swivel castor – Blickle wheel Ø x width 160 x 50 mm
max. load 400 kg
max. load 400 kg
£179.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£179.00
Price / item (Excl. VAT)
Product description
- Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Double ball bearing in the ring bearing
- Stable centre bolt (from wheel Ø 150 mm)
- Ring bearing seal
- Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
- Tread: high quality Blickle Besthane® polyurethane elastomer, non-marking
- Wheel body: die cast aluminium, silver grey
- High chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Sheet steel swivel castor, medium duty model, with mounting plate, heavy duty wheel with Blickle Besthane® polyurethane tread, with aluminium wheel body.
Technical data
| Wheel diameter | 160 mm |
|---|---|
| Structure | swivel castor |
| Wheel material | polyurethane |
| Material of rim | cast aluminium |
| Type of mounting | with top plate |
| Max. load at 4 km/h | 400 kg |
| Wheel width | 50 mm |
| Overall height | 195 mm |
| Wheel bearing | ball bearing |
| Model | transport castors |
| Swivel castor plate dimensions | 140 x 110 mm |
| Shore hardness | 92 Shore A |
| Running surface colour | brown |
| Product type | swivel castors |
| Supplied | assembled |
| Weight | 2.59 kg |
