Ref.: 858273 49

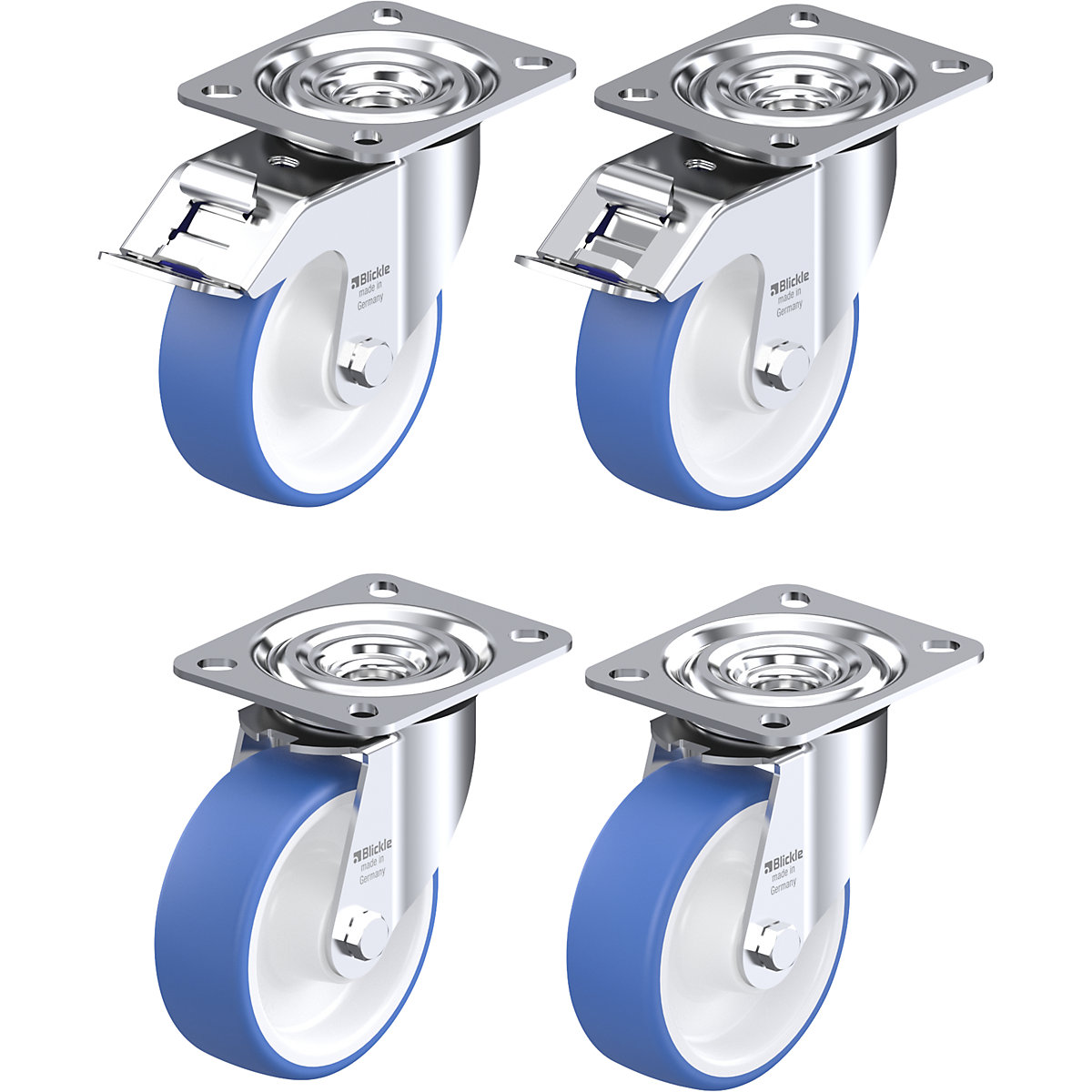

L-POTHS 100R light duty castor set max. load 200 kg

L-POTHS 100R light duty castor set

wheel Ø 100 mm

Ref.: 858273 49

Product description
  • Tread made of high-quality thermoplastic polyurethane (TPU)
  • Leaves no signs of wear on the base
  • High chemical resistance to many aggressive media
Apparatus castor set L-POTHS 100R: The housing is made of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free. The double ball bearing in the swivel head with swivel head seal features minimal swivel head play, smooth running and a long service life due to the special dynamic Blickle riveting. The blue tread is made of high-quality thermoplastic polyurethane (TPU), is non-marking, non-staining and has a hardness of 80 Shore A. The wheel body is made of break-resistant, high-quality polyamide 6 in natural white. Furthermore, the swivel castor is characterised by a very high chemical resistance against many aggressive media. The temperature resistance ranges from –25 °C to +70 °C, and temporarily up to +90 °C. There is a reduced load capacity at temperatures above +35 °C.
Technical data
Wheel diameter100 mm
Structureswivel castor with wheel stop fixed castor
Wheel materialthermoplastic polyurethane (TPU)
Material of rimnylon
Type of mountingwith top plate
Housing materialsheet steel
Max. load at 4 km/h200 kg
Wheel width35 mm
Overall height125 mm
Wheel bearingroller bearing
Temperature resistance–25 °C to +70 °C
Swivel castor offset36 mm
Screw hole diameter9 mm
Modellight duty castors
Fixed castor plate dimensions100 x 85 mm
Swivel castor plate dimensions100 x 85 mm
Screw hole spacing80 x 60 mm
Housing surfacezinc plated
Shore hardness80 Shore A
Running surface colourblue
Featurechemical resistant non-marking
Product typeswivel castors
Suppliedassembled
Weight2.92 kg
