Ref.: 762471 49

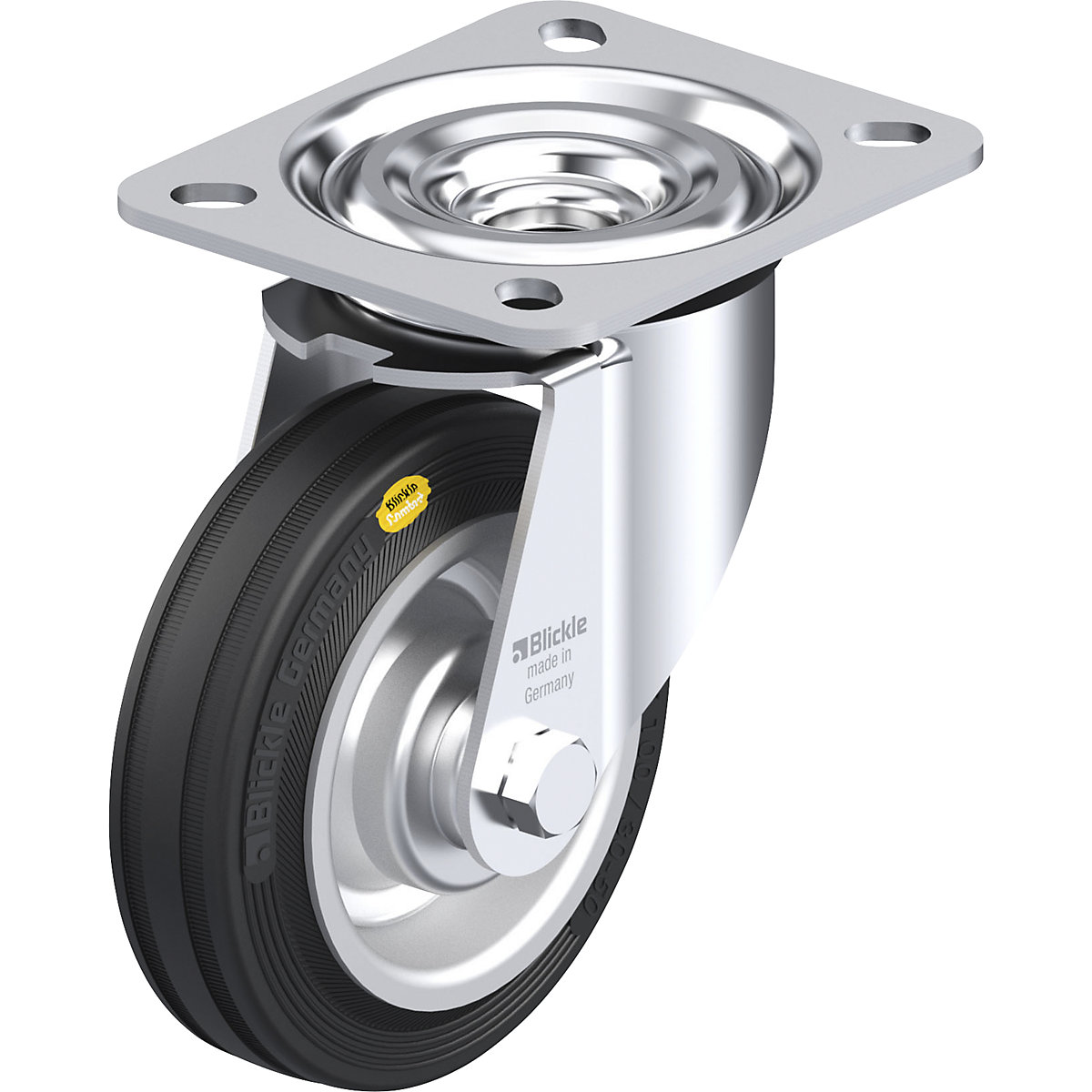

L-RD 100R sheet steel swivel castor – Blickle wheel Ø x width 100 x 30 mm
max. load 100 kg
Ref.: 762471 49
L-RD 100R sheet steel swivel castor – Blickle wheel Ø x width 100 x 30 mm
max. load 100 kg
max. load 100 kg
£43.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£43.00
Price / item (Excl. VAT)
Product description
- Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Double ball bearing in the ring bearing
- Stable centre bolt (from wheel Ø 150 mm)
- Ring bearing seal
- Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
- Tyres: two component solid rubber
- Sturdy rim construction with steel pipe hub, centrally pressed, electrolytically zinc plated
- Chemical resistance to many aggressive media, but not to oils
- Temperature resistance: –25 °C to +80 °C, reduced max. load above +60 °C
Sheet steel swivel castor, medium duty model, with mounting plate, wheel with two component solid rubber tyres, Blickle Comfort, with sheet steel rim.
Technical data
| Wheel diameter | 100 mm |
|---|---|
| Structure | swivel castor |
| Wheel material | rubber |
| Material of rim | sheet steel |
| Type of mounting | with top plate |
| Max. load at 4 km/h | 100 kg |
| Wheel width | 30 mm |
| Overall height | 125 mm |
| Wheel bearing | roller bearing |
| Model | transport castors |
| Swivel castor plate dimensions | 100 x 85 mm |
| Shore hardness | 65 Shore A |
| Running surface colour | black |
| Product type | swivel castors |
| Supplied | assembled |
| Weight | 0.93 kg |
