Ref.: 762314 49

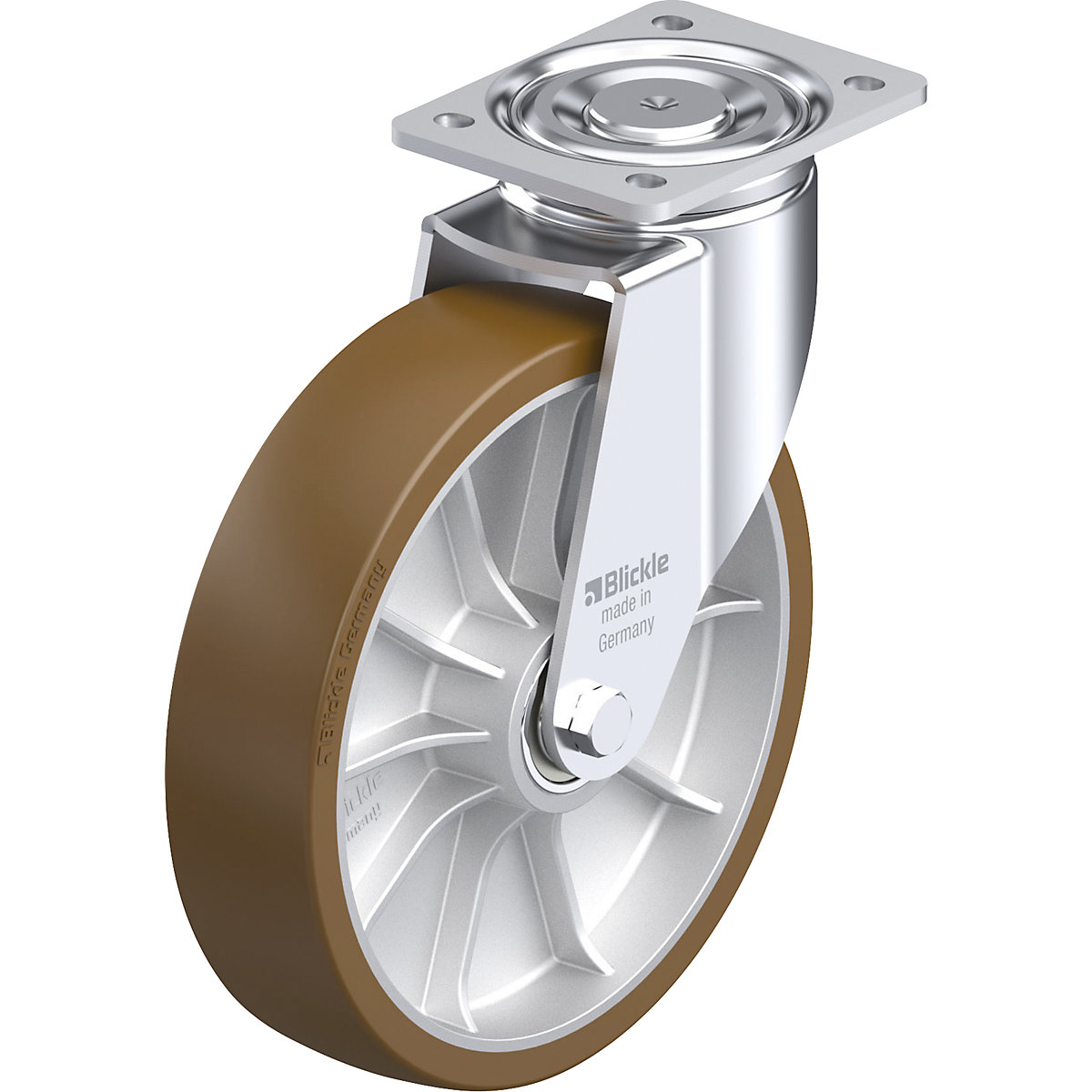

LH-ALB sheet steel swivel castor – Blickle wheel Ø 250 mm, max. load 900 kg

LH-ALB sheet steel swivel castor – Blickle

plate dimensions 140 x 110 mm

£405.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description
  • With heavy wheel body, model with centre bar
  • Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
  • Heavy fork and base plate
  • Double ball bearing in the ring bearing
  • Very stable centre bolt, screwed and secured
  • Particularly insensitive to shocks and impacts due to specially moulded, hardened bearing cases
  • Tread: high quality Blickle Besthane® polyurethane elastomer, non-marking
  • Wheel body: die cast aluminium, colour silver grey
  • High chemical resistance to many aggressive media
  • Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Sheet steel swivel castor, heavy duty model, with mounting plate, heavy duty wheel with Blickle Besthane® polyurethane tread, with aluminium wheel body.
Technical data
Wheel diameter250 mm
Structureswivel castor
Wheel materialpolyurethane
Material of rimcast aluminium
Type of mountingwith top plate
Max. load at 4 km/h900 kg
Wheel width60 mm
Overall height295 mm
Wheel bearingball bearing
Modelheavy duty castors
Swivel castor plate dimensions140 x 110 mm
Shore hardness92 Shore A
Running surface colourbrown
Product typeswivel castors
Suppliedassembled
Weight5.42 kg
