Ref.: 762691 49

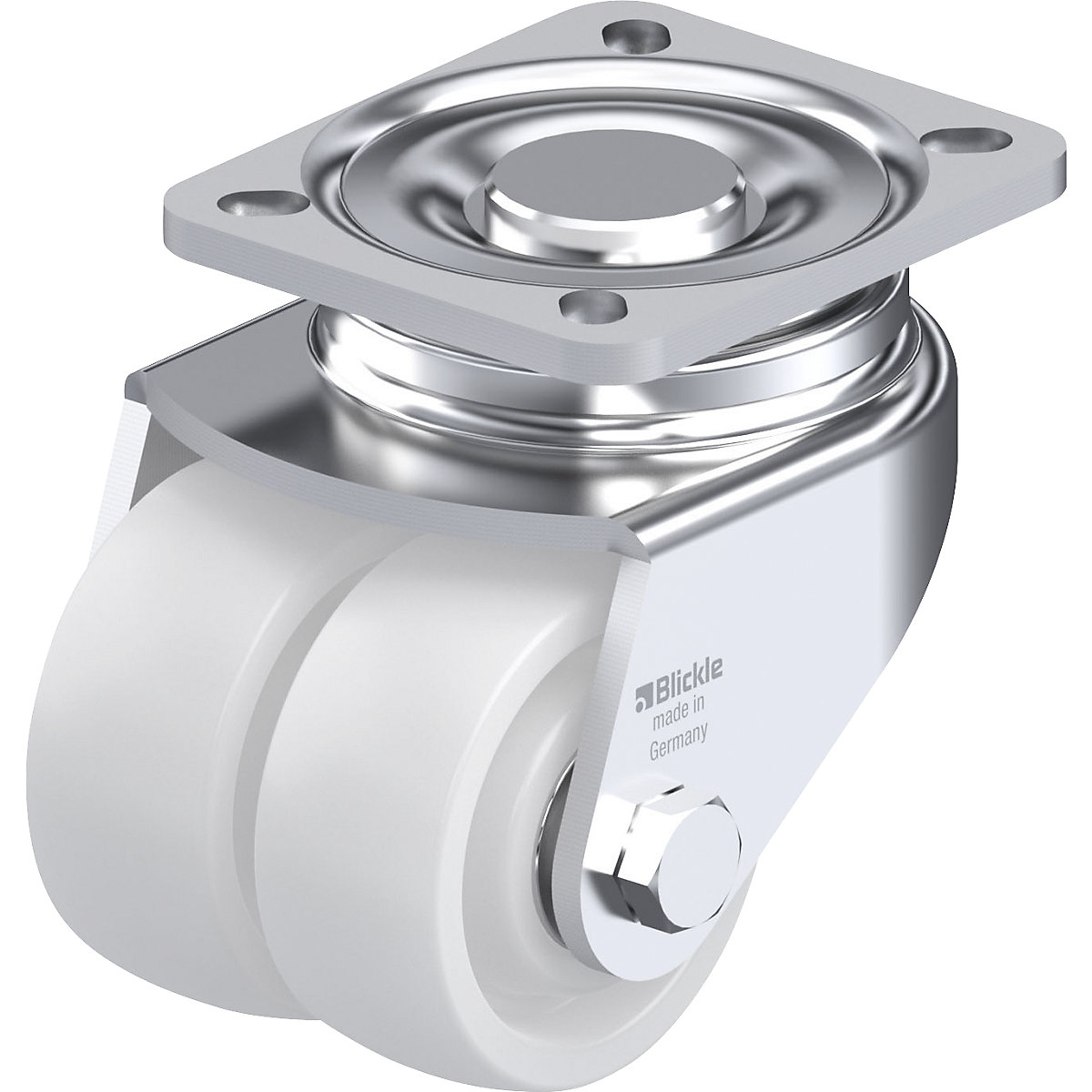

LHD-SPO 75K sheet steel double swivel castor – Blickle wheel Ø x width 75 x 32 mm
max. load 540 kg
Ref.: 762691 49
LHD-SPO 75K sheet steel double swivel castor – Blickle wheel Ø x width 75 x 32 mm
max. load 540 kg
max. load 540 kg
£125.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£125.00
Price / item (Excl. VAT)
Product description
- Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Heavy fork and base plate
- Double ball bearing in the ring bearing
- Very stable centre bolt, screwed and secured
- Particularly insensitive to shocks and impacts due to specially moulded, hardened bearing cases
- High quality nylon, does not break, very robust, heavy model
- High chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +80 °C, reduced max. load above +35 °C
Sheet steel double swivel castor, heavy duty model, with mounting plate.
Technical data
| Wheel diameter | 75 mm |
|---|---|
| Wheel material | plastic – nylon |
| Material of rim | nylon |
| Type of mounting | with top plate |
| Max. load at 4 km/h | 540 kg |
| Wheel width | 32 mm |
| Overall height | 110 mm |
| Wheel bearing | ball bearing |
| Model | heavy duty castors |
| Swivel castor plate dimensions | 100 x 85 mm |
| Shore hardness | 70 Shore D |
| Product type | swivel castors |
| Supplied | assembled |
| Weight | 1.81 kg |
