Ref.: 762693 49

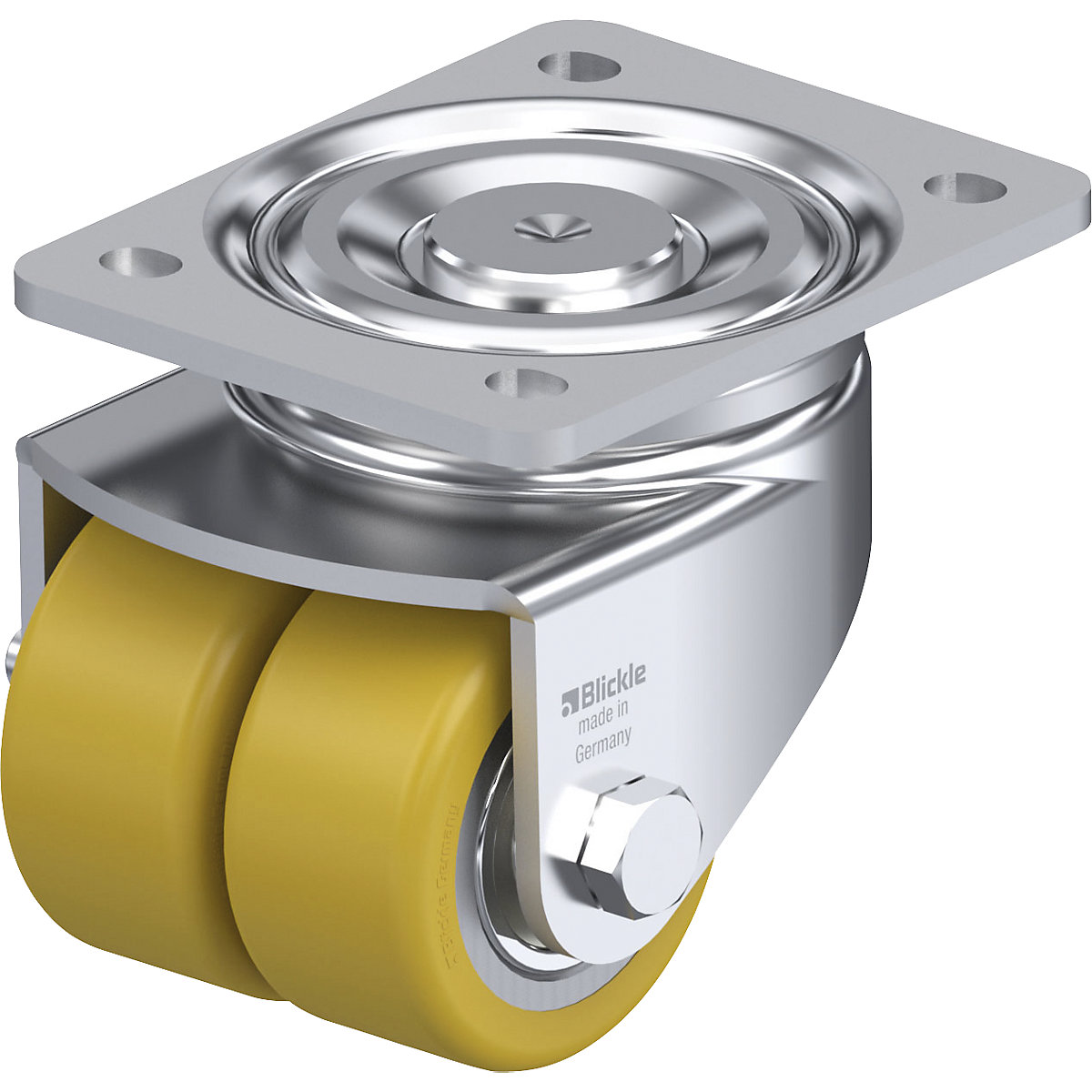

LHD-VSTH sheet steel double swivel castor – Blickle wheel Ø x width 80 x 40 mm
max. load 500 kg
Ref.: 762693 49
LHD-VSTH sheet steel double swivel castor – Blickle wheel Ø x width 80 x 40 mm
max. load 500 kg
max. load 500 kg
£265.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£265.00
Price / item (Excl. VAT)
Product description
- Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Heavy fork and base plate
- Double ball bearing in the ring bearing
- Very stable centre bolt, screwed and secured
- Particularly insensitive to shocks and impacts due to specially moulded, hardened bearing cases
- Tread: high quality Blickle Extrathane® polyurethane elastomer, non-marking
- Wheel body: steel
- High chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Sheet steel double swivel castor, heavy duty model, with mounting plate, heavy duty wheel with Blickle Extrathane® polyurethane tread, with steel wheel body.
Technical data
| Wheel diameter | 80 mm |
|---|---|
| Wheel material | polyurethane |
| Material of rim | steel |
| Type of mounting | with top plate |
| Max. load at 4 km/h | 500 kg |
| Wheel width | 40 mm |
| Overall height | 115 mm |
| Wheel bearing | ball bearing |
| Model | heavy duty castors |
| Swivel castor plate dimensions | 140 x 110 mm |
| Shore hardness | 92 Shore A |
| Running surface colour | light brown |
| Product type | swivel castors |
| Supplied | assembled |
| Weight | 3.69 kg |
