Ref.: 858274 49

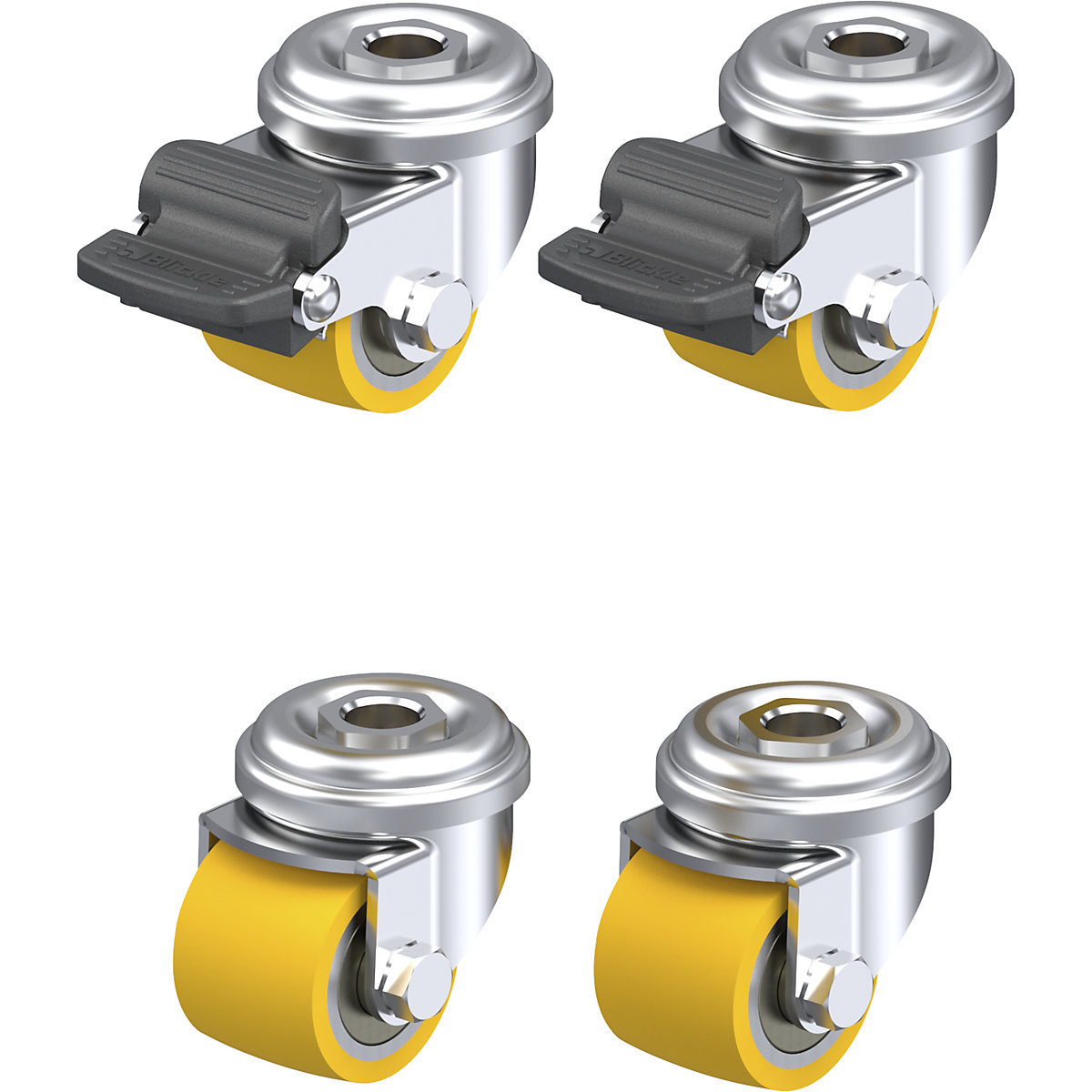

Light duty castor set LRA-VSTH 35K max. load 100 kg
wheel Ø 35 mm
Ref.: 858274 49
Light duty castor set LRA-VSTH 35K max. load 100 kg
wheel Ø 35 mm

wheel Ø 35 mm
Ref.: 858274 49
Product not available
Currently not availableWe will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- Blickle Extrathane® polyurethane tread
- Leaves no signs of wear on the base
- High chemical resistance to many aggressive media
Appliance castor set LRA-VSTH 35K: The housing is made of galvanised sheet steel, is blue passivated and Cr6-free. The dual ball bearing in the swivel head with a swivel head seal has minimal swivel head play, smooth operation and a long service life due to the special dynamic Blickle® riveting. The yellow tread is made from high-quality polyurethane elastomer Blickle Extrathane®, is non-marking, non-staining and has a hardness of 92 Shore A. The wheel body is made of steel. In addition, the swivel castor features very high chemical resistance against many aggressive media. The temperature resistance ranges from –20 °C to +70 °C, and temporarily up to +90 °C. There is a reduced load capacity at temperatures above +40 °C.
Technical data
| Wheel diameter | 35 mm |
|---|---|
| Structure | swivel castor with wheel stop fixed castor |
| Wheel material | polyurethane (PU) – elastic |
| Material of rim | steel |
| Type of mounting | with bolt hole |
| Housing material | sheet steel |
| Max. load at 4 km/h | 100 kg |
| Wheel width | 27 mm |
| Overall height | 50 mm |
| Wheel bearing | ball bearing |
| Temperature resistance | –20 °C to +70 °C |
| Swivel castor offset | 15 mm |
| Model | light duty castors |
| Bolt hole diameter | 11 mm |
| Plate diameter | 43 mm |
| Housing surface | zinc plated |
| Shore hardness | 92 Shore A |
| Running surface colour | yellow |
| Feature | chemical resistant non-marking |
| Product type | swivel castors |
| Supplied | assembled |
| Weight | 0.83 kg |
