Ref.: 762324 49

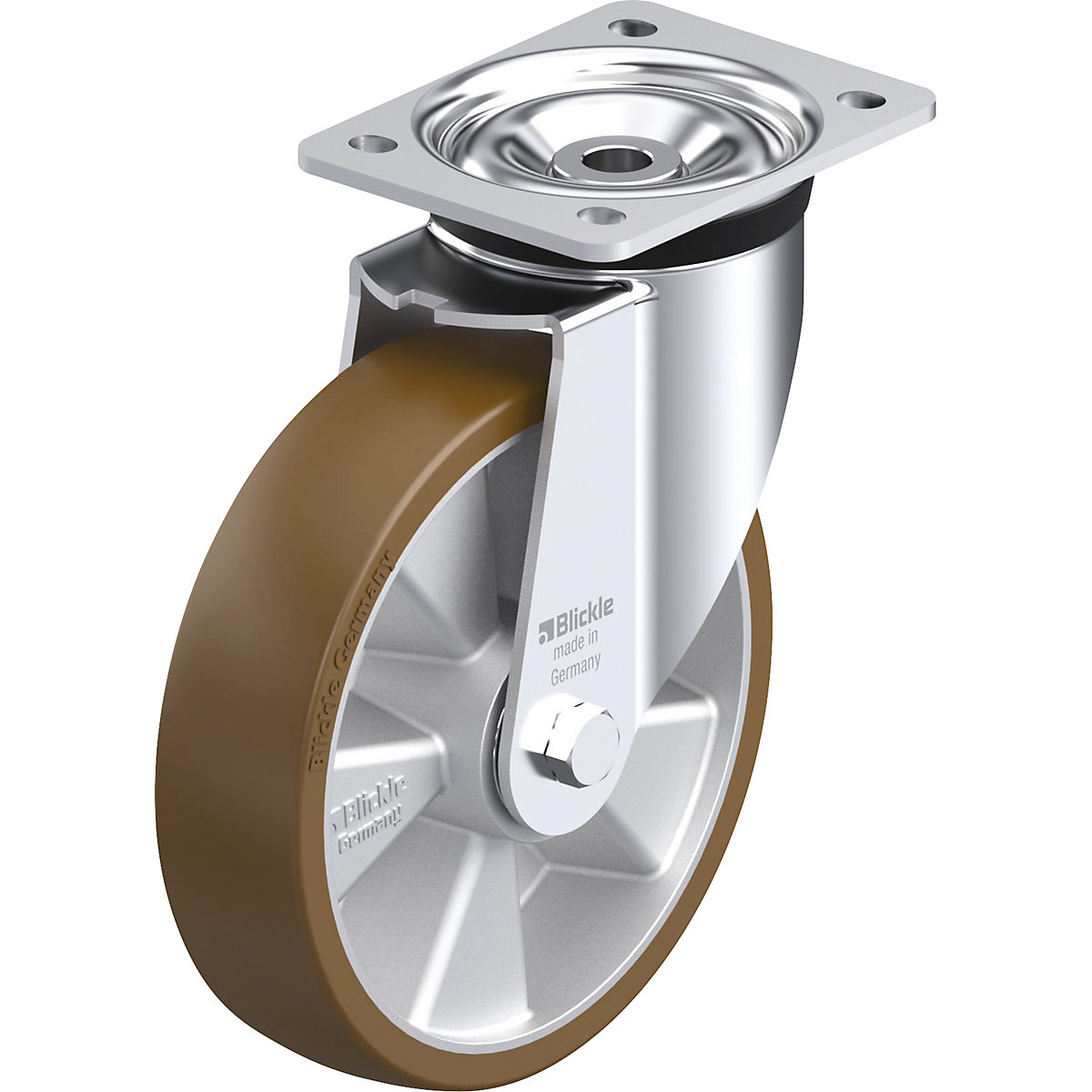

LK-ALB sheet steel swivel castor – Blickle wheel Ø 200 mm, max. load 600 kg

LK-ALB sheet steel swivel castor – Blickle

plate dimensions 140 x 110 mm

£225.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description
  • Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
  • Double ball bearing in the ring bearing
  • Stable centre bolt (from wheel Ø 125 x 50 mm)
  • Ring bearing seal
  • Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
  • Tread: high quality Blickle Besthane® polyurethane elastomer, non-marking
  • Wheel body: die cast aluminium, silver grey
  • High chemical resistance to many aggressive media
  • Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Sheet steel swivel castor, heavy model, with mounting plate, heavy duty wheel with Blickle Besthane® polyurethane tread, with aluminium wheel body.
Technical data
Wheel diameter200 mm
Structureswivel castor
Wheel materialpolyurethane
Material of rimcast aluminium
Type of mountingwith top plate
Max. load at 4 km/h600 kg
Wheel width50 mm
Overall height245 mm
Wheel bearingball bearing
Modelheavy duty castors
Swivel castor plate dimensions140 x 110 mm
Shore hardness92 Shore A
Running surface colourbrown
Product typeswivel castors
Suppliedassembled
Weight3.36 kg
