Ref.: 762466 49

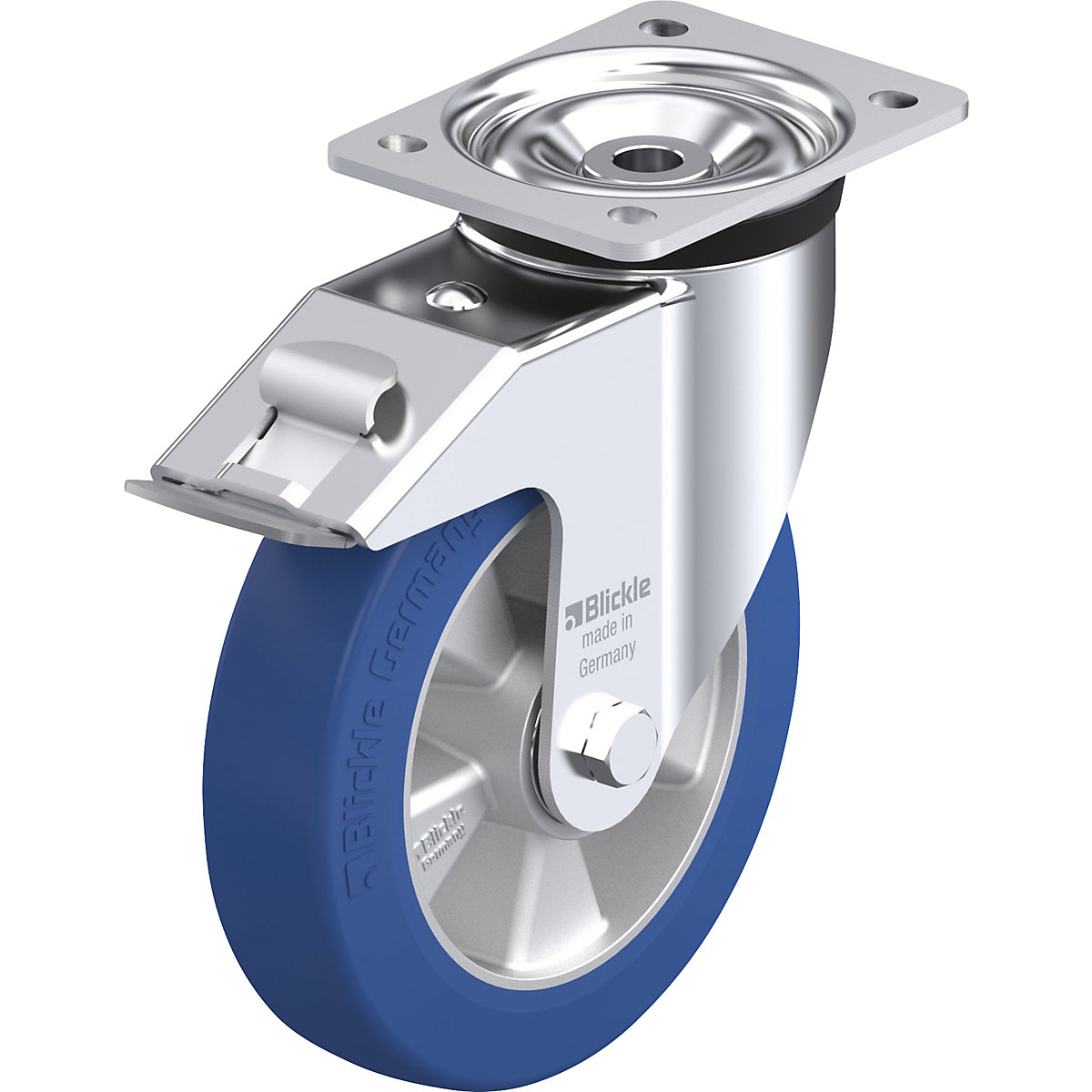

LK-ALBS-FI sheet steel swivel castor – Blickle wheel Ø 200 mm, max. load 600 kg
plate dimensions 140 x 110 mm
Ref.: 762466 49
LK-ALBS-FI sheet steel swivel castor – Blickle wheel Ø 200 mm, max. load 600 kg
plate dimensions 140 x 110 mm
plate dimensions 140 x 110 mm
£295.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£295.00
Price / item (Excl. VAT)
Product description
- Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Double ball bearing in the ring bearing
- Stable centre bolt (from wheel Ø 125 x 50 mm)
- Ring bearing seal
- Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
- Tread: high quality Blickle Besthane® Soft polyurethane elastomer, non-marking
- Wheel body: die cast aluminium, silver grey
- High chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Sheet steel swivel castor, heavy model, with mounting plate, with stop-fix stop.
Technical data
| Wheel diameter | 200 mm |
|---|---|
| Structure | swivel castor with wheel stop |
| Wheel material | polyurethane |
| Material of rim | cast aluminium |
| Type of mounting | with top plate |
| Max. load at 4 km/h | 600 kg |
| Wheel width | 50 mm |
| Overall height | 245 mm |
| Wheel bearing | ball bearing |
| Model | heavy duty castors |
| Swivel castor plate dimensions | 140 x 110 mm |
| Shore hardness | 75 Shore A |
| Running surface colour | blue |
| Product type | swivel castors |
| Supplied | assembled |
| Weight | 4.06 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 5.9 | |
| 30% | 2.4 | |
| 25% | 2.0 | |
| 10% | 0.0 | |
| 5% | 3.9 | |
| Overall score | 3.7 | |
