Ref.: 762620 49

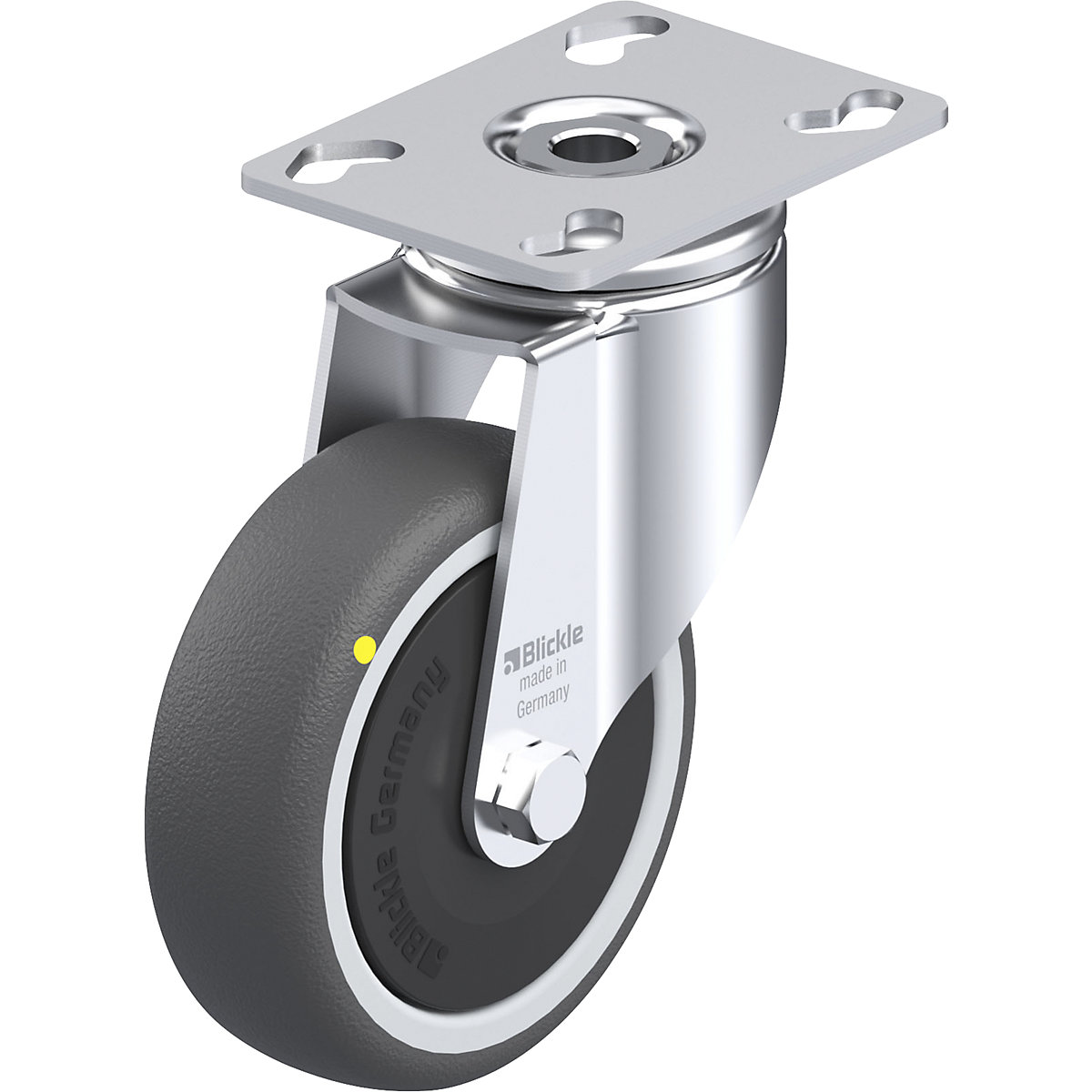

LKPA-PATH-ELS light duty swivel castor – Blickle max. load 120 kg
wheel Ø 100 mm, overall height 136 mm
Wheel diameter [mm]
Ref.: 762620 49
LKPA-PATH-ELS light duty swivel castor – Blickle max. load 120 kg
wheel Ø 100 mm, overall height 136 mm
wheel Ø 100 mm, overall height 136 mm
Wheel diameter [mm]
£54.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£54.00
Price / item (Excl. VAT)
Product description
- Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Very high chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +35 °C
- Electrically conductive
- Double ball bearing in the ring bearing
- Stable centre bolt
- Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
- Tread: high quality thermoplastic polyurethane (TPU), non-staining
- Wheel body: high quality nylon 6, does not break, silver grey
- KA version: with plastic thread guard, small
Light duty swivel castor with mounting plate. Wheel with thermoplastic polyurethane tread, with nylon wheel body, with plastic thread guard, large, electrically conductive, non-marking.
This label from kaiserkraft evaluates products based on different sustainability criteria
Technical data
| Structure | swivel castor |
|---|---|
| Wheel material | polyurethane |
| Material of rim | nylon |
| Type of mounting | with top plate |
| Max. load at 4 km/h | 120 kg |
| Wheel width | 32 mm |
| Wheel bearing | ball bearing |
| Model | light duty castors |
| Swivel castor plate dimensions | 90 x 66 mm |
| Shore hardness | 94 Shore A |
| Feature | ESD version |
| Product type | swivel castors |
| Supplied | assembled |
| Wheel diameter | 100 mm |
| Overall height | 136 mm |
| Weight | 0.72 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 5.9 | |
| 30% | 2.0 | |
| 25% | 2.0 | |
| 10% | 0.5 | |
| 5% | 3.9 | |
| Overall score | 3.6 | |
