Ref.: 918653 49

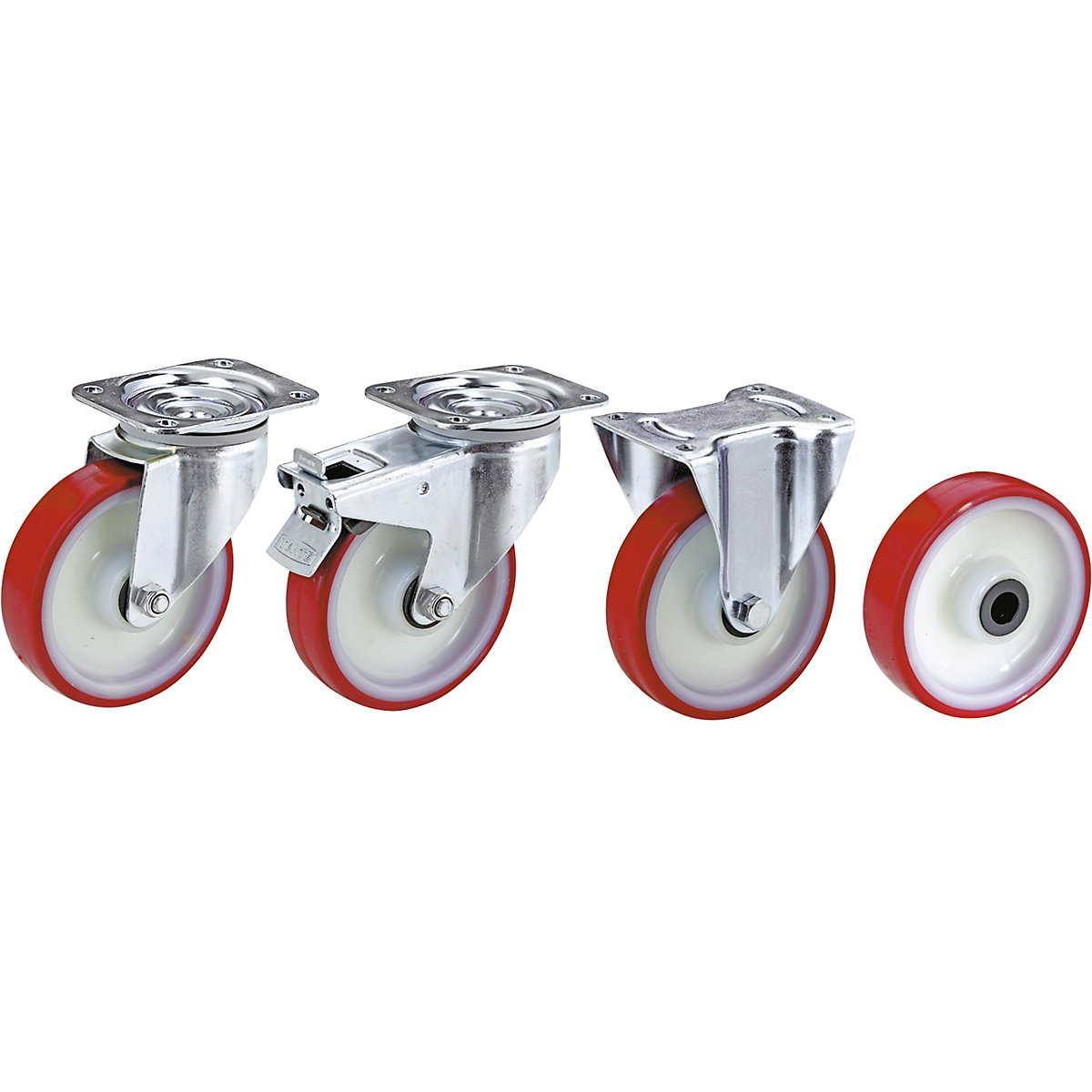

Polyurethane tyre on nylon rim – TENTE wheel Ø x width 80 x 32 mm

Polyurethane tyre on nylon rim – TENTE

fixed castor

Structure
£22.00
Price / item (Excl. VAT)
Only 13 available
Delivery time: 7-10 Working days
Product description
  • On nylon rim
  • Extremely durable for high performance, low rolling resistance
  • Largely resistant against many thinned oils, greases, and chemicals
  • Hardness Shore D40
  • Temperature resistant from –40 °C to +80 °C
Swivel bearing with double ball race, swivel bearing protection.
Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
Technical data
Wheel diameter80 mm
Wheel materialpolyurethane (PU)
Material of rimnylon
Type of mountingwith top plate
Housing materialsteel
Max. load at 4 km/h100 kg
Wheel width32 mm
Overall height108 mm
Wheel bearingroller bearing
Temperature resistance–40 °C to +80 °C
Screw hole diameter9 mm
Hub length44.4 mm
Hub bore12 mm
Modeltransport castors
Fixed castor plate dimensions103 x 85 mm
Swivel castor plate dimensions105 x 85 mm
Screw hole spacing60 x 77 – 80 mm
Housing surfacegalvanised and chrome-plated
Shore hardnessD40
Featuredoes not damage floors low wear low rolling resistance low swivel resistance non-marking
Suppliedassembled

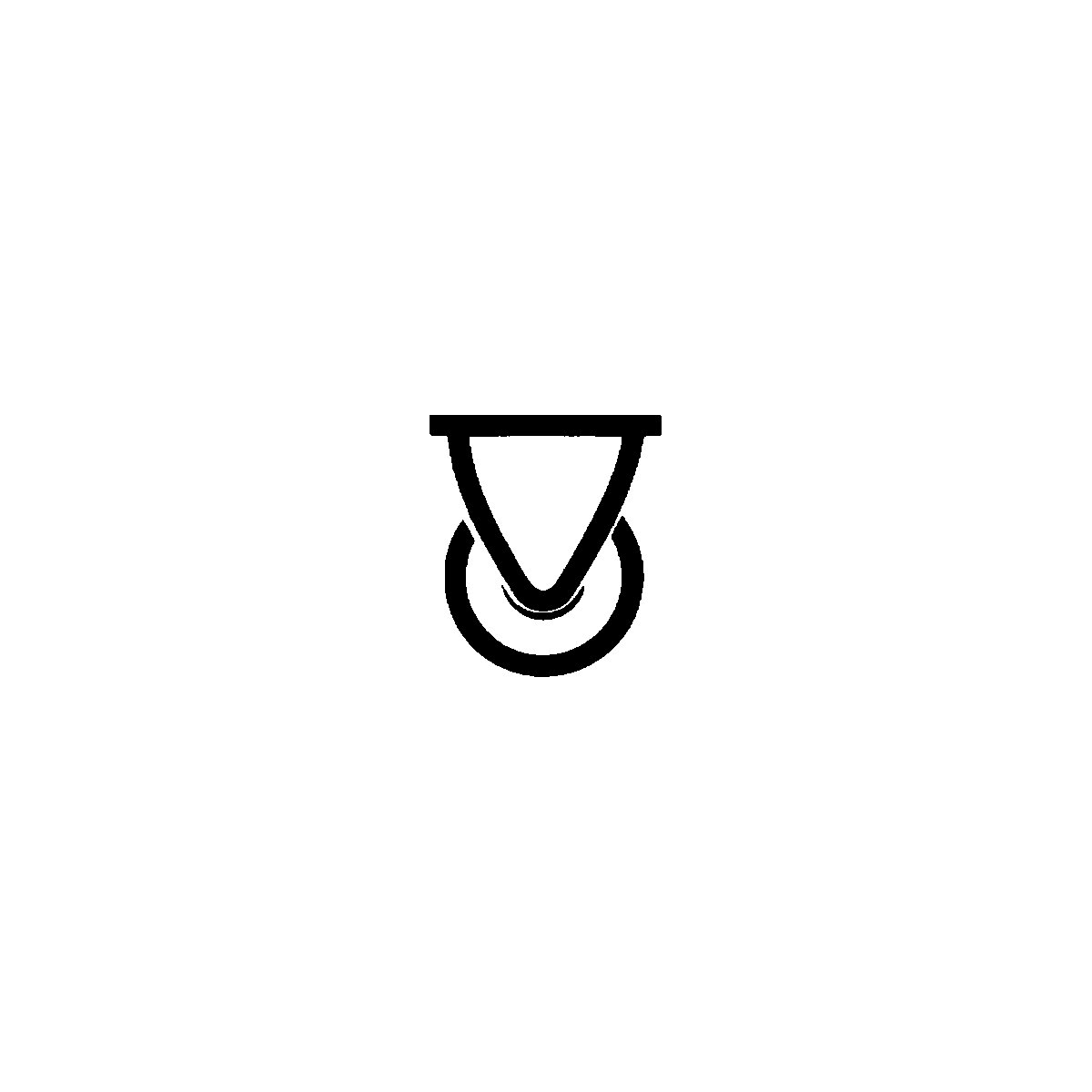

Structurefixed castor
Product typefixed castors
Weight0.47 kg
