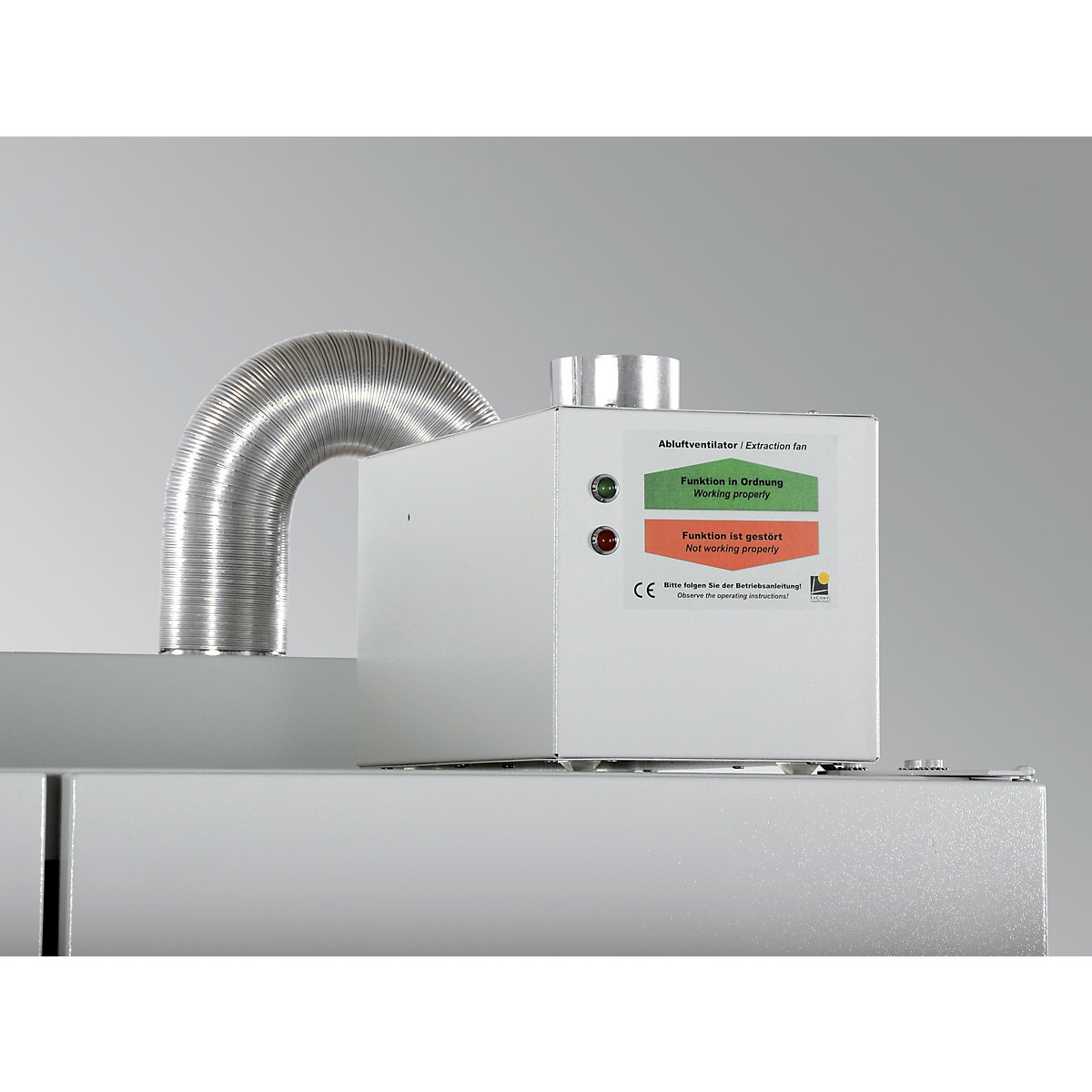

Ventilation kit 230 V, with fume monitoring system

  • For regulation compliant ventilation of safety cupboards in accordance with TRGS 510 (gases, vapours, aerosols and odours)
  • Ready to use – easy assembly
  • Includes fume monitoring system
Ref.: 547031 49
Ventilation kit, 230 V, with fume monitoring system, HxWxD 249 x 442 x 200 mm
Price / items (Excl. VAT)
£1,129.00

Product description
Voltage 230 V. Not explosion protected.
Exhaust fan including DN 80 flexible hose for easy connection of the exhaust fan with the ventilation outlets of the safety cabinet.
Includes a safety plug with a 2 m connection cable.

Connection to an on-site ventilation system required!

Fume monitoring system:
The operation of the exhaust fan is checked by means of a fume monitoring system. An acoustic warning is issued in the event of failure of the fan, or closure of the ventilation flaps on the safety cabinet.
  • For regulation compliant ventilation of safety cupboards in accordance with TRGS 510 (gases, vapours, aerosols and odours)
  • Ready to use – easy assembly
  • Includes fume monitoring system
Technical data
Height249 mm
Width442 mm
Depth200 mm
Noise level< 42 dB(A)
Materialsheet steel
Colourlight grey RAL 7035
Power0.04 kW
Voltage230 V
Frequency50 Hz
Strength of current0.2 A
Suppliedassembled
