Ref.: 488600 49

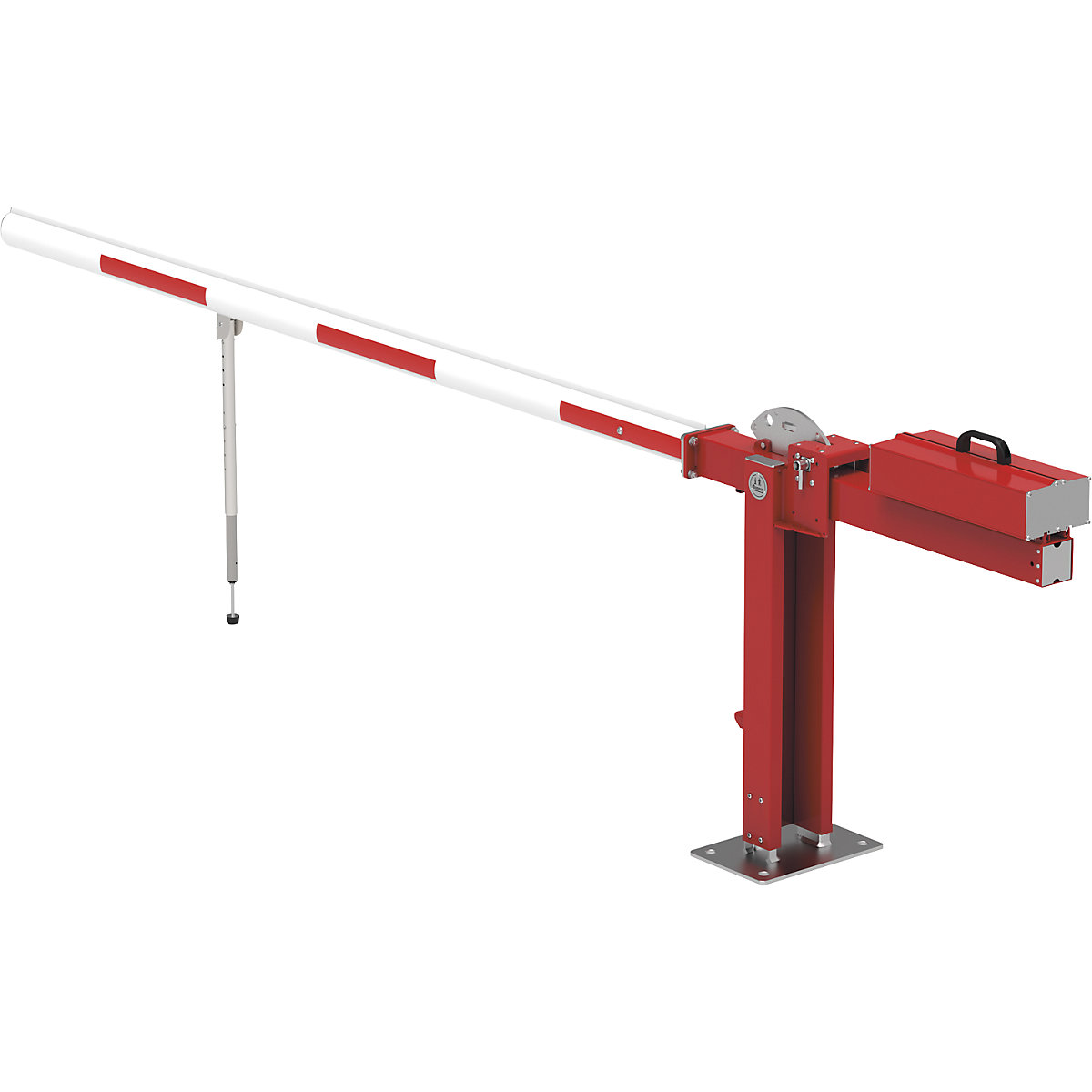

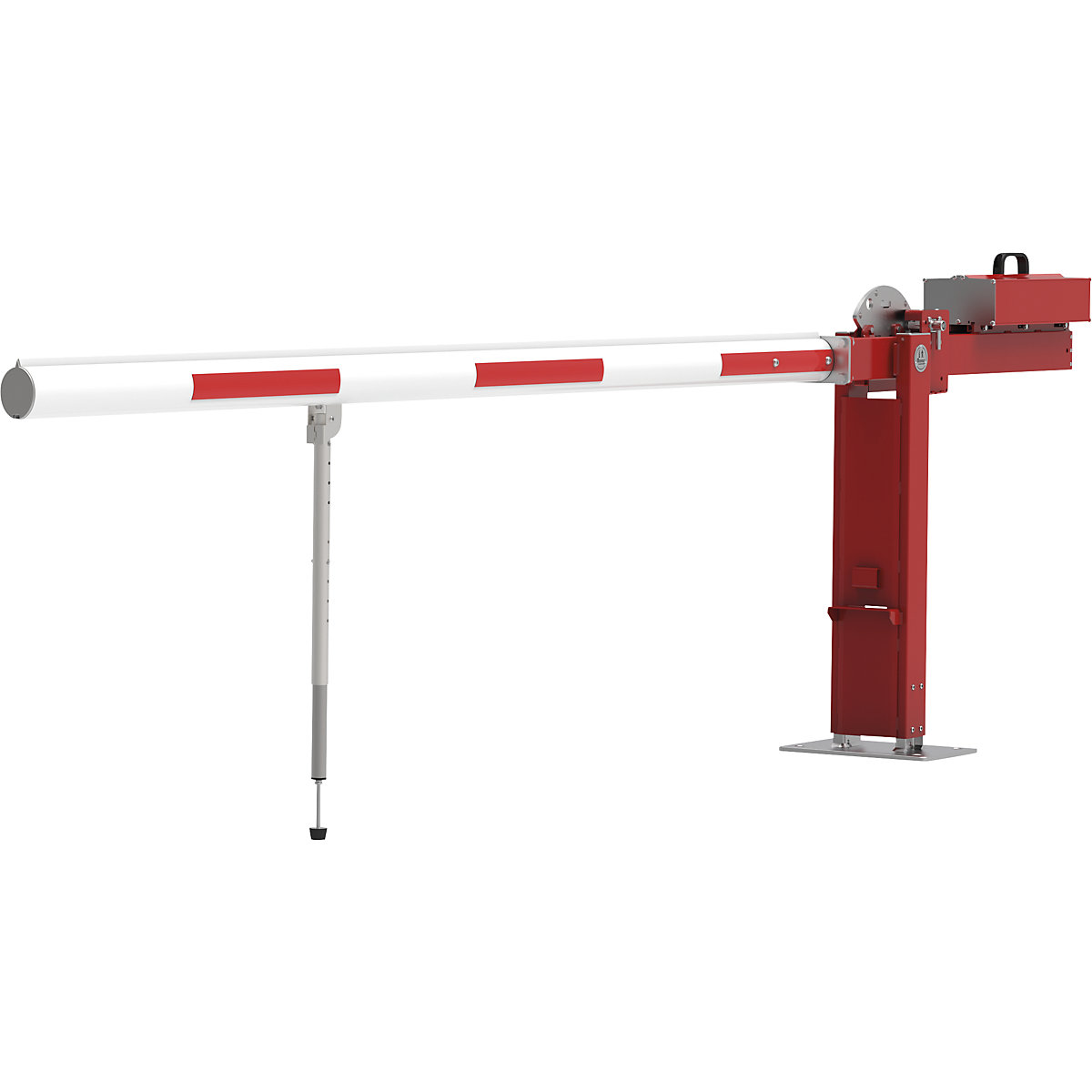

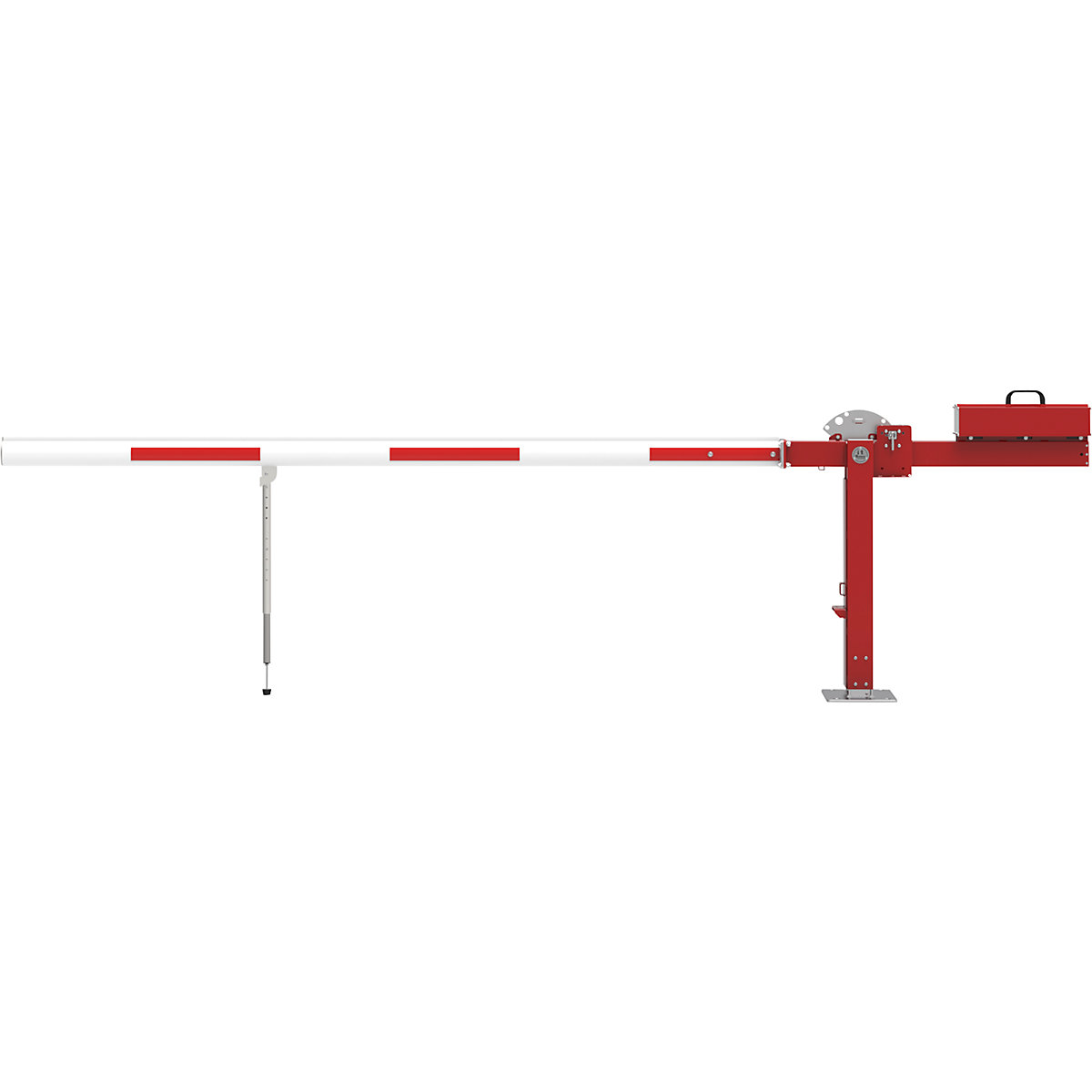

Access barrier, barrier – Mannus with counterbalance weight and spring loaded pendulum support
barrier beam length 3.5 m
Width [mm]
Ref.: 488600 49
Access barrier, barrier – Mannus with counterbalance weight and spring loaded pendulum support
barrier beam length 3.5 m
barrier beam length 3.5 m
Width [mm]
£1,825.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£1,825.00
Price / item (Excl. VAT)
Product description
- With counterbalance support or gas spring (double stroke) for easy manual operation
- Automatic end-position locking during closing and opening when using a lock case
- Optimum adaptation to ground conditions through height adjustment
- With counterbalance support for easy operation by hand
Barrier beam
Aluminium oval tube, one-piece, 102 x 82 mm. Anti-sitting protection. Powder coated in pure white RAL 9010. Reflective film on both sides.
From a length of 5,5 m, the barriers are equipped with a tension cable reinforcement.
Main post for bolting down
All steel parts hot dip galvanised or made of stainless steel. Powder coated in traffic red RAL 3020.
Aluminium hinged support
Spring-loaded, silver anodised.
Locking with optional lock housing
Barrier with profile cylinder lock, incl. 3 keys.
Foundation work must be carried out on site.
Aluminium oval tube, one-piece, 102 x 82 mm. Anti-sitting protection. Powder coated in pure white RAL 9010. Reflective film on both sides.
From a length of 5,5 m, the barriers are equipped with a tension cable reinforcement.
Main post for bolting down
All steel parts hot dip galvanised or made of stainless steel. Powder coated in traffic red RAL 3020.
Aluminium hinged support
Spring-loaded, silver anodised.
Locking with optional lock housing
Barrier with profile cylinder lock, incl. 3 keys.
Foundation work must be carried out on site.
Barriers for concreting in, available in custom lengths and special colours on request.
Supplied without fixing material.
Technical data
| Material | steel |
|---|---|
| Colour | red white |
| Type of mounting | for bolting in place |
| Uprights | with spring loaded pendulum support |
| Model | with counterbalance weight |
| Lock type | locking bolt with handle and anti-freeze coating |
| Finish | powder coated |
| Barrier boom profile | oval, 115 x 82 mm |
| Method of operation | manual |
| Product type | boom gates |
| Supplied | pre-assembled, final assembly by customer |
| Width | 4700 mm |
| Barrier beam length | 3500 mm |
| Barrier clearance length | 3460 mm |
| Weight | 85 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- Product Carbon Footprint per kg CO2e
- 300.726
- Product Carbon Footprint Calculation Year
- 2026
- Product Carbon Footprint System Boundaries
- Cradle-to-gate
- Product Carbon Footprint Calculation Method
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 2.5 | |
| 30% | 4.2 | |
| 25% | 2.0 | |
| 10% | 0.4 | |
| 5% | 5.9 | |
| Overall score | 3.1 | |
