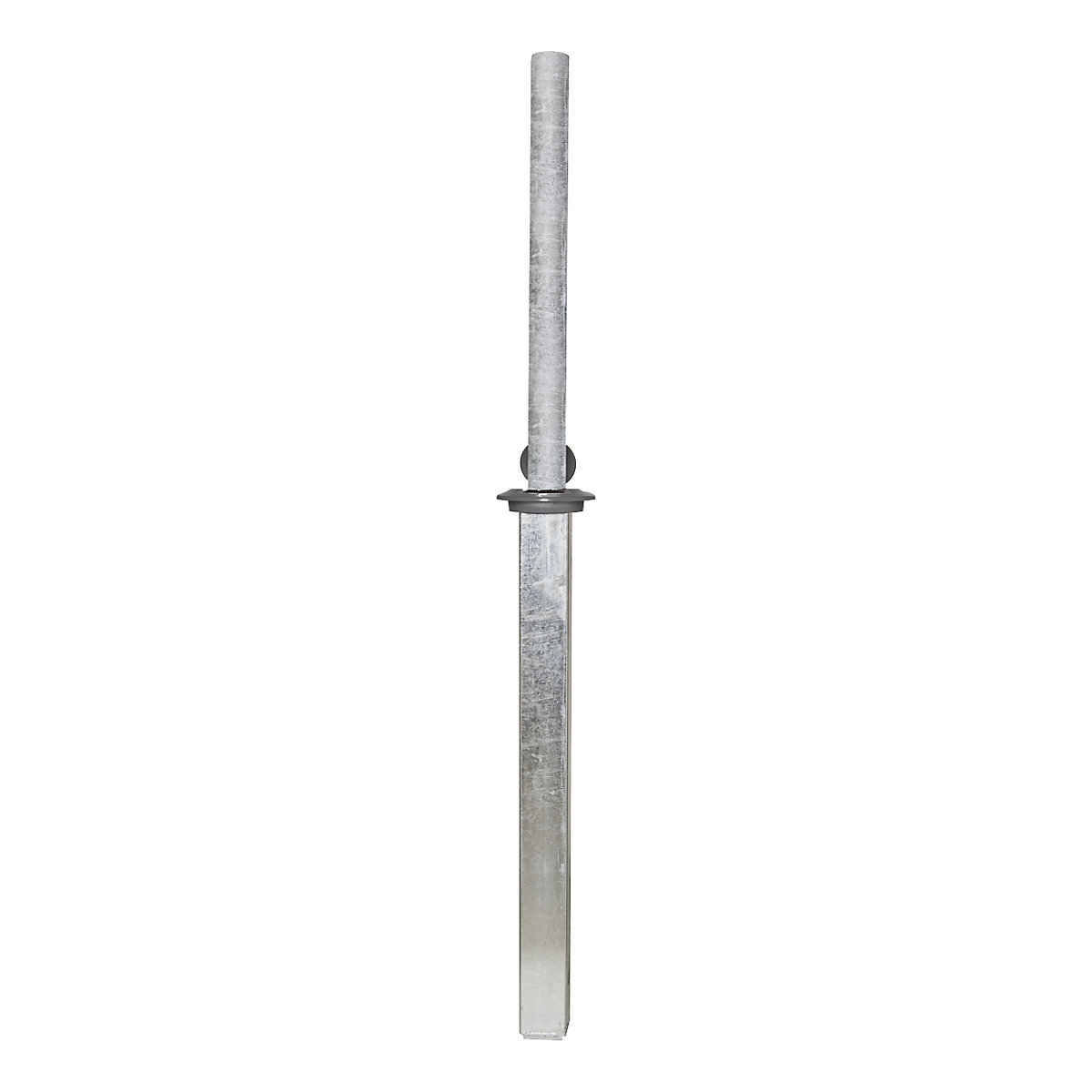

Barrier post semi-automatic lowering

Barrier post, semi-automatic lowering, hot dip galvanised
Price / items (Excl. VAT)
from
£659.00

Product description
This barrier post solves many problems with blocking off areas better than other posts do. Ideal for roads and public spaces that are only temporarily open to traffic: pedestrian zones, market squares, parking zones, garage entrances, gateways etc.
The post can be lowered within seconds using an above ground hydrant key in accordance with DIN 3223: traffic can move easily over the ground sleeve which is concreted in almost flush with the ground.

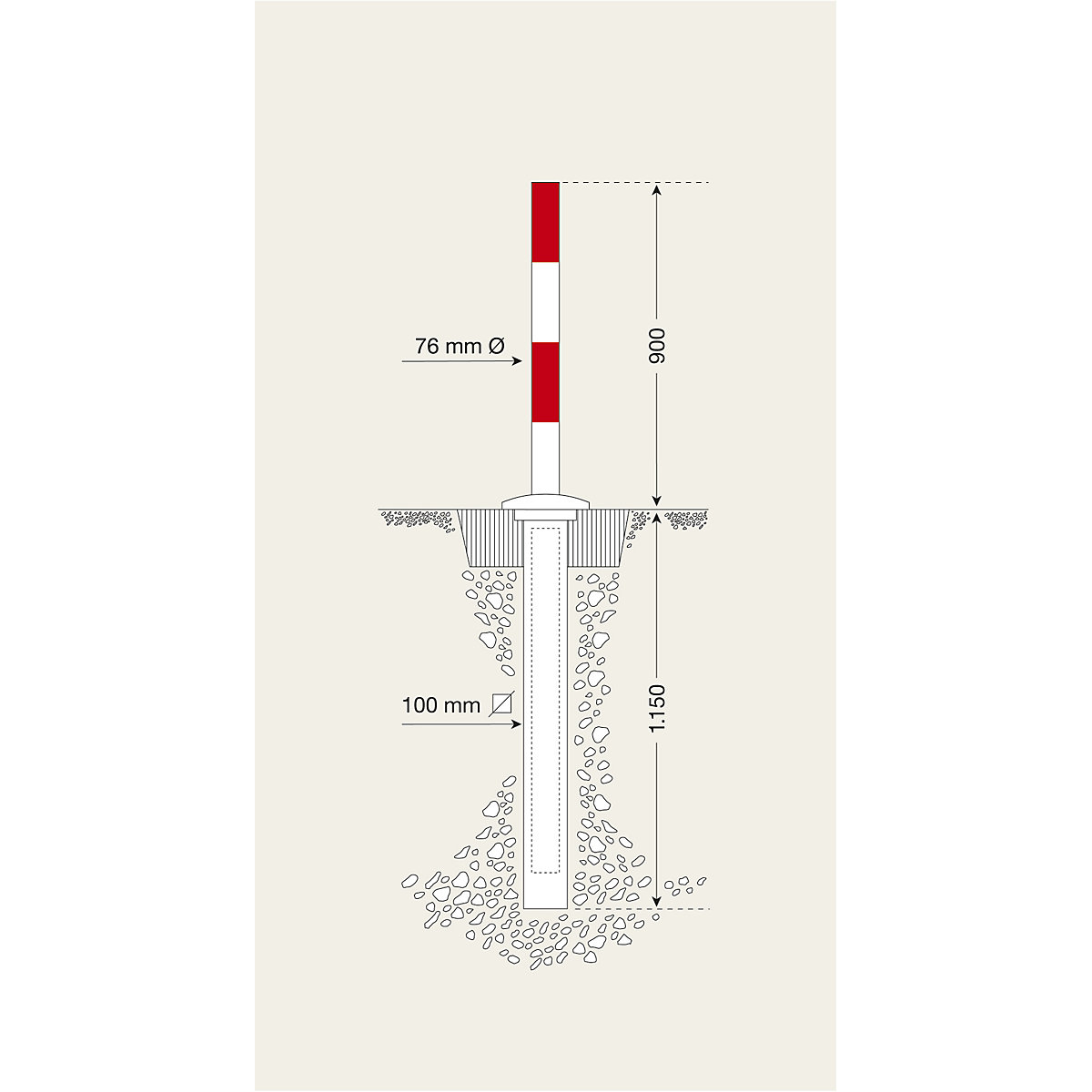

Overall height 2050 mm, of which 1150 mm under ground.
Diameter: top section 76 mm, bottom section 100 x 100 mm.

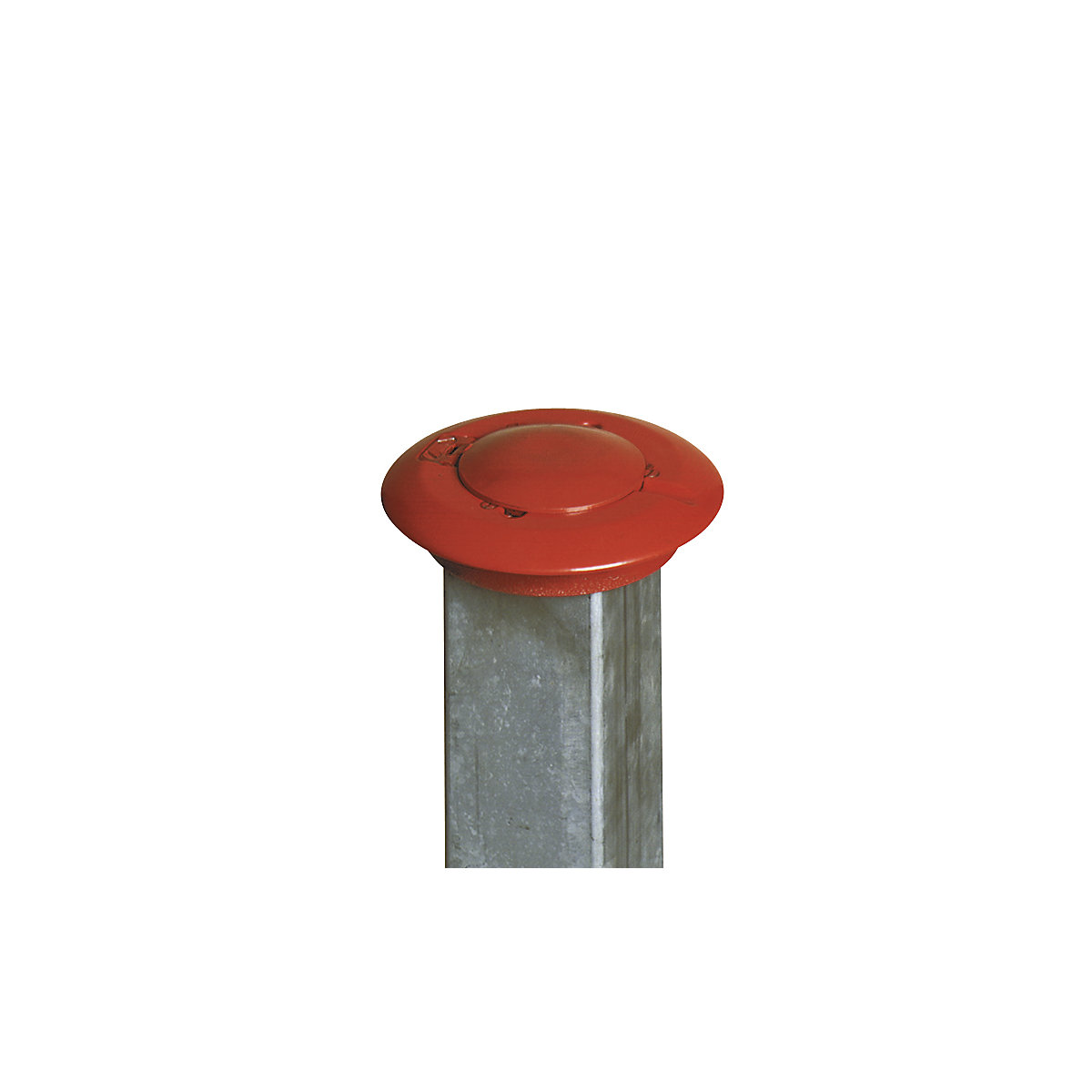

Easy installation. The top section can be replaced in case of damage.

Semi-automatic:

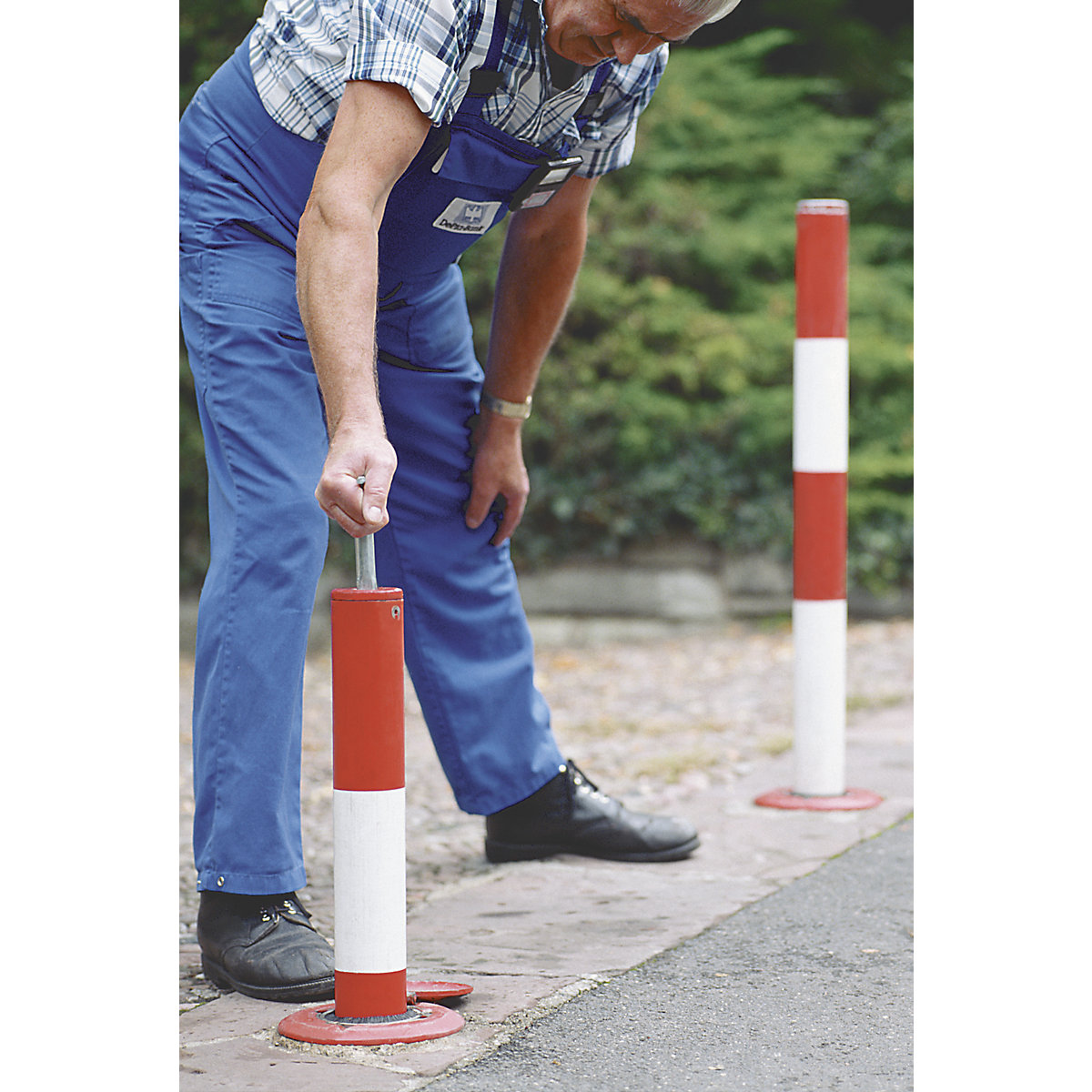

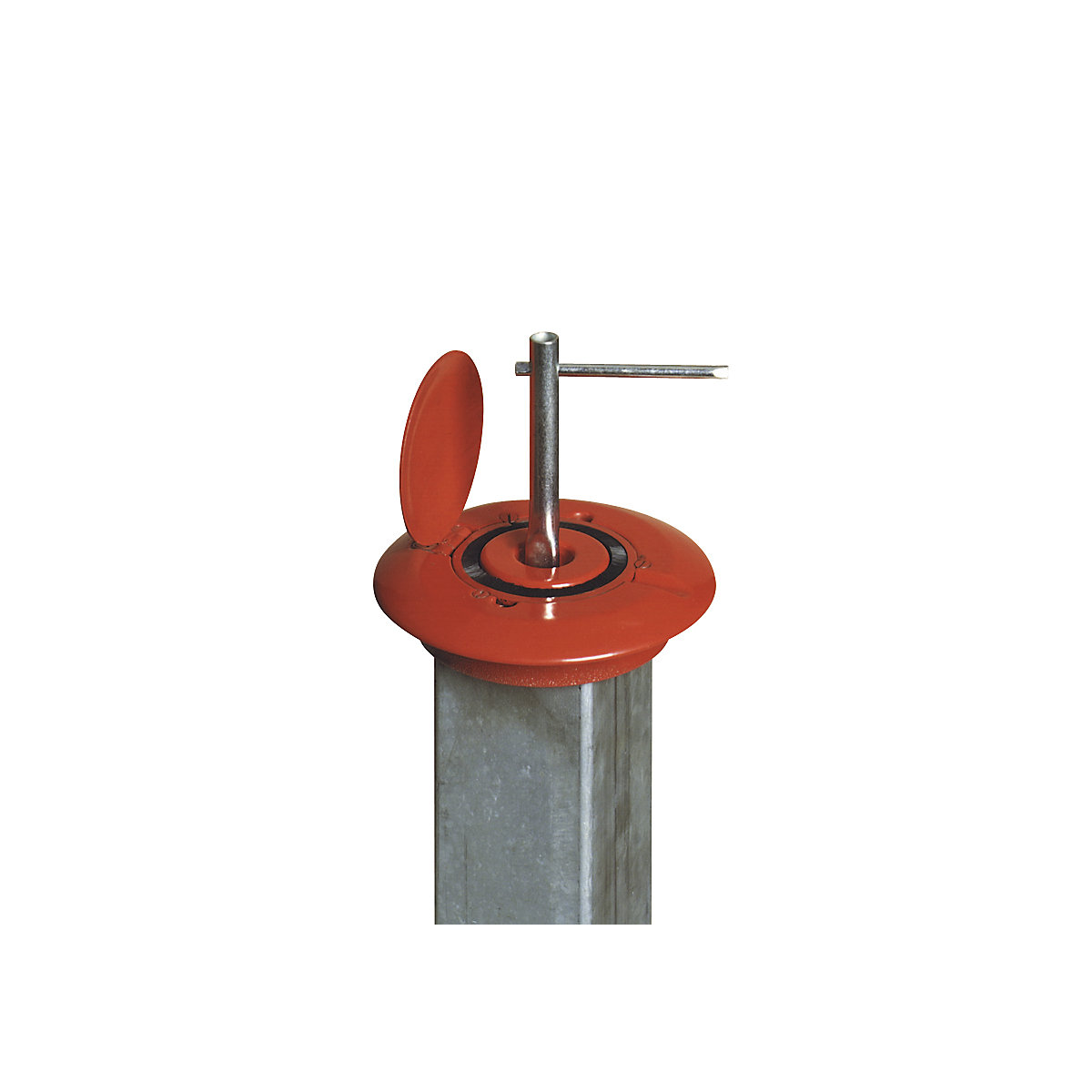

After being unlocked with the triangle key, the gas pressure spring automatically raises the upper section from the ground sleeve. After being raised slightly, the post locks automatically. The unlocked upper section is lowered simply by pushing it down.
Installation note: ensure proper drainage (fill with gravel). The PARATlift may not be installed in standing water (e.g. ground water).
Maintenance: important for flawless function. Remove any dirt that has accumulated, clean all moving parts and grease the locking hook at least every six months.
Technical data
Overall height2050 mm
Height above ground900 mm
Post dimensions76 mm
Materialsteel
Designcan be lowered
Type of mountingfor setting in concrete
Mountingwith ground sleeve
Place of useindoor and outdoor use
Design of headflat head
Depth below ground1150 mm
Tube formround
Lock typetriangular utility lock
Weight22 kg
Product typebollards/barrier posts made of steel
Suppliedassembled
