Impact protection barrier to bolt in place

  • Safe delineation and protection for traffic routes and inventory
  • With cable guide – to protect cables and lines
  • Robust steel construction
Impact protection barrier, to bolt in place, length 1000 mm
Price / items (Excl. VAT)
from
£171.00

Product description

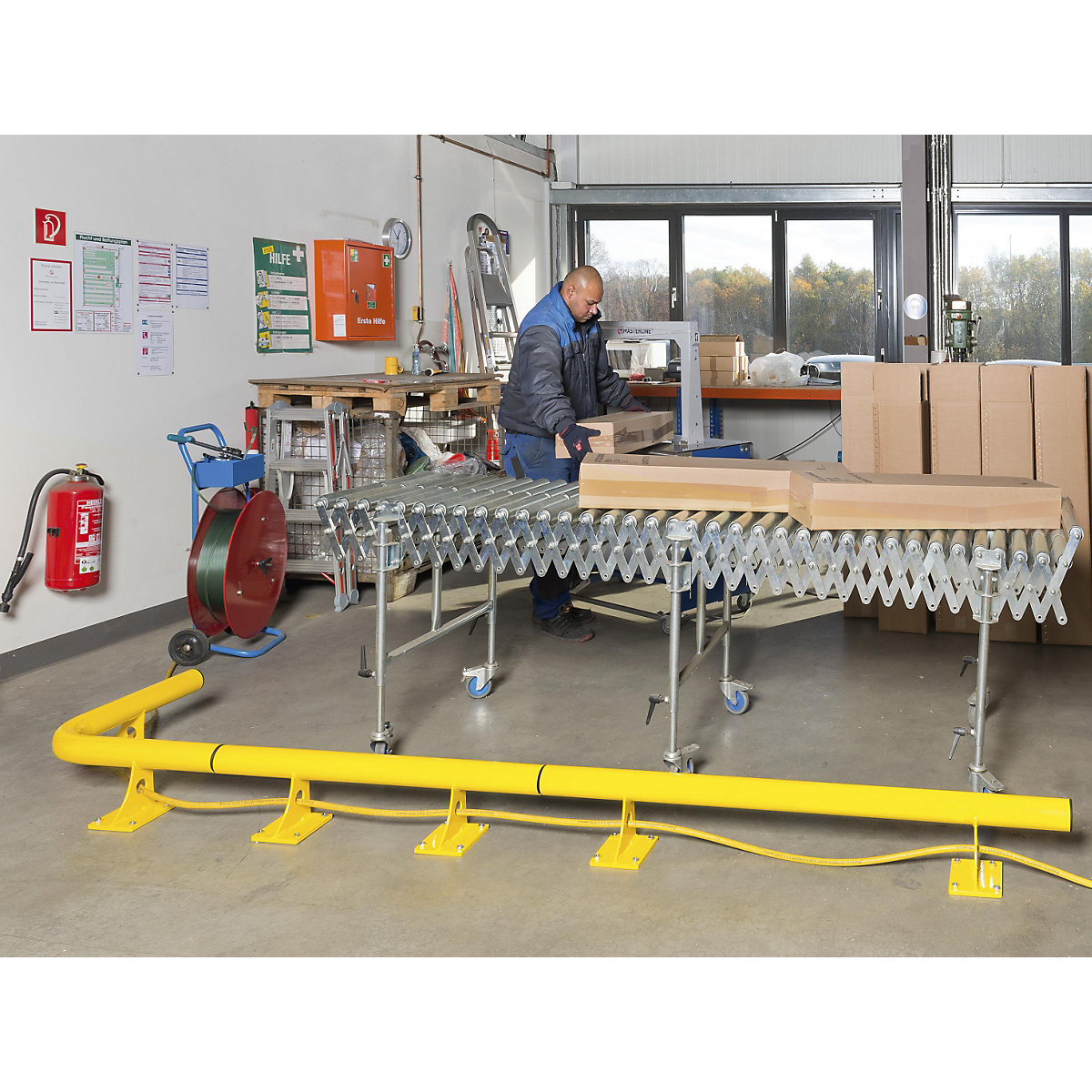

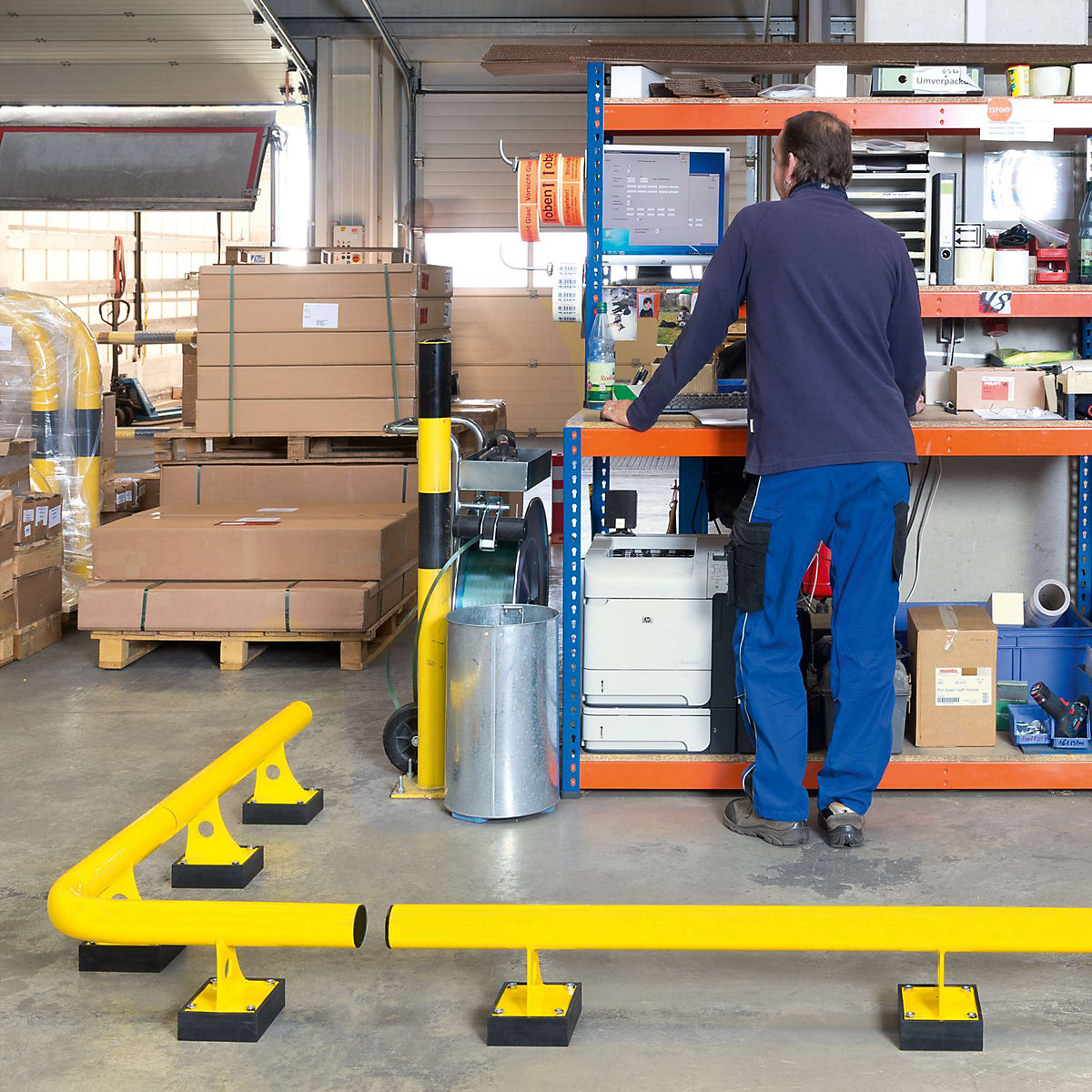

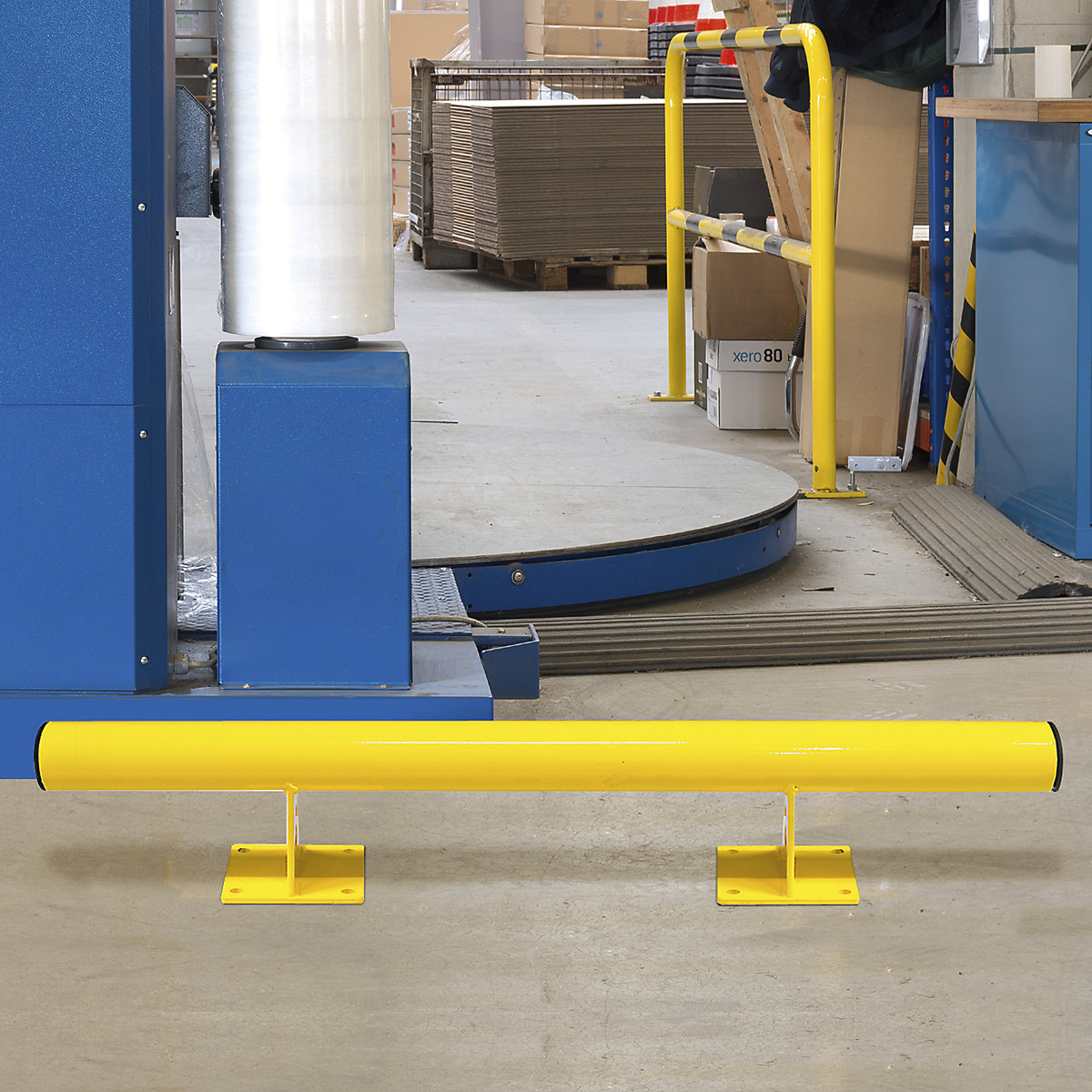

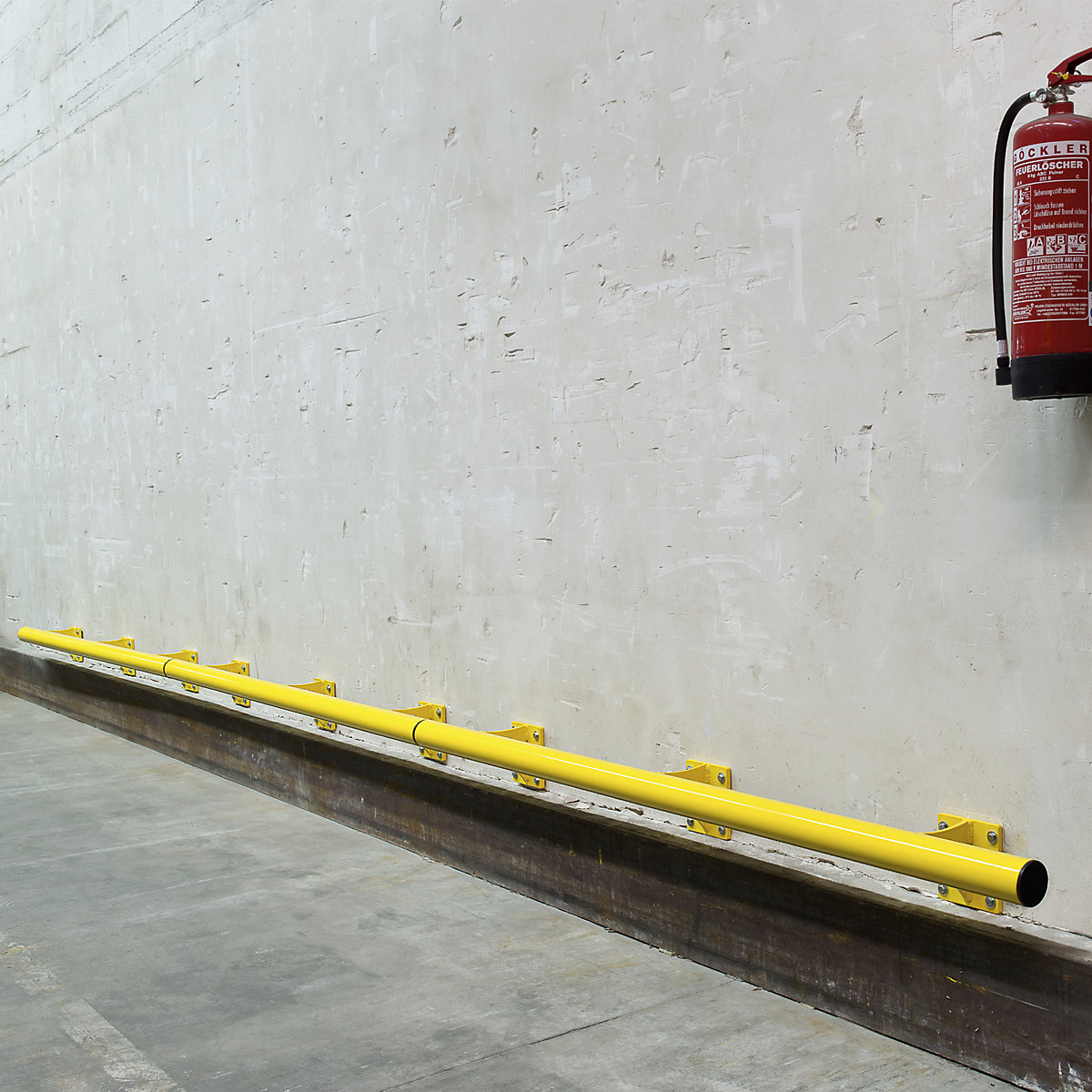

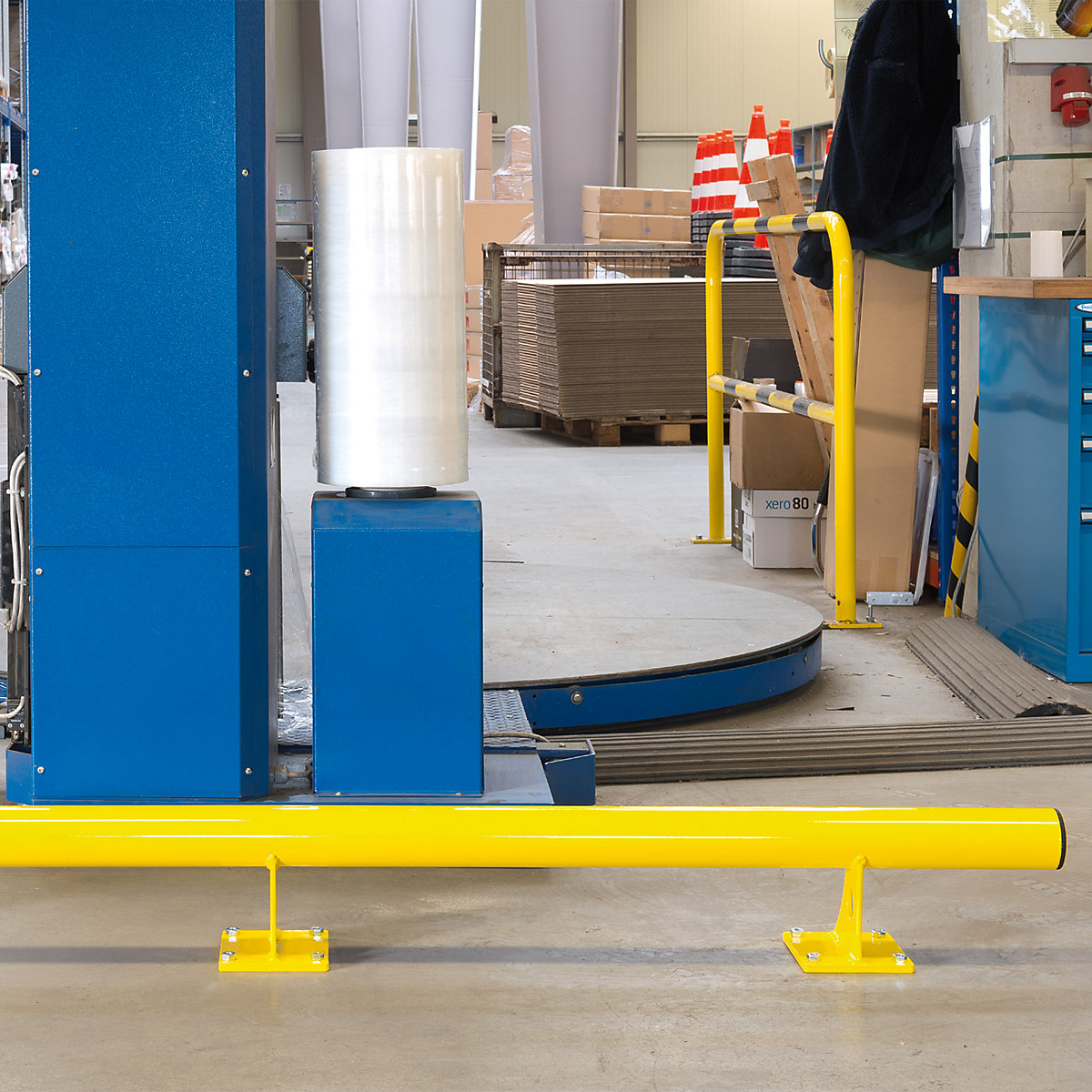

A newly developed steel guidance system for isolating traffic routes, for protecting machinery, technical equipment, work areas and walkways. The thick walled tubular steel is connected to a solid base plate by metal bars. Black plastic caps (see Accessories further down) form the end sections.

It is suitable for two types of use: as an individual barrier or in an infinite design by using an adapter that connects the tubes to each other.

With additional cable guide: protects cables, pressure hoses and lines up to 48 mm, which can be guided through the recesses in the bars.
A wide range of accessories can be found below.
  • Safe delineation and protection for traffic routes and inventory
  • With cable guide – to protect cables and lines
  • Robust steel construction
Technical data
Product typecrash protection barriers made of steel
Overall height200 mm
Colouryellow
Materialsteel
Finishplastic coated
Type of mountingwith base plate for bolting in place
Base plate length160 mm
Base plate width140 mm
Panel thickness3 mm
Tube diameter76 mm
Base plate height10 mm
Place of useindoor use
Height above ground200 mm
Suppliedassembled
