Ref.: 518762 49

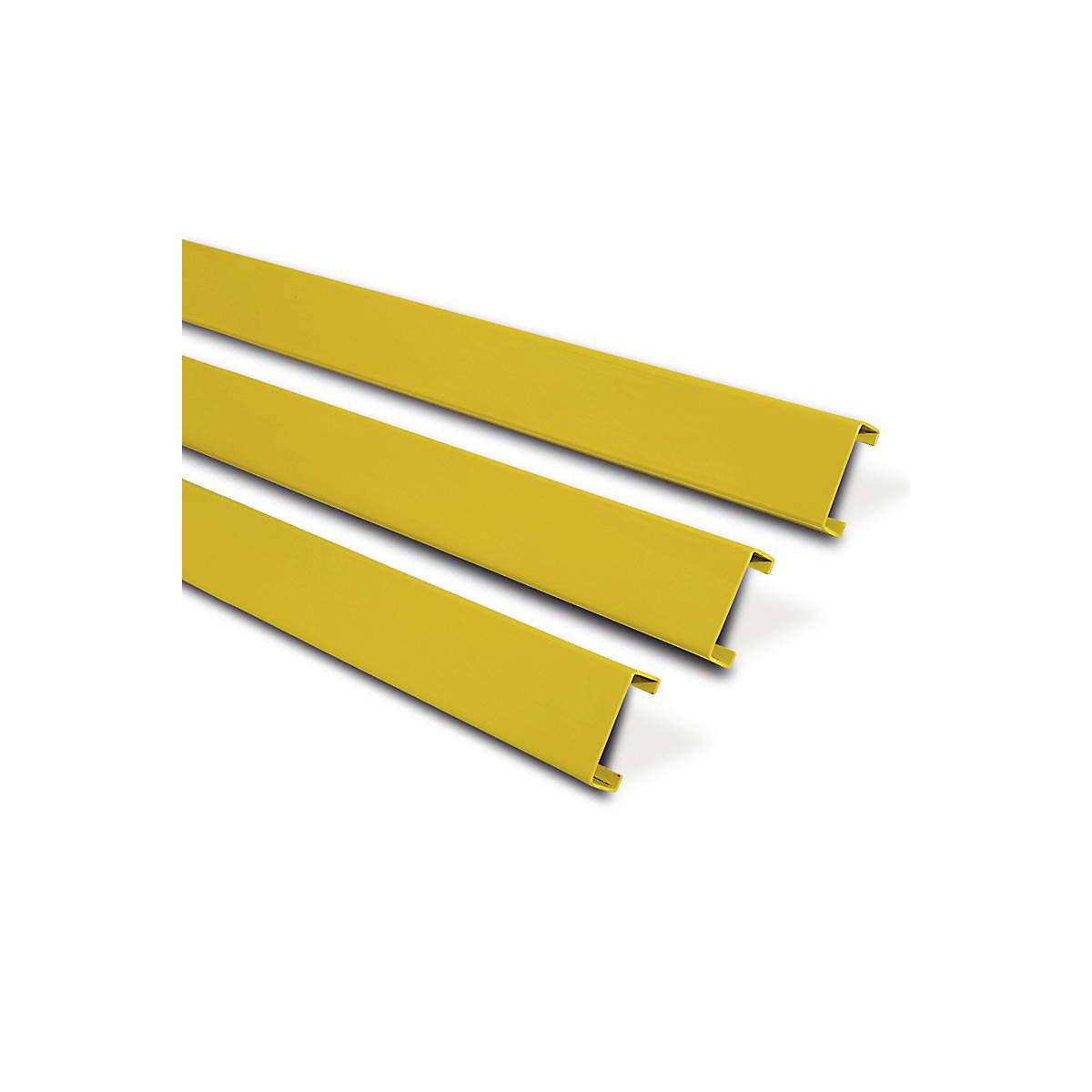

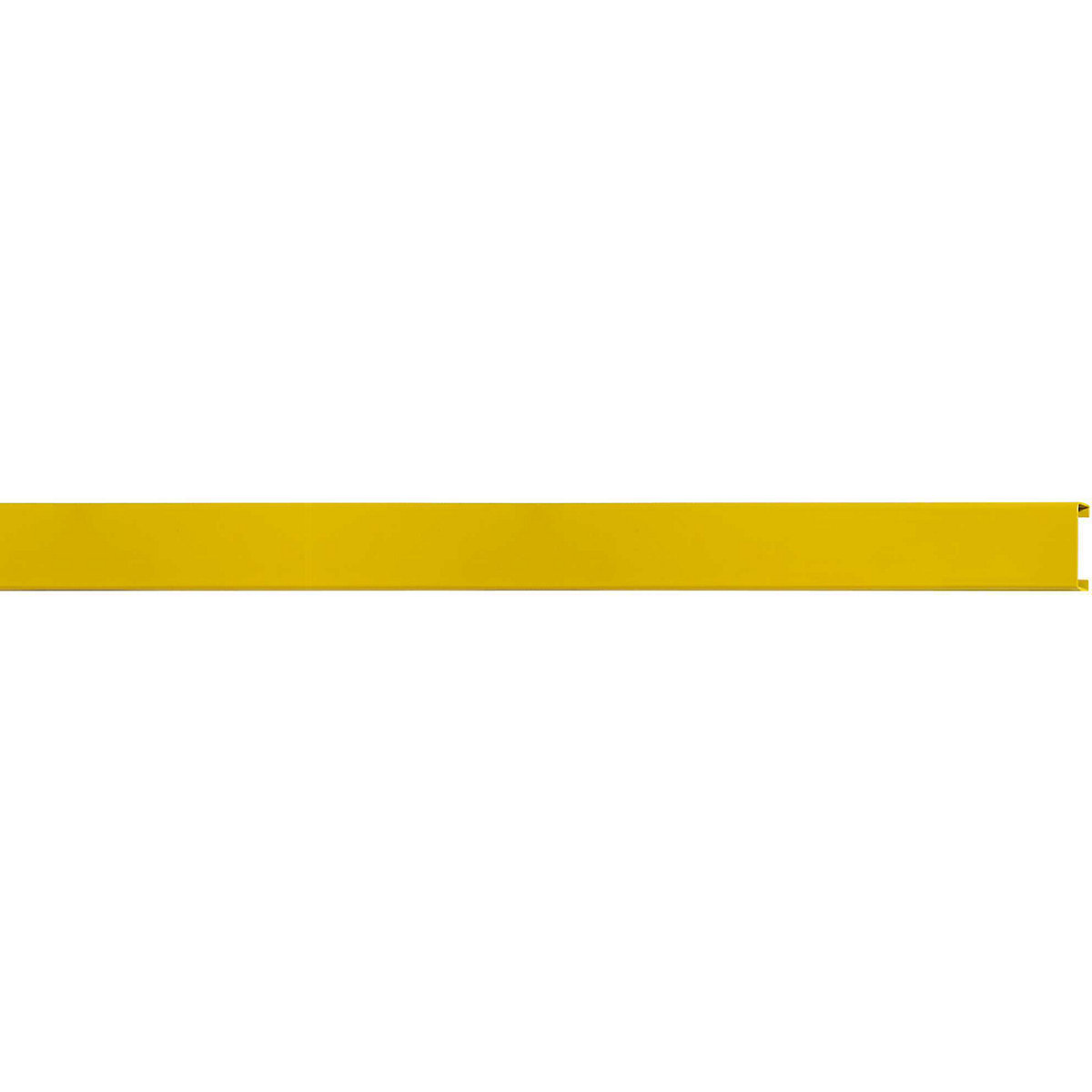

Impact protection rail – Black Bull side rail

Impact protection rail – Black Bull

length 1000 mm, for indoors

Length [mm]
Finish
£99.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Product description
  • Optimum protection for inventory, machines, buildings, etc.
  • Solid steel construction for maximum absorption of impact
  • Innovative, quick mounting technique (1-man assembly)
  • Plank spacing prevents pallets becoming slipping into each other or slipping out
  • Made in Germany
The BLACK BULL crash protection barrier is particularly well suited for protecting columns, posts, work areas, walls, pipelines etc. from typical damage caused by forklift and manoeuvring traffic. The system consists of profiled steel. The spacing between the rails is designed to prevent pallets from being threaded or slipping through.
TÜV-tested according to DGUV 108-007

The solid steel elements are designed for maximum force absorption and are intended to be bolted down. The innovative connection technology enables one-person assembly. The system can be individually adapted and expanded at any time.

Surface finish:
For indoor use: yellow plastic-coated
For outdoor use: hot-dip galvanised and yellow plastic-coated
Fastening material available upon request.

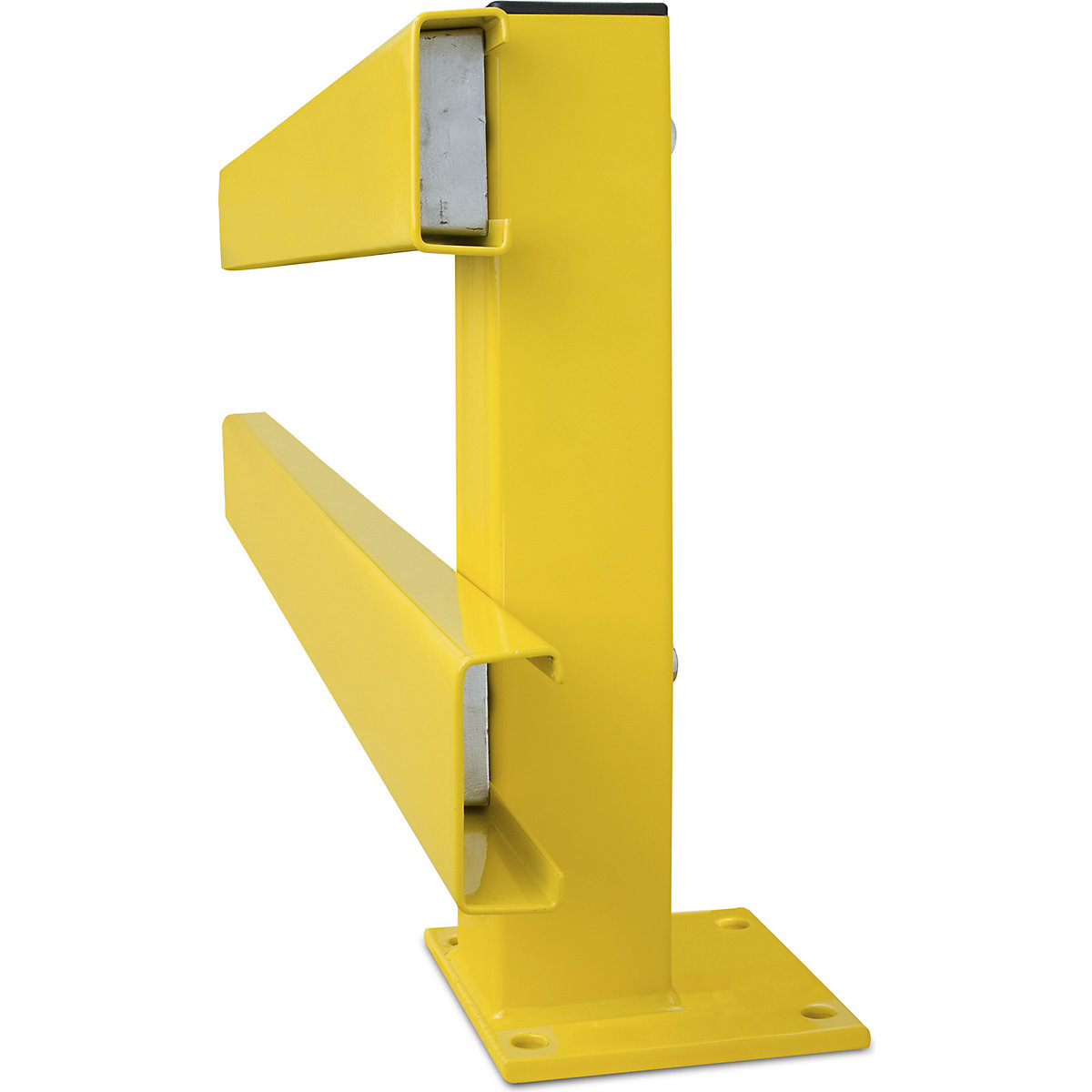

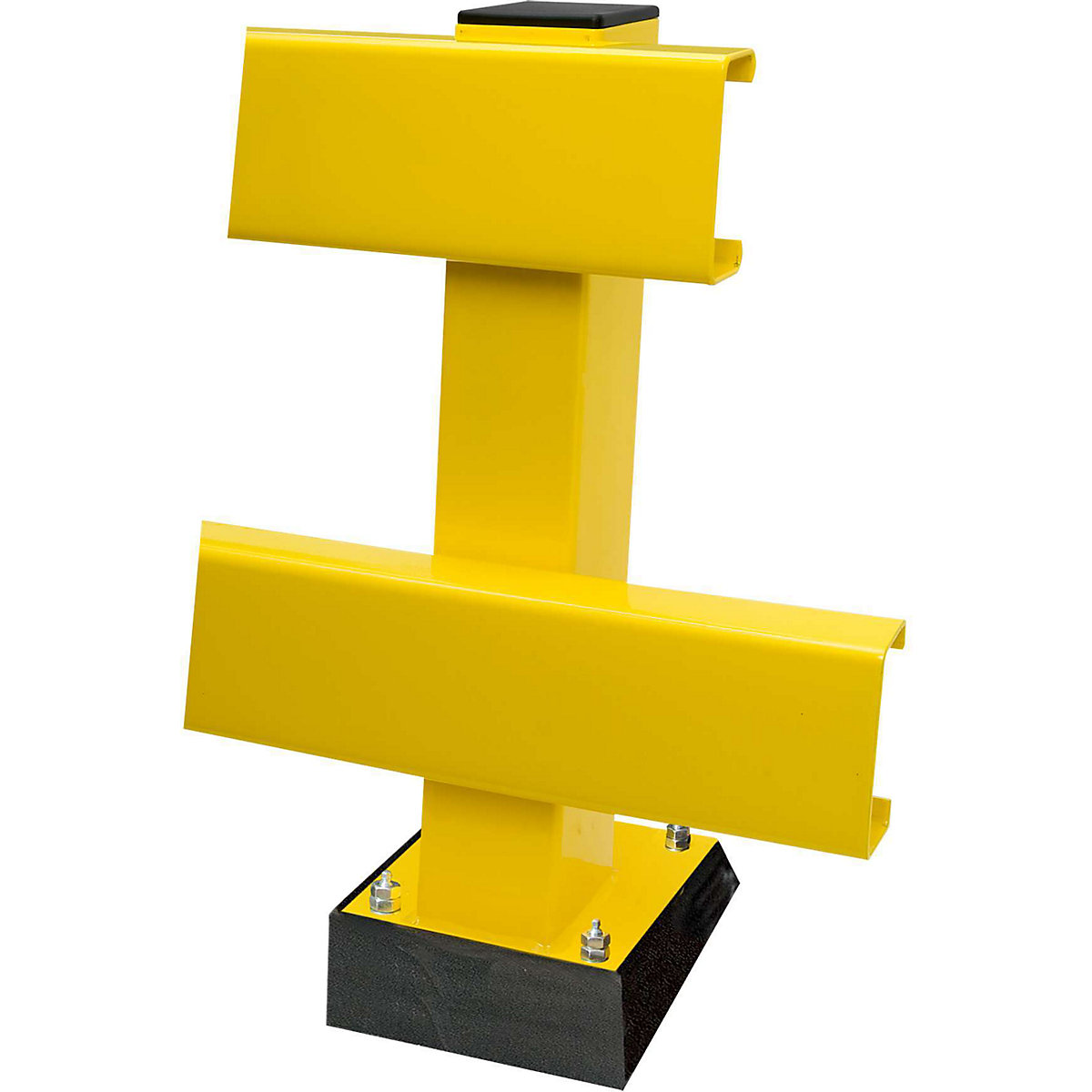

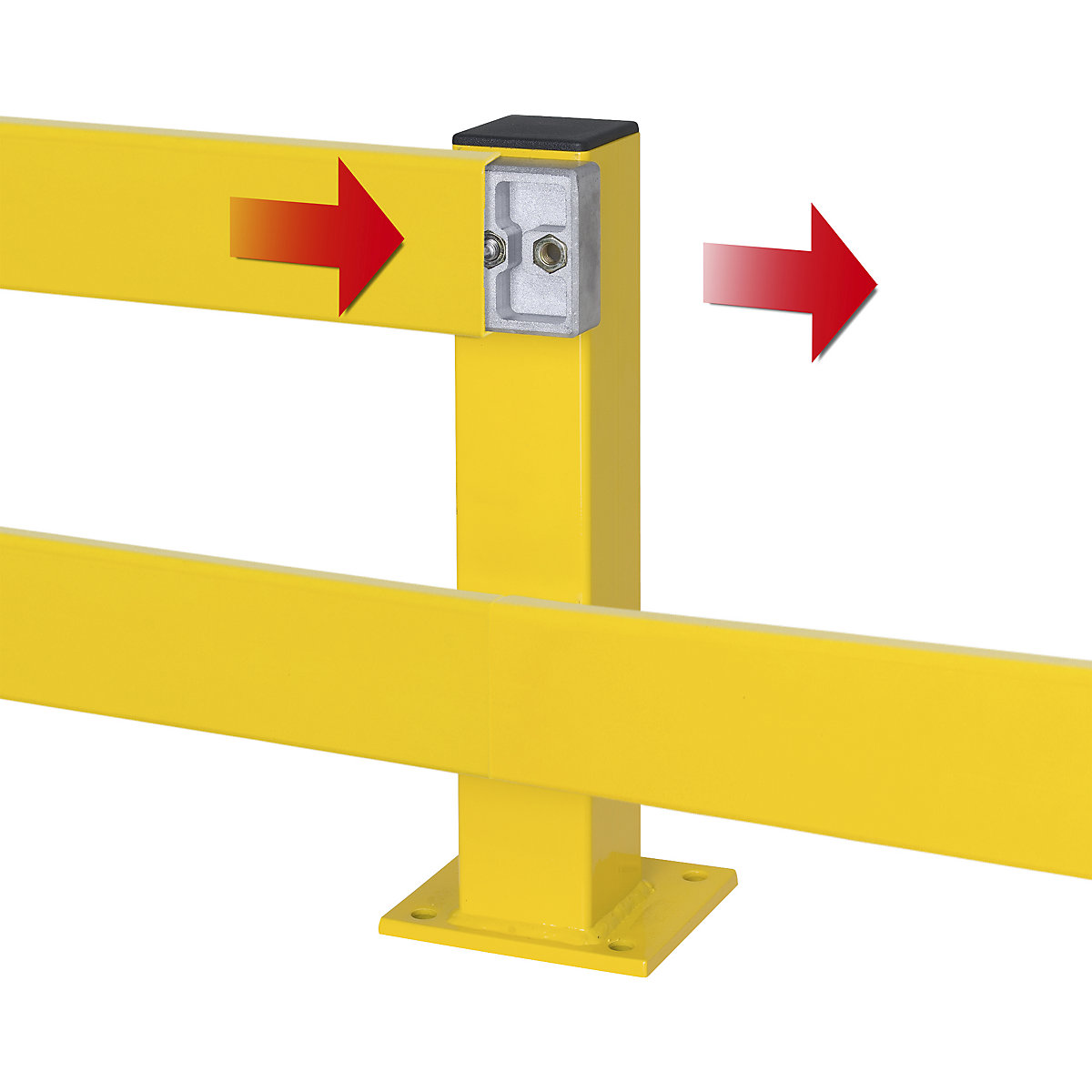

Easy assembly at a 90° angle:
Bolt down the posts and screw the rail (C-profile) to the post using the mounting system.

You will find matching cover caps and posts under Combinations.
Technical data
Type of mountingfor screw connection
Width40 mm
Height100 mm
Colourtraffic yellow RAL 1023
Materialsteel
Panel thickness3 mm
Product typesafety railings
Suppliedassembled
Length1000 mm
Finishpowder coated
Place of useindoor use
Weight8.7 kg
Pictorial instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
60
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

39.29kg CO₂e
LCA Raw Material Extraction & Processing
33.2%
LCA packaging production
1.7%
LCA Product Manufacturing
56.5%
LCA Inbound and Outbound Transportation
8.6%
Scoring System
3.3/5.9Overall score
CriteriaWeightingScore
Icon Climate protectionClimate protection30%2.5
Icon Circulatory economyCirculatory economy30%5.0
Icon BiodiversityBiodiversity25%1.5
Icon Economic efficiencyEconomic efficiency10%0.9
Icon InnovationInnovation5%3.9
More about our sustainability approach.
‌
‌
‌
‌
‌
