Ref.: 116234 49

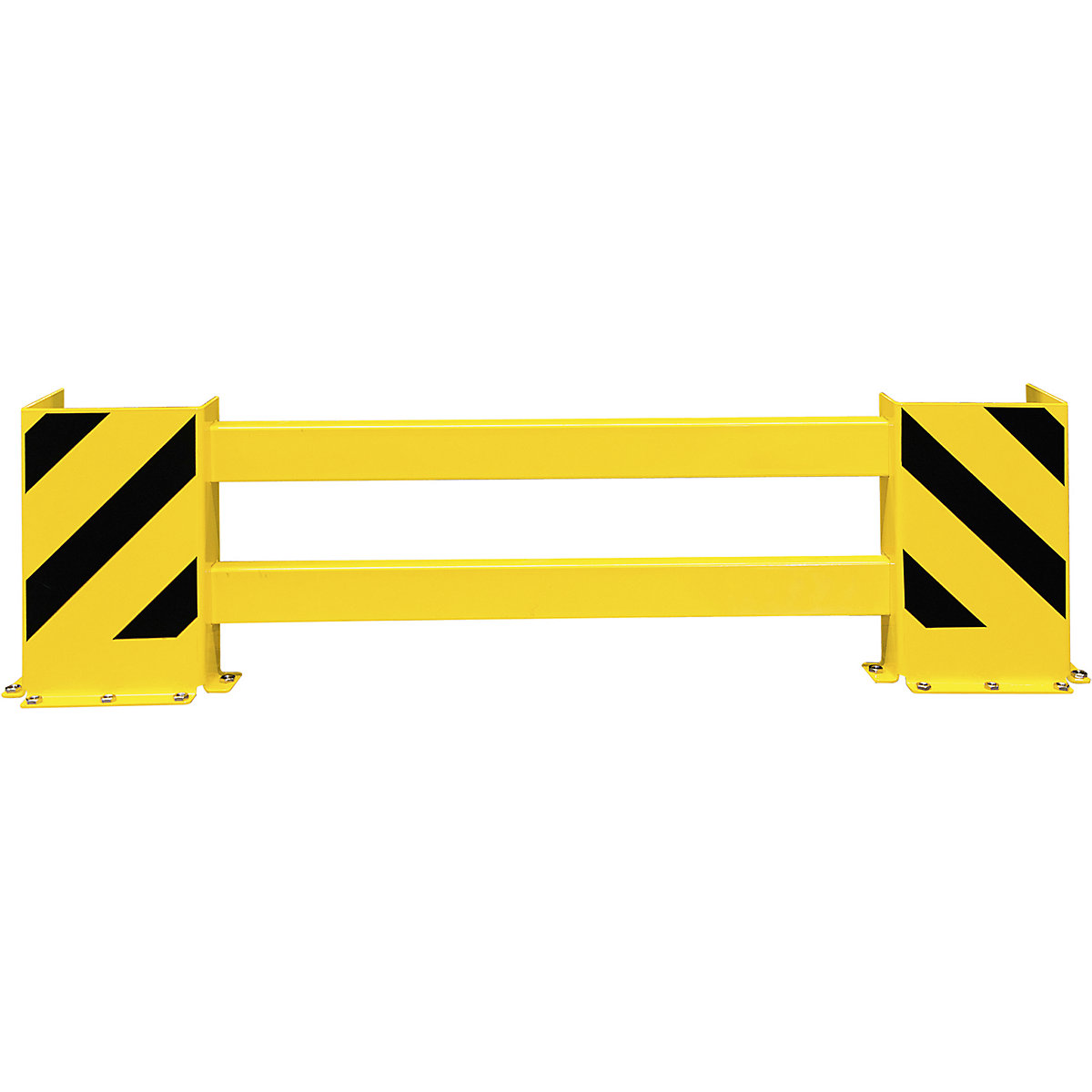

Rack protection guard rail set – Moravia with corner guards

Rack protection guard rail set – Moravia

for single sided shelving, width 900 – 1300 mm

Model
Length [mm]
£589.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Product description
  • TÜV-TESTED in accordance with DGUV 208-061
  • For indoor use
  • Protects shelving units against collision damage
  • Shelf unit uprights protected on multiple sides
  • Yellow / black plastic coating for effective visual warning
  • Adjustable to fit all standard shelf unit widths, for single and double sided shelving rows

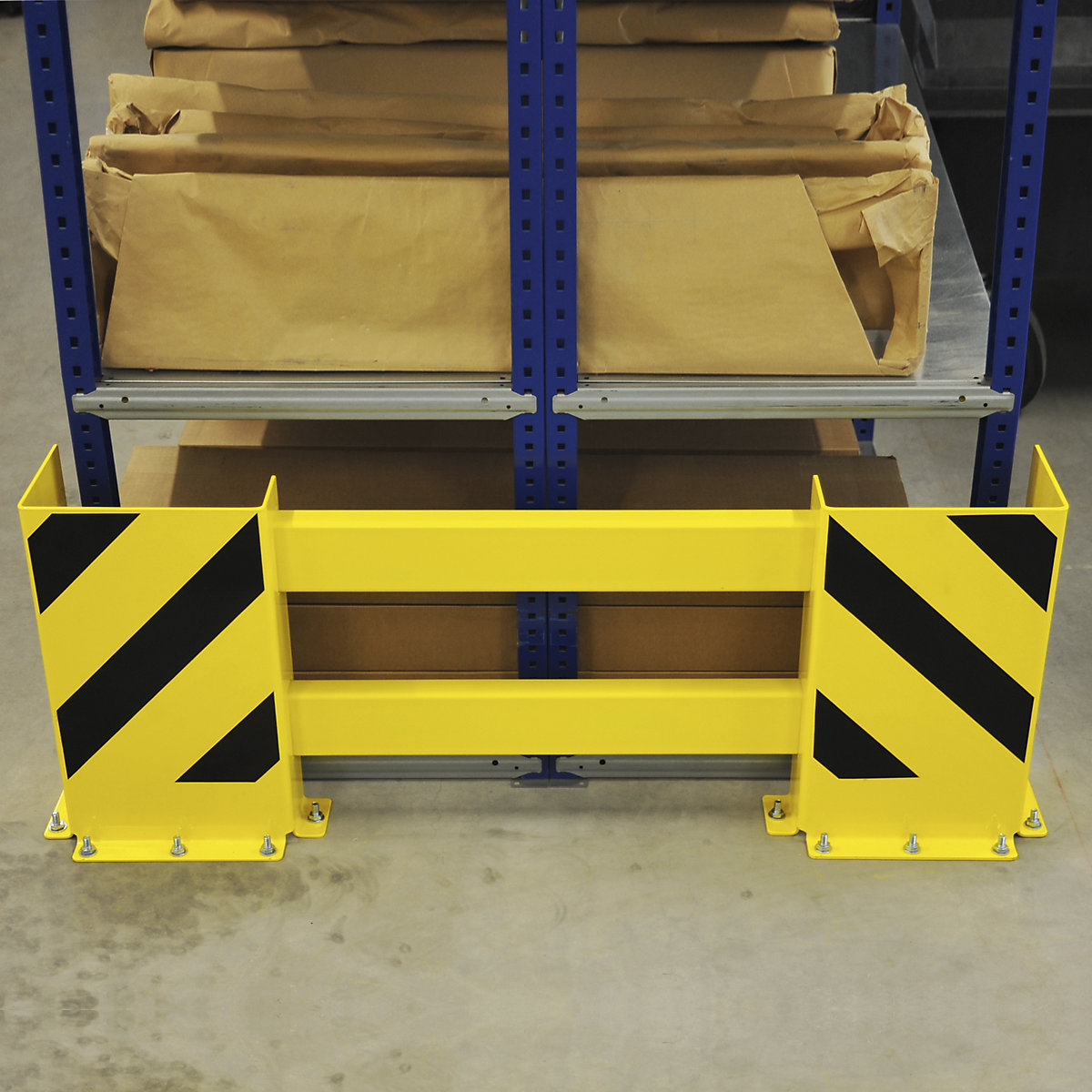

The rack guard rail set has been specially developed to protect racks from frontal impact damage caused by forklift and manoeuvring traffic.

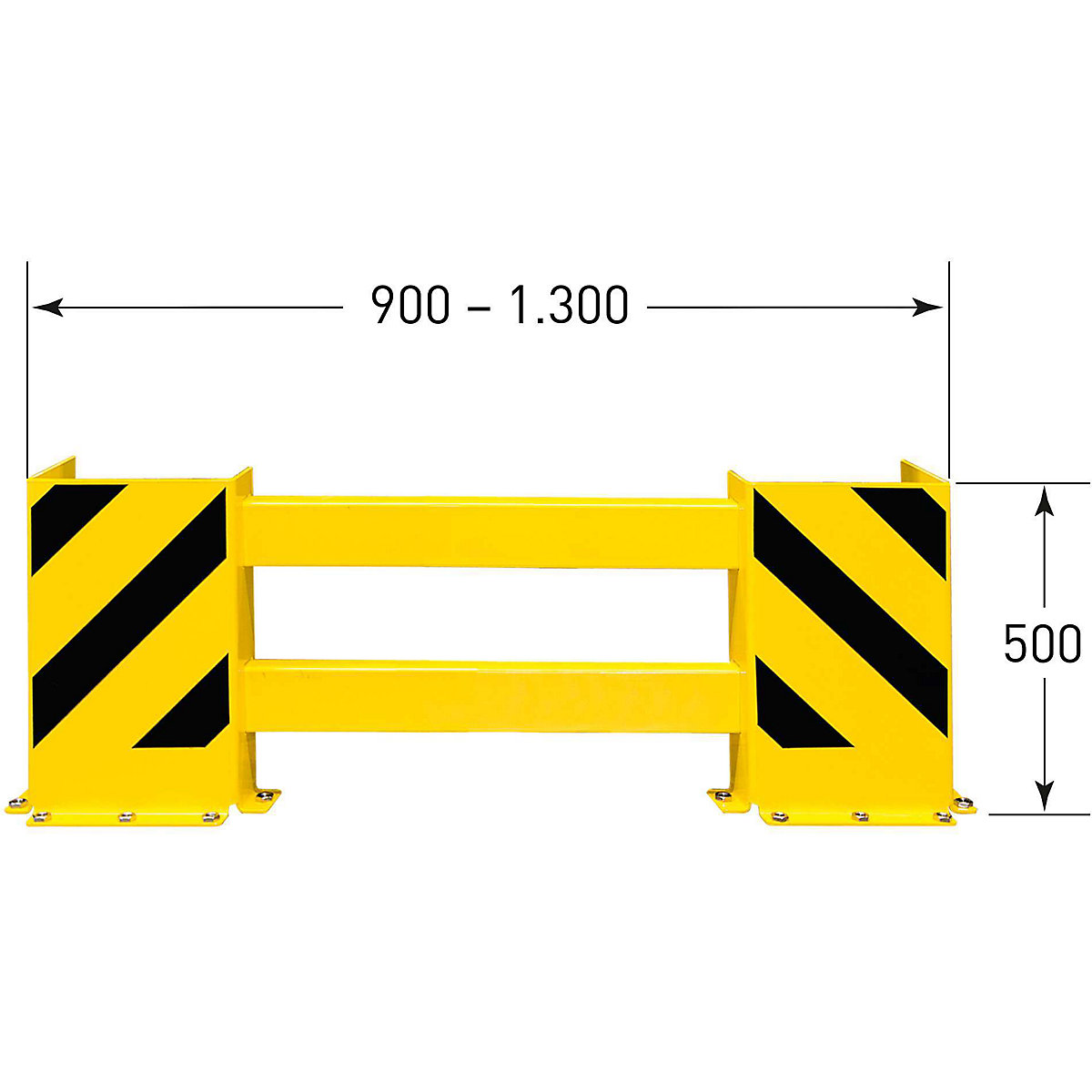

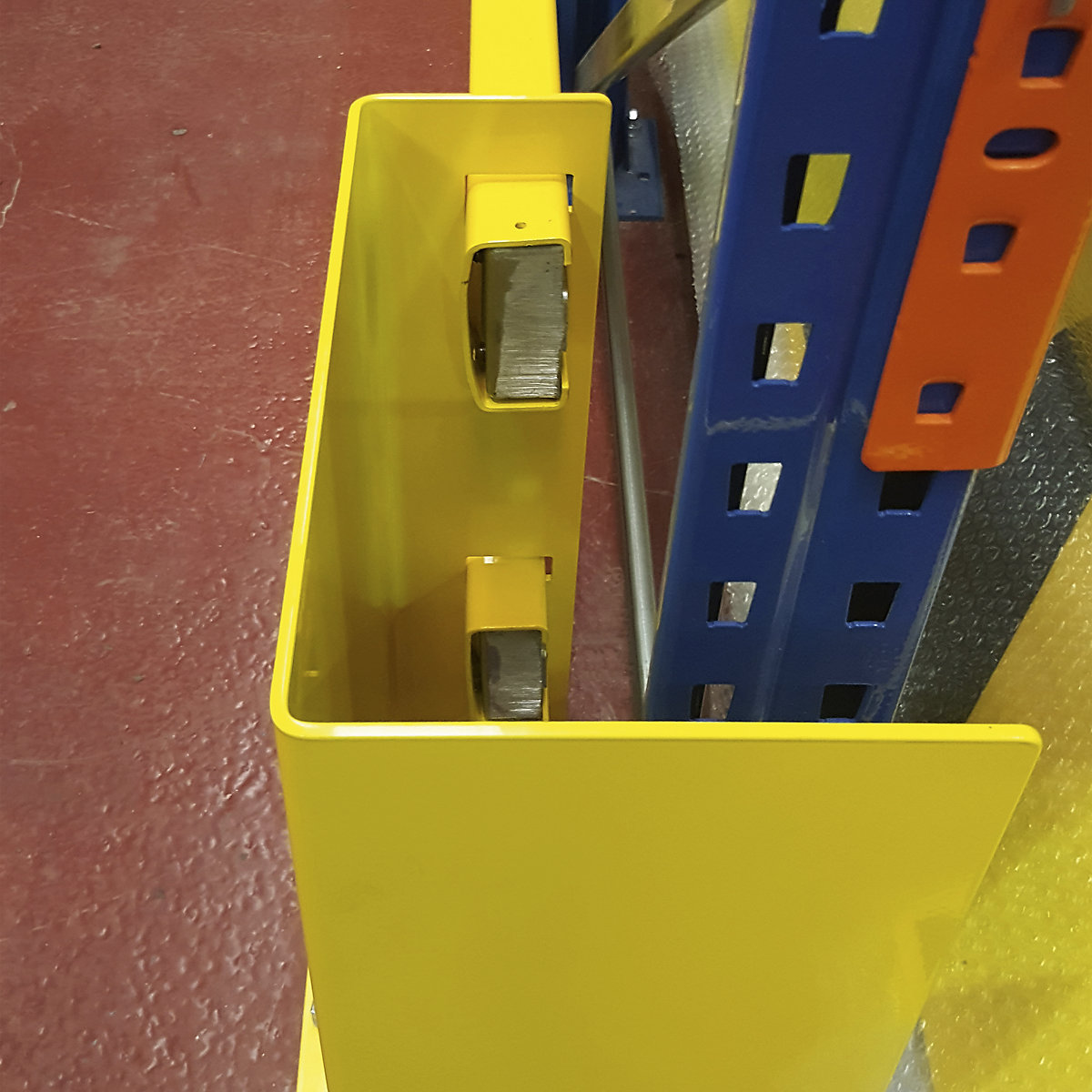

The impact protection corners are shaped so that two steel guard rails with a C-profile can be slid in from the side. The 300 mm wide protection corners allow the guard rails to be moved by up to 200 mm per corner. This means each guard rail set can be individually adjusted in width by up to 400 mm.

Scope of delivery
One set consists of two impact protection corners for bolting down and two guard rails with a C-profile for horizontal installation.
Screws and dowels for floor mounting are not included in the scope of delivery.
Wall thickness: 3 mm guard rail and 4 mm corner.
Total height 500 mm.
Very easy assembly
– Bolt first crash guard to floor
– Insert rails
– Position second crash guard and bolt in place
– Fix rails with clamping jaws
Technical data
Type of mountingfor bolting in place
Height500 mm
Colourtraffic yellow RAL 1023 jet black RAL 9005
Materialsteel
Finishplastic coated
Panel thickness3 mm
Place of useindoor use
Height above ground500 mm
Product typecollision protection
Suppliedflat pack
Modelfor single sided shelf unit
Length1300 mm
Width1300 mm
Retracted length900 mm
Weight28 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
60
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

117.76kg CO₂e
LCA Raw Material Extraction & Processing
34.4%
LCA packaging production
1.9%
LCA Product Manufacturing
54.5%
LCA Inbound and Outbound Transportation
9.2%
‌
‌
‌
