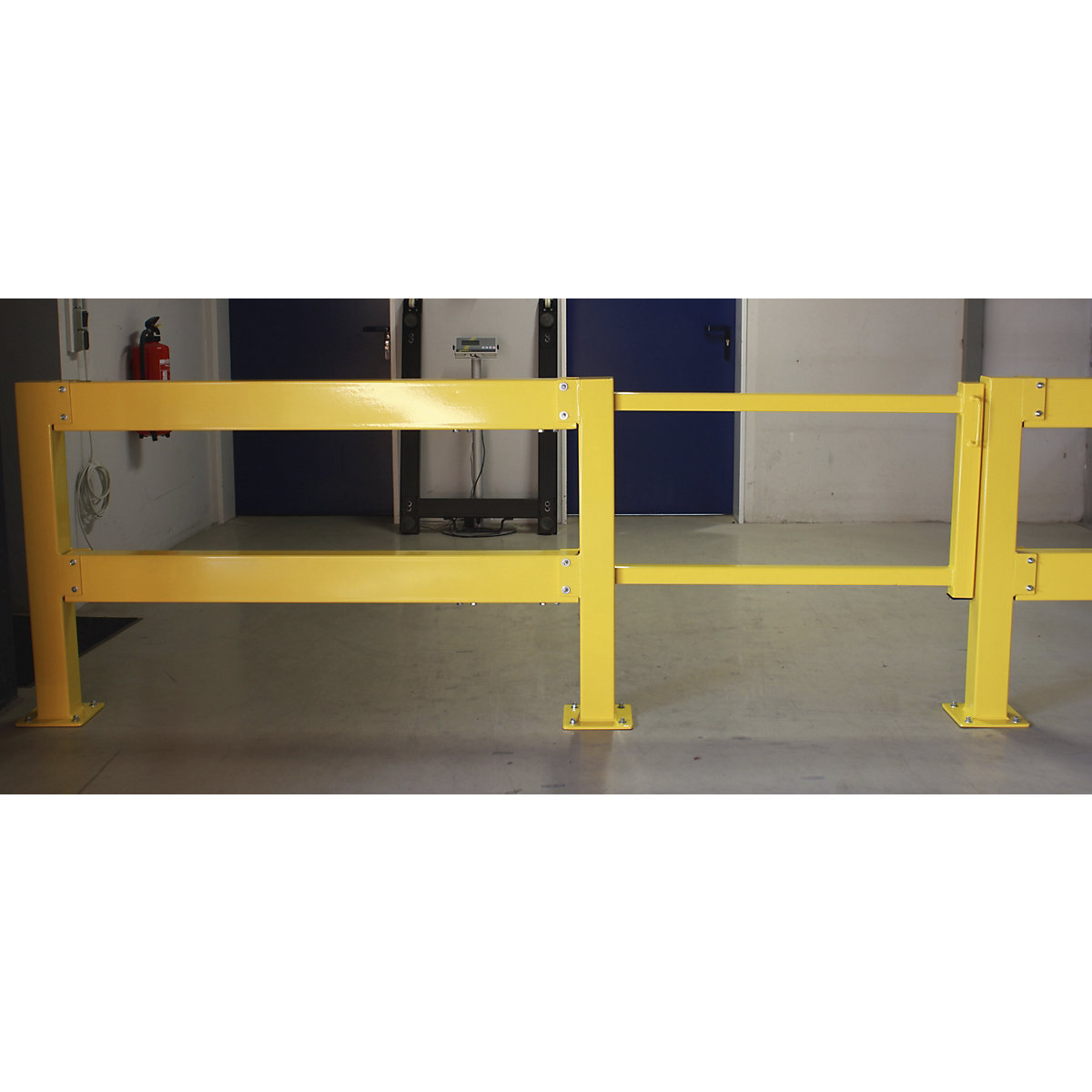

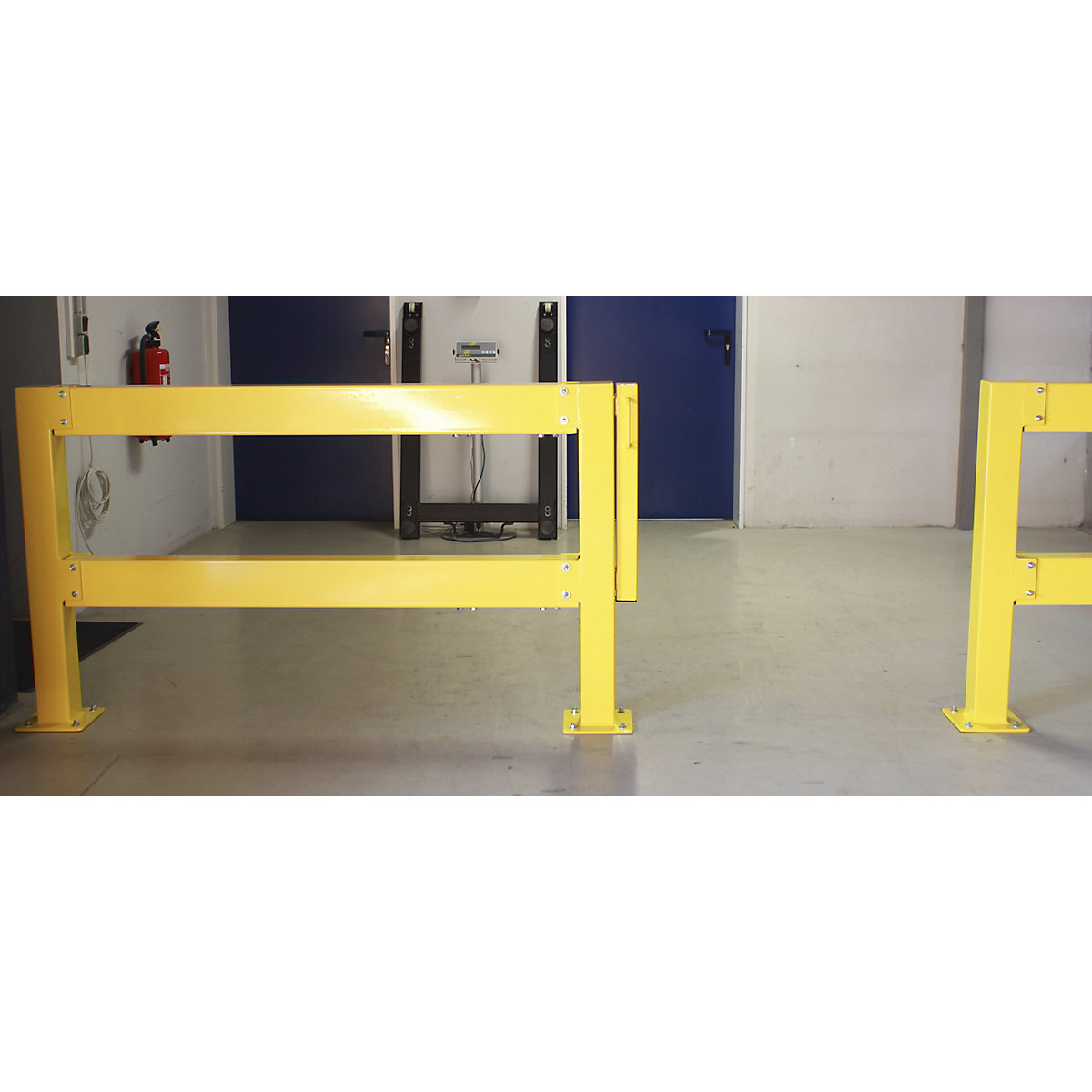

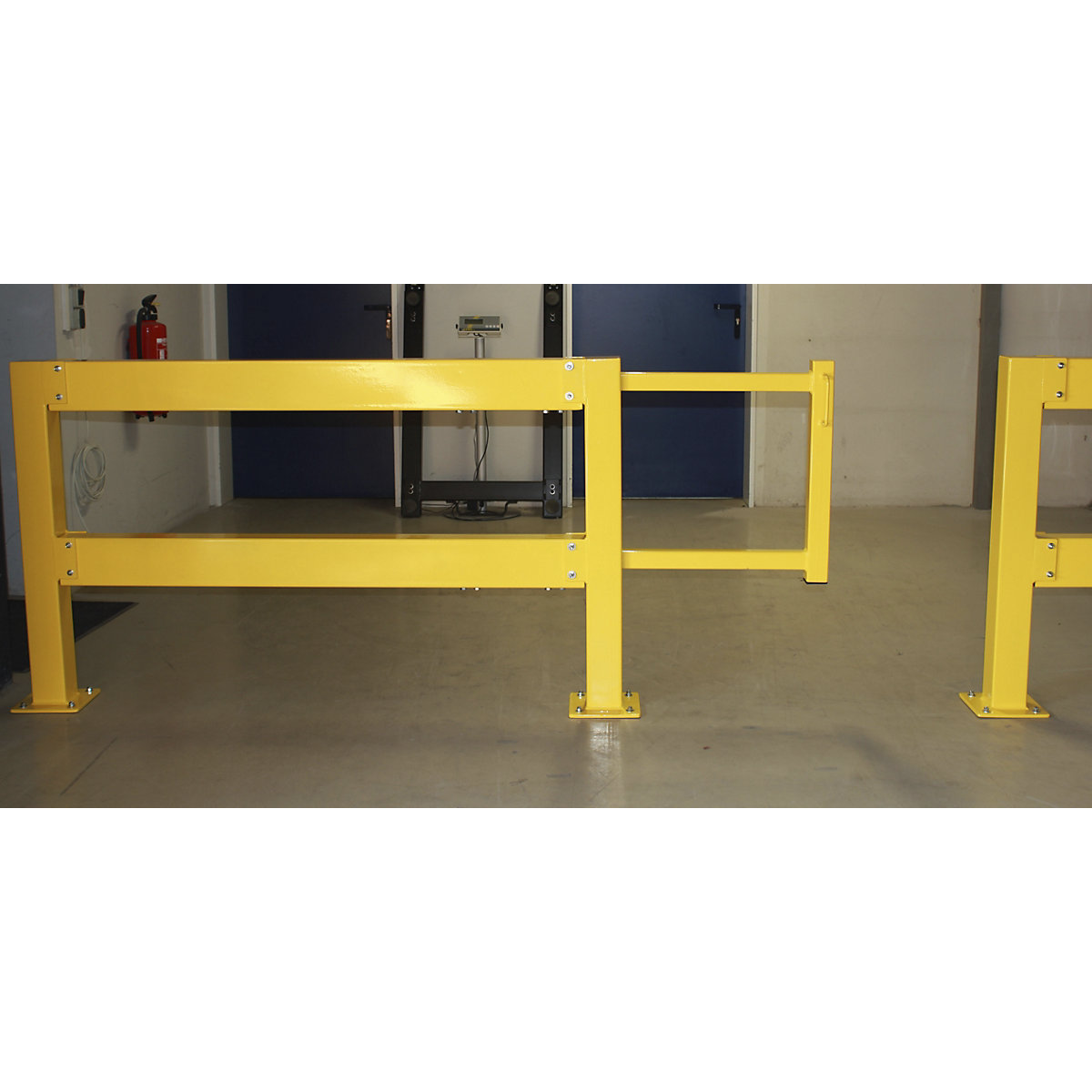

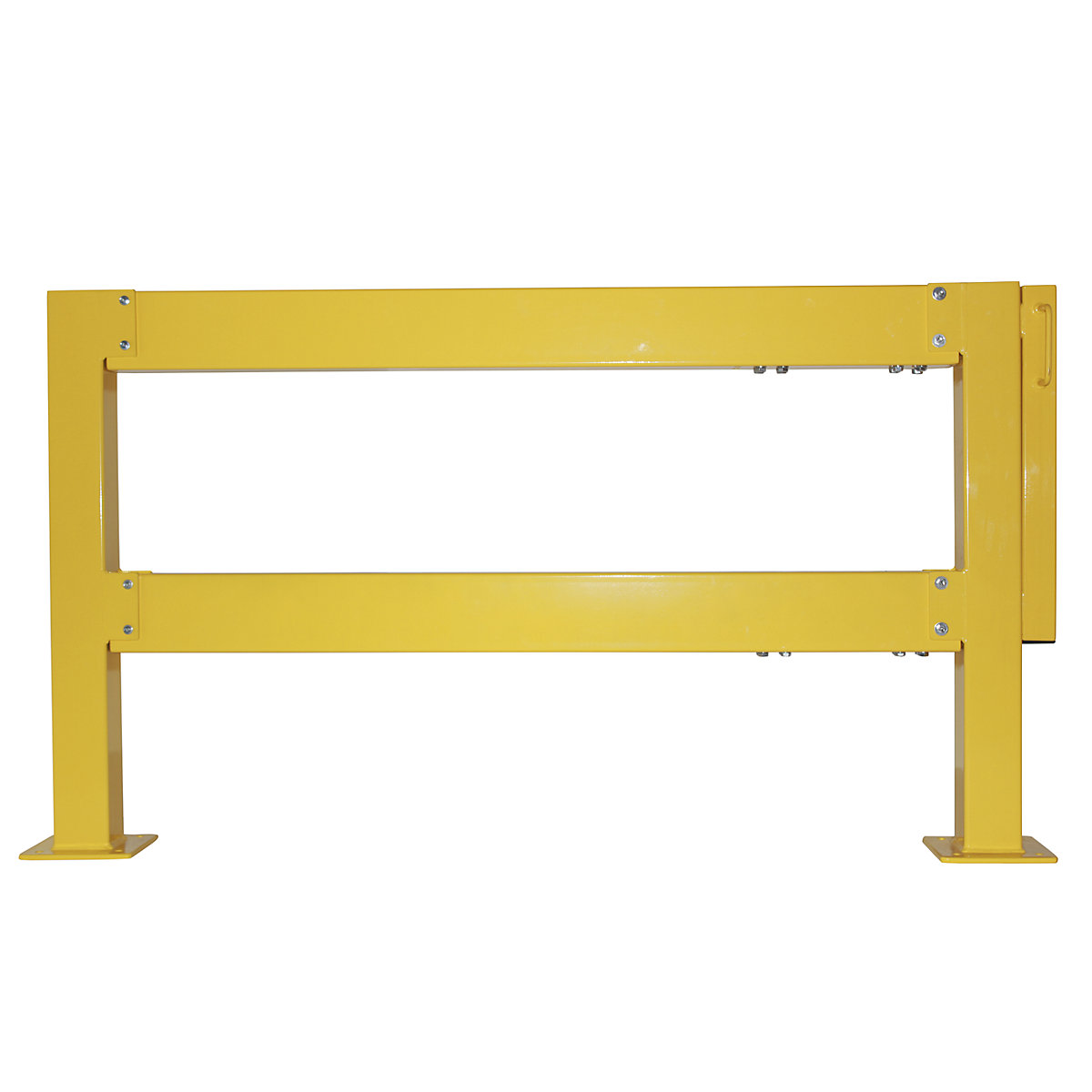

Sliding door set overall width 3760 mm

  • Solid and robust
  • High visibility
Ref.: 119874 49
Sliding door set, overall width 3760 mm, sliding door width 1500 mm
Price / items (Excl. VAT)

Product description
Sliding door made of steel.
For indoor use.
Set consists of:
– Sliding door with a vertical slat 60 x 60 mm, height 500 mm
– Two end posts 100 x 100 mm, height 1000 mm
– Two mounting rails 140 x 80 mm
– One vertical strut 60 x 60 mm
– Two horizontal struts 60 x 60 mm
– Two handles

The slide mechanism used makes safe and easy opening possible, and the doors block neither corridors nor road ways. The door pillars are concealed by the installed rail system. The handles on both sides make the doors easy to open and close.
Post base plate 200 x 200 mm with four pre-drilled holes each for mounting.

Maximum passage width 1500 mm, weight: 86.32 kg.
  • Solid and robust
  • High visibility
Technical data
Product typesafety railings made of steel
Overall width3760 mm
Overall height1000 mm
Finishpowder coated
Type of mountingwith base plate for bolting in place
Weight86.32 kg
Place of useindoor use
Scope of deliverysliding door with two end posts, one vertical slat and two horizontal door struts, two mounting beams, base plate
Suppliedpre-assembled, final assembly by customer
