Pipe protection – Moravia HxWxD 600 x 350 x 350 mm

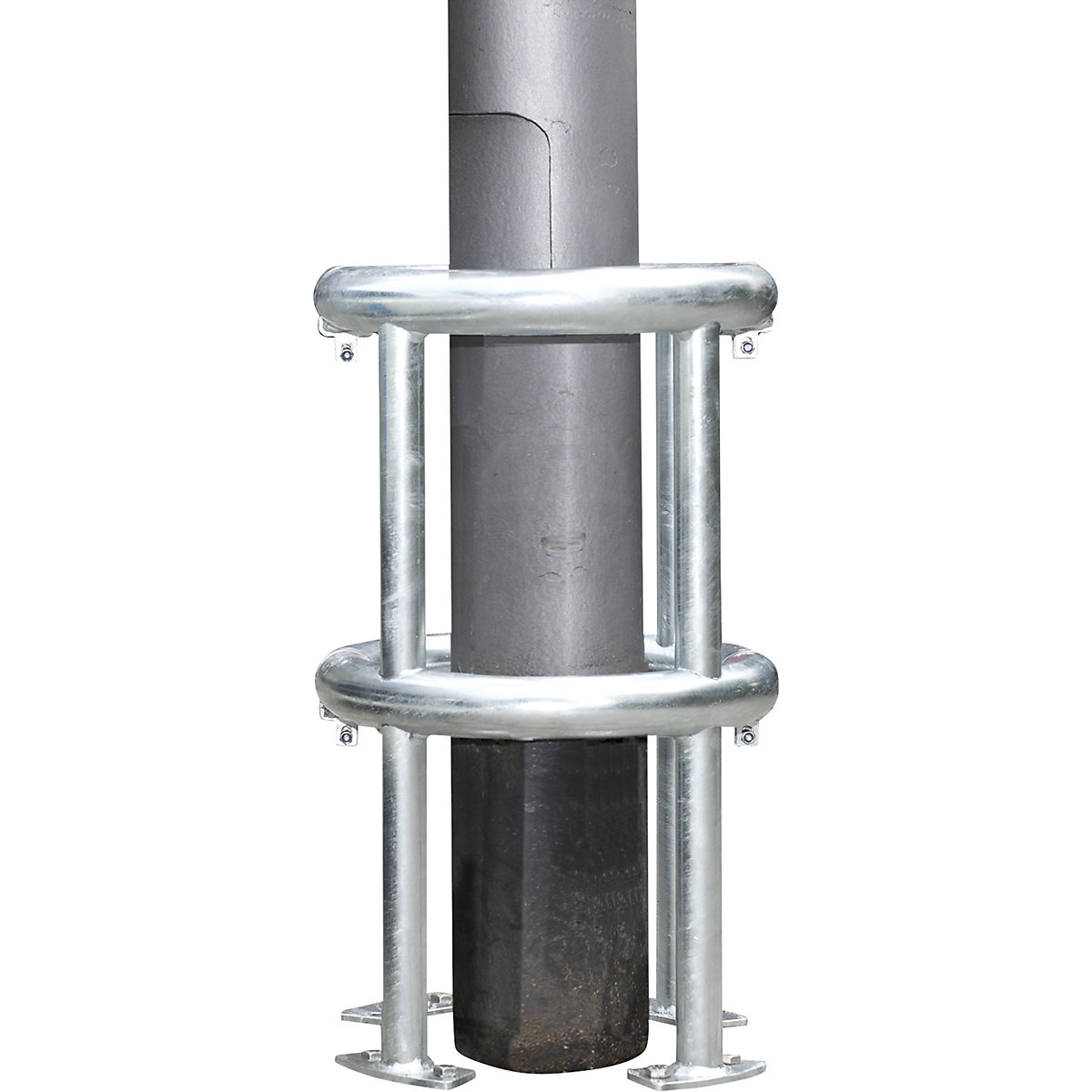

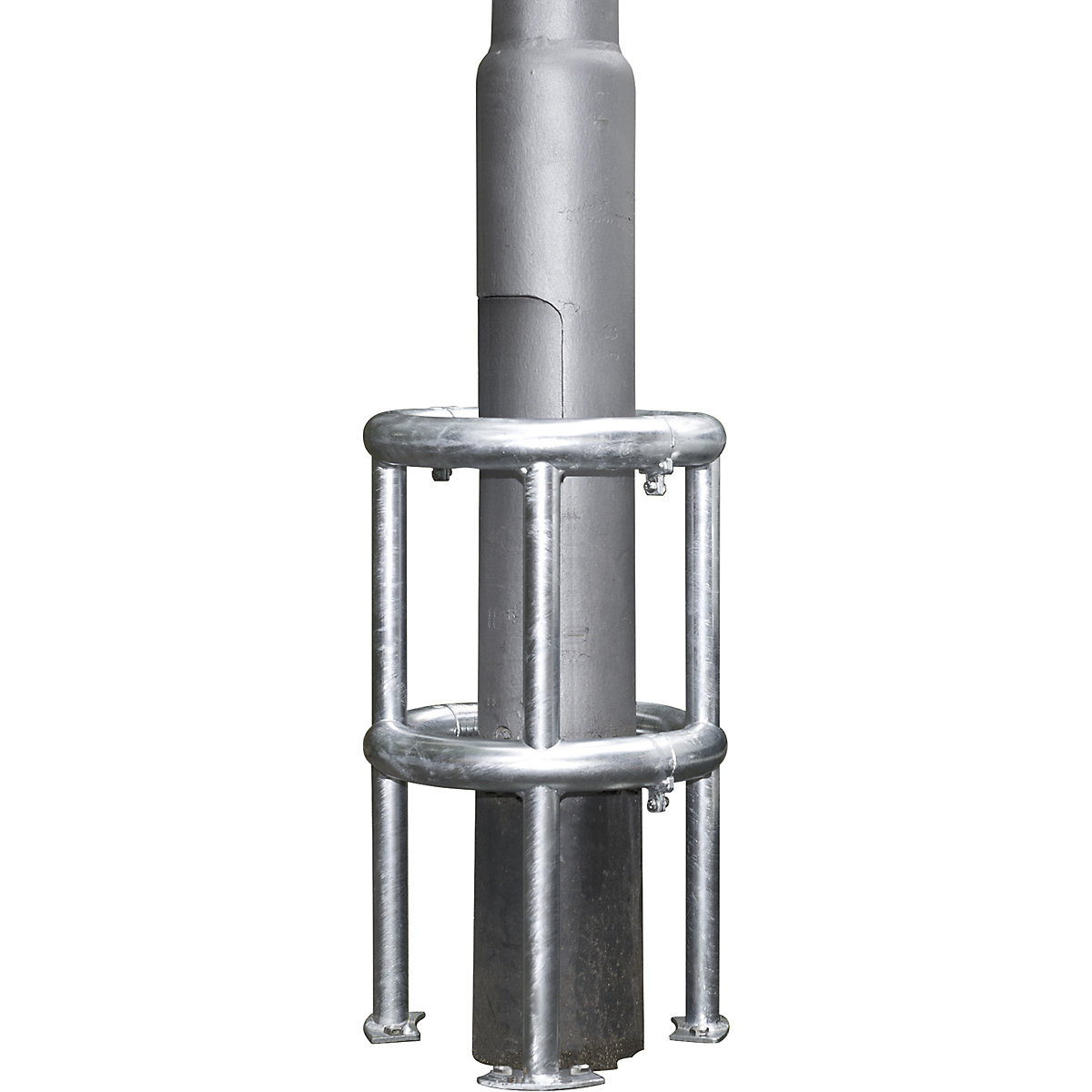

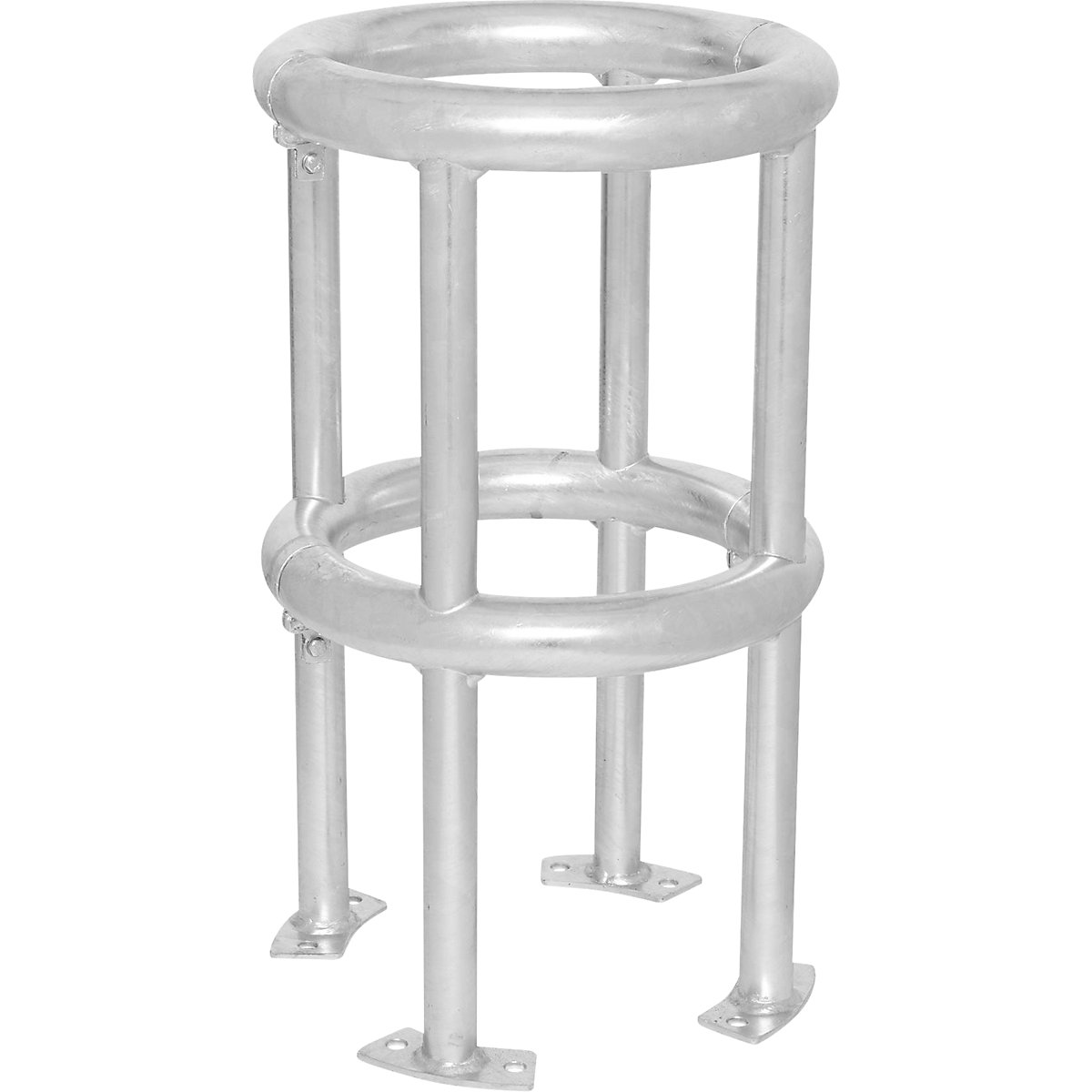

The 360° pipe guard offers reliable all-round protection and was specially developed to effectively protect free-standing pipes, conduits, and posts from impact damage. Thanks to its stable, two-part steel pipe construction made from high-quality 48 mm pipe bends, it guarantees high resistance even under heavy use in industrial and commercial environments.

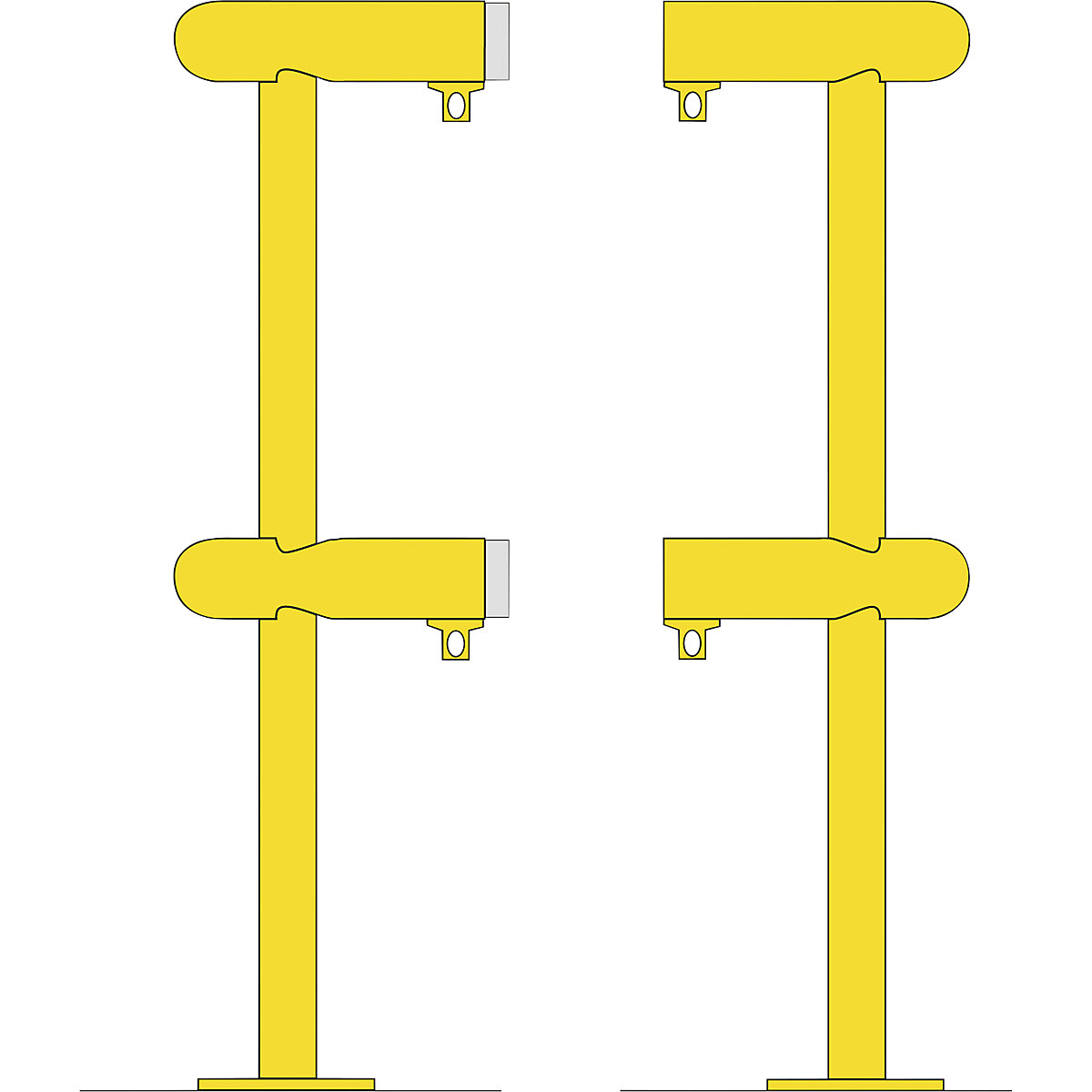

Assembly is simple and time-saving, as the pipe bends are slid into one another for a perfect fit and then screwed together. The resulting solid unit is securely doweled into the ground via four solid base plates, ensuring a stable and permanent stand. The well-designed push-fit system allows for quick installation without complex additional work.

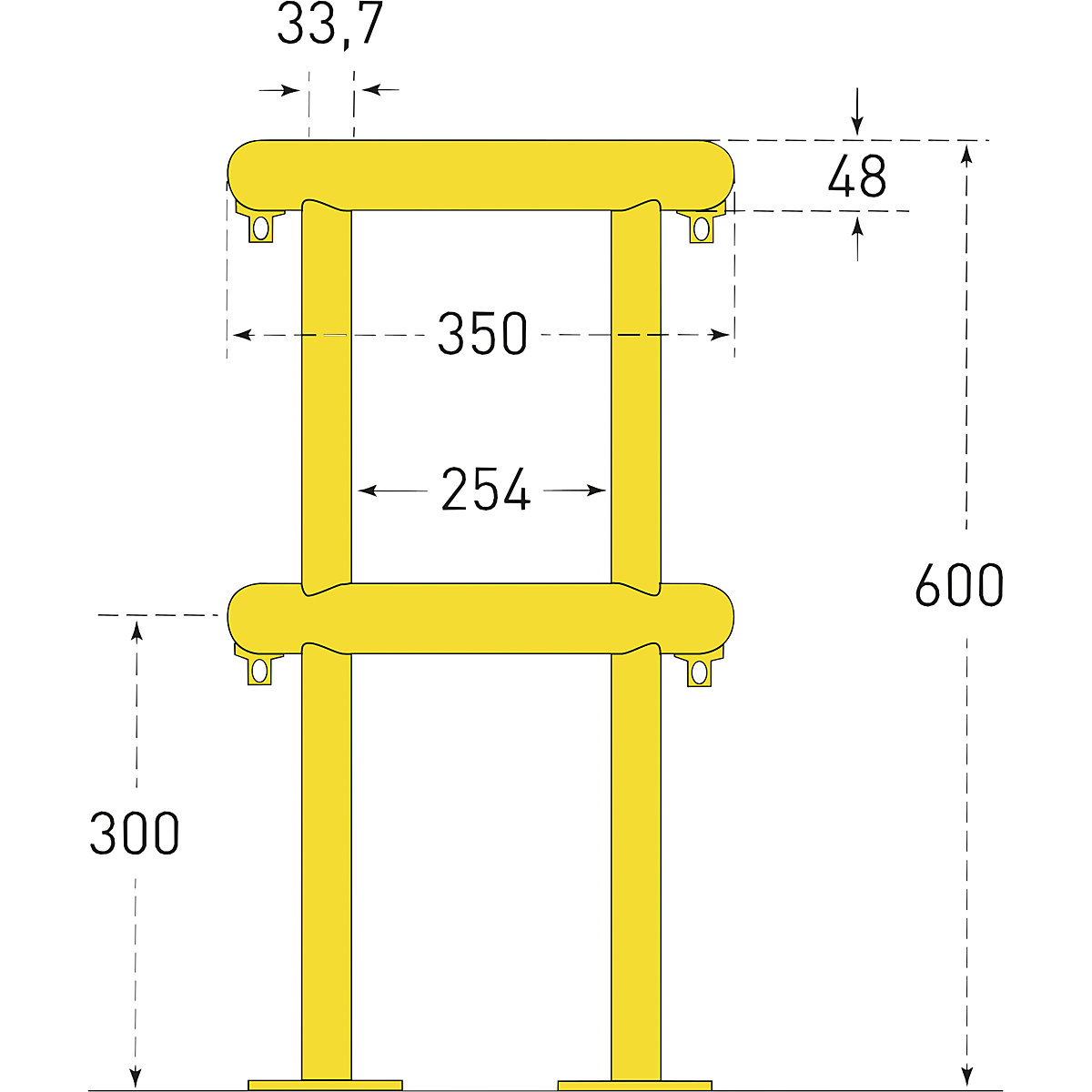

With a height of 600 mm, an outer diameter of 350 mm, and an inner diameter of 254 mm, the pipe guard offers comprehensive protection while maintaining a compact design. The pipe bends have a diameter of 48 mm with a wall thickness of 2 mm, while the support legs, with a diameter of 33.7 mm and also a 2 mm wall thickness, provide additional stability. The base plates with the dimensions 115 x 32 x 5 mm ensure secure anchoring on a wide variety of surfaces.

Made from high-quality grade steel and completely Made in Germany, the 360° pipe guard impresses with its durable, robust model and its suitability for permanent use in demanding operational areas. It offers professional users a reliable solution for increasing operational safety and protecting sensitive infrastructure.
