Ref.: 762288 49

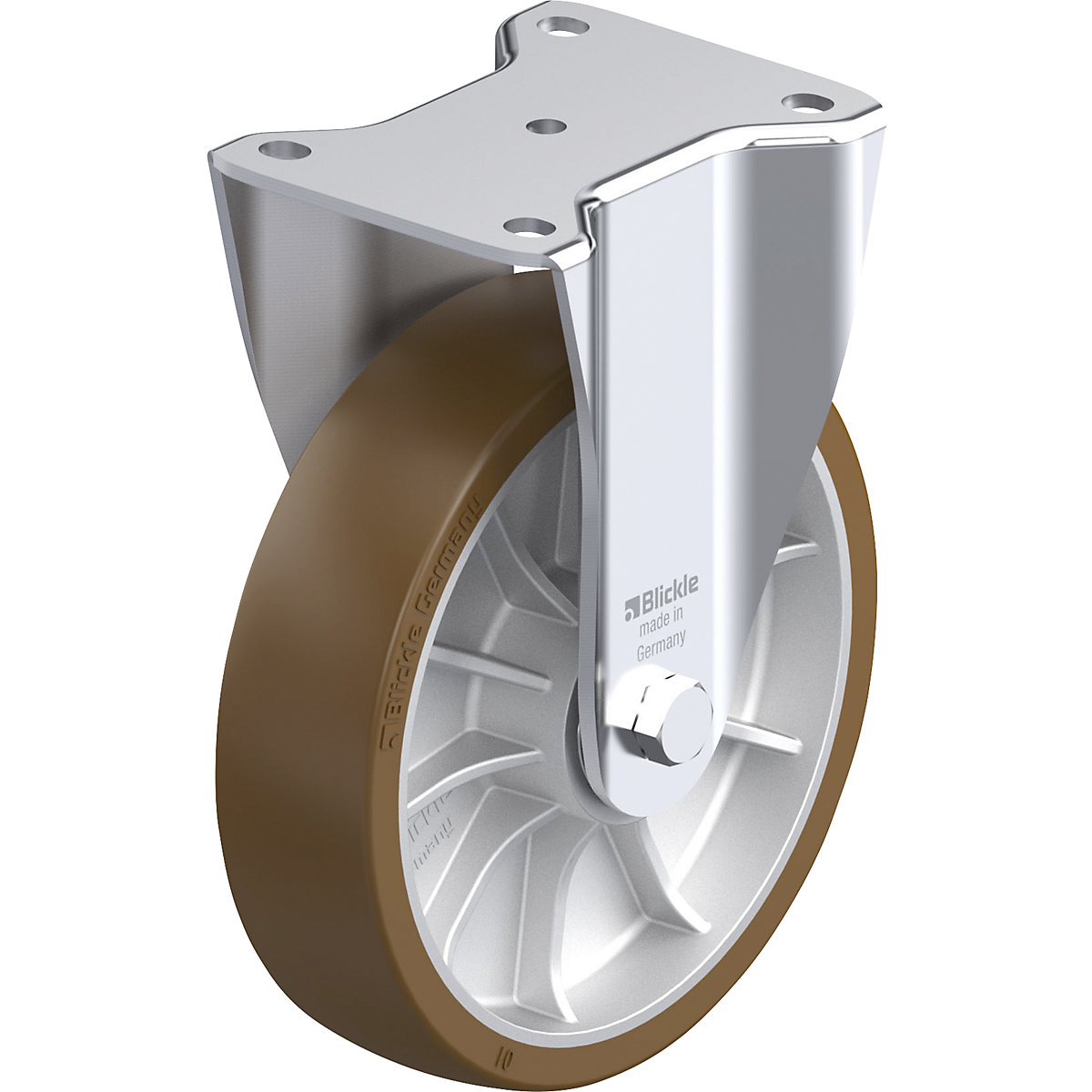

BH-ALB fixed sheet steel castor – Blickle wheel Ø x width 200 x 50 mm
max. load 900 kg
Wheel diameter [mm]
Max. load at 4 km/h [kg]
Ref.: 762288 49
BH-ALB fixed sheet steel castor – Blickle wheel Ø x width 200 x 50 mm
max. load 900 kg
max. load 900 kg
Sustainability score:Wheel diameter [mm]
Max. load at 4 km/h [kg]
£219.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£219.00
Price / item (Excl. VAT)
£219.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Heavy fork and base plate
- Tread: high quality Blickle Besthane® polyurethane elastomer, non-marking
- Wheel body: die cast aluminium, silver grey
- High chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Technical data
| Structure | fixed castor |
|---|---|
| Model | heavy duty castors |
| Wheel material | polyurethane |
| Material of rim | cast aluminium |
| Type of mounting | with top plate |
| Housing material | steel |
| Wheel bearing | ball bearing |
| Shore hardness | 92 Shore A |
| Running surface colour | brown |
| Fixed castor plate dimensions | 140 x 110 mm |
| Product type | fixed castors |
| Supplied | assembled |
| Wheel diameter | 200 mm |
| Max. load at 4 km/h | 900 kg |
| Overall height | 245 mm |
| Wheel width | 50 mm |
| Weight | 2.9 kg |
