Ref.: 610998 49
X-GUARD CLASSIC machine protective fencing, wall section – Axelent height 1900 mm
(1)
width 250 mm
Width [mm]
Ref.: 610998 49
X-GUARD CLASSIC machine protective fencing, wall section – Axelent height 1900 mm
(1)
width 250 mm
width 250 mm
5 year guarantee
Sustainability score:Width [mm]
£209.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£209.00
Price / item (Excl. VAT)
£209.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- Complies with the Machinery Directive 2006/42/EC
- Protective fencing system for machines, systems and robots
- Safety distance of 200 mm from the hazard zone
- Mesh size 30 x 50 mm to prevent reaching through
- Quick assembly thanks to a practical click-in function
- Flexible extension with different widths and door solutions
- Robust, powder coated steel design
Machine protective fencing X-GUARD CLASSIC – reliable demarcation for machines and robots
The machine protective fencing X-GUARD CLASSIC offers a sturdy and flexible solution for safeguarding machines, systems and robots. With a height of 1900 mm and a designated safety distance of 200 mm from the hazard zone, the wall element provides a clear separation between the working area and technical equipment. The design complies with the requirements of the Machinery Directive 2006/42/EC.
The welded wire mesh is mounted on a solid rectangular tube frame. The mesh size of 30 x 50 mm makes reaching through into the protected area difficult. Vertical tubes measuring 20 x 30 mm, horizontal tubes measuring 25 x 15 mm as well as a wire thickness of 3.0 and 2.5 mm respectively ensure a solid and durable model. The surface is high-quality powder coated in graphite black RAL 9011.

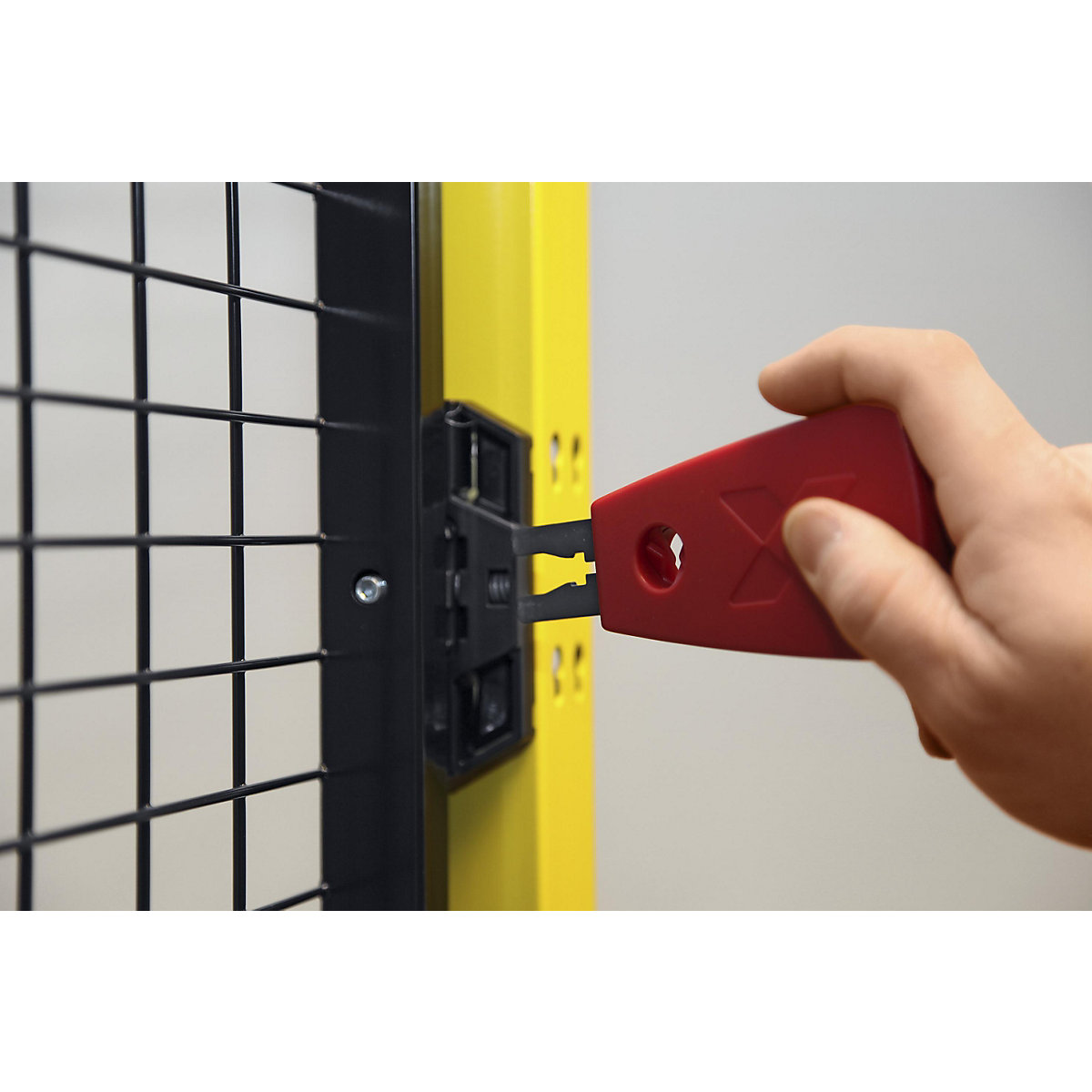

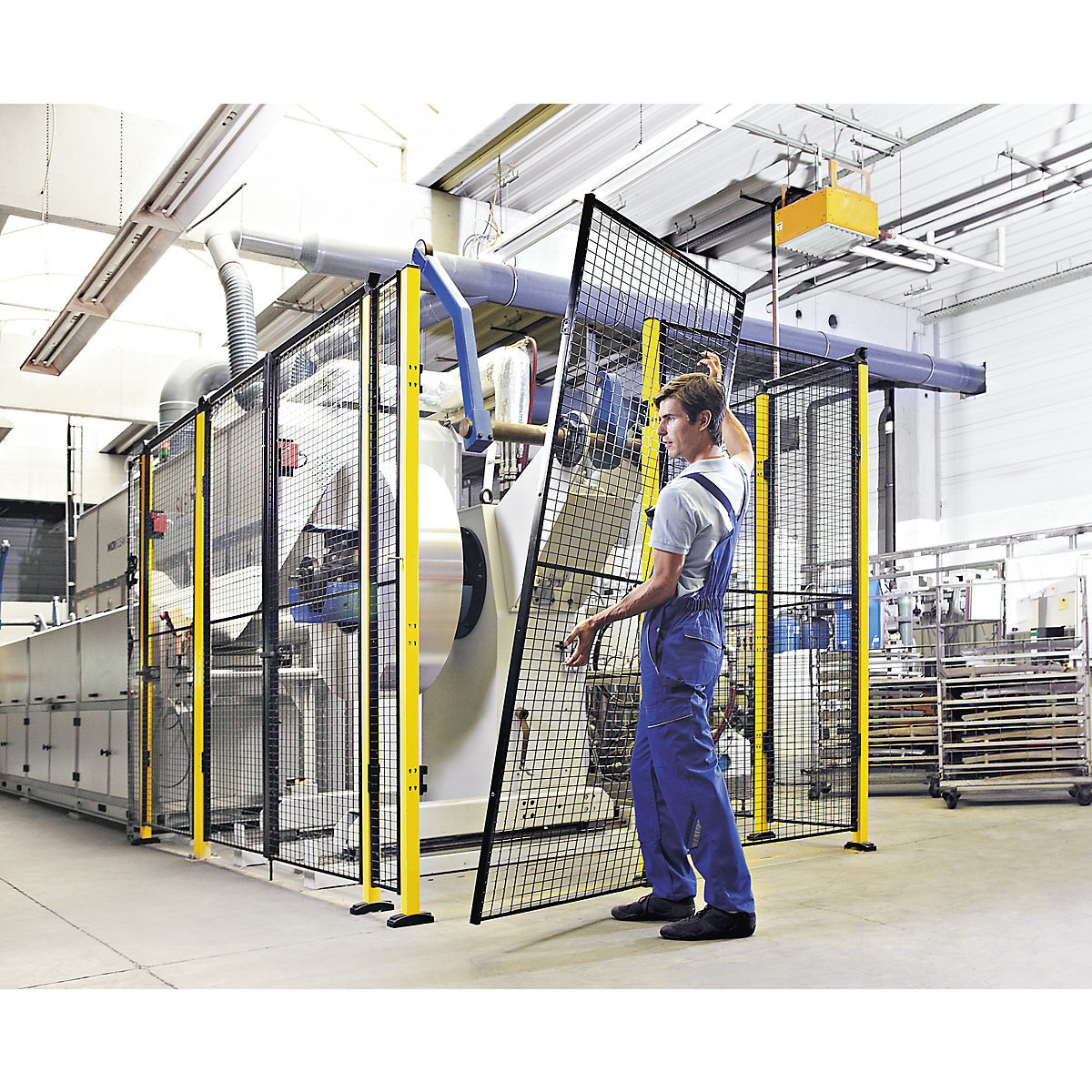

Assembly is carried out via a practical click-in function on the matching floor posts. This allows the wall element to be installed quickly and flexibly expanded if required. Depending on the system concept, there is a selection of widths from 250 to 1500 mm. Using suitable door extension kits, the wall elements can be complemented to create single-leaf, double-leaf or sliding doors. This allows the protective fence system to be adapted to different access and maintenance requirements.

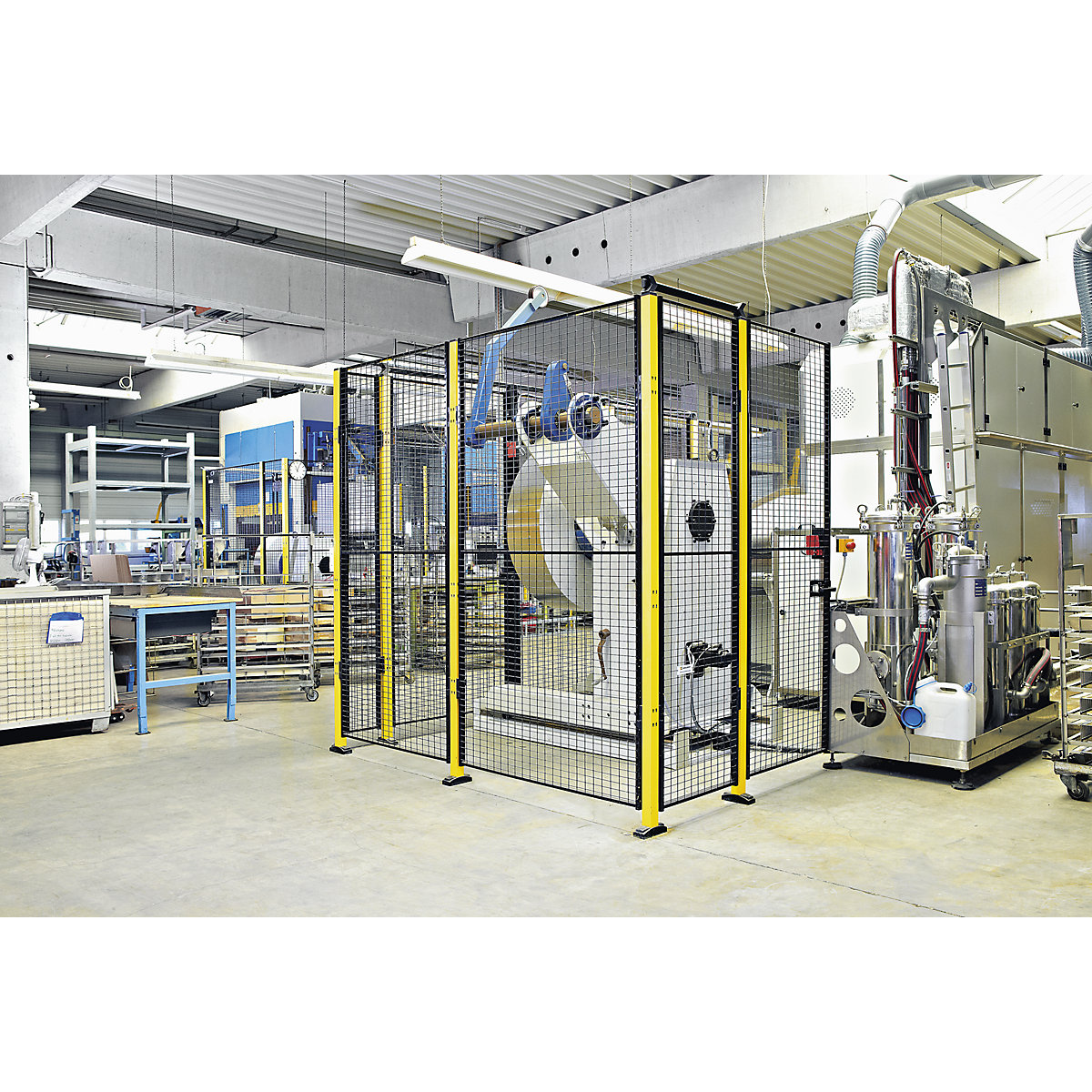

The machine protective fencing is ideal for production lines, assembly areas, automated systems, robot cells and industrial workstations. Special dimensions are available on request. Delivery is assembled.
Vertical tube 20 x 30 mm
Horizontal tube 25 x 15 mm
Mesh size 30 x 50 mm
Wire thickness 3.0 / 2.5 mm
The machine protective fencing X-GUARD CLASSIC offers a sturdy and flexible solution for safeguarding machines, systems and robots. With a height of 1900 mm and a designated safety distance of 200 mm from the hazard zone, the wall element provides a clear separation between the working area and technical equipment. The design complies with the requirements of the Machinery Directive 2006/42/EC.
The welded wire mesh is mounted on a solid rectangular tube frame. The mesh size of 30 x 50 mm makes reaching through into the protected area difficult. Vertical tubes measuring 20 x 30 mm, horizontal tubes measuring 25 x 15 mm as well as a wire thickness of 3.0 and 2.5 mm respectively ensure a solid and durable model. The surface is high-quality powder coated in graphite black RAL 9011.
Assembly is carried out via a practical click-in function on the matching floor posts. This allows the wall element to be installed quickly and flexibly expanded if required. Depending on the system concept, there is a selection of widths from 250 to 1500 mm. Using suitable door extension kits, the wall elements can be complemented to create single-leaf, double-leaf or sliding doors. This allows the protective fence system to be adapted to different access and maintenance requirements.
The machine protective fencing is ideal for production lines, assembly areas, automated systems, robot cells and industrial workstations. Special dimensions are available on request. Delivery is assembled.
Vertical tube 20 x 30 mm
Horizontal tube 25 x 15 mm
Mesh size 30 x 50 mm
Wire thickness 3.0 / 2.5 mm
Custom dimensions available on request.
Technical data
| Height | 1900 mm |
|---|---|
| Colour | graphite black RAL 9011 |
| Mesh size | 30 x 50 mm |
| Finish | powder coated |
| Frame profile | 20 x 30 mm |
| Material | steel wire mesh |
| Stiffening profile | 25 x 15 mm |
| Thickness of wire | 3.0 / 2.5 mm |
| Product type | machine protective fencing made of steel |
| Supplied | assembled |
| Width | 250 mm |
| Weight | 4.59 kg |
| Pictorial instructions | |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- LCA functional unit
- 1
- Recycled content in %?
- 0
- CO2 footprint year of calculation
- 2026
- LCA validity (in years)
- 1
- CO2 footprint calculation method product
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
- CO2 footprint system boundaries
- Cradle-to-gate
PCF Lifecycle Breakdown
PCF Lifecycle Breakdown25.40kg CO₂e
| LCA Raw Material Extraction & Processing | 53.9% |
| LCA packaging production | 1.4% |
| LCA Product Manufacturing | 37.7% |
| LCA Inbound and Outbound Transportation | 7% |
Scoring System
More about our sustainability approach.
3.1/5.9Overall score
| Criteria | Weighting | Score |
|---|---|---|
 Climate protection | 30% | 2.2 |
 Circulatory economy | 30% | 2.8 |
 Biodiversity | 25% | 3.0 |
 Economic efficiency | 10% | 2.9 |
 Innovation | 5% | 3.9 |
