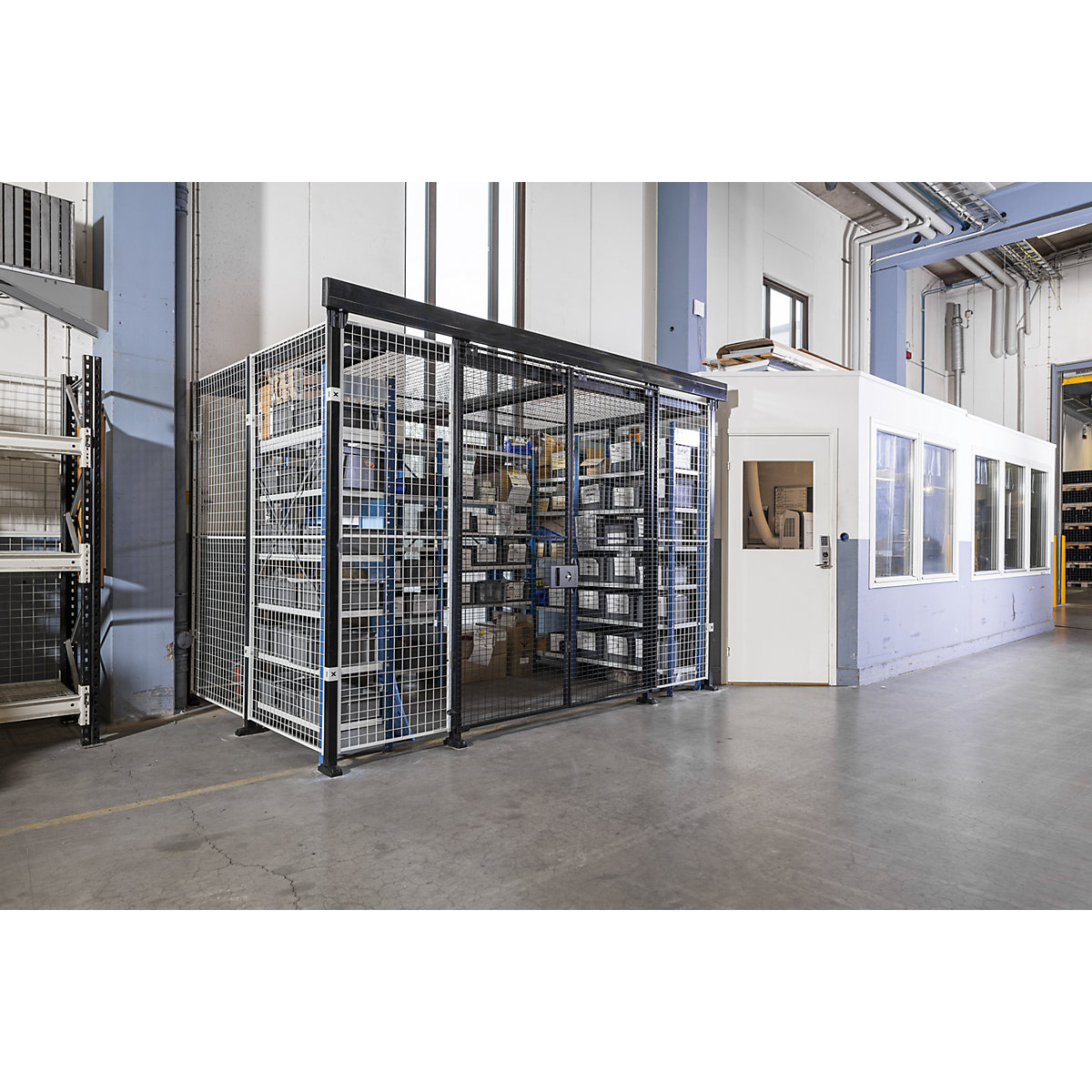

Axelent – X-STORE 2.0 partition system, wall section height 1100 mm

  • Modular concept – height and width can be adapted
  • Safety fence can be structured to reach the ceiling
  • Disassembly of one wall section without affecting other sections

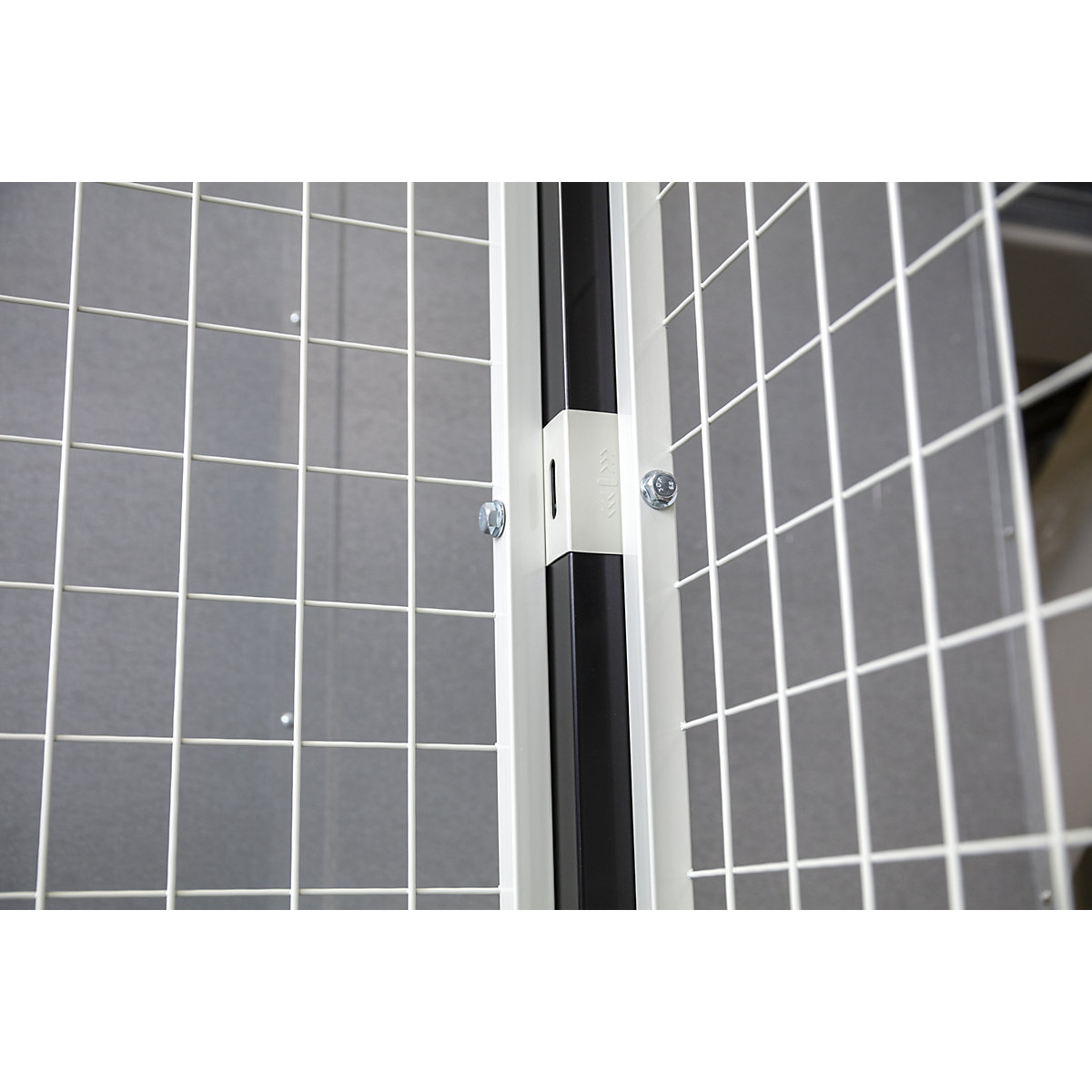

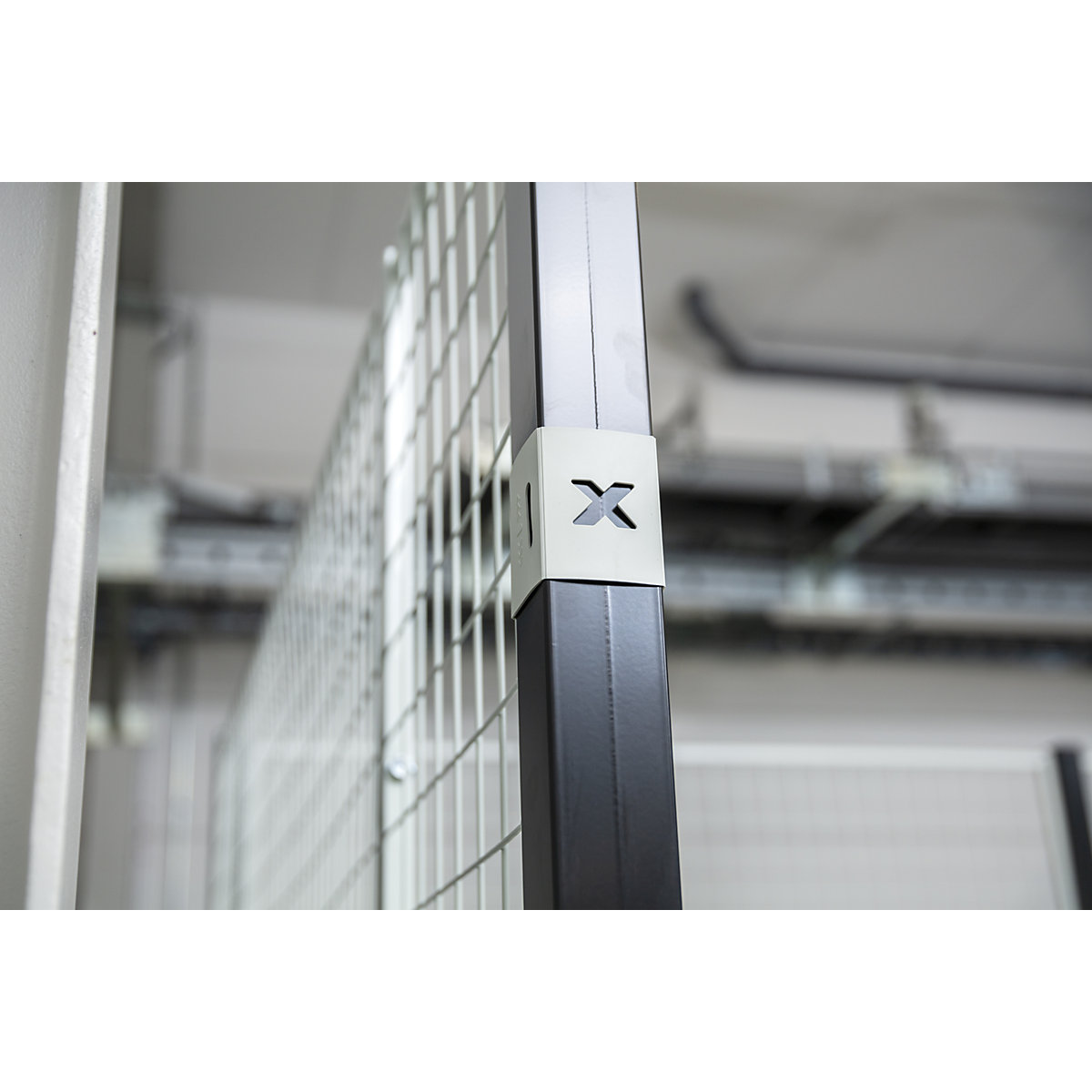

  • Quick and easy fastening of the wall sections
Axelent
Axelent – X-STORE 2.0 partition system, wall section, height 1100 mm, width 400 mm
Price / items (Excl. VAT)
from
£46.50

Product description

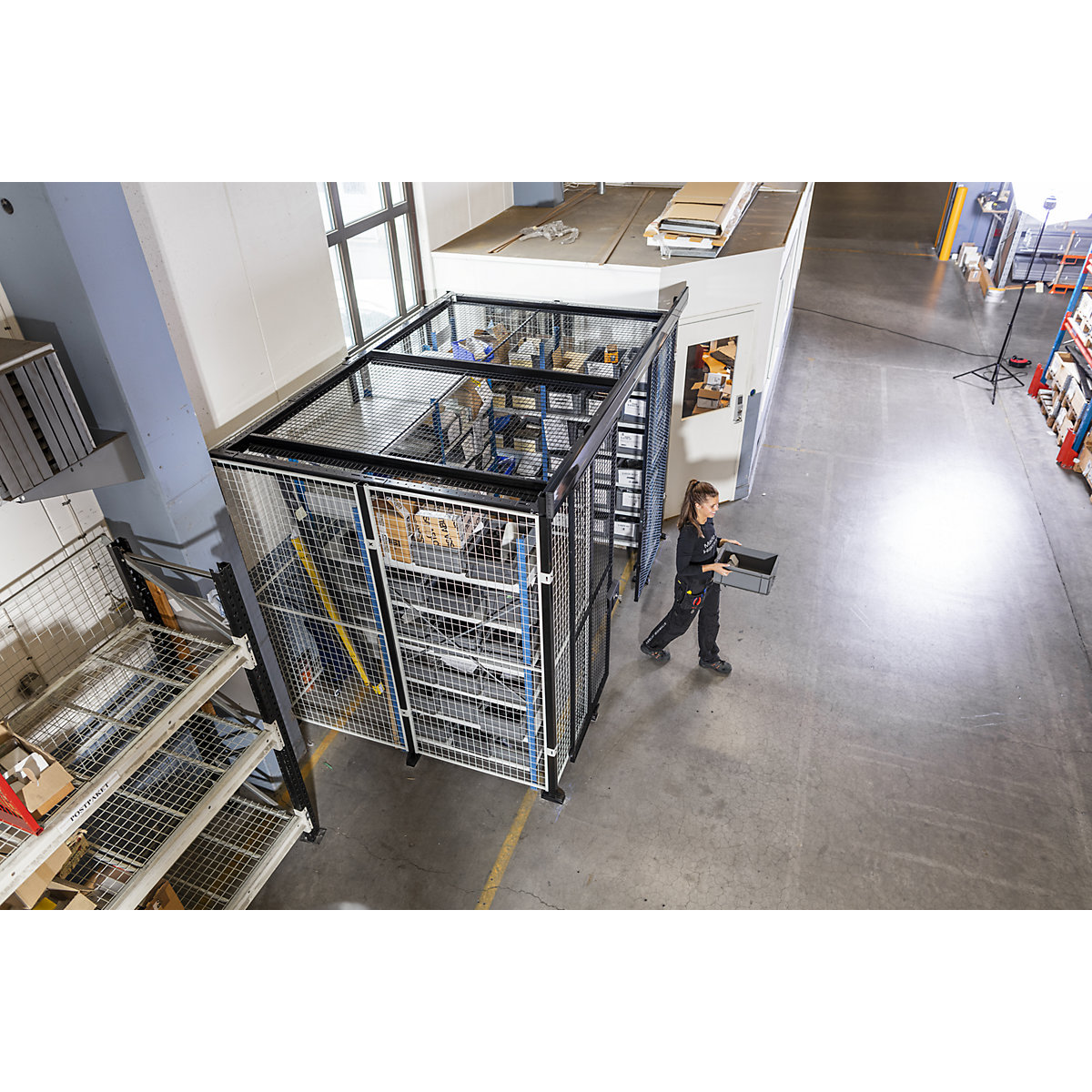

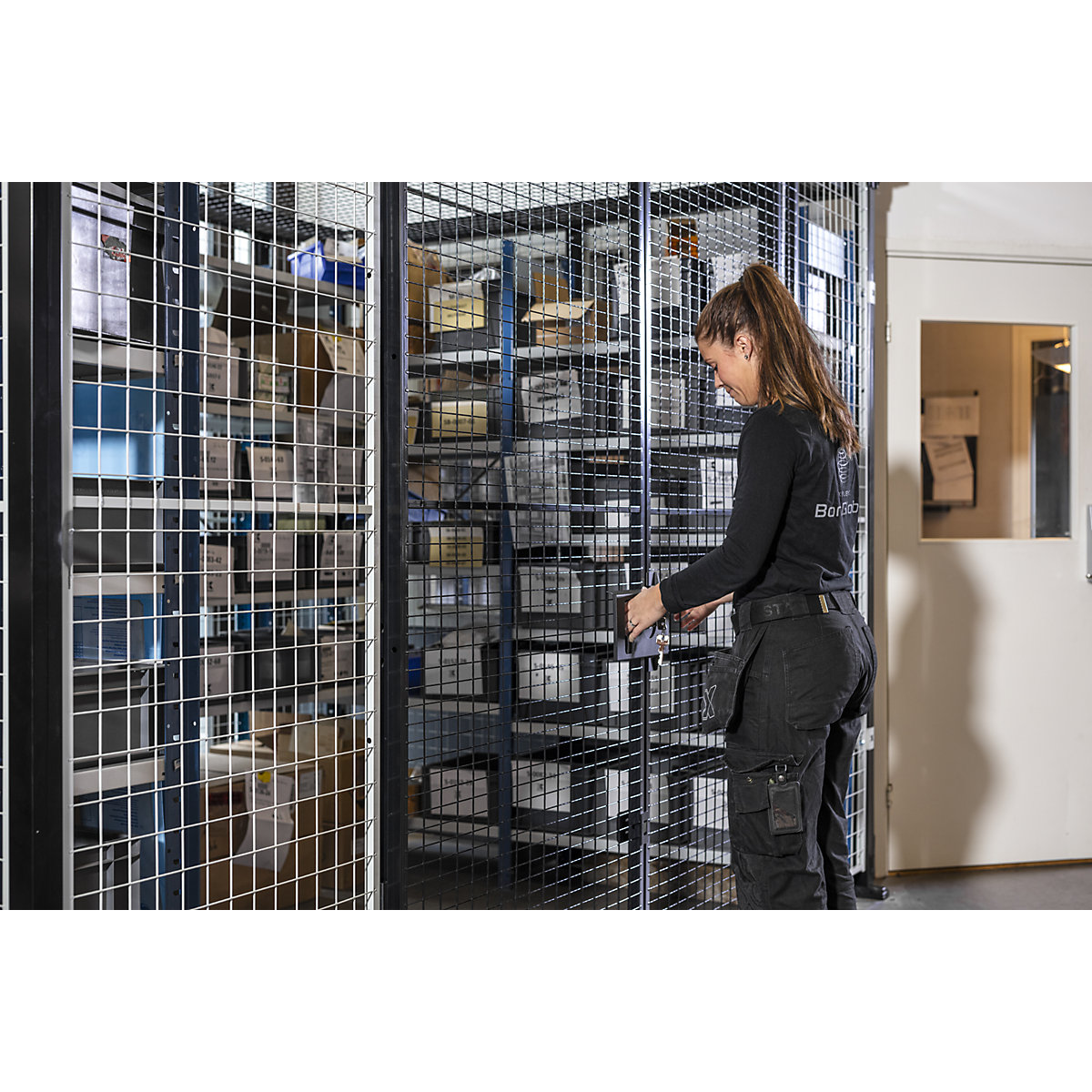

The X-STORE 2.0 partition system was developed to ensure easy and safe access to storage areas. The option of fastening wall sections and uprights separately are one of the advantages.
Only one type of upright, also for assembly in corner areas, is needed to realise a safety fence project.

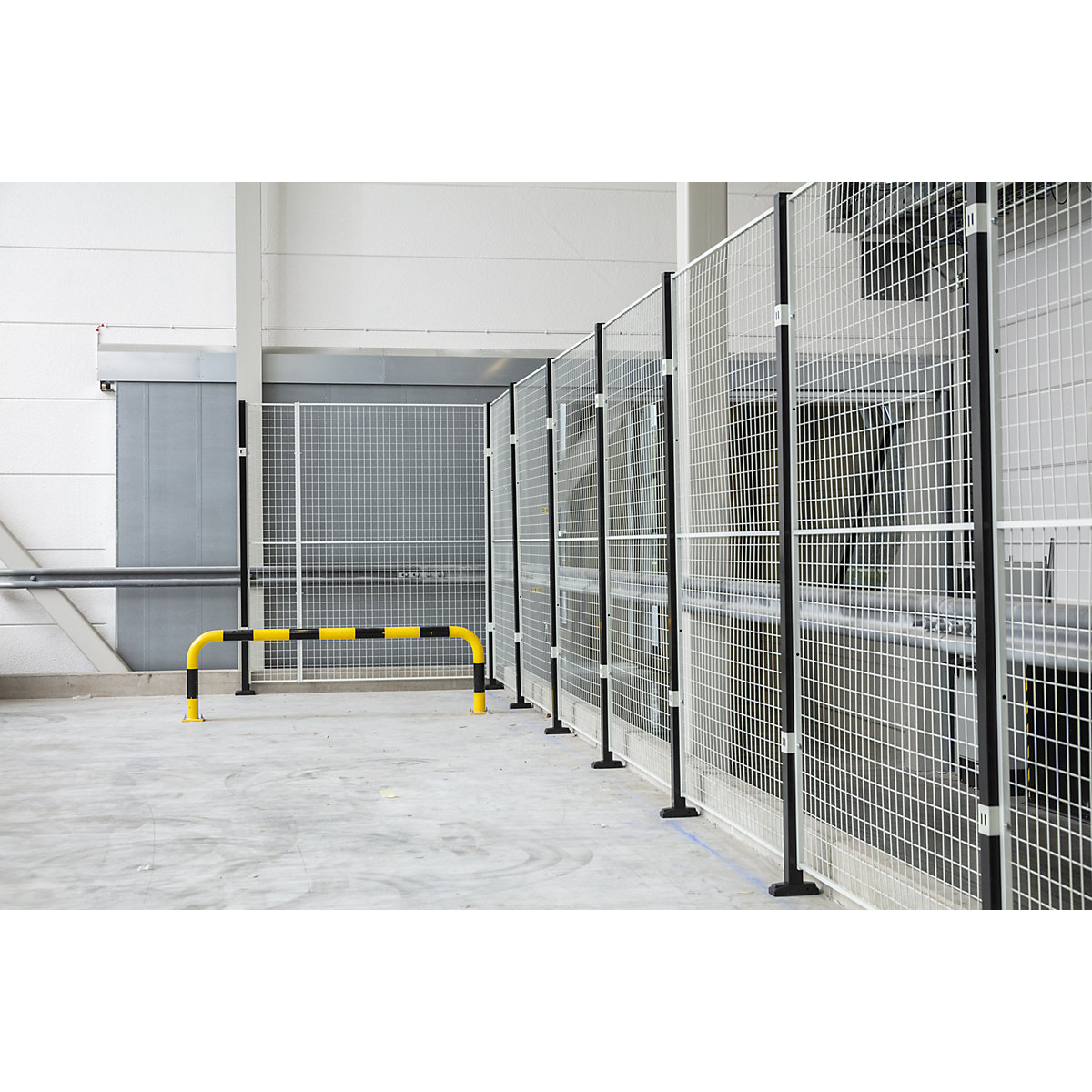

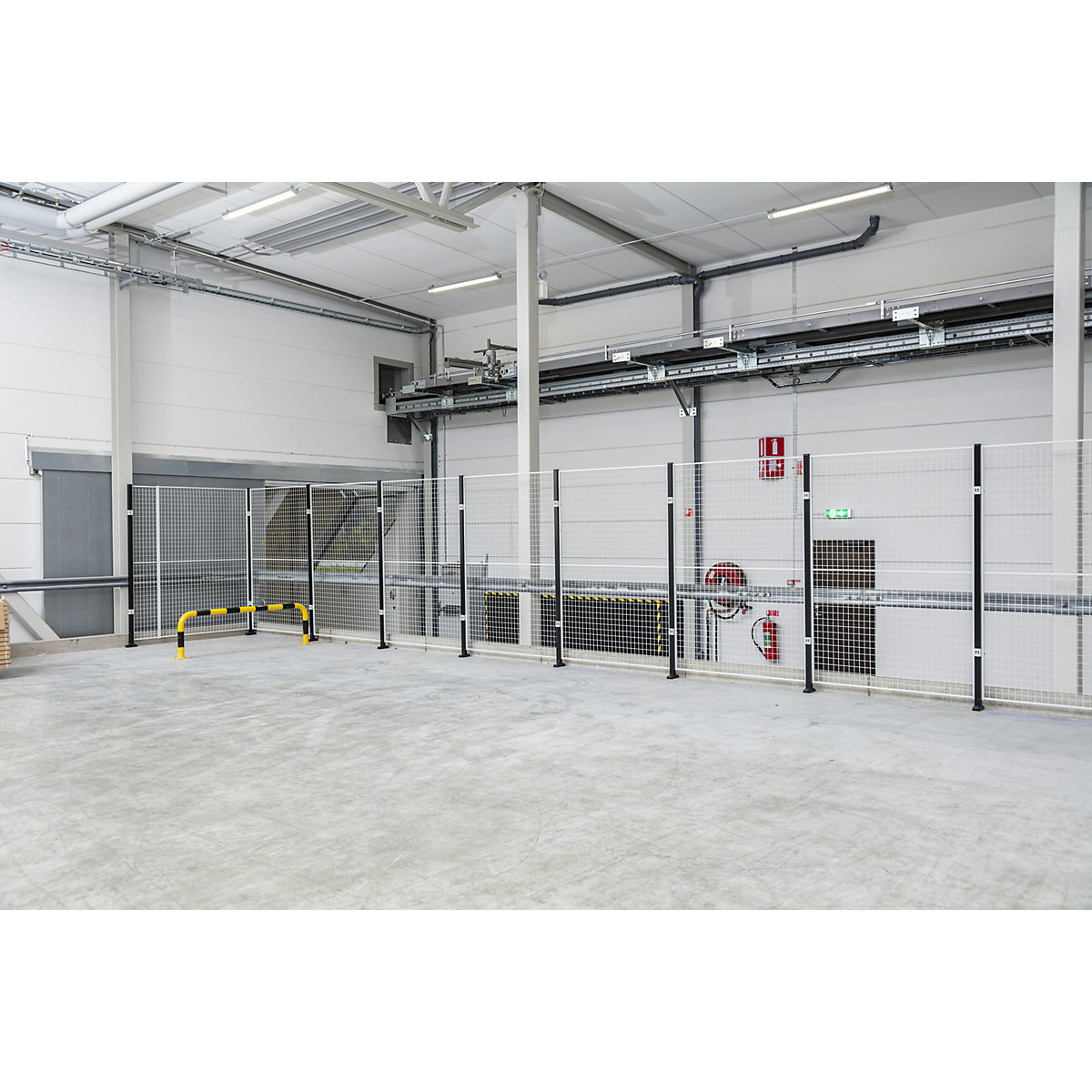

Easy to adapt: the wall elements of the X-Store 2.0 system are available in two heights and various widths. Uprights and extension elements allow your industrial and warehouse partitions to be adapted exactly to your requirements. An adjustable balancing sheet rounds off the system.

Frame and mesh
Phosphate coated / powder coated in papyrus white RAL 9018. Powder coated uprights (for indoor use).
Combination with a door package

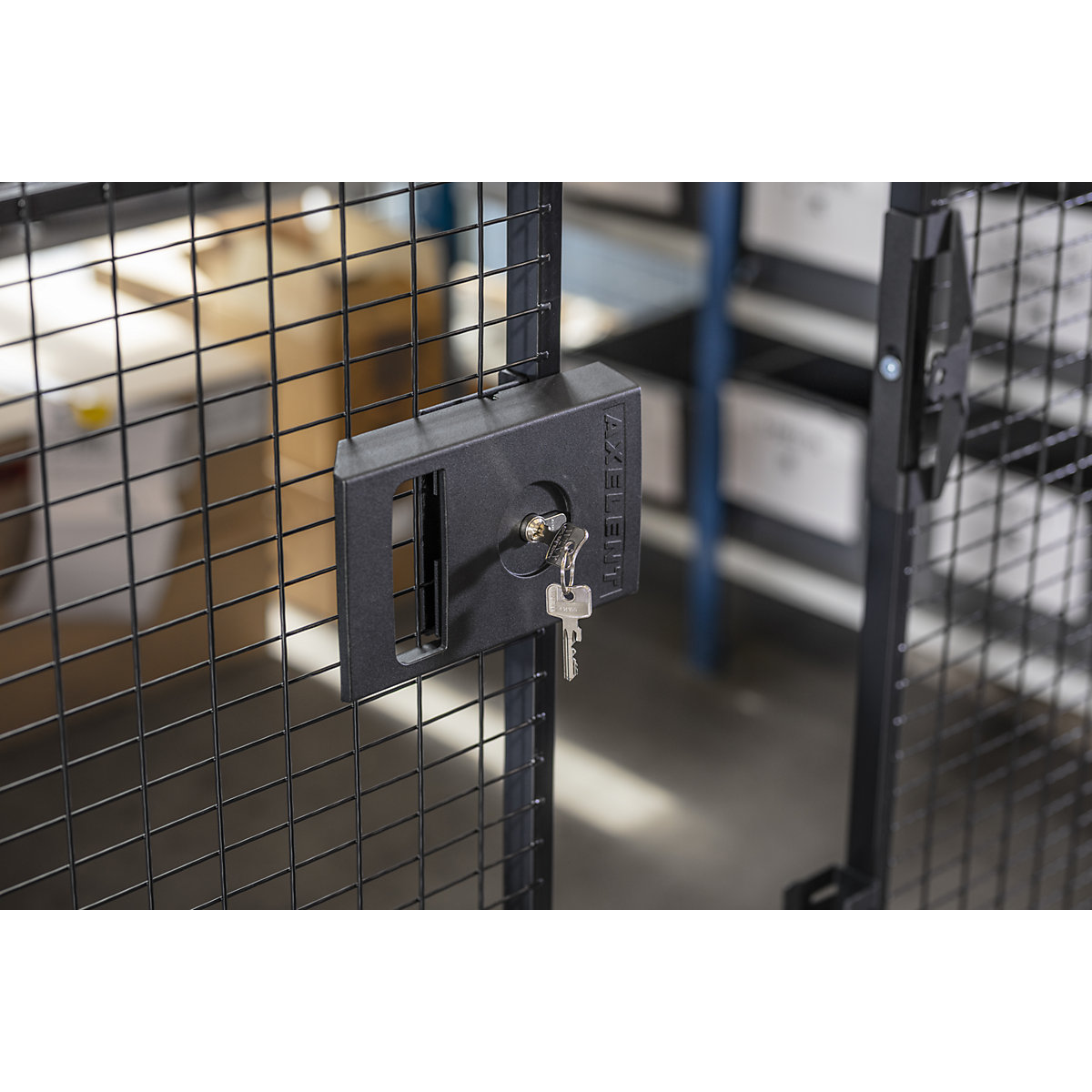

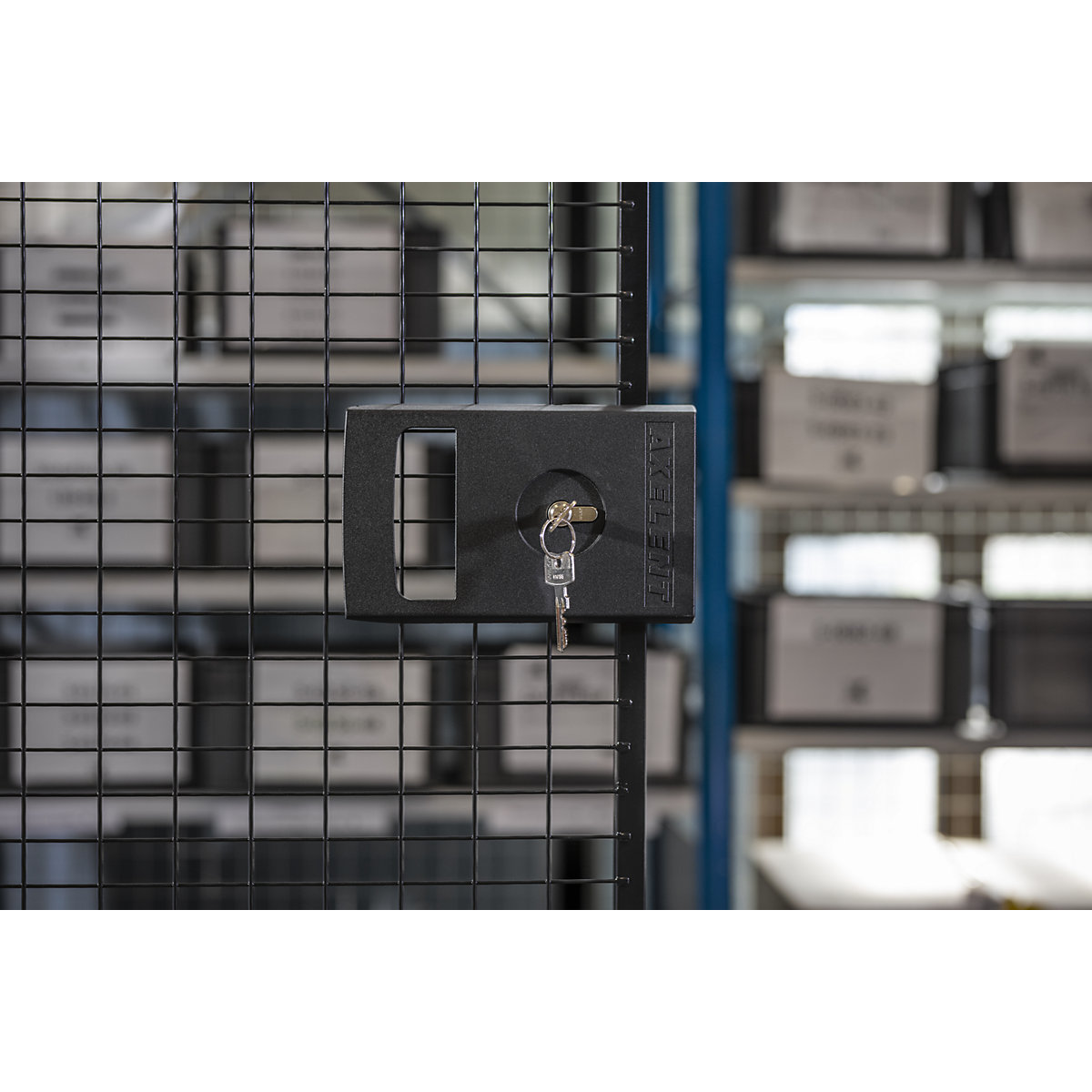

The wide range of locking mechanisms, locks and doors of the market-tested Axelent X-GUARD CLASSIC safety fence series provide ideal door solutions. When ordering doors kits, the required X-Guard Classic door panel elements and the corresponding locking mechanisms must be included in your order.

For the correct installation of an add-on door kit, the door upright KK no. 650208 and the bracket KK no. 650210 for connecting an X-Store 2.0 element to the door support are required.
  • Modular concept – height and width can be adapted
  • Safety fence can be structured to reach the ceiling
  • Disassembly of one wall section without affecting other sections
  • Quick and easy fastening of the wall sections
Technical data
Section height1100 mm
Colourpapyrus white RAL 9018
Mesh size60 x 50 mm
Finishpowder coated
Frame profile19 x 19 mm
Frame materialrectangular steel pipe
Stiffening profile15 x 15 mm
Material of meshsteel
Thickness of wirehorizontal 2.5 mm, vertical 3.0 mm

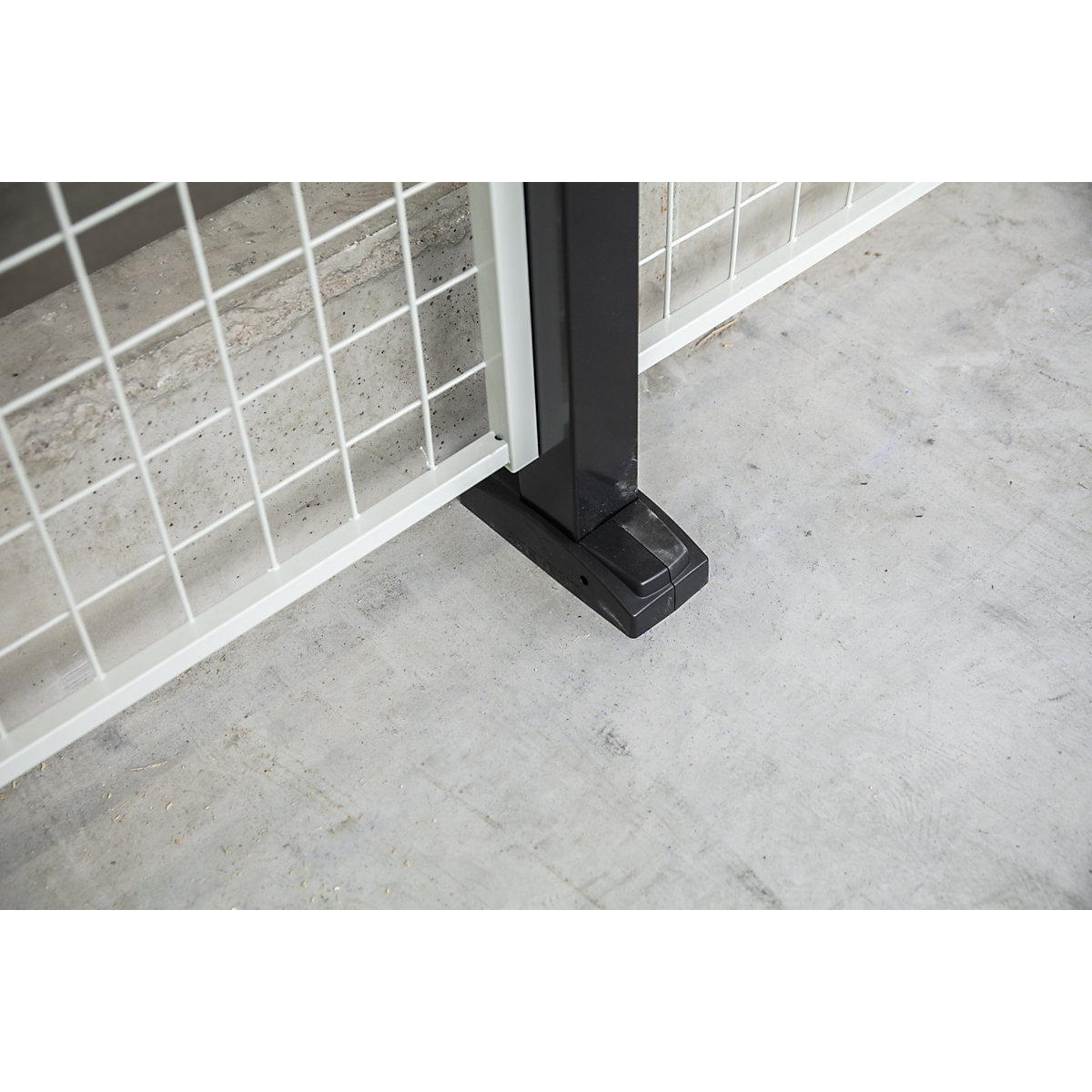

Floor clearance100 mm
Suppliedpre-assembled, final assembly by customer
