Ref.: 686428 49
RS TOWER 34 folding tower – Altrex module 3
working height 2.70 m
Ref.: 686428 49
RS TOWER 34 folding tower – Altrex module 3
working height 2.70 m
working height 2.70 m
5 year guarantee
Score: 2.8/5.9£709.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£709.00
Price / item (Excl. VAT)
£709.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- Narrow frame – fits through standard door frames
- Modular, can be extended
- Compact and lightweight – folds together into one piece
- Safe and stable – double stop swivel castors
Due to its compact format, the mobile, lightweight RS TOWER 34 scaffold is ideal for indoor use, but also for outdoor use.

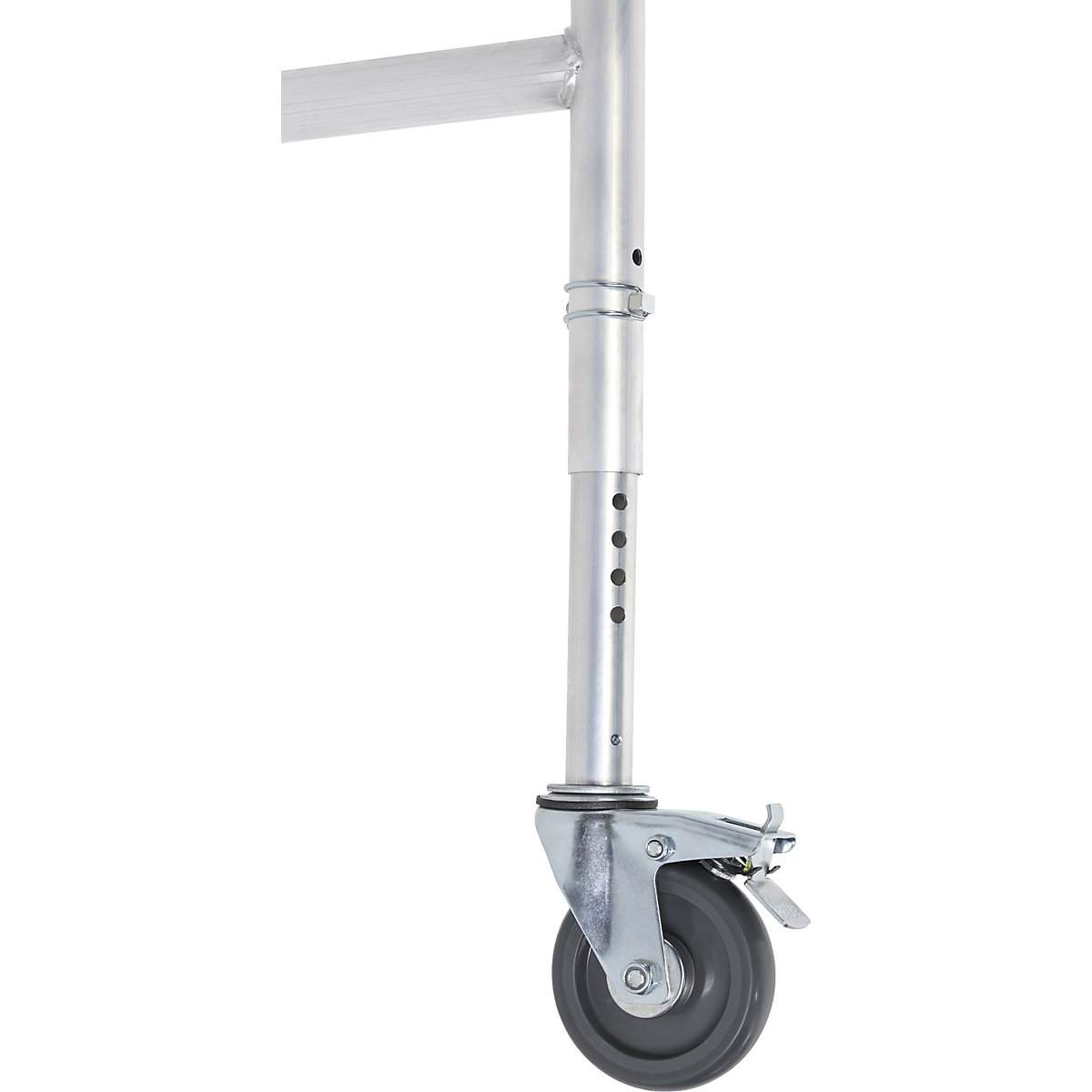

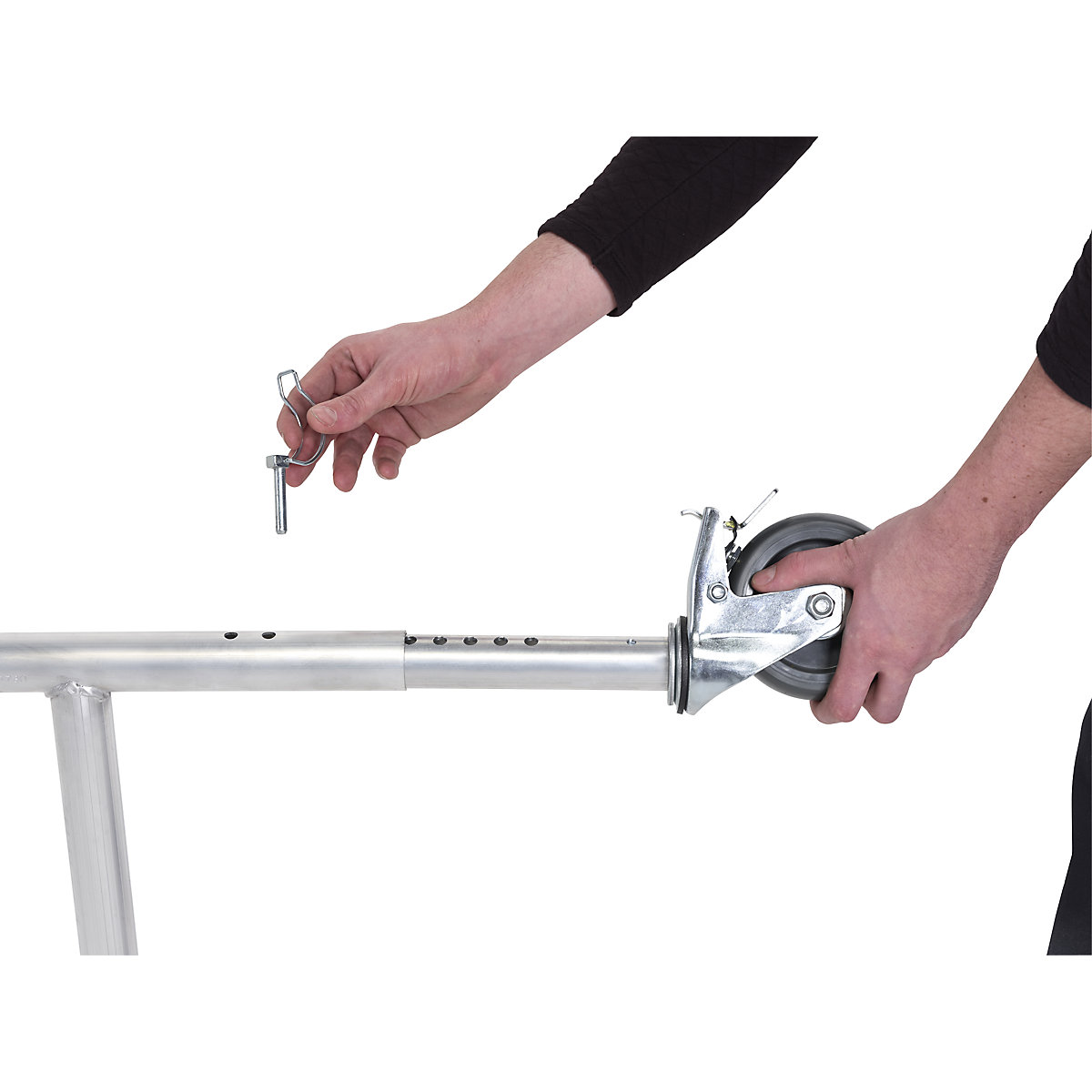

The permissible maximum load is 150 kg. The mobile access tower therefore complies with load class 2 according to standard EN 1004 as well as the side protection according to EN 1004-2 and is also particularly suitable for use by professional tradespeople. The castor wheels (Ø 125 mm) are adjustable and have a double stop – for a secure and stable stand.

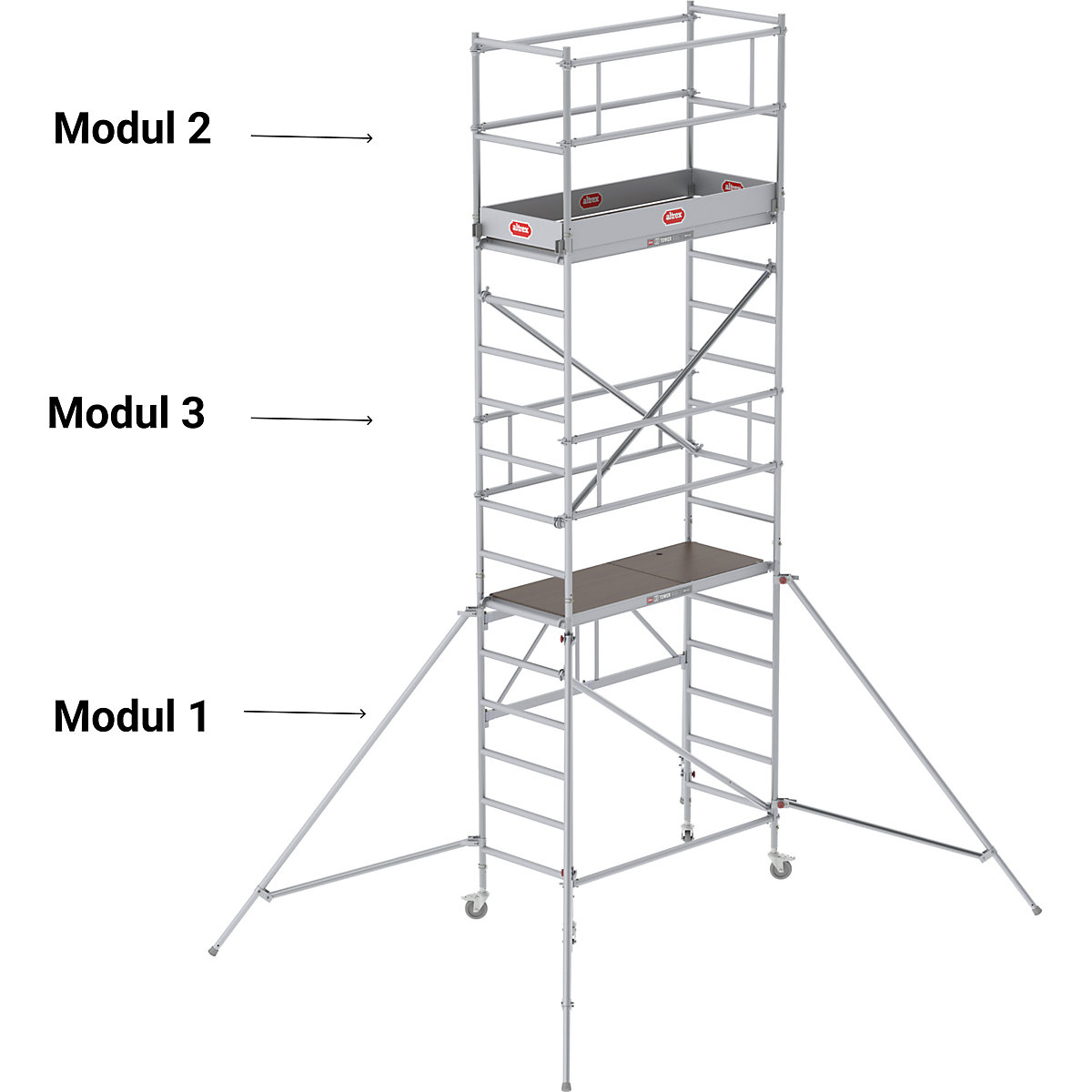

The system is modular.
Module 1 (max. working height 2.70 m) can be used individually.
For modules 2 and 3, module 1 is required for further assembly.
The combination of modules 1 + 2 allows for a max. total working height of 3.80 m.
The combination of modules 1 + 2 + 3 allows for a max. total working height of 5.80 m.
KK Art. 686426:
Module 1 includes: 1 6-rung folding section, 1 platform with hatch, 1 horizontal brace,
4 triangular stabilisers (Module 1), 4 wheels Ø 125 mm (adjustable)
KK Art. 686427:
Module 2 includes: 4 flanged tubes, 2 guardrail frames, 1 diagonal brace,
2 horizontal braces, 1 double guardrail brace, 1 set of toe boards, 4 triangular stabilisers
KK Art. 686428:
Module 3 includes: 4 flanged tubes, 2 vertical frames, 1 platform with hatch,
2 diagonal braces, 2 double guardrail braces
The permissible maximum load is 150 kg. The mobile access tower therefore complies with load class 2 according to standard EN 1004 as well as the side protection according to EN 1004-2 and is also particularly suitable for use by professional tradespeople. The castor wheels (Ø 125 mm) are adjustable and have a double stop – for a secure and stable stand.
The system is modular.
Module 1 (max. working height 2.70 m) can be used individually.
For modules 2 and 3, module 1 is required for further assembly.
The combination of modules 1 + 2 allows for a max. total working height of 3.80 m.
The combination of modules 1 + 2 + 3 allows for a max. total working height of 5.80 m.
KK Art. 686426:
Module 1 includes: 1 6-rung folding section, 1 platform with hatch, 1 horizontal brace,
4 triangular stabilisers (Module 1), 4 wheels Ø 125 mm (adjustable)
KK Art. 686427:
Module 2 includes: 4 flanged tubes, 2 guardrail frames, 1 diagonal brace,
2 horizontal braces, 1 double guardrail brace, 1 set of toe boards, 4 triangular stabilisers
KK Art. 686428:
Module 3 includes: 4 flanged tubes, 2 vertical frames, 1 platform with hatch,
2 diagonal braces, 2 double guardrail braces
Technical data
| Platform length | 1650 mm |
|---|---|
| Platform width | 750 mm |
| Platform height | 700 mm |
| Working height | 2.7 m |
| Standing height | 700 mm |
| Material | aluminium |
| Weight | 28.3 kg |
| Max. load | 150 - 300 kg |
| Conforms to | EN 1004 class 2 |
| Length | 1.65 m |
| Width | 0.75 m |
| Wheel diameter | 125 mm |
| Tube diameter | 40 mm |
| Product type | rolling scaffolds folding towers |
| Supplied | flat pack |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Product with potential for future improvement
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
Product CO₂ footprint
- LCA functional unit
- 1
- Recycled content in %?
- 0
- CO2 footprint year of calculation
- 2026
- LCA validity (in years)
- 1
- CO2 footprint calculation method product
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
- CO2 footprint system boundaries
- Cradle-to-gate
PCF Lifecycle Breakdown
PCF Lifecycle Breakdown389.80kg CO₂e
| LCA Raw Material Extraction & Processing | 74% |
| LCA packaging production | 0.6% |
| LCA Product Manufacturing | 20.4% |
| LCA Inbound and Outbound Transportation | 5% |
