Ref.: 590729 49
Aluminium ladder bridging overall max. load 200 kg
(1)
3 steps, platform 900 x 530 mm
Platform length [mm]
Clear height [mm]
Ref.: 590729 49
Aluminium ladder bridging overall max. load 200 kg
(1)
3 steps, platform 900 x 530 mm
3 steps, platform 900 x 530 mm
10 year guarantee
Sustainability score:Platform length [mm]
Clear height [mm]
£1,075.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£1,075.00
Price / item (Excl. VAT)
£1,075.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- For convenient crossover from machines and systems
- Safety railing on both sides, 1000 mm high
- Anti-slip platform with a step depth of 150 mm
- Maximum load capacity 200 kg

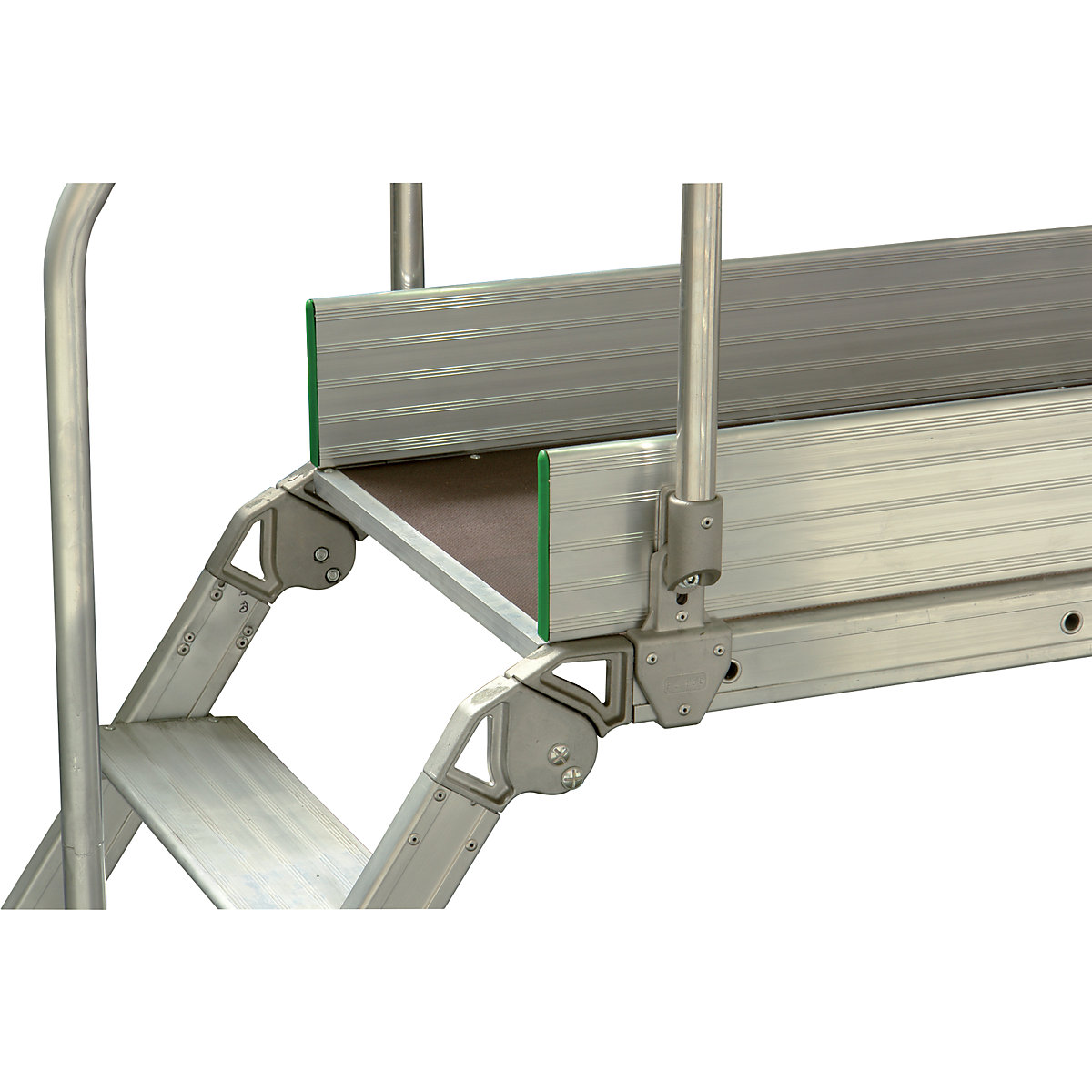

- Collapsible due to cast aluminium joints
- 10-year manufacturer's guarantee
The ladder bridging that can be walked over on both sides with a max. load of 200 kg. The ladder step has a convenient 60° angle of inclination and steps with a generous depth of 150 mm. The anti-slip platform has a 1 m high safety railing on both sides. The crossover bridge can be easily fixed to the floor. The articulated feet feature pre-drilled holes for this purpose. Thanks to the high quality joints made of cast aluminium, the ladder bridging can be folded up, making it compact for transport or storage. 10 year manufacturer's warranty.
Mobile use with the optional wheel set available as an accessory is installed on the ladder.
Mobile use with the optional wheel set available as an accessory is installed on the ladder.
Technical data
| Platform width | 530 mm |
|---|---|
| Material of treads | aluminium |
| Step depth | 150 mm |
| Step width | 530 mm |
| Overall max. load | 200 kg |
| Frame material | aluminium |
| Slope | 60° |
| Product type | crossover platforms |
| Supplied | pre-assembled, final assembly by customer |
| Platform length | 900 mm |
| Clear height | 614 mm |
| Steps incl. platform | 3 pcs. |
| Reach | 1694 mm |
| Weight | 32 kg |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- LCA functional unit
- 1
- Recycled content in %?
- 0
- CO2 footprint year of calculation
- 2026
- LCA validity (in years)
- 1
- CO2 footprint calculation method product
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
- CO2 footprint system boundaries
- Cradle-to-gate
PCF Lifecycle Breakdown
PCF Lifecycle Breakdown501.58kg CO₂e
| LCA Raw Material Extraction & Processing | 80.5% |
| LCA packaging production | 0.5% |
| LCA Product Manufacturing | 16.5% |
| LCA Inbound and Outbound Transportation | 2.5% |
Scoring System
More about our sustainability approach.
3.0/5.9Overall score
| Criteria | Weighting | Score |
|---|---|---|
 Climate protection | 30% | 2.2 |
 Circulatory economy | 30% | 3.9 |
 Biodiversity | 25% | 2.0 |
 Economic efficiency | 10% | 3.4 |
 Innovation | 5% | 3.9 |
