Ref.: 539897 49

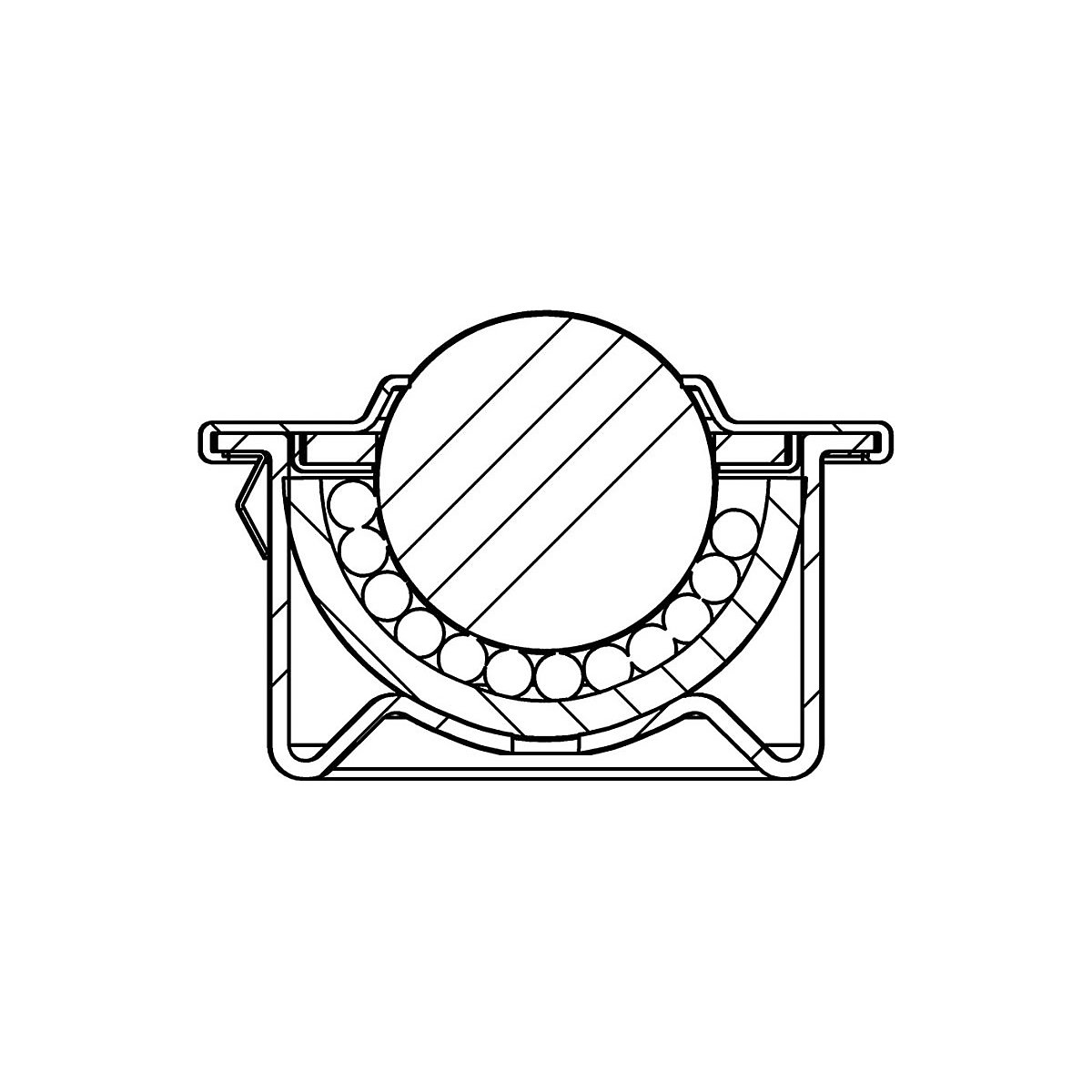

Ball unit with flange and clip – Schulz Stanztechnik stainless steel ball

Ball unit with flange and clip – Schulz Stanztechnik

ball Ø 15.88 mm, effective load 50 kg

Ball diameter [mm]
£18.50
Price / item (Excl. VAT)
£370.00
Total (Excl. VAT)
Delivery time: 4 Week delivery
Product description
  • Integrated fastening clip
  • Clip compensates play in the mounting hole
  • High quality workmanship

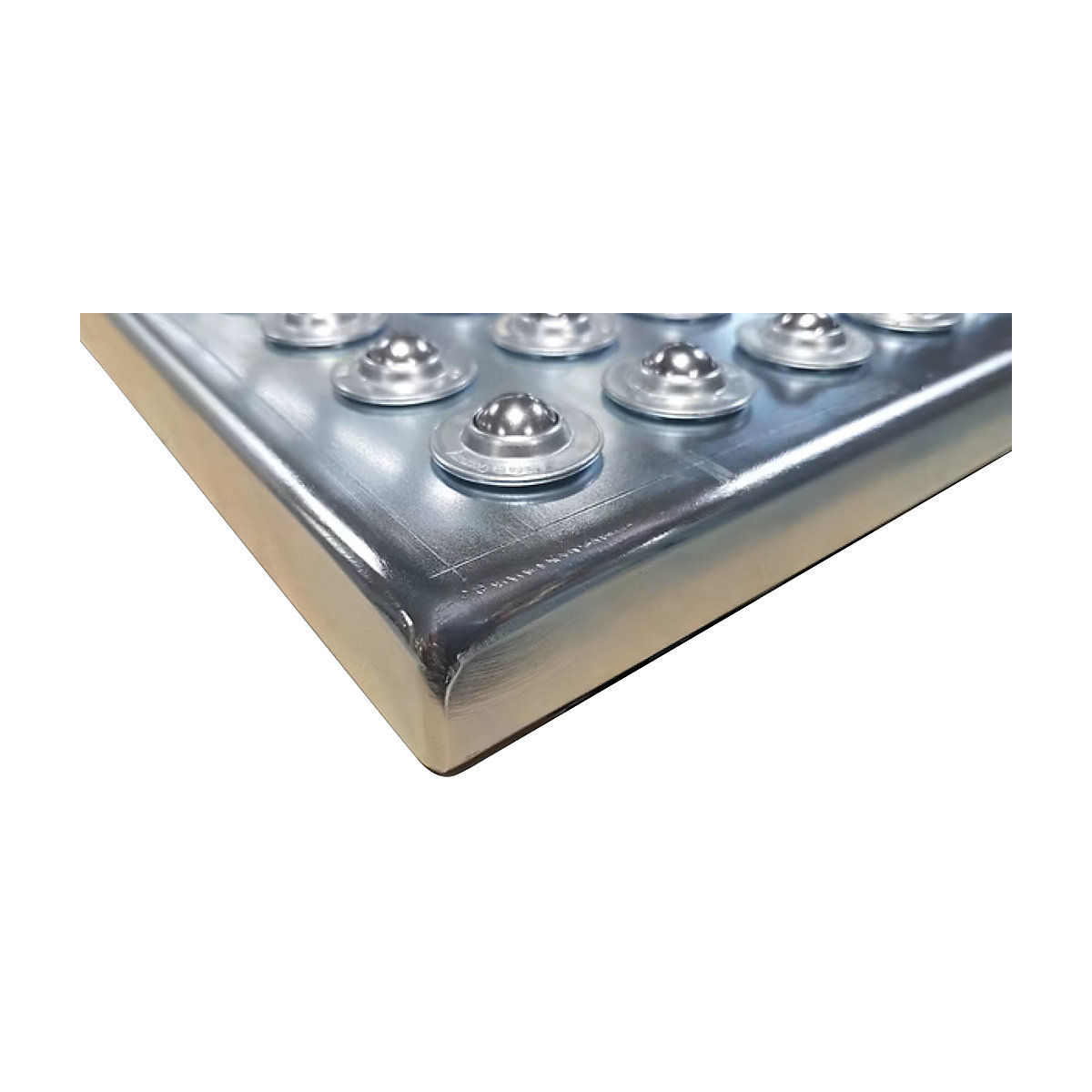

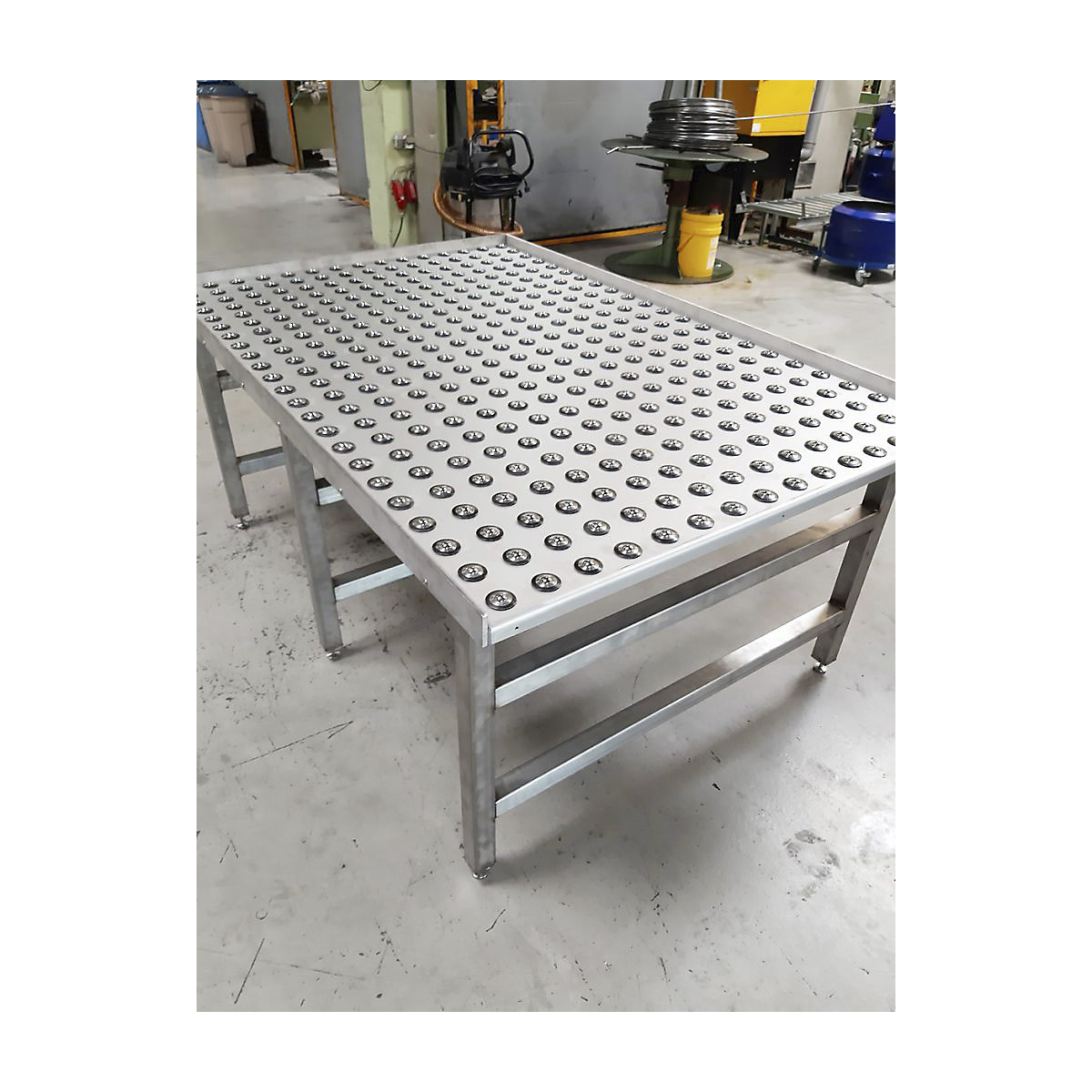

These high quality ball units are suitable for transporting products and goods which require the option of being moved horizontally to all sides and being rotated around the vertical axis. They guarantee low friction transport of materials on conveyor systems when a high load bearing capacity is required. A change of direction can be realised quickly. All ball units in electrolytically zinc plated sheet steel housings. Our ball units are characterised by high temperature tolerance and impact resistance.

This is how to find the right ball unit to suit the load:
Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit

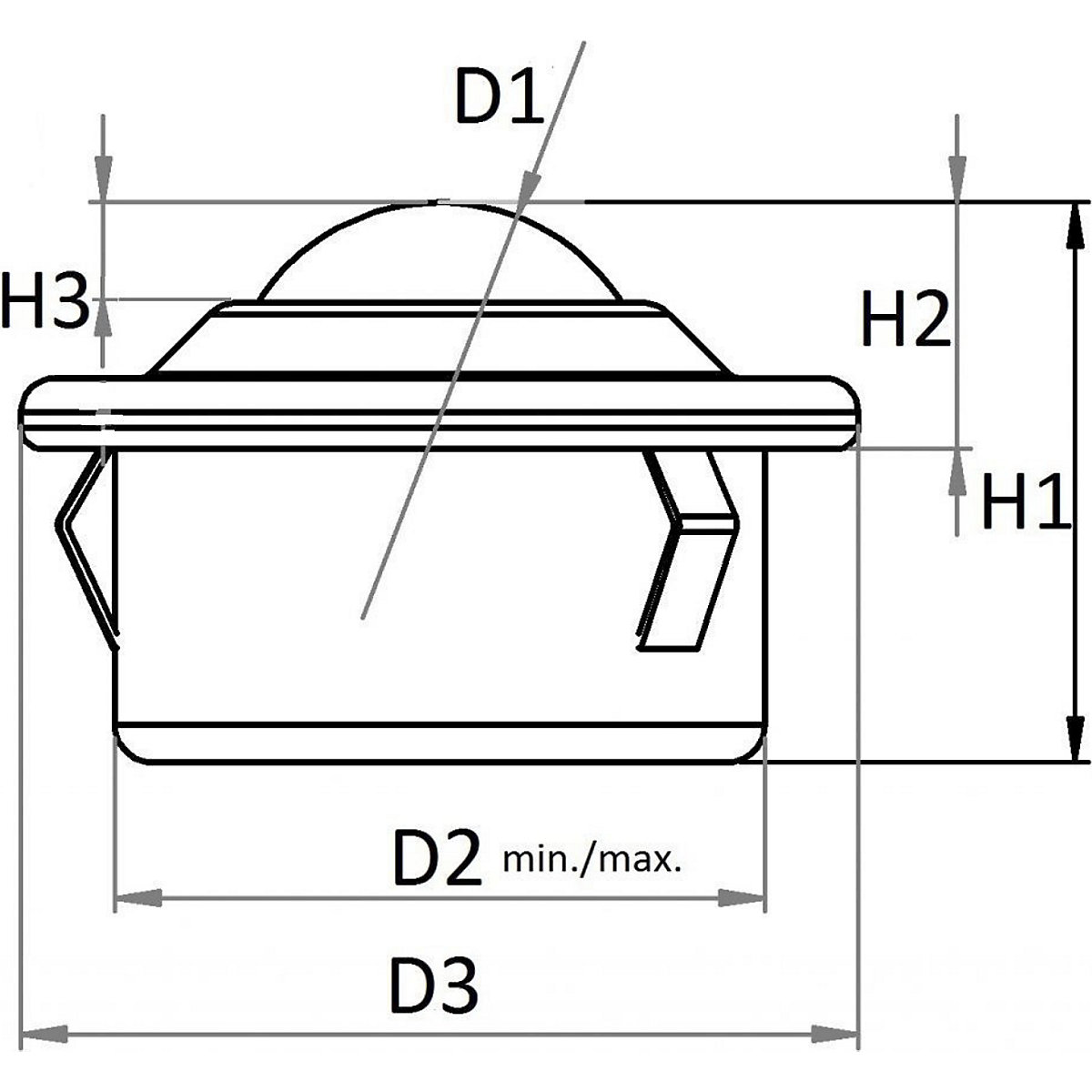

Technical data
Roller materialstainless steel
Housing materialcold rolled, non-alloy steel 1.0330
Product typeball units
Suppliedassembled
Ball diameter15.88 mm
Effective load50 kg
Overall height21 mm
Housing diameter24.8 – 26 mm
Ball protrusion above table plane6.5 mm
Flange diameter31 mm
Installation height9.5 mm
Weight0.039 kg
