RAU – Add-on drawer unit height 545 mm, 3 drawers

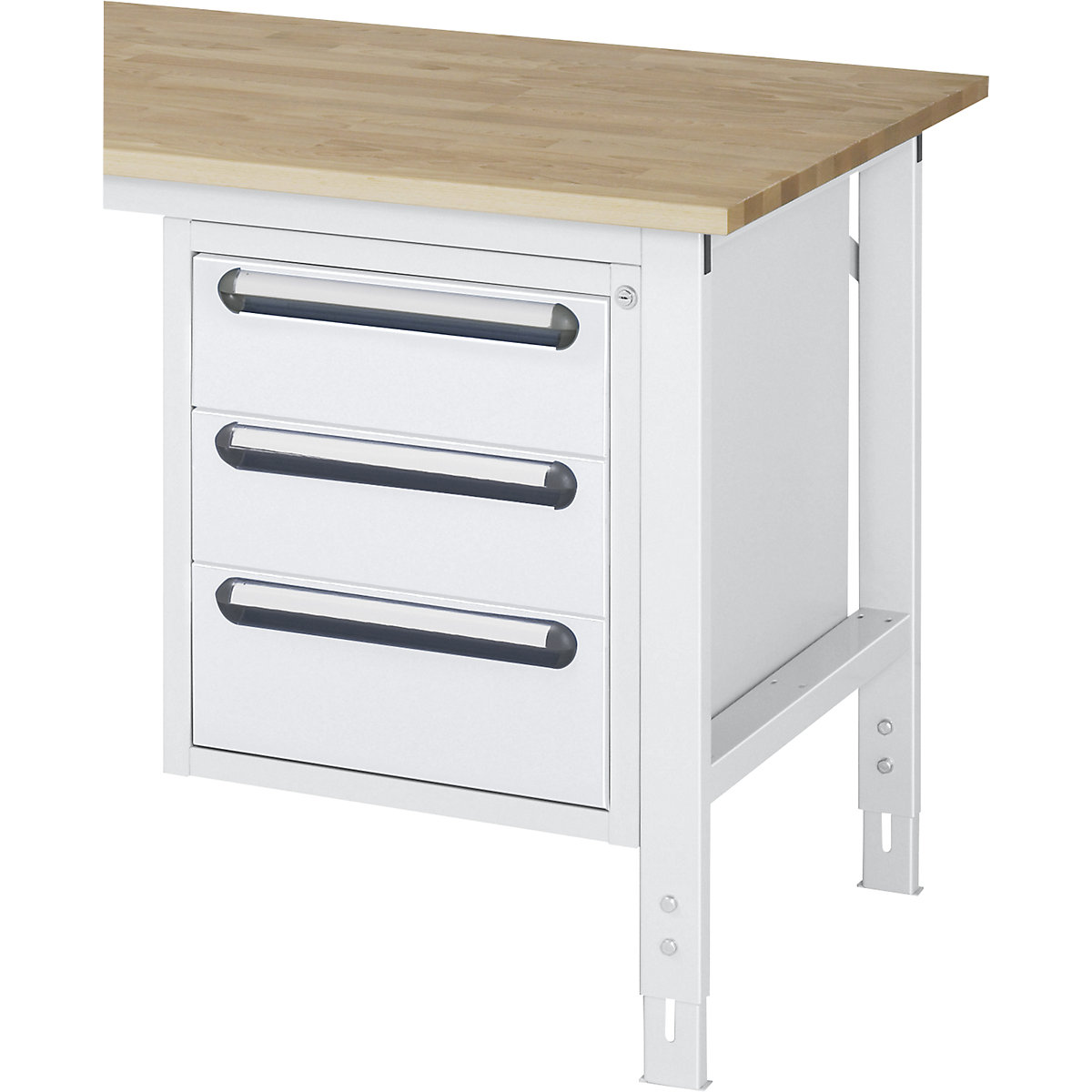

RAU – Add-on drawer unit, height 545 mm, 3 drawers, light grey
Price / items (Excl. VAT)

Product description
Drawers on precision slide rails, 90 % extendable. Max. load 35 kg each. Internal dims. WxD 390 x 560 mm. Central locking.
Please note: a base container 545 mm high or a mobile pedestal cannot be fitted/pushed underneath if the work table is equipped with a shelf (accessory).
Technical data
Height545 mm
Width490 mm
Depth600 mm
Max. drawer load35 kg
Number of drawers3 pcs.
Drawer height2 x 150 mm
1 x 180 mm
Drawer extension90%
Body colourlight grey RAL 7035
Materialsheet steel, powder coated
Drawer guidegliding guide
Lock typecentral locking
Internal drawer dimensions390 x 560 mm
Weight33 kg
Product typeworkstation systems
