Drawer base cupboard with 4 drawers

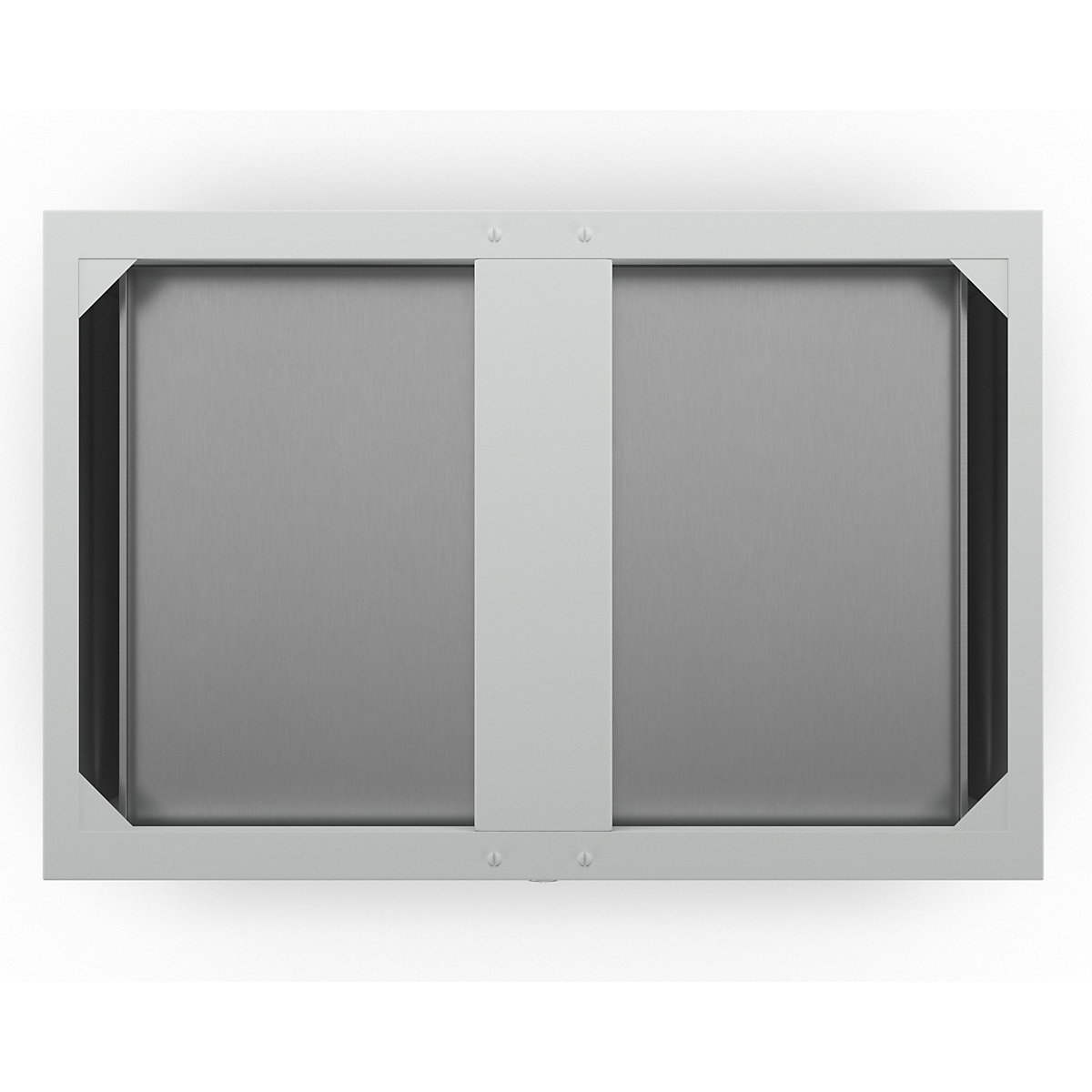

  • Open at the top – please select worktop separately
Ref.: 453104 49

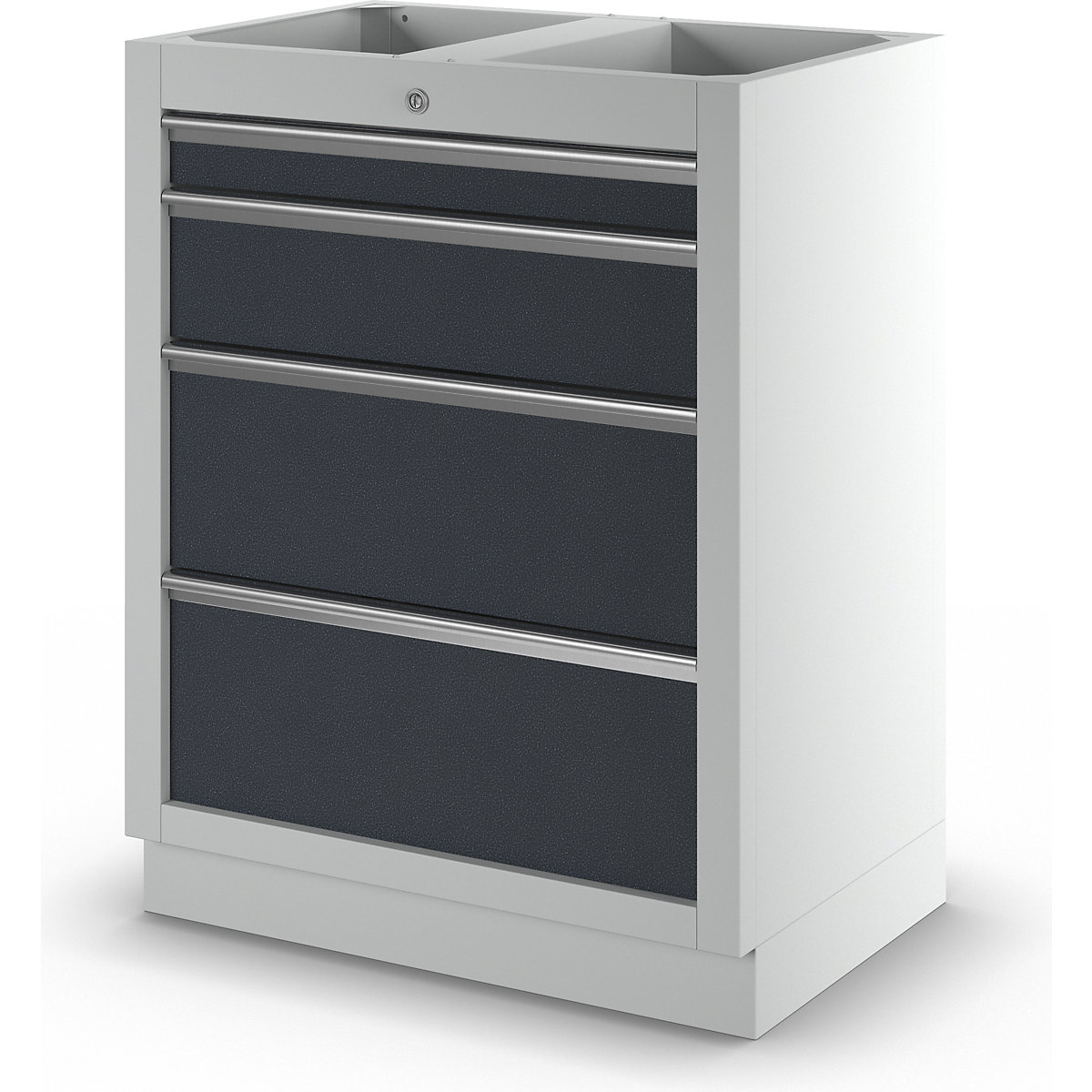

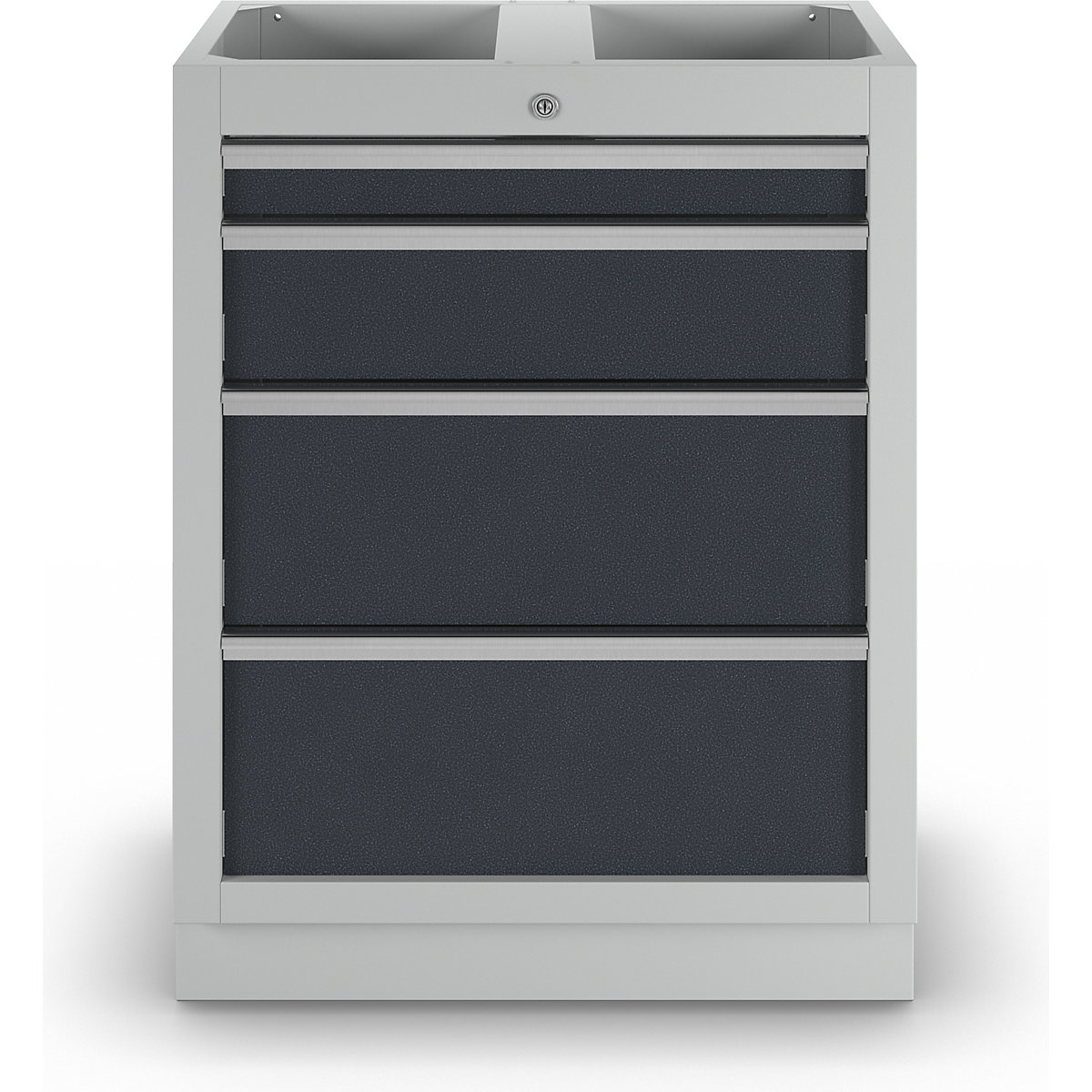

Drawer base cupboard, with 4 drawers, HxWxD 910 x 680 x 460 mm
Only 9 available
Price / items (Plus VAT)
£229.00

Product description
Powder coated steel construction. Body in light grey RAL 7035, fronts in charcoal RAL 7016. Ball bearing mounted telescopic guides, 100% extendable. Max. drawer load 35 kg. Upper side without wooden panel.
HxWxD 910 x 680 x 460 mm.
Note: The cupboard housing is open at the top. A multiplex worktop – to suit the length of the workstation – needs to be ordered separately (see Combinations).

The workshop of your dreams is just 5 steps away

1. Choose the number of base cupboards
All cabinets with open housing lid. Base unit below multiplex or stainless steel worktop. Can also be used individually in combination with a 680 mm wide worktop.
2. Choose the number of perforated panels and connectors
1 perforated panel per base cupboard possible. Several perforated panels are connected using connecting elements and installed on the base cupboard. Perforated panels that end to the left of right of the wall cupboard are fitted with an end connecting element.
3. Choose the worktop
For mounting above 1, 2 or 3 base cupboards.
4. Choose the number of wall mounted cupboards
One wall mounted cupboard can be mounted on each perforated panel.
5. Choose the full height cupboards
Single or double door full height cupboards can be mounted on the left or right side of the wall cupboard respectively. When connected to a perforated panel, a connecting element is required.
This item is a component of a modular workshop cupboard system. Put together your very own workshop of your dreams, or order a preconfigured complete offer. All items can be found under Combinations.
  • Open at the top – please select worktop separately
Technical data
Height910 mm
Width680 mm
Depth460 mm
Max. drawer load35 kg
Number of drawers4 pcs.
Drawer height1 x 74 mm
1 x 153 mm
2 x 232 mm
Drawer extension100%
Body colourlight grey RAL 7035
Front colourcharcoal RAL 7016
Materialsteel frame construction, powder coated
Drawer guidewith drawers on ball bearing telescopic runners
Weight42 kg
Max. shelf load35 kg
Suppliedflat pack
