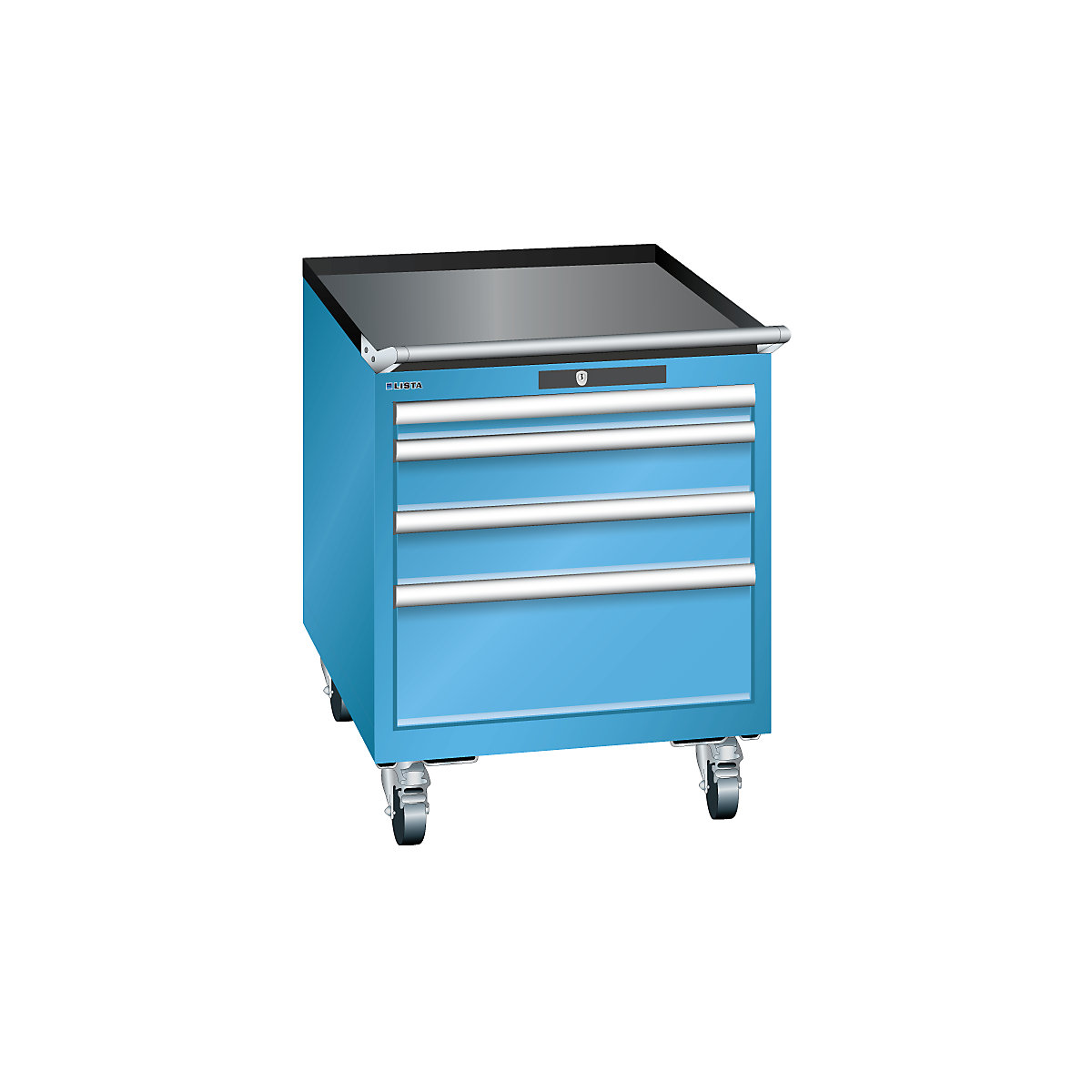

LISTA – Drawer cupboard, width 564 mm, mobile 4 drawers, HxD 723 x 725 mm

LISTA – Drawer cupboard, width 564 mm, mobile, 4 drawers, HxD 723 x 725 mm, light grey
Price / items (Excl. VAT)

Product description
Drawer cupboard paintwork:
Impact resistant and hardwearing surface due to environmentally friendly powder coating.

Paintwork inside drawers:
Full surface corrosion protection due to electro-deposition immersion painting, dove grey, NCS S 4502-B.

Very hardwearing due to precise and sturdy construction using high quality, welded sheet steel, max. load up to 4 tonnes. Tight closing drawer construction provides protection from dust and liquids.

Mobile equipment

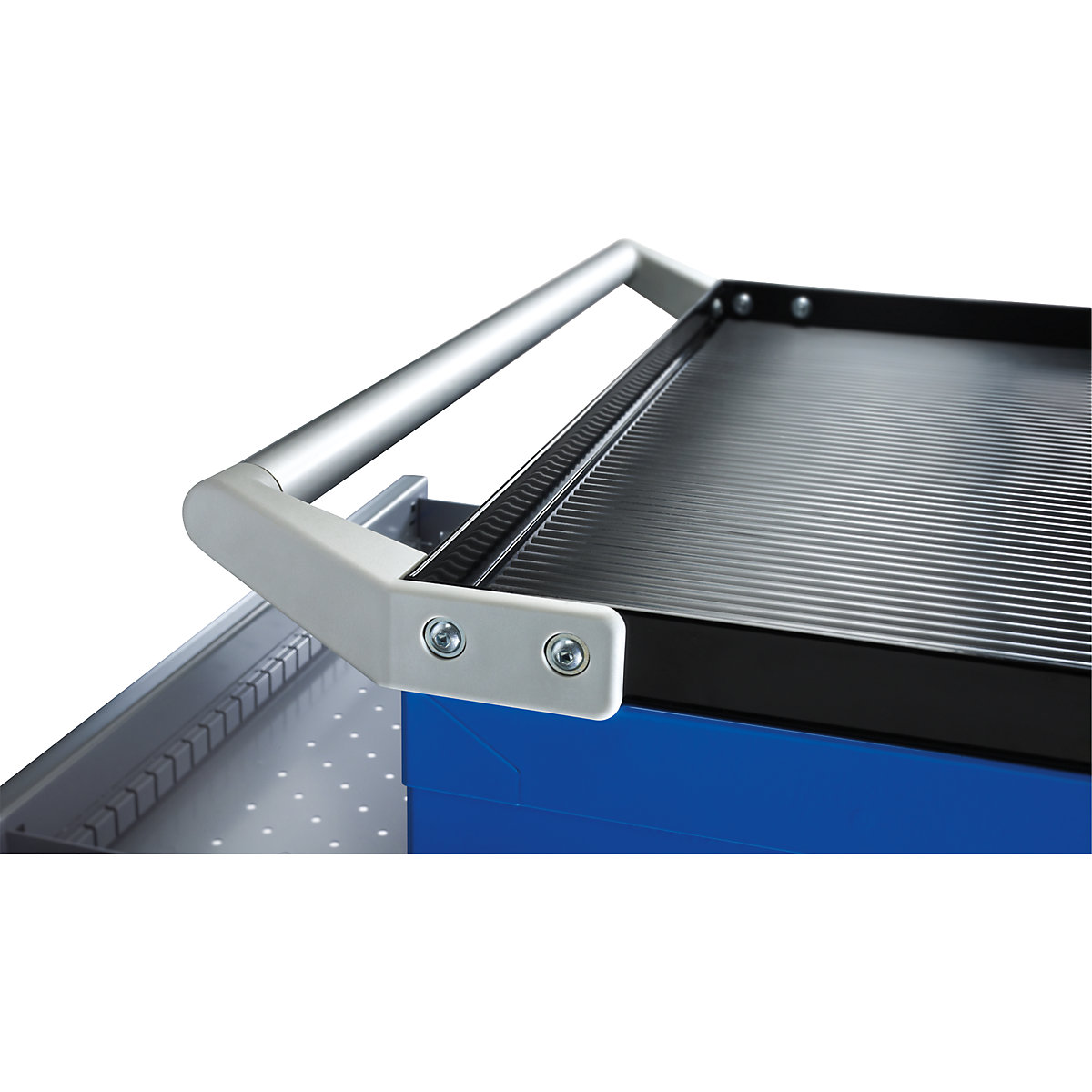

Standard extension units: 1 four-sided raised edges including ribbed mat, 1 push bar, 1 pair of castor holders with 4 nylon castors Ø 100 mm (2 swivel castors with wheel stops, 2 fixed castors), drawer pull-out stop on right, height of raised edge incl. push rod 53 mm, height of pair of castor holders 137 mm, max. load of castors 400 kg. Direction of travel: lengthwise.

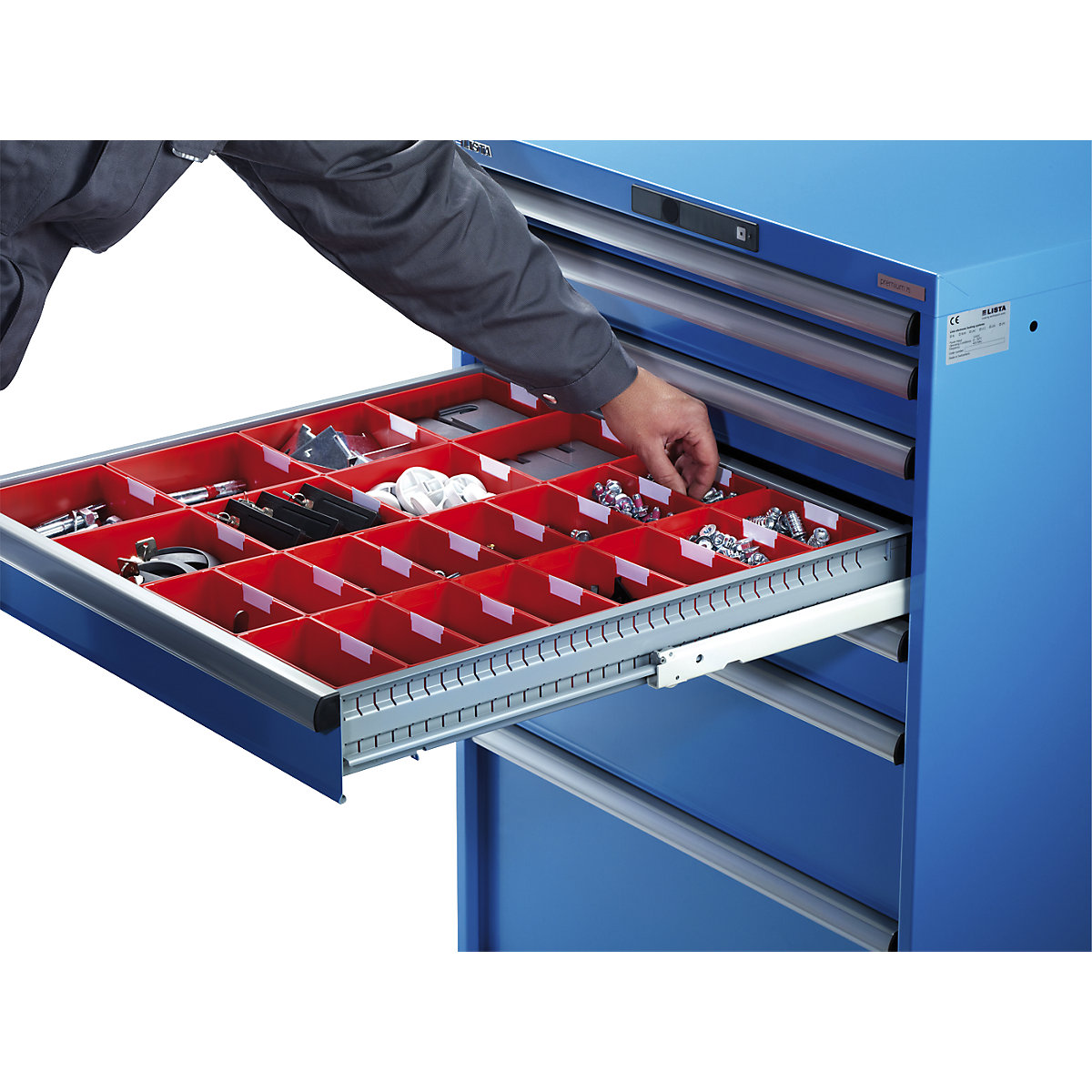

Individual drawer lock with lift-out protection, perfect usability due to 100% utilisation of space and free choice of partition material.

Clearance height: 450 mm.

Drawer WxD 459 x 612 mm, arrangement of front heights / effective heights: 50 / 32.5, 100 / 82.5, 100 / 82.5, 200 / 182.5 mm.
Technical data
Height723 mm
Width564 mm
Depth725 mm
Max. drawer load75 kg
Number of drawers4 pcs.
Drawer height1 x 50, 2 x 100, 1 x 200 mm
Drawer extension100%
Fittingsindividual pull-out stop
Materialwelded sheet steel

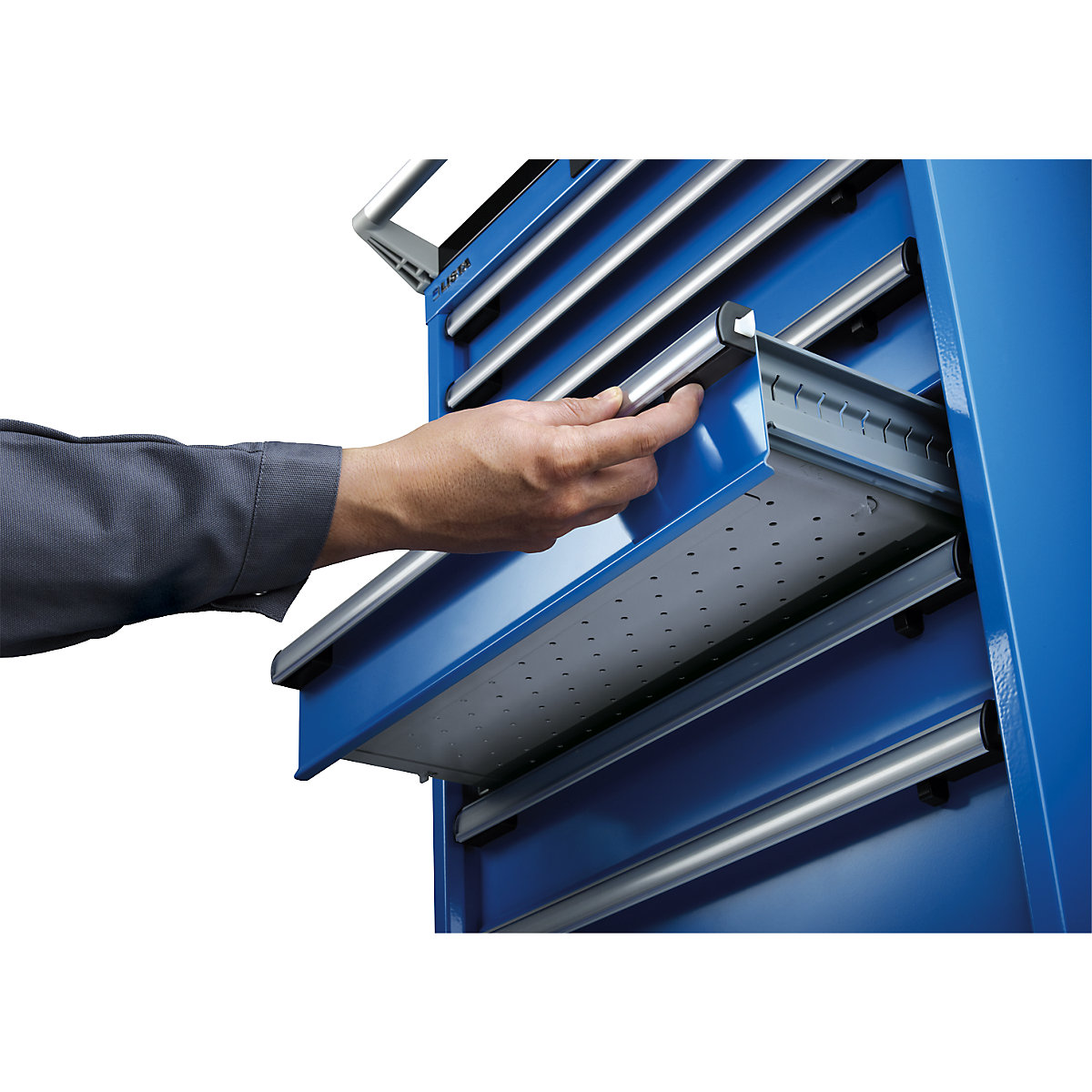

Drawer guidedifferential guide rails without cross beams
Lock typeKEY lock (individual keys) with central locking and replaceable cylinder, incl. 2 keys with key number
Internal drawer dimensions459 x 612 mm

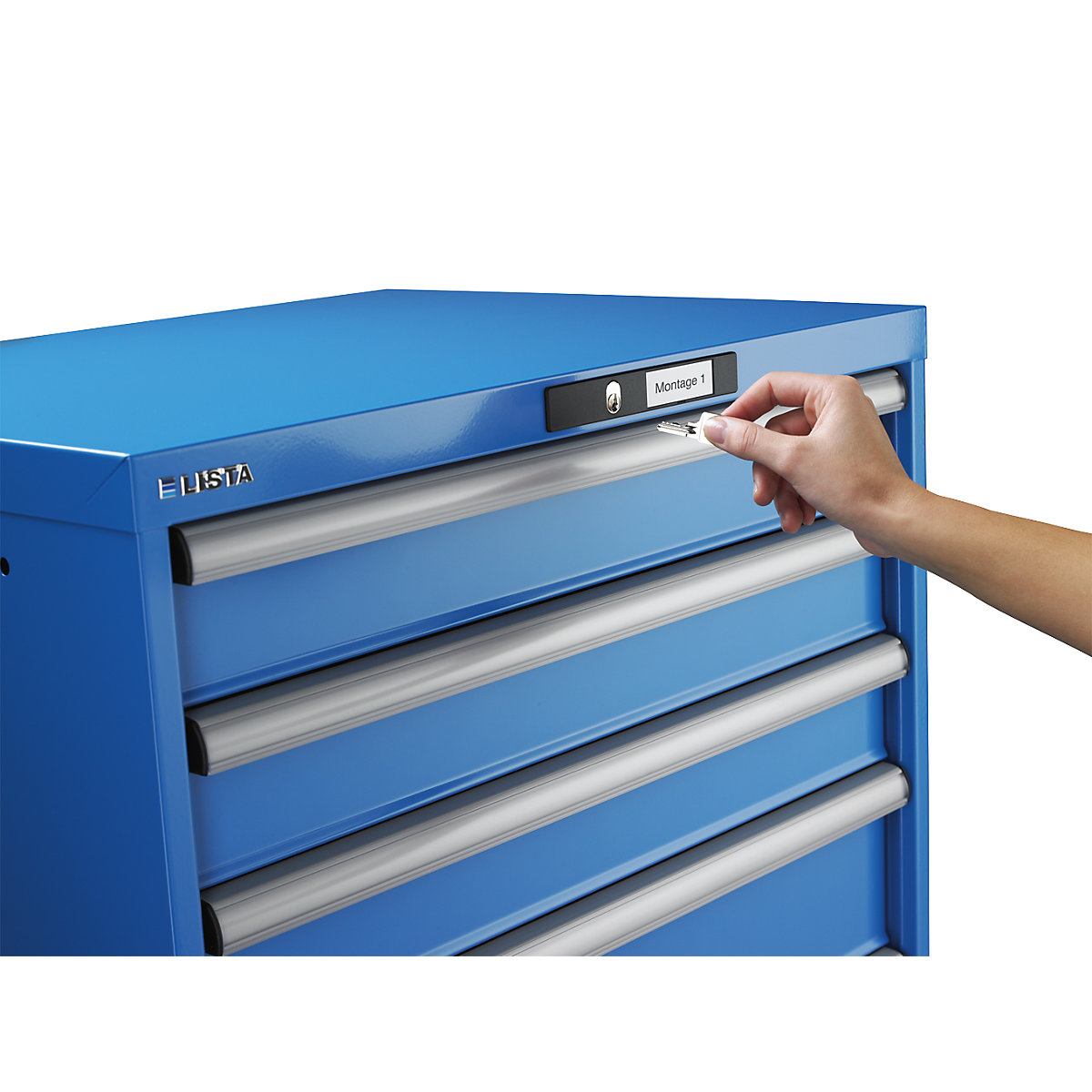

Featurecan be labelled
Overall max. load4000 kg

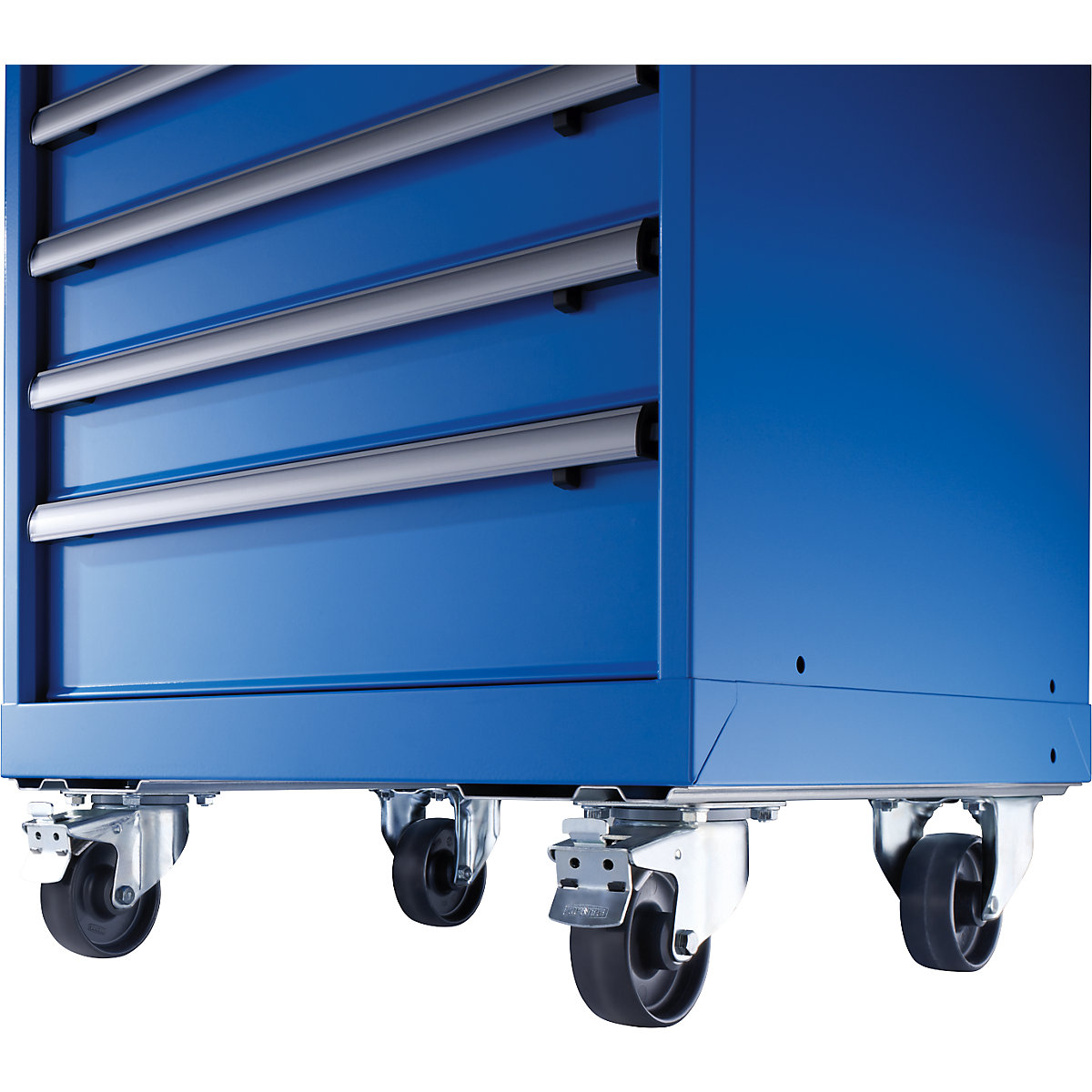

Wheel fittings2 swivel castors with wheel stop, 2 fixed castors
Weight80.03 kg
Product typeworkshop drawer cupboards
