Ref.: 568431 49

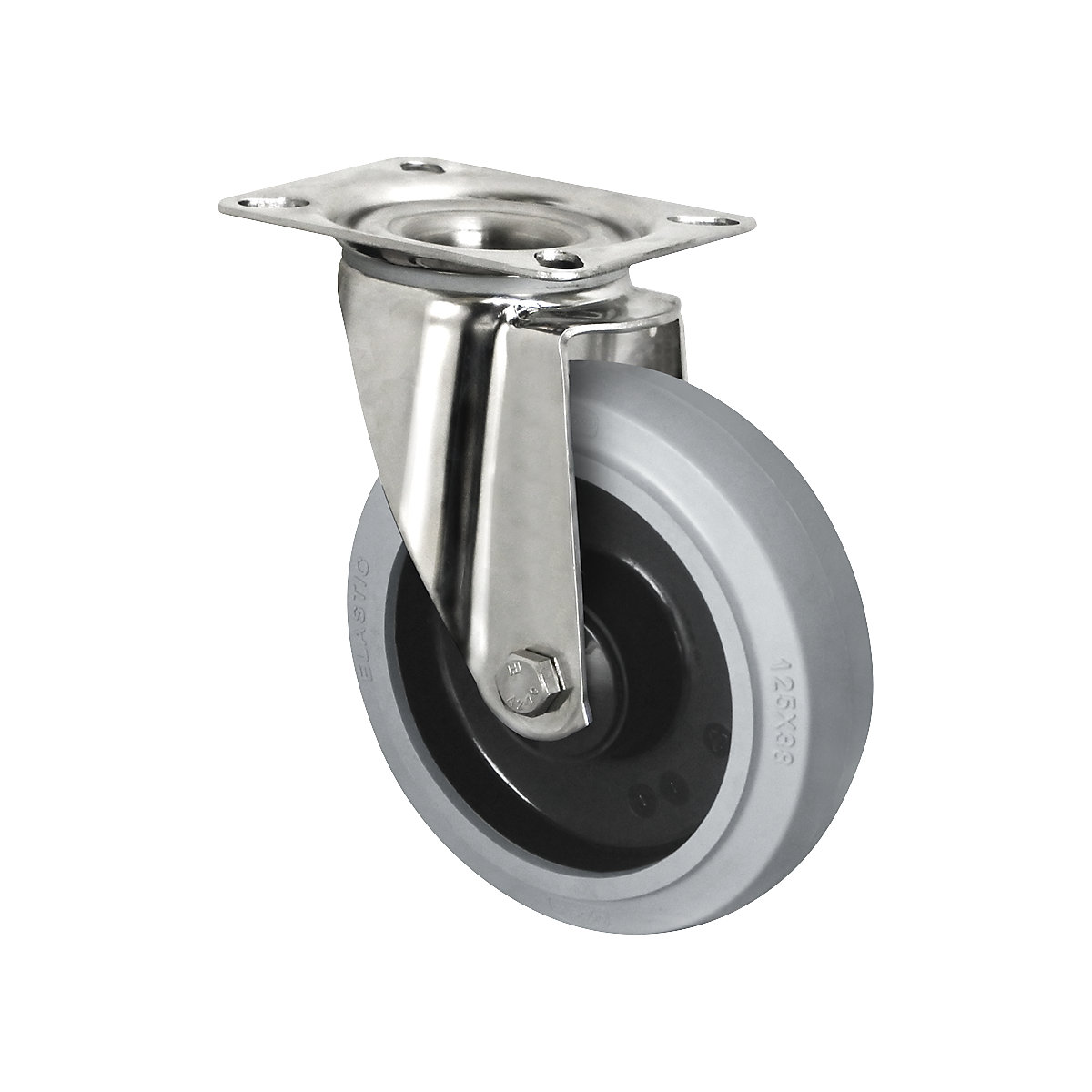

Elastic tyres on nylon rim, stainless steel casing wheel Ø x width 100 x 35 mm, 2+ items
(1)
swivel castor, roller bearings
Structure
Wheel diameter [mm]
Type of mounting
Max. load at 4 km/h [kg]
Wheel bearing
Ref.: 568431 49
Elastic tyres on nylon rim, stainless steel casing wheel Ø x width 100 x 35 mm, 2+ items
(1)
swivel castor, roller bearings
swivel castor, roller bearings
High maximum load
Low rolling resistance
Non-marking
Score: 2.0/5.9Structure
Wheel diameter [mm]
Type of mounting
Max. load at 4 km/h [kg]
Wheel bearing
£33.00
Price / item (Excl. VAT)
Total (Excl. VAT)
£66.00
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£33.00
Price / item (Excl. VAT)
£33.00
Price / item (Excl. VAT)
Total (Excl. VAT)
£66.00
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- With stainless steel housing
- Compatible with all floors, non-marking, quiet, smooth running
- High max. load, popular for use in the event sector
- Hardness 65 Shore A
- Temperature resistant from –20 °C to +80 °C
Housing made of stainless steel (AISI 304). Swivel bearing with dual turntable bearing.
Technical data
| Model | stainless steel rollers |
|---|---|
| Wheel material | rubber – solid rubber – elastic |
| Material of rim | nylon |
| Housing material | stainless steel |
| Temperature resistance | –20 °C to +80 °C |
| Shore hardness | 65 A |
| Supplied | assembled |
| Structure | swivel castor |
| Wheel diameter | 100 mm |
| Type of mounting | with top plate |
| Max. load at 4 km/h | 150 kg |
| Wheel bearing | roller bearing |
| Swivel castor offset | 36 mm |
| Screw hole diameter | 8 mm |
| Hub length | 40 mm |
| Hub bore | 12 mm |
| Screw hole spacing | 80/77 x 60 mm |
| Swivel castor plate dimensions | 96 x 80 mm |
| Fixed castor plate dimensions | 96 x 80 mm |
| Overall height | 128 mm |
| Wheel width | 35 mm |
| Product type | swivel castors |
| Weight | 0.62 kg |
| Manufacturer / EU responsible Person (GPSR) |
